Model # 545472721 Official Sears 26" 10-speed lightweight sunbird bicycle

Here are the diagrams and repair parts for Official Sears 545472721 26" 10-speed lightweight sunbird bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

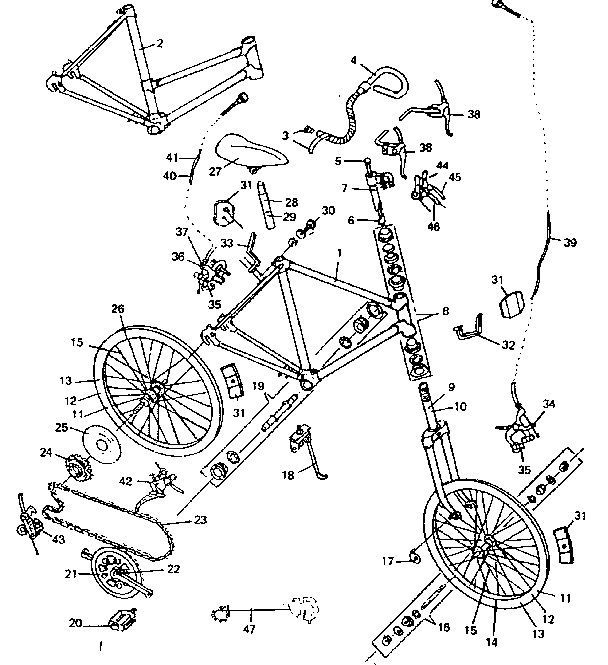

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Columbia Removal Tool 103006

#NI

All parts diagram

Columbia removal tool

Part #103006

The manufacturer no longer makes this part, and there's no substitute part

Ming Ta Bicycle Brake Shoe Set 104002
#35

Unit parts diagram

Ming ta bicycle brake shoe set

Part #104002

The manufacturer no longer makes this part, and there's no substitute part

Western Auto Rr Refl Brkt 082010
#33

Unit parts diagram

Western auto rr refl brkt

Part #082010

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Spoke/nipple 049016
#15

Unit parts diagram

Lifestyler spoke/nipple

Part #049016

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Tire 040002
#11

Unit parts diagram

Craftsman tire

Part #040002

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Rear Wheel Assembly 045502
#26

Unit parts diagram

Lifestyler rear wheel assembly

Part #045502

The manufacturer no longer makes this part, and there's no substitute part

Tool 103007
#47

Unit parts diagram

Tool

Part #103007

The manufacturer no longer makes this part, and there's no substitute part

Drlr Cbl/csg 087505
#46

Unit parts diagram

Drlr cbl/csg

Part #087505

The manufacturer no longer makes this part, and there's no substitute part

Spkt Cluster 075001
#24

Unit parts diagram

Spkt cluster

Part #075001

The manufacturer no longer makes this part, and there's no substitute part

Kickstand 076015
#18

Unit parts diagram

Kickstand

Part #076015

The manufacturer no longer makes this part, and there's no substitute part
