Model # 625342240 Official Kenmore automatic clarifying tank filter

Here are the diagrams and repair parts for Official Kenmore 625342240 automatic clarifying tank filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

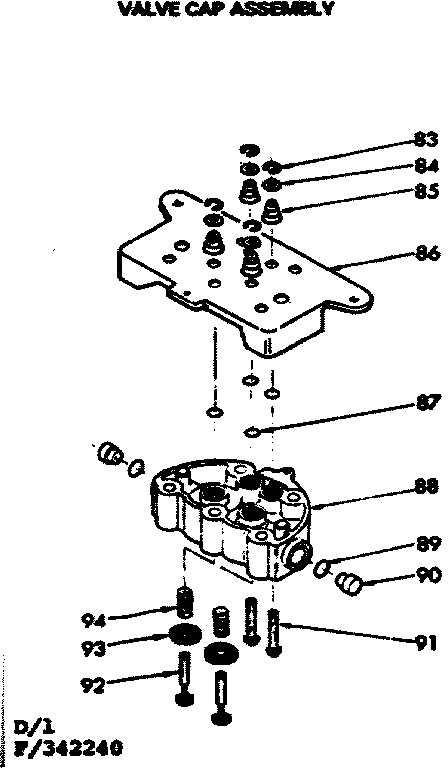

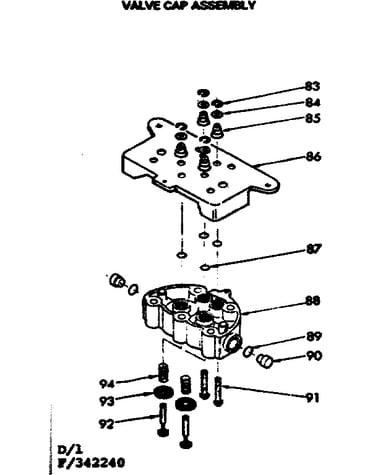

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Gravel 501782
#31

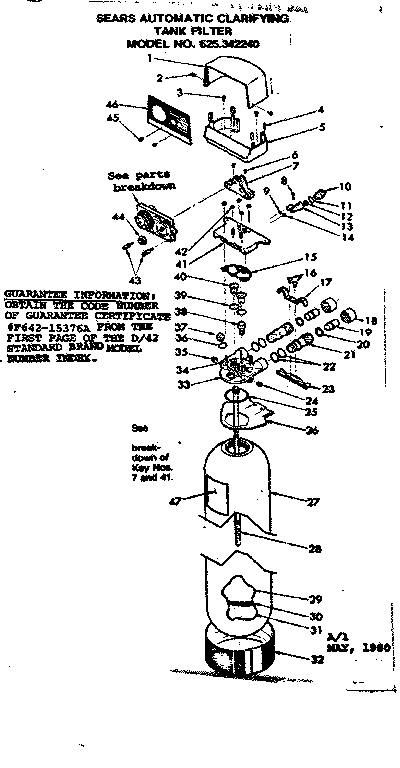

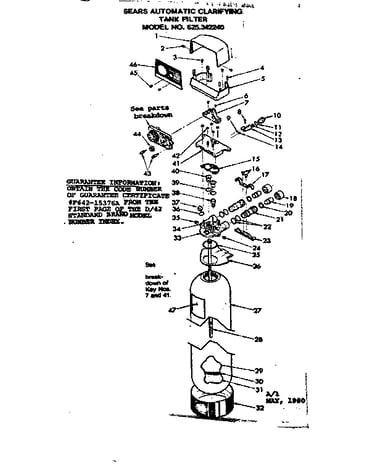

Unit parts diagram

Gravel

Part #501782

Replaced by #7124415

?
Manufacturer substitution
This part replaces 501782. Substitute parts can look different from the original.
$30.58 |
16% OFF Phone Price : $36.58
In Stock
Washer 900570
#20

Unit parts diagram

Washer

Part #900570

Replaced by #7170335

?
Manufacturer substitution
This part replaces 900570. Substitute parts can look different from the original.
This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Water Filtration System Filtering Sand, 10-lb 501783
#30

Unit parts diagram

Water filtration system filtering sand, 10-lb

Part #501783

Replaced by #0501783

?
Manufacturer substitution
This part replaces 501783. Substitute parts can look different from the original.
$30.59 |
16% OFF Phone Price : $36.59
In Stock
Tube 507615
#19

Unit parts diagram

Tube

Part #507615

Replaced by #0507615

?
Manufacturer substitution
This part replaces 507615. Substitute parts can look different from the original.
This item is not returnable
$19.86 |
9% OFF Phone Price : $21.86
In Stock
Flow Washer 509537
#12

Unit parts diagram

Flow washer

Part #509537

Replaced by #0509537

?
Manufacturer substitution
This part replaces 509537. Substitute parts can look different from the original.
$15.71
In Stock
Ring 900287
#81

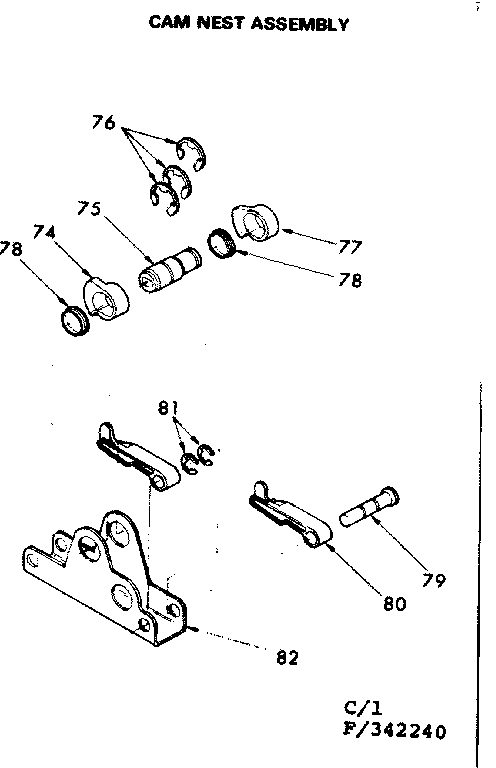

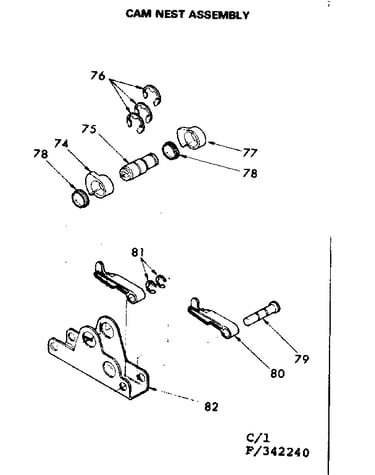

Cam nest assembly diagram

Ring

Part #900287

This item is not returnable
$2.99
In Stock
Bushing 503287
#57

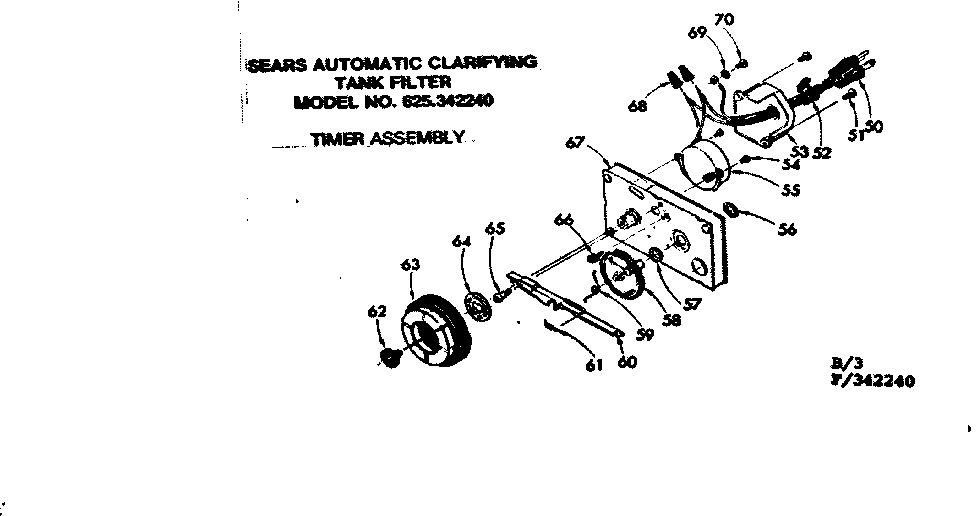

Timer assembly diagram

Bushing

Part #503287

This item is not returnable
$2.99
In Stock
Screw 900290
#54

Timer assembly diagram

Screw

Part #900290

This item is not returnable
$2.99
In Stock
Twist-on Wire Connector 501653
#68

Timer assembly diagram

Twist-on wire connector

Part #501653

Replaced by #STD375005

?
Manufacturer substitution
This part replaces 501653. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Nut 9009600
#4

Unit parts diagram

Nut

Part #9009600

Replaced by #0900596

?
Manufacturer substitution
This part replaces 9009600. Substitute parts can look different from the original.
$9.83
In Stock
