Model # 13196461 Official Craftsman 32" riding lawn mower
Here are the diagrams and repair parts for Official Craftsman 13196461 32" riding lawn mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part

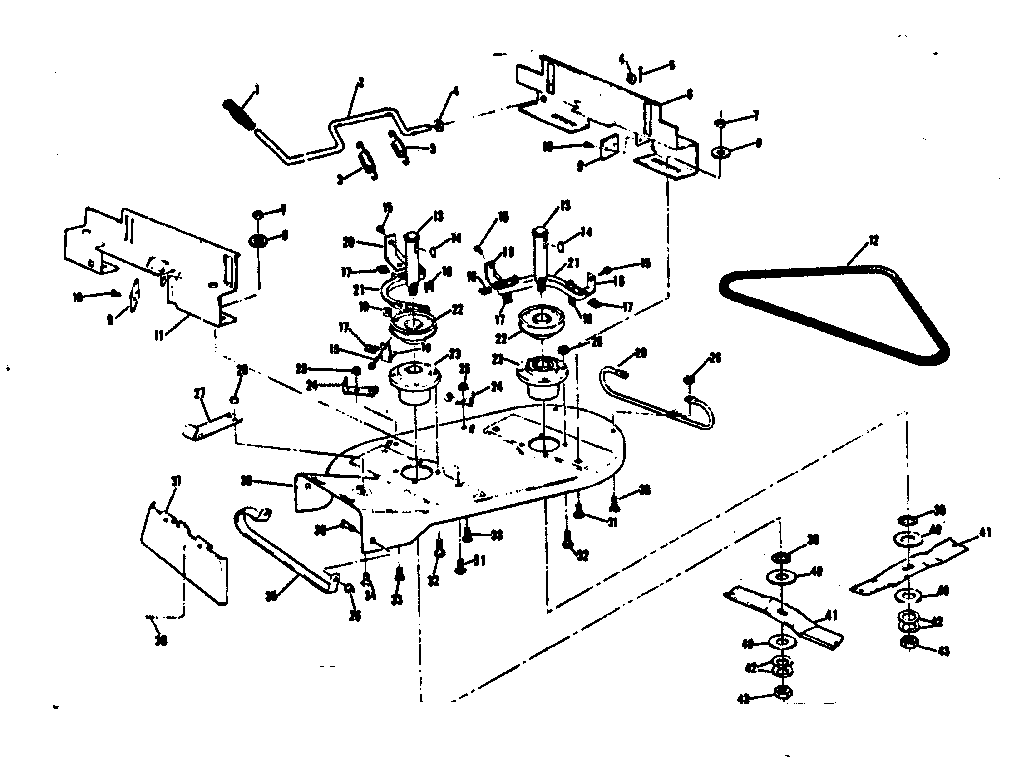

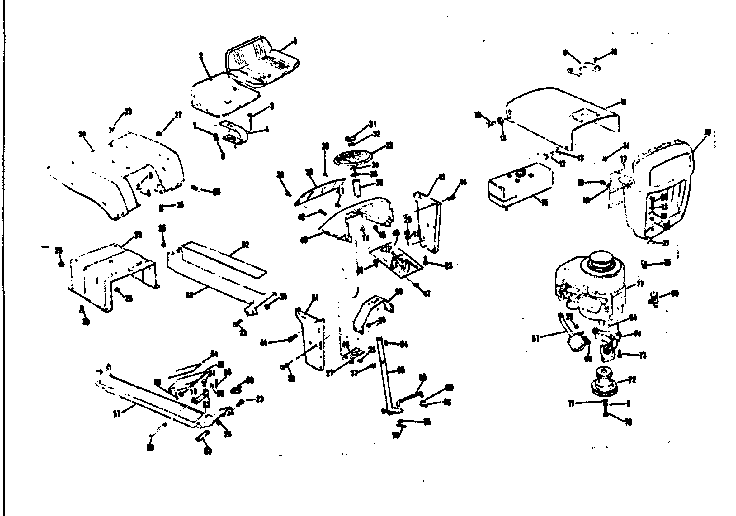

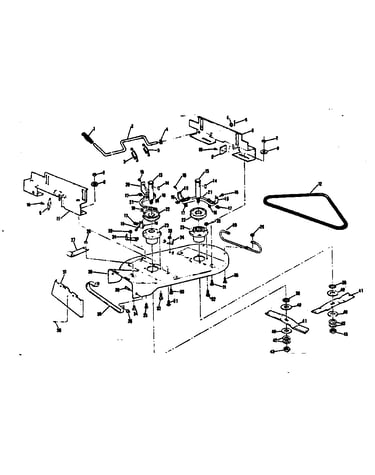

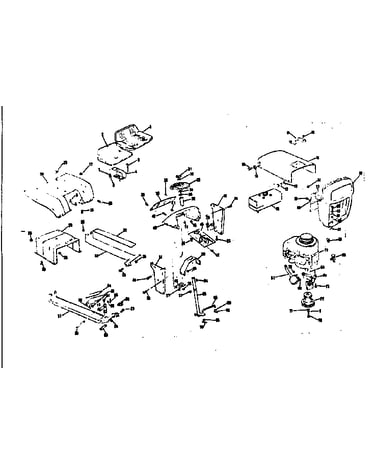

SELECT DIAGRAM
Browse Parts for13196461 Riding Mowers & Tractors
- #47

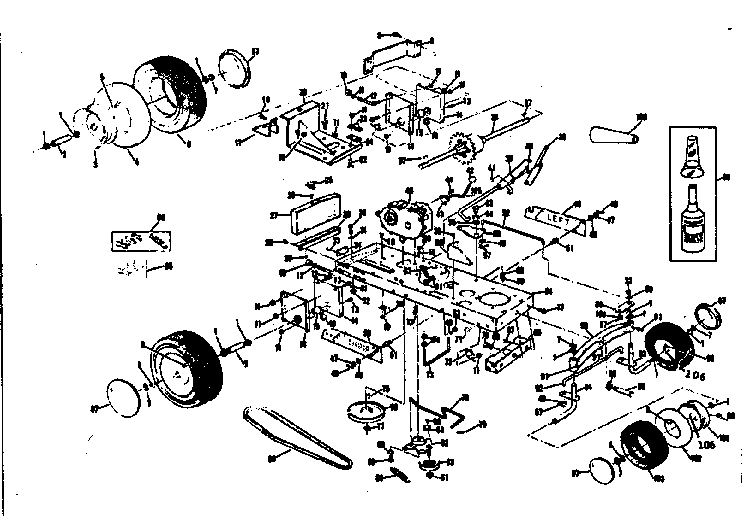

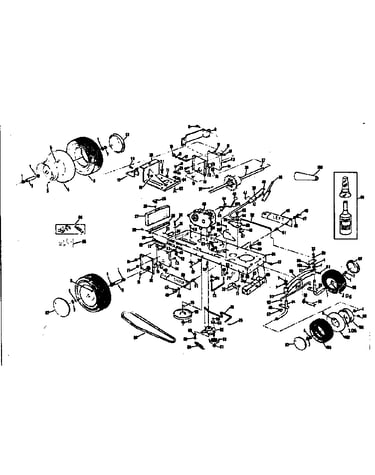

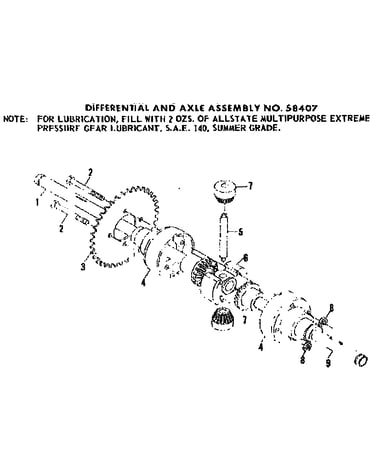

Drive assembly diagram
WasherPart #61537
Replaced by #596134901
?Manufacturer substitutionThis part replaces 61537. Substitute parts can look different from the original.This item is not returnable$4.56 |16% OFF Phone Price : $5.43In Stock - E-ring
Part #52913
Replaced by #812000029
?Manufacturer substitutionThis part replaces 52913. Substitute parts can look different from the original.This item is not returnable$4.51 |18% OFF Phone Price : $5.51In Stock - Washer
Part #52966
Replaced by #532121749
?Manufacturer substitutionThis part replaces 52966. Substitute parts can look different from the original.This item is not returnable$2.87 |33% OFF Was : $4.31In Stock - #4
Drive assembly diagram
Husqvarna lawn tractor tire inner tubePart #59904
Replaced by #532059904
?Manufacturer substitutionThis part replaces 59904. Substitute parts can look different from the original.$31.55 |14% OFF Phone Price : $36.63In Stock - #5
Drive assembly diagram
Husqvarna lawn tractor tire valve stem capPart #59192
Replaced by #532059192
?Manufacturer substitutionThis part replaces 59192. Substitute parts can look different from the original.$7.20 |12% OFF Phone Price : $8.20In Stock - #91
Drive assembly diagram
FittingPart #62569
Replaced by #532183226
?Manufacturer substitutionThis part replaces 62569. Substitute parts can look different from the original.This item is not returnable$7.20 |12% OFF Phone Price : $8.20In Stock - Bolt
Part #126211
The manufacturer no longer makes this part, and there's no substitute part
- #44
Drive assembly diagram
ScrewPart #792007
Replaced by #792007
?Manufacturer substitutionThis part replaces 792007. Substitute parts can look different from the original.This item is not returnable$4.37In Stock - #30

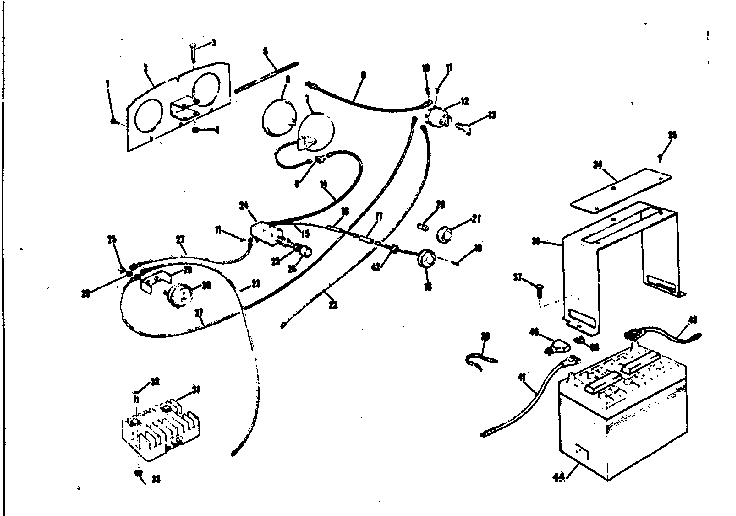

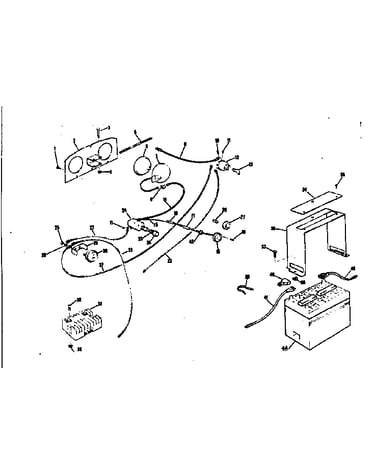

Electrical system diagram
AmmeterPart #58282
Replaced by #532124900
?Manufacturer substitutionThis part replaces 58282. Substitute parts can look different from the original.$104.62In Stock - #15
Drive assembly diagram
BearingPart #62346
Replaced by #583637001
?Manufacturer substitutionThis part replaces 62346. Substitute parts can look different from the original.$11.97In Stock
