CONFIRM THE PART FITS

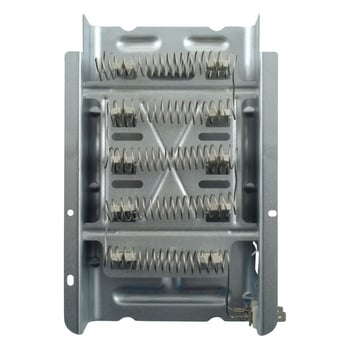

Dryer Element 3403585
Part #3403585
Replaced by #279838
?
Manufacturer substitution
This part replaces 3403585. Substitute parts can look different from the original.
Online Only Price
$50.08 |Â
11% OFFÂ Phone Price : $56.08
In Stock
For ZIP codes near Edit
Part Information
Basic Information
- Part Name: Dryer Heating Element
- Manufacturer: Whirlpool
- Category: Dryer Repair Parts
- Primary Function: This heating element is responsible for generating the heat necessary to dry clothes in an electric dryer.
Technical Specifications
- Dimensions: Typically around 10 inches in length and 6 inches in width, though size may vary slightly by model.
- Power Rating: Generally rated at 5400 watts at 240 volts but can vary depending on the dryer model.
- Material: Composed of a coiled wire made from a nickel-chrome alloy (Nichrome) encased in a metal chamber.
Installation & Compatibility
- Compatible Models: Designed to fit a wide range of dryer models from various manufacturers, including certain Whirlpool, Kenmore, Maytag, and Roper models.
- Installation Difficulty: Medium. Replacing the heating element typically requires disassembling the dryer and handling electrical components.
- Tools Required: Screwdriver, nut driver, and possibly a multimeter to test the part before replacement.
Additional Information
The heating element (279838) is a crucial component in electric dryers that generates the heat for drying clothes. Over time, the heating element can burn out or become damaged, leading to a dryer that runs but does not heat up. Replacing this part can resolve common issues such as insufficient heating or no heat produced by the dryer. When installing the new element, ensure all connections are secure and that there is no lint or debris in the heating chamber or exhaust vent, as this can pose a fire hazard. Always disconnect the power before attempting to service the dryer, and consult the dryer's manual or a professional if unsure about the installation process.
Frequently Used Together
- $16.75 |Â11% OFFÂ Phone Price : $18.75
- $19.12 |Â9% OFFÂ Phone Price : $21.12
- $18.96 |Â10% OFFÂ Phone Price : $20.96
- $44.47 |Â12% OFFÂ Phone Price : $50.47
- $14.04 |Â12% OFFÂ Phone Price : $16.04
- $16.46 |Â11% OFFÂ Phone Price : $18.46
- $45.73 |Â12% OFFÂ Phone Price : $51.73
- $46.96 |Â11% OFFÂ Phone Price : $52.96
- $12.18 |Â14% OFFÂ Phone Price : $14.18
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #MED5630TQ0 Maytag dryer | MED5630TQ0 | Bulkhead parts, optional parts (not included) |
| Model #CED126SDW0 Crosley dryer | CED126SDW0 | Bulkhead parts |
| Model #CED126SBW0 Crosley dryer | CED126SBW0 | Bulkhead parts |
| Model #LEN1000HQ1 Whirlpool dryer | LEN1000HQ1 | Bulkhead |
| Model #LEN1000HQ0 Whirlpool dryer | LEN1000HQ0 | Bulkhead |
| Model #11066752500 Kenmore dryer | 11066752500 | Bulkhead parts, optional parts (not included) |
| Model #11068702894 Kenmore dryer | 11068702894 | Drum and heater |
| Model #11066852690 Kenmore dryer | 11066852690 | Bulkhead |
| Model #11067732790 Kenmore dryer | 11067732790 | Bulkhead |
| Model #11061804000 Kenmore dryer | 11061804000 | Bulkhead |
Reviews
Worked perfectly, fitment precise
Easily replaced in less than 10 mins. I did a quick check before final install to make sure this was my root problem. Element heated quickly and I verified functionality which ultimately solved my dryer issue.
Sam, New Hebron, MS
7 people thought this review was helpful.
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
I would buy this product again
Product works great
Jon the main man, Memphis, TN
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Correct part for my kenmore electric dryer
Easy to remove old part and install new part. However, it turns out it was my timer dial. I called my appliance guy after it would heat and then not heat. He deduced the timer was being touchy. Oh well
Monty Burns, Gloucester, MA
3 people thought this review was helpful.
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Perfect!
Perfect replacement part. Fits like a glove and works like a champ
KB, Kerrville Texas
1 person thought this review was helpful.
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Dryer heating element replacement
perfect fit no problems installing simple to replace
Bob D, TN
2 people thought this review was helpful.
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Worked great!
The website was one of the better ones for finding appliance parts. It fit and worked well.
Repairman, St. Louis
1 person thought this review was helpful.
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Junk packaging
Horrible packing job no protection for the sensitive contents I'm out a lot of money having to use the laundry mat
Appliance m, Antigo Wisconsin
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Thermostat was not there. Had to buy new dryer.
Salesman Joe insured me over the phone that tis part included the thermostat. It didn't !!!
Jerry, Lincoln City, OR
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
