CONFIRM THE PART FITS
Part Information
Special details: In an electric dryer, if the timer advances in the timed dry cycle but not the automatic moisture sensing cycle, unplug the dryer and check continuity through the resistor using a multimeter. The resistor connects to the timer through the orange wire. Replace the resistor (part number 279872) if you measure infinite resistance. If the timer still doesn't advance in the moisture sensing cycle after replacing the resistor, replace timer WP3398190.

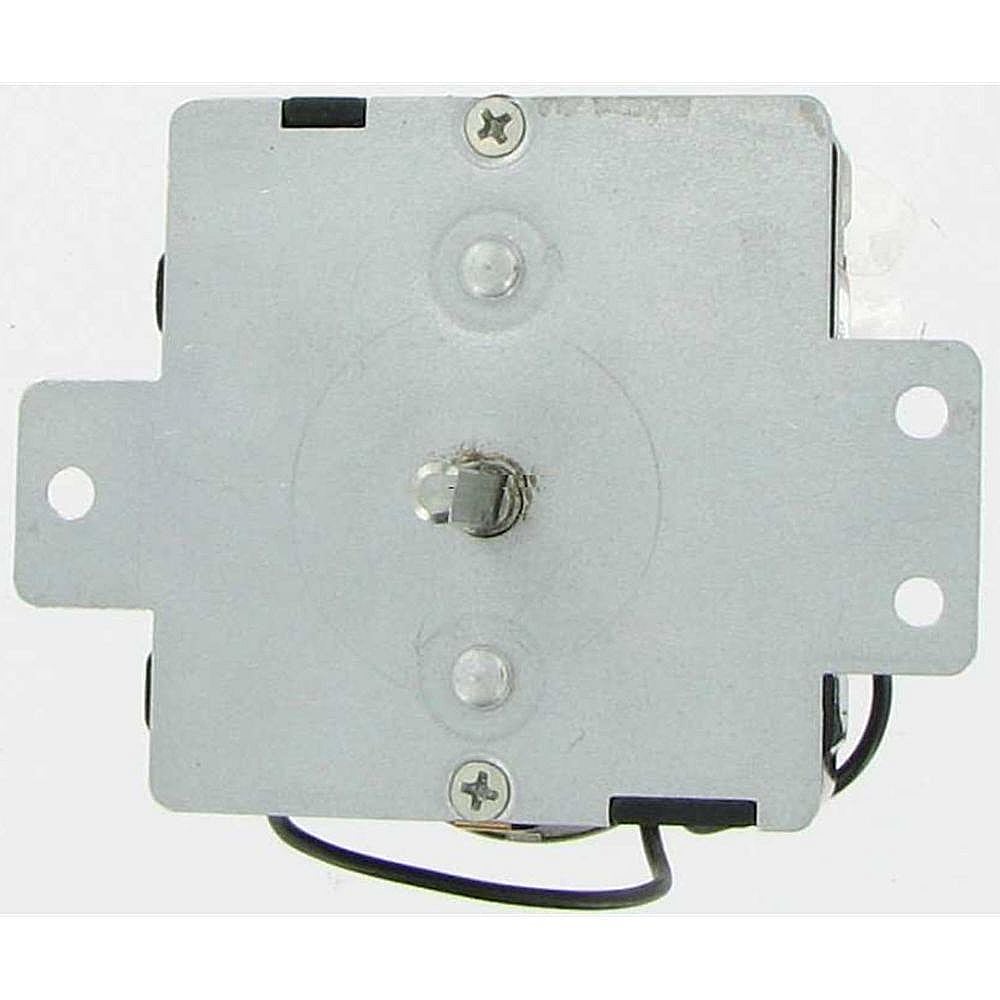

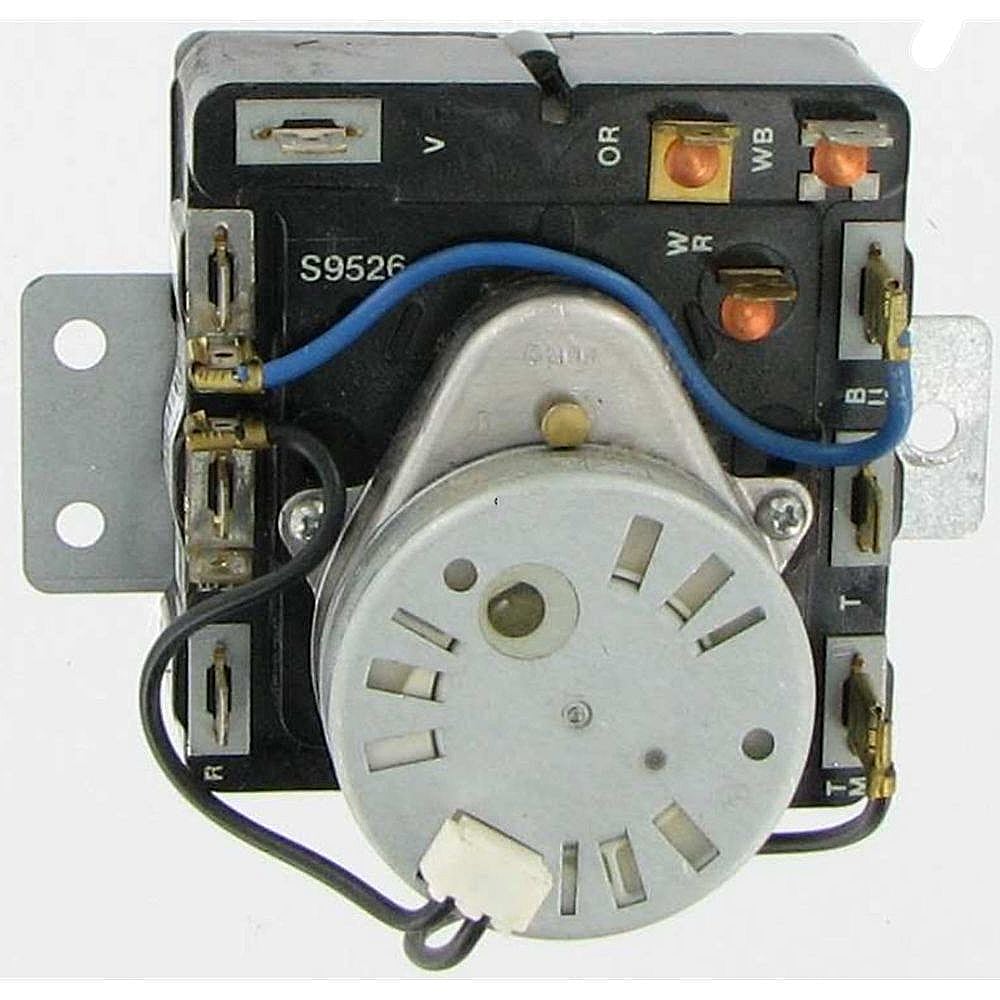

This timer (part number WP3398190) is for dryers.
Timer WP3398190 controls the electrical components and the duration of the dryer cycles.
Unplug the dryer before installing this part. Wear work gloves to protect your hands.
Frequently Used Together
- $35.25 |Â15% OFFÂ Phone Price : $41.25
- $19.12 |Â9% OFFÂ Phone Price : $21.12
- $32.94 |Â15% OFFÂ Phone Price : $38.94
- $43.69 |Â12% OFFÂ Phone Price : $49.69
- $42.62 |Â12% OFFÂ Phone Price : $48.62
- $22.08 |Â21% OFFÂ Phone Price : $28.08
- $40.57 |Â13% OFFÂ Phone Price : $46.57
- $24.95 |Â19% OFFÂ Phone Price : $30.95
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #11096566200 Kenmore dryer | 11096566200 | Top and console |
Model #11096374210 Kenmore dryer | 11096374210 | Top and console |
Model #11096566210 Kenmore dryer | 11096566210 | Top and console |
Model #11096566400 Kenmore dryer | 11096566400 | Top and console |
Model #11096374200 Kenmore dryer | 11096374200 | Top and console |
Model #11096566410 Kenmore dryer | 11096566410 | Top and console |
Model #11096576200 Kenmore dryer | 11096576200 | Top and console |
Model #11096585200 Kenmore dryer | 11096585200 | Top and console |
Model #11096577430 Kenmore dryer | 11096577430 | Top and console |
Model #11096577220 Kenmore dryer | 11096577220 | Top and console |
Reviews
Timer for Kenmore Dryer
Timer kept running. Then I discovered I was sent a part someone had just returned. No one checked to see if the part was still good. I will definitely be returning this. I did not order a used part.
Osborne99, WV
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
No instructions or packing slip received
Still waiting on another part to ship, hope it will include directions
Lizz, Atlanta
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
Nailed the problem!
Thanks to the online video, l nailed the problem, ordered the part, installed it and put the dryer back together in about 15 minutes.
Britt 7, Athens GA
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
both washer and dryer timers were easy install
it was easy to hook up but this timer had less connections than my old timer the washer timer was correct and very easy to install
I d h o 2, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Easy installation
Replacing a malfunctioning timer on my clothes dryer was not difficult at all. Two screws released the control panel and two more screws to remove the old timer. Wiring terminals were clearly marked, just move the wires from the old timer to the new unit.
Hans53, Brooklyn, ny
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
