Hotpoint
Gas Range

Model # RGAS300DM1WW Official Hotpoint gas range

Here are the diagrams and repair parts for Official Hotpoint RGAS300DM1WW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
40a15bulb STD372401
#235

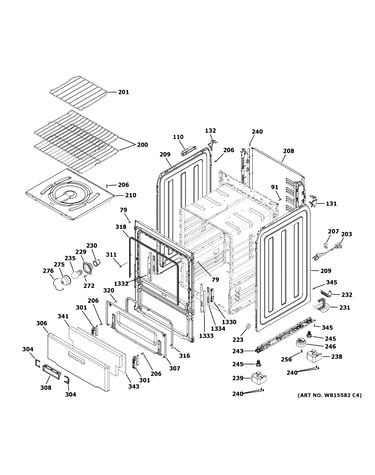

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Surface Burner Grate Bumper WB02X24790
#311

Body parts diagram

Range surface burner grate bumper

Part #WB02X24790

BEST SELLER
$7.87 |
11% OFF Phone Price : $8.87
In Stock
Range Screw WB01X24735
#122

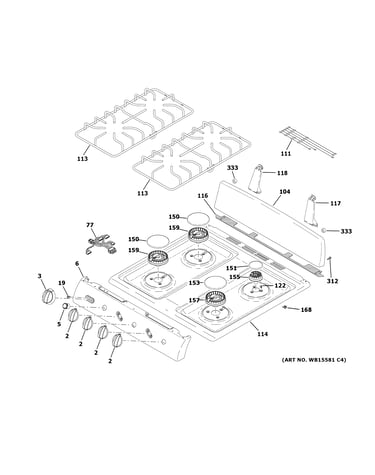

Control panel & cooktop diagram

Range screw

Part #WB01X24735

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
#361

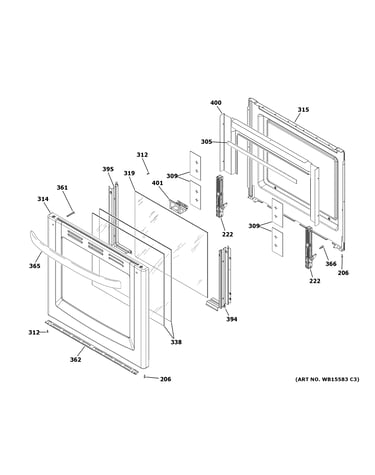

Door parts diagram

Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hex Washer Head Screw WB01K0050
#28

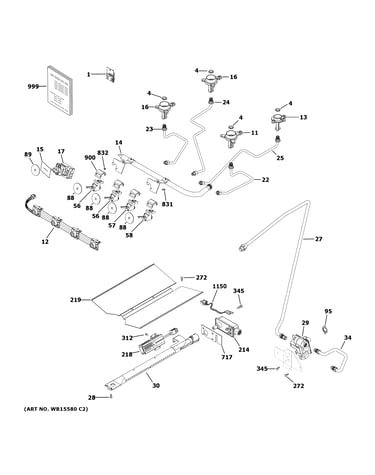

Gas & burner parts diagram

Hex washer head screw

Part #WB01K0050

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Spark Module WB13X24323
#110

Body parts diagram

Range spark module

Part #WB13X24323

$21.96 |
21% OFF Phone Price : $27.96
In Stock
Wb36x389 WB08K0005
#275

Body parts diagram

Wb36x389

Part #WB08K0005

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB08K0005. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Range Surface Burner, 12,000-btu WB16X24723
#157

Control panel & cooktop diagram

Range surface burner, 12,000-btu

Part #WB16X24723

This item is not returnable
$25.64 |
19% OFF Phone Price : $31.64
In Stock
Igniter Glowbar WB13X30972
#218

Gas & burner parts diagram

Igniter glowbar

Part #WB13X30972

$95.44
In Stock
Screw (black) WB01K0042
Screw (black)

Part #WB01K0042

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB01K0042. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
