Bottom-Mount Refrigerator

Model # 59679312511 Official Kenmore bottom-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 59679312511 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

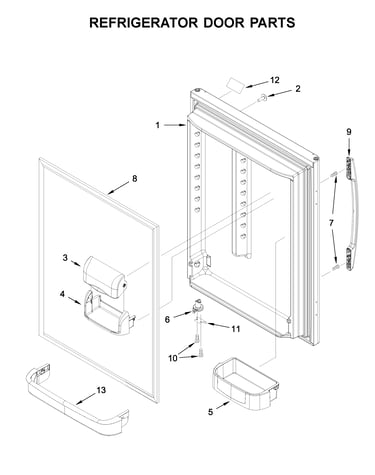

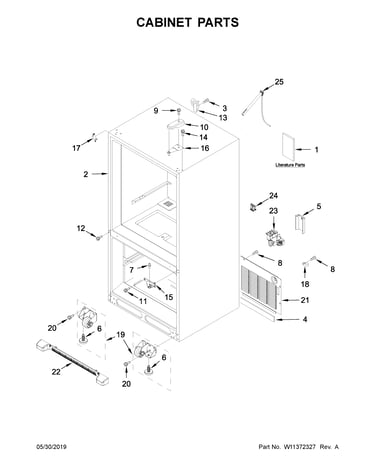

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for59679312511 Refrigerators

  • Drier Tube W10177049
    #27

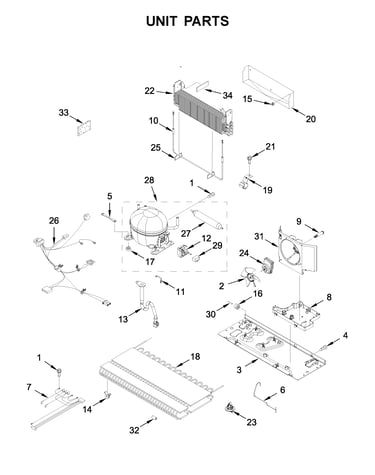

    Unit parts diagram

    Drier tube

    Part #W10177049

    Replaced by #WPW10143759

    ?
    Manufacturer substitution
    This part replaces W10177049. Substitute parts can look different from the original.
    BEST SELLER
    $20.04 |
    23% OFF Phone Price : $26.04
    In Stock
  • Refrigerator Electronic Control Board W10503278
    #5

    Refrigerator liner parts diagram

    Refrigerator electronic control board

    Part #W10503278

    Replaced by #WPW10503278

    ?
    Manufacturer substitution
    This part replaces W10503278. Substitute parts can look different from the original.
    BEST SELLER
    $142.56 |
    8% OFF Phone Price : $154.56
    In Stock
  • Switch- Rock W10847853
    #6

    Refrigerator liner parts diagram

    Switch- rock

    Part #W10847853

    Replaced by #W11384469

    ?
    Manufacturer substitution
    This part replaces W10847853. Substitute parts can look different from the original.
    BEST SELLER
    $19.89 |
    9% OFF Phone Price : $21.89
    In Stock
  • Refrigerator Evaporator Fan Blade 2169142
    #24

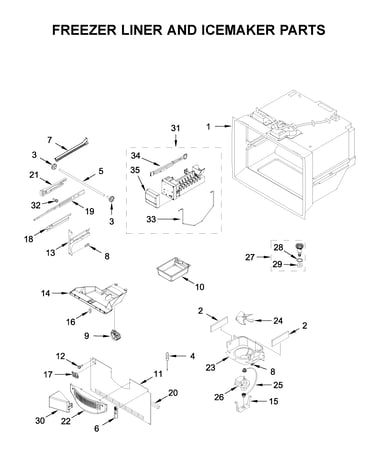

    Freezer liner and icemaker parts diagram

    Refrigerator evaporator fan blade

    Part #2169142

    Replaced by #WP2169142

    ?
    Manufacturer substitution
    This part replaces 2169142. Substitute parts can look different from the original.
    BEST SELLER
    $31.74 |
    16% OFF Phone Price : $37.74
    In Stock
  • Refrigerator Crisper Drawer Support Rail, Center W10671238
    #9

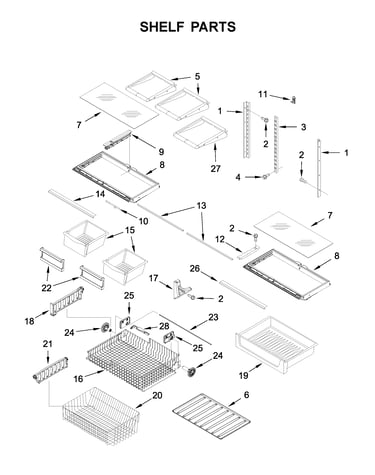

    Shelf parts diagram

    Refrigerator crisper drawer support rail, center

    Part #W10671238

    Replaced by #WPW10671238

    ?
    Manufacturer substitution
    This part replaces W10671238. Substitute parts can look different from the original.
    BEST SELLER
    $43.05 |
    12% OFF Phone Price : $49.05
    In Stock
  • Refrigerator Evaporator Fan Motor W10128551
    #26

    Freezer liner and icemaker parts diagram

    Refrigerator evaporator fan motor

    Part #W10128551

    Replaced by #WPW10128551

    ?
    Manufacturer substitution
    This part replaces W10128551. Substitute parts can look different from the original.
    BEST SELLER
    $53.07 |
    10% OFF Phone Price : $59.07
    In Stock
  • Compressor W10879296
    #28

    Unit parts diagram

    Compressor

    Part #W10879296

    Replaced by #W10233960

    ?
    Manufacturer substitution
    This part replaces W10879296. Substitute parts can look different from the original.
    BEST SELLER
    $300.79 |
    $12.00 OFF Phone Price : $312.79
    In Stock
  • Harness, Evaporator (includes Heater) W11050969
    #7

    Unit parts diagram

    Harness, evaporator (includes heater)

    Part #W11050969

    Replaced by #W11260592

    ?
    Manufacturer substitution
    This part replaces W11050969. Substitute parts can look different from the original.
    BEST SELLER
    $45.62 |
    12% OFF Phone Price : $51.62
    In Stock
  • Spray Paint (white) 350930
    #NI

    Optional parts diagram

    Spray paint (white)

    Part #350930

    Replaced by #350930

    ?
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $15.69 |
    11% OFF Phone Price : $17.69
    In Stock
  • Extension-dr W10622098
    #13

    Unit parts diagram

    Extension-dr

    Part #W10622098

    Replaced by #W10619951

    ?
    Manufacturer substitution
    This part replaces W10622098. Substitute parts can look different from the original.
    BEST SELLER
    $27.76 |
    18% OFF Phone Price : $33.76
    In Stock
