Model # LASER JET 4 Official Hewlett Packard laser jet 4 printer

Here are the diagrams and repair parts for Official Hewlett Packard LASER-JET-4 laser jet 4 printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

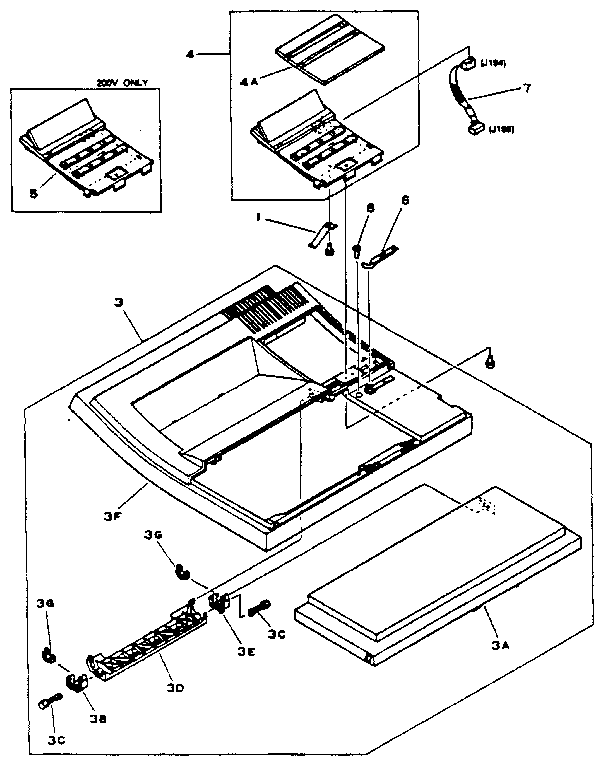

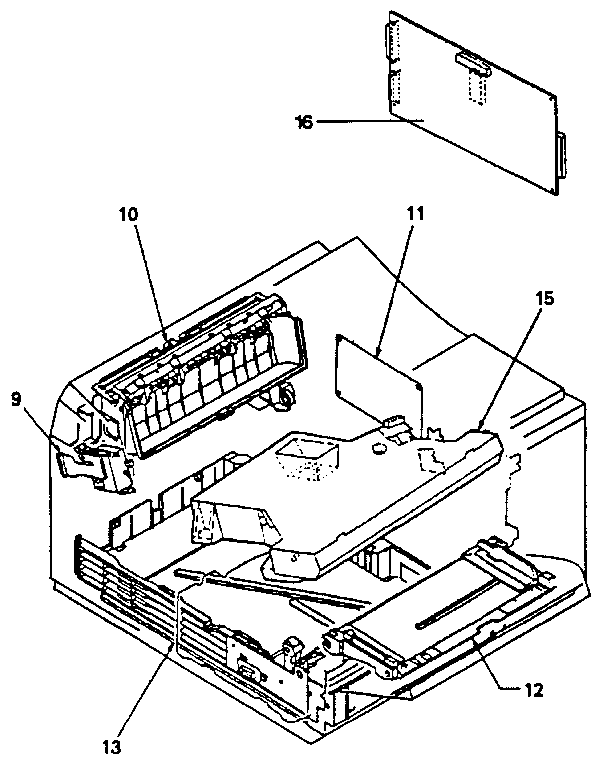

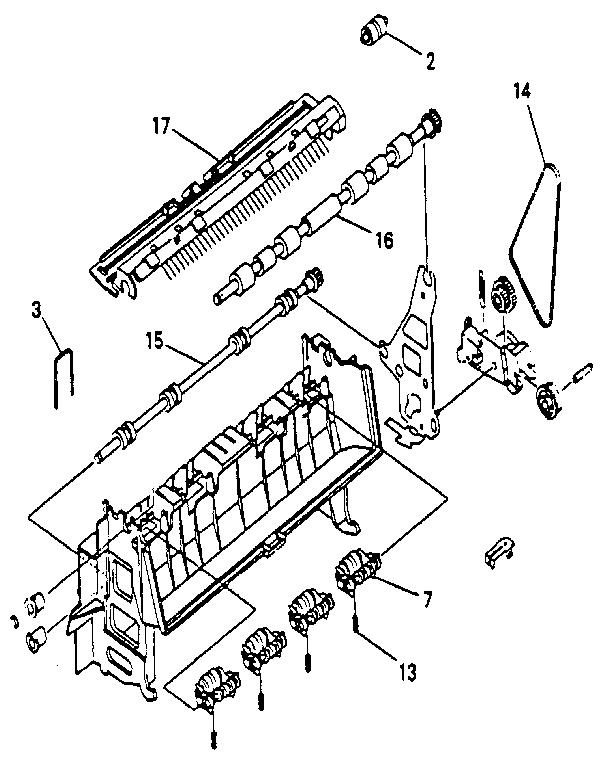

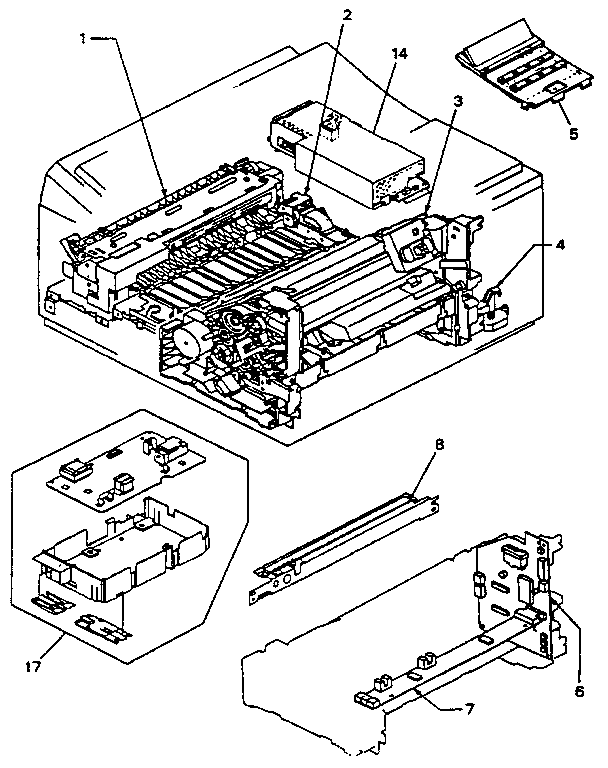

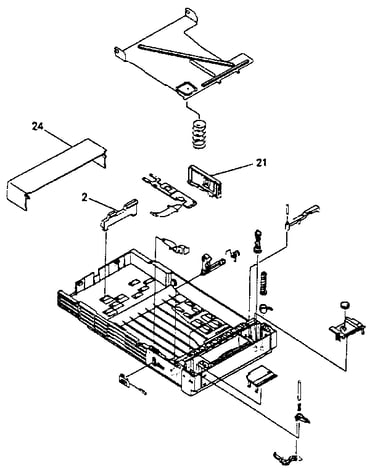

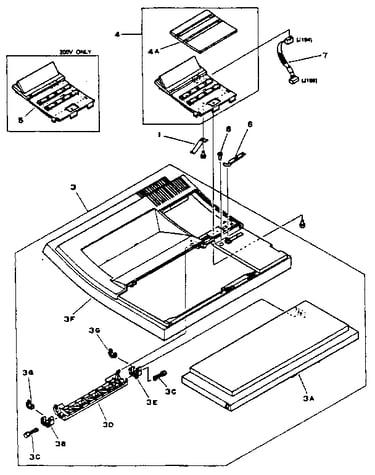

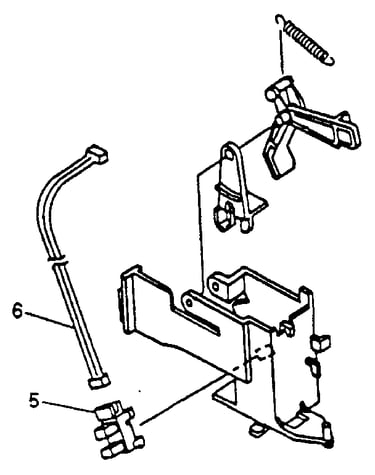

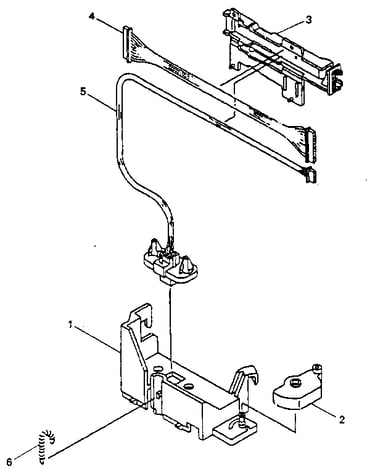

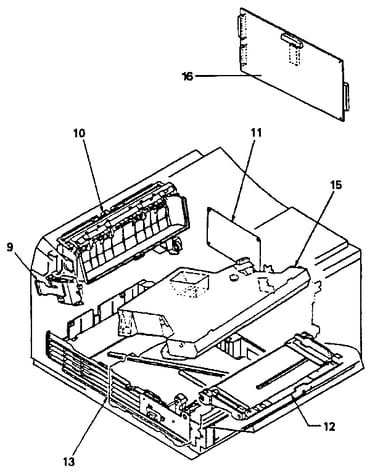

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Screw, M3 X 4 XB6-7300-409CN
Screw, m3 x 4

Part #XB6-7300-409CN

The manufacturer no longer makes this part, and there's no substitute part

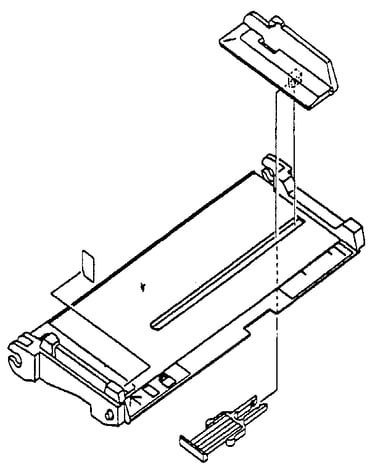

Assembly, Mp Tray Base RG5-0467-000CN
#23

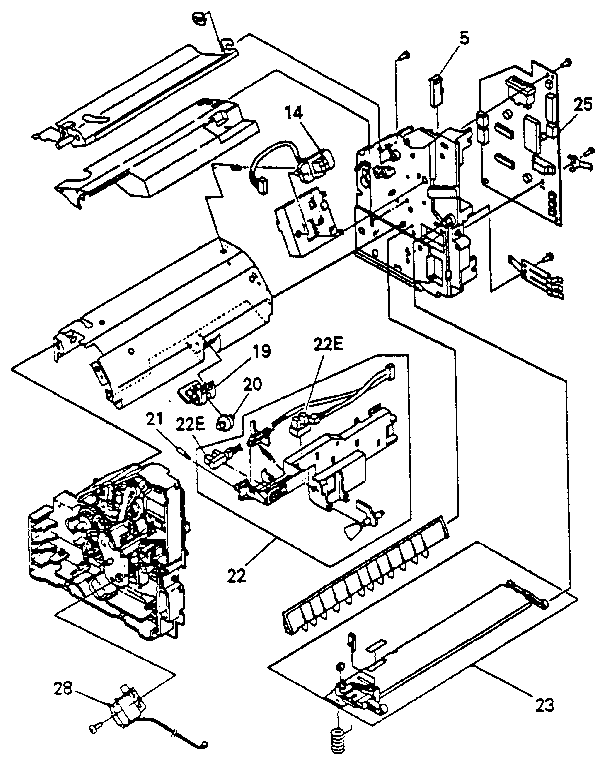

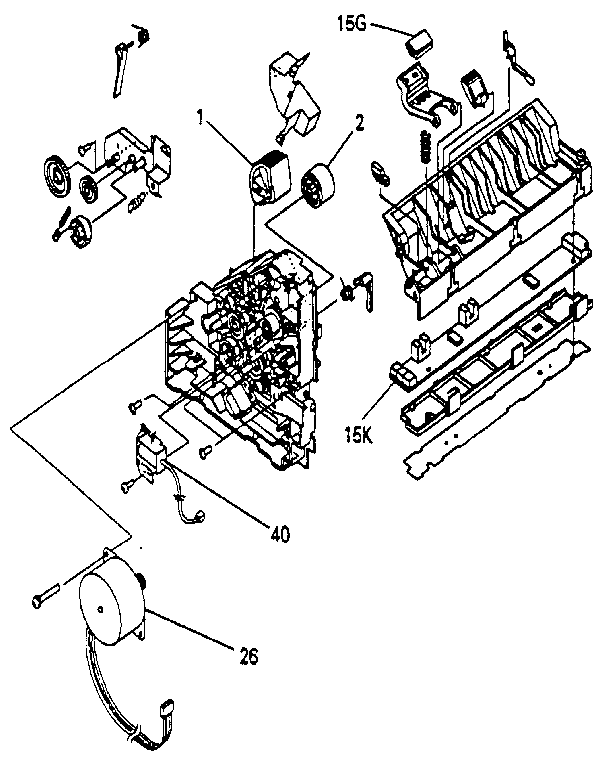

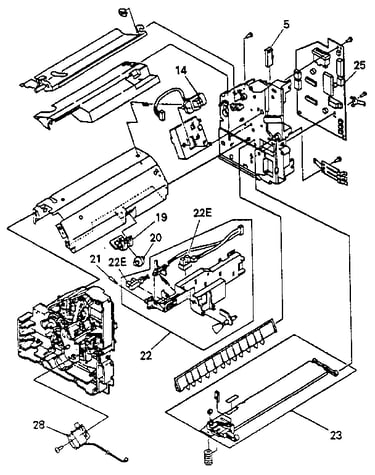

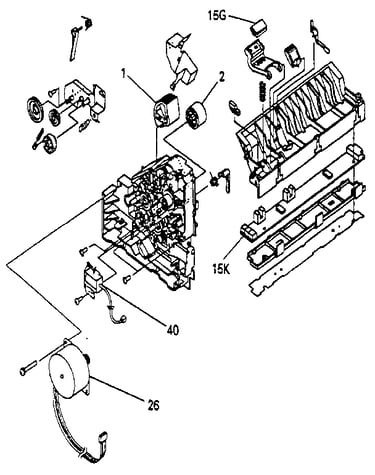

Paper feed assembly diagram

Assembly, mp tray base

Part #RG5-0467-000CN

The manufacturer no longer makes this part, and there's no substitute part

Inner Cover Ass'y RG5-0487-000CN
#12

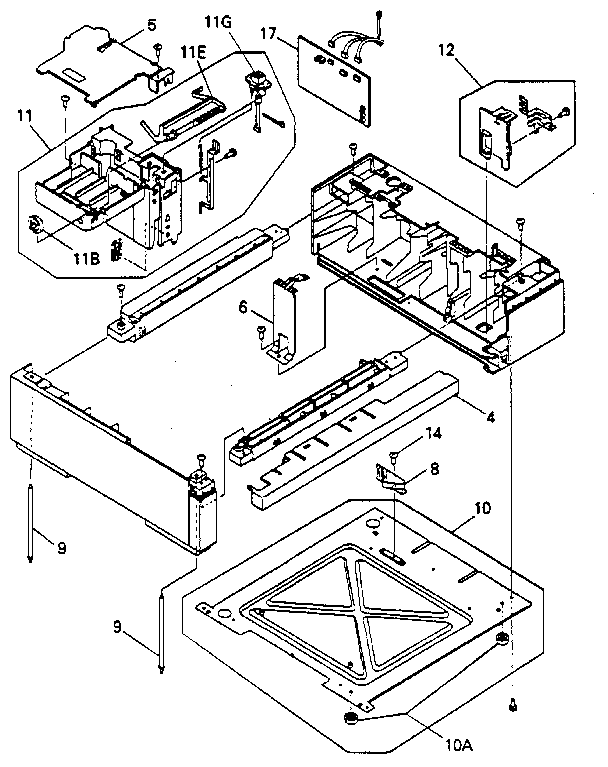

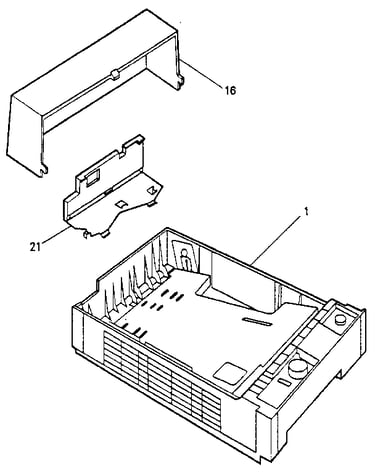

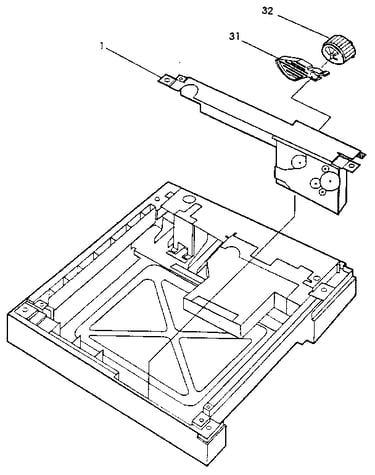

Lower cassette base assembly diagram

Inner cover ass'y

Part #RG5-0487-000CN

The manufacturer no longer makes this part, and there's no substitute part

Rear Door Latch RB1-2335-000CN
#4B

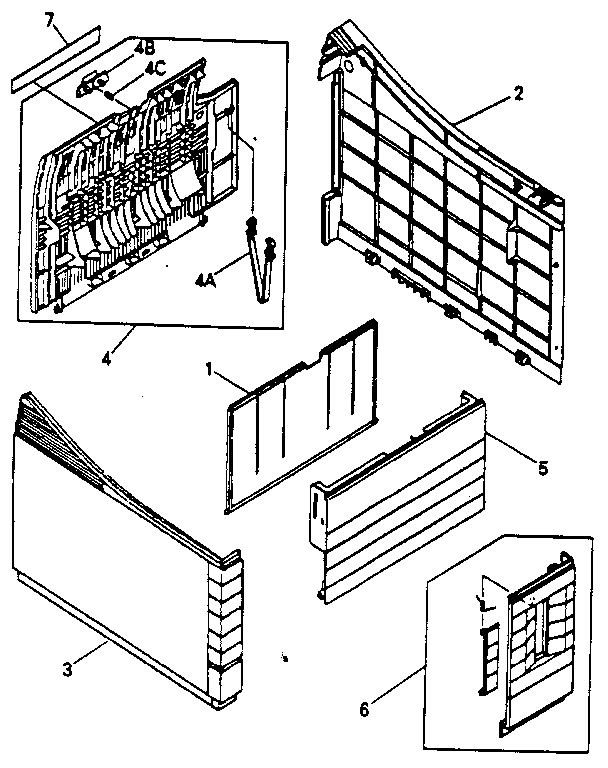

Covers and panels diagram

Rear door latch

Part #RB1-2335-000CN

The manufacturer no longer makes this part, and there's no substitute part

Ring, Roller (2 Ea.) RA1-7584-000CN
#1A

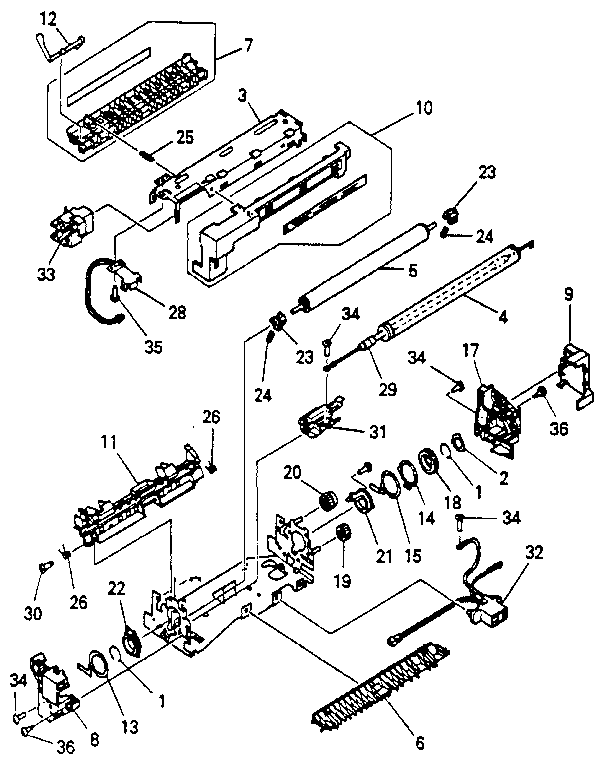

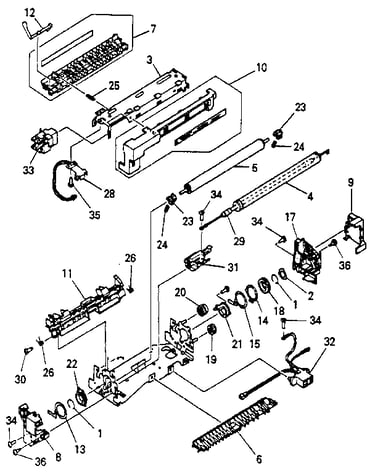

Fusing assembly diagram

Ring, roller (2 ea.)

Part #RA1-7584-000CN

The manufacturer no longer makes this part, and there's no substitute part

Spring Switch RB1-2358-000CN
#14

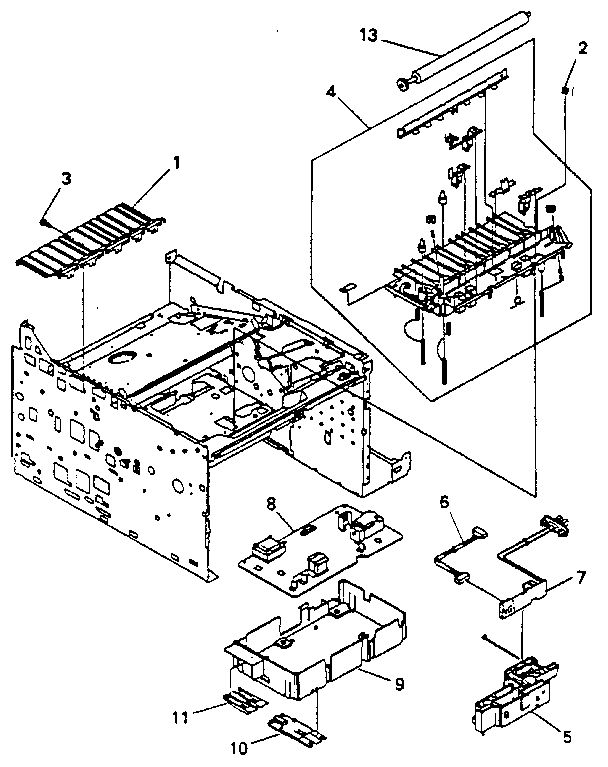

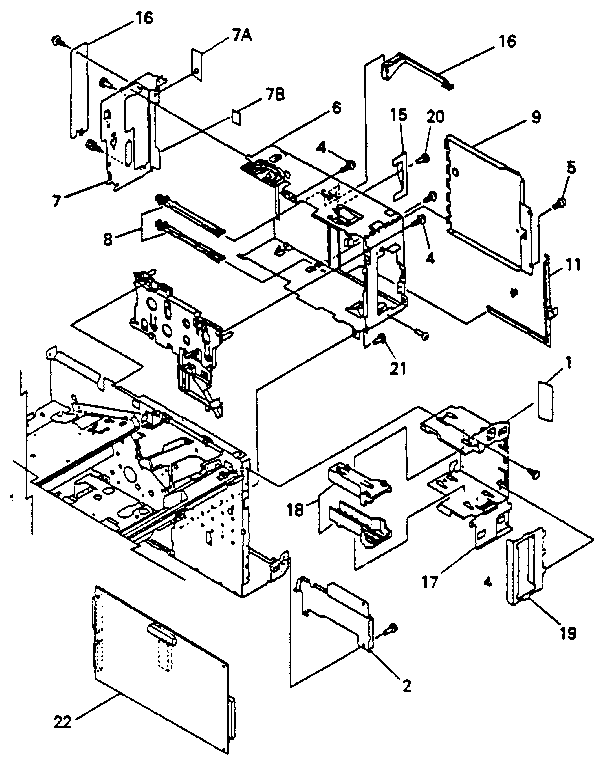

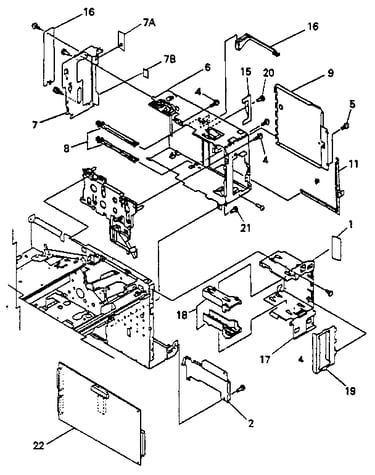

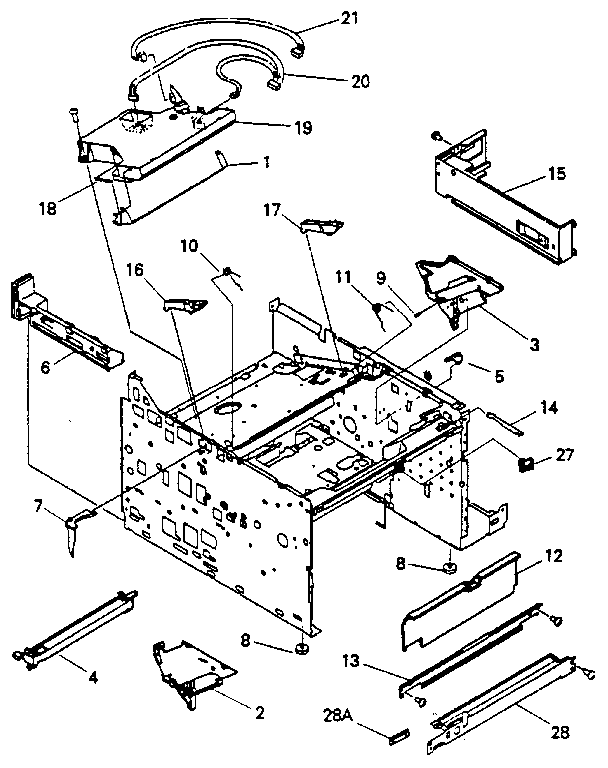

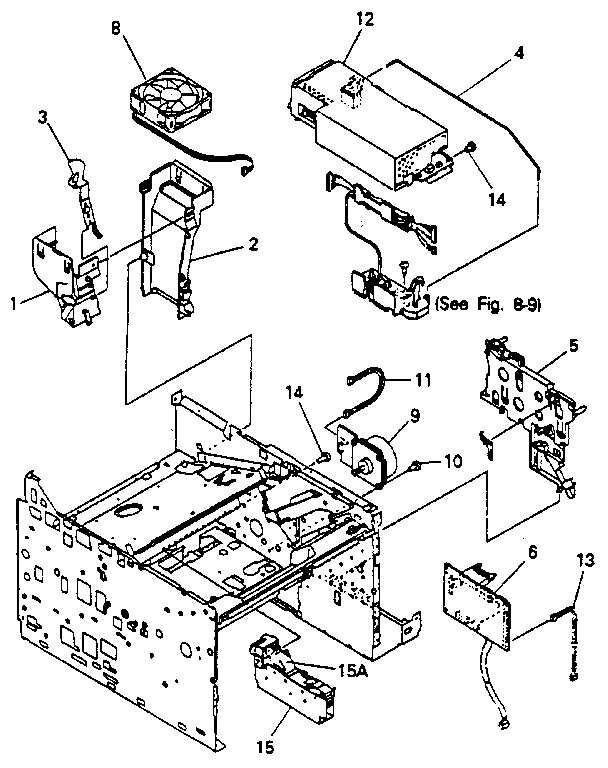

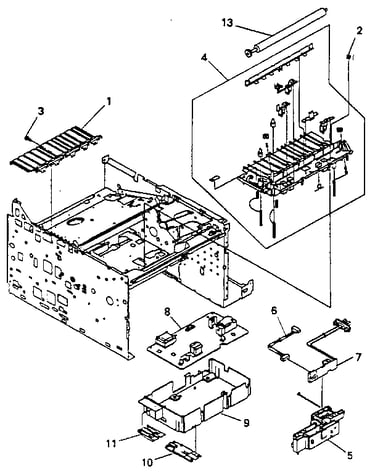

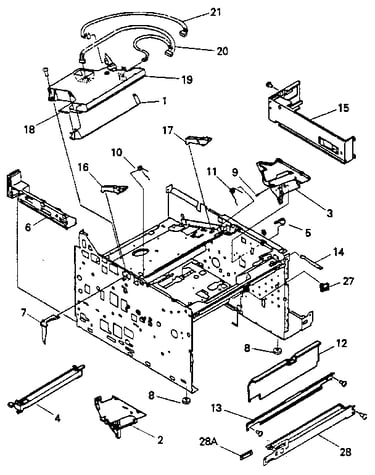

Internal components diagram

Spring switch

Part #RB1-2358-000CN

The manufacturer no longer makes this part, and there's no substitute part

Bushing, Lower Roller RS5-1065-000CN
#23

Fusing assembly diagram

Bushing, lower roller

Part #RS5-1065-000CN

The manufacturer no longer makes this part, and there's no substitute part

Click, Spring RF5-0374-000CN
#8

Lower cassette base assembly diagram

Click, spring

Part #RF5-0374-000CN

The manufacturer no longer makes this part, and there's no substitute part

Rear Door Spring RS5-2219-000CN
#4C

Covers and panels diagram

Rear door spring

Part #RS5-2219-000CN

The manufacturer no longer makes this part, and there's no substitute part

Label RS5-8219-000CN
#1

Internal components diagram

Label

Part #RS5-8219-000CN

The manufacturer no longer makes this part, and there's no substitute part
