Model # 2536680101 Official Kenmore 18.5 cubic foot coldspot refrigerator

Here are the diagrams and repair parts for Official Kenmore 2536680101 18.5 cubic foot coldspot refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |
Refrigerator Drier 139368
#51

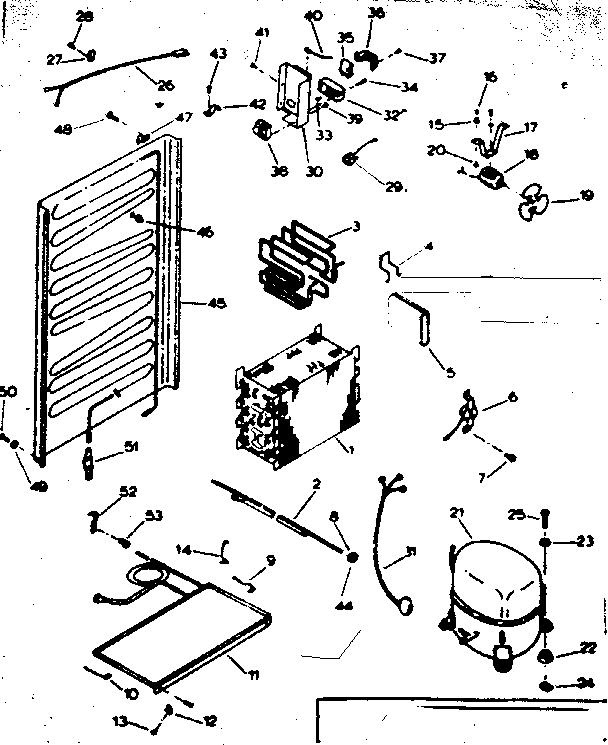

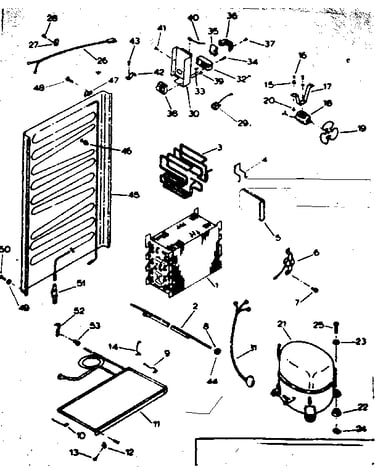

Unit and automatic defrost parts diagram

Refrigerator drier

Part #139368

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 139368. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Capacitor 136467
#35

Unit and automatic defrost parts diagram

Refrigerator capacitor

Part #136467

Replaced by #12907

?
Manufacturer substitution
This part replaces 136467. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Refrigerator Ice Tray 108179
#11

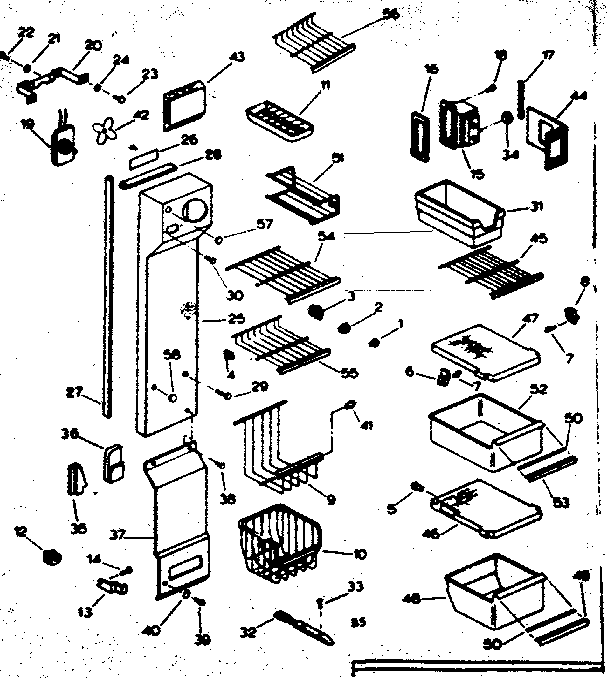

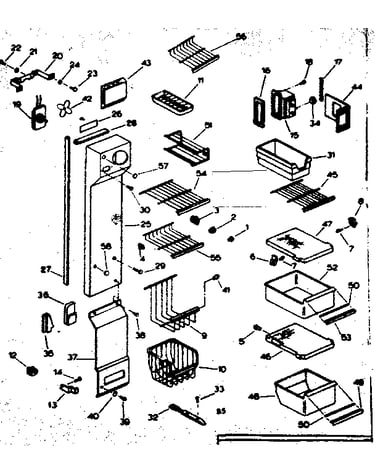

Shelving, supports and air handling parts diagram

Refrigerator ice tray

Part #108179

Replaced by #215667501

?
Manufacturer substitution
This part replaces 108179. Substitute parts can look different from the original.
This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
Refrigerator Screw 141713
Refrigerator screw

Part #141713

Replaced by #5304455852

?
Manufacturer substitution
This part replaces 141713. Substitute parts can look different from the original.
$12.57
In Stock
Refrigerator Screw 126779
#37

Unit and automatic defrost parts diagram

Refrigerator screw

Part #126779

$12.01
In Stock
Refrigerator Dish 74155
#31

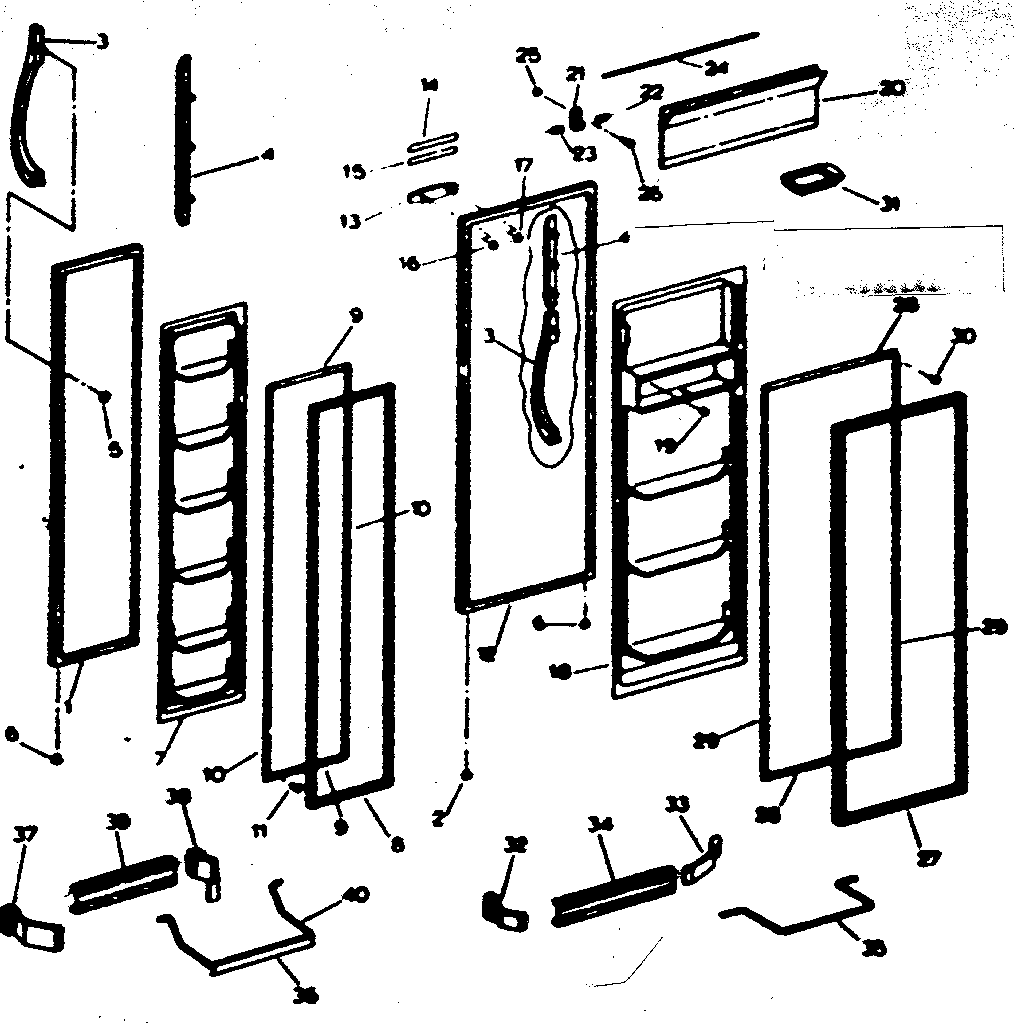

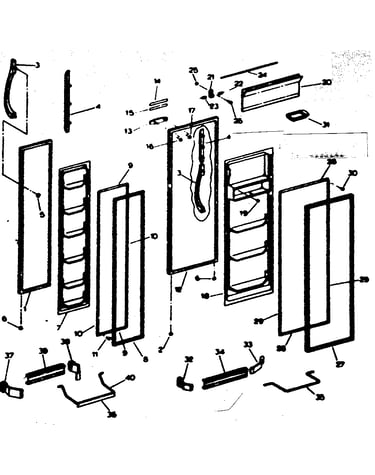

Door parts diagram

Refrigerator dish

Part #74155

Replaced by #5308000716

?
Manufacturer substitution
This part replaces 74155. Substitute parts can look different from the original.
This item is not returnable
$19.75 |
9% OFF Phone Price : $21.75
In Stock
Refrigerator Clamp 88088
#52

Unit and automatic defrost parts diagram

Refrigerator clamp

Part #88088

Replaced by #5308000133

?
Manufacturer substitution
This part replaces 88088. Substitute parts can look different from the original.
$11.20
In Stock
Screw 99167
#5

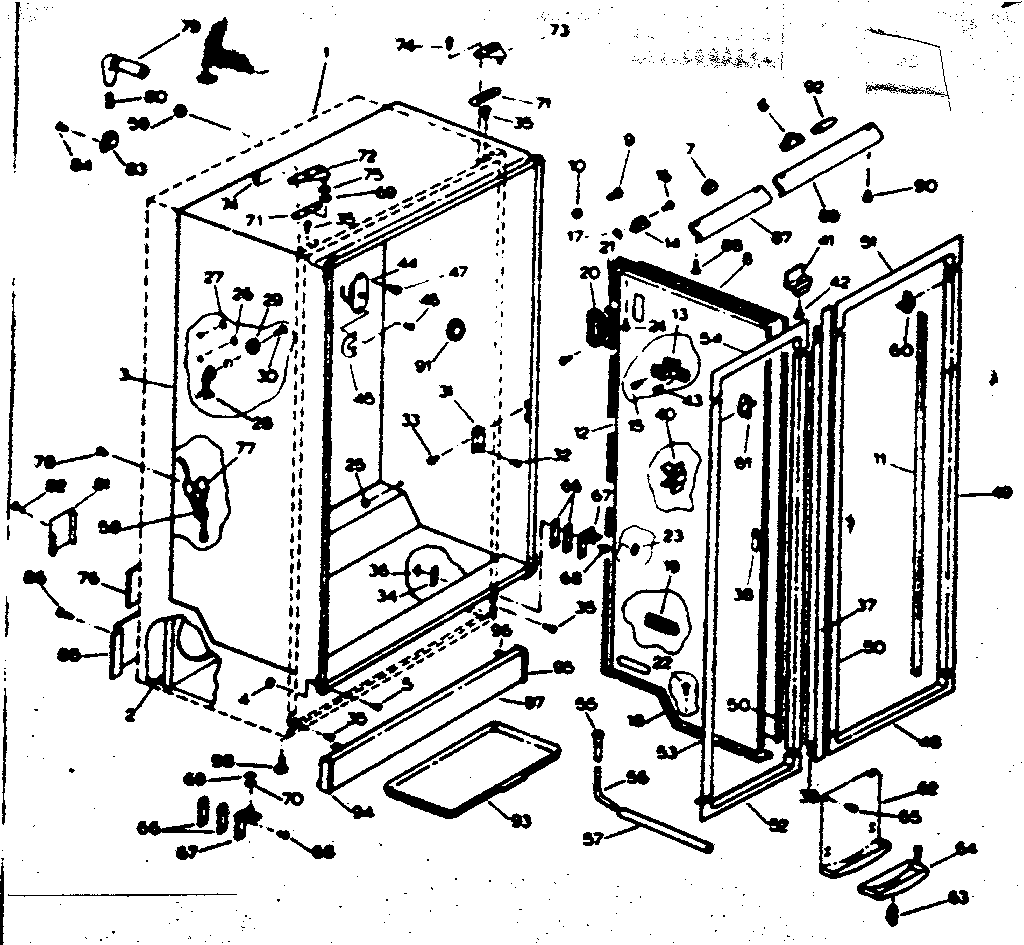

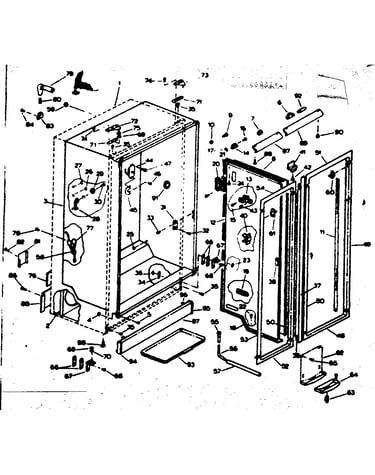

Cabinet liner and divider parts diagram

Screw

Part #99167

Replaced by #241710601

?
Manufacturer substitution
This part replaces 99167. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Refrigerator Fan Blade 126599
#42

Shelving, supports and air handling parts diagram

Refrigerator fan blade

Part #126599

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 126599. Substitute parts can look different from the original.
$39.93 |
13% OFF Phone Price : $45.93
In Stock
Washer 108333
#23

Unit and automatic defrost parts diagram

Washer

Part #108333

Replaced by #5303209428

?
Manufacturer substitution
This part replaces 108333. Substitute parts can look different from the original.
$16.80
In Stock
