Magic Chef
Gas Range

Model # U11GY-2W Official Magic Chef gas range

Here are the diagrams and repair parts for Official Magic Chef U11GY-2W gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

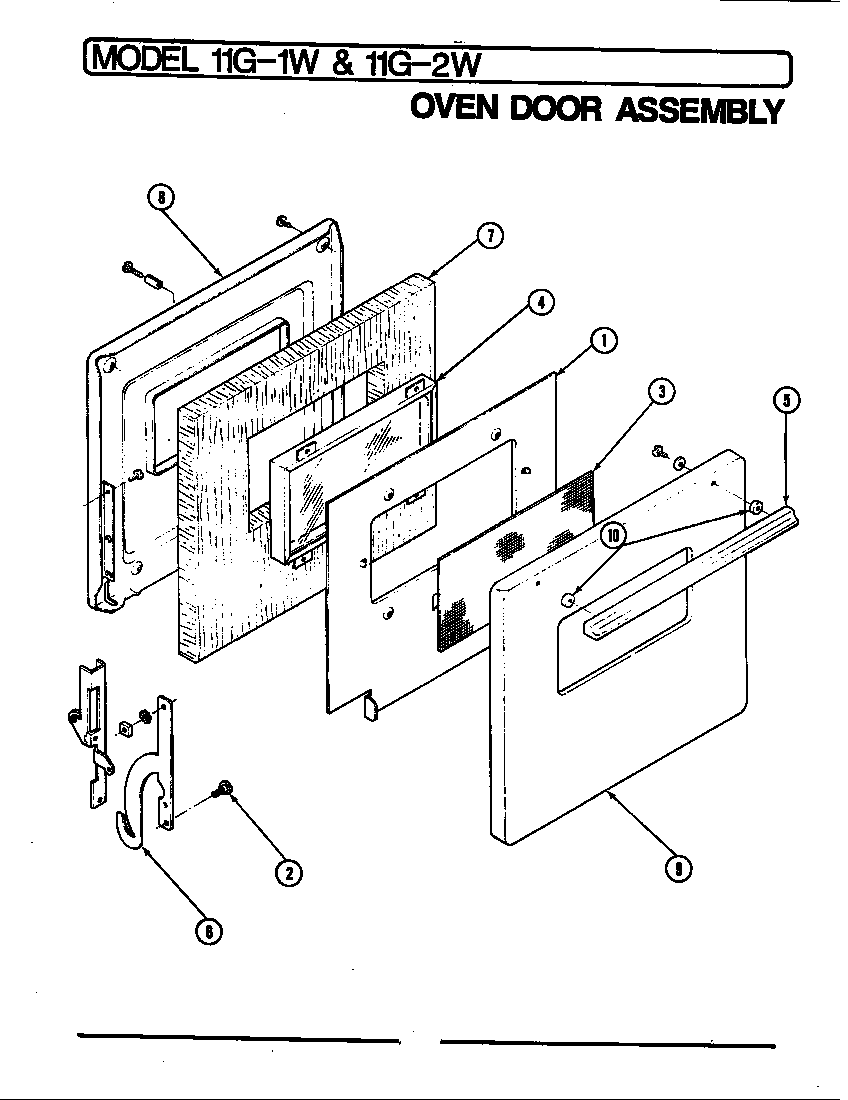

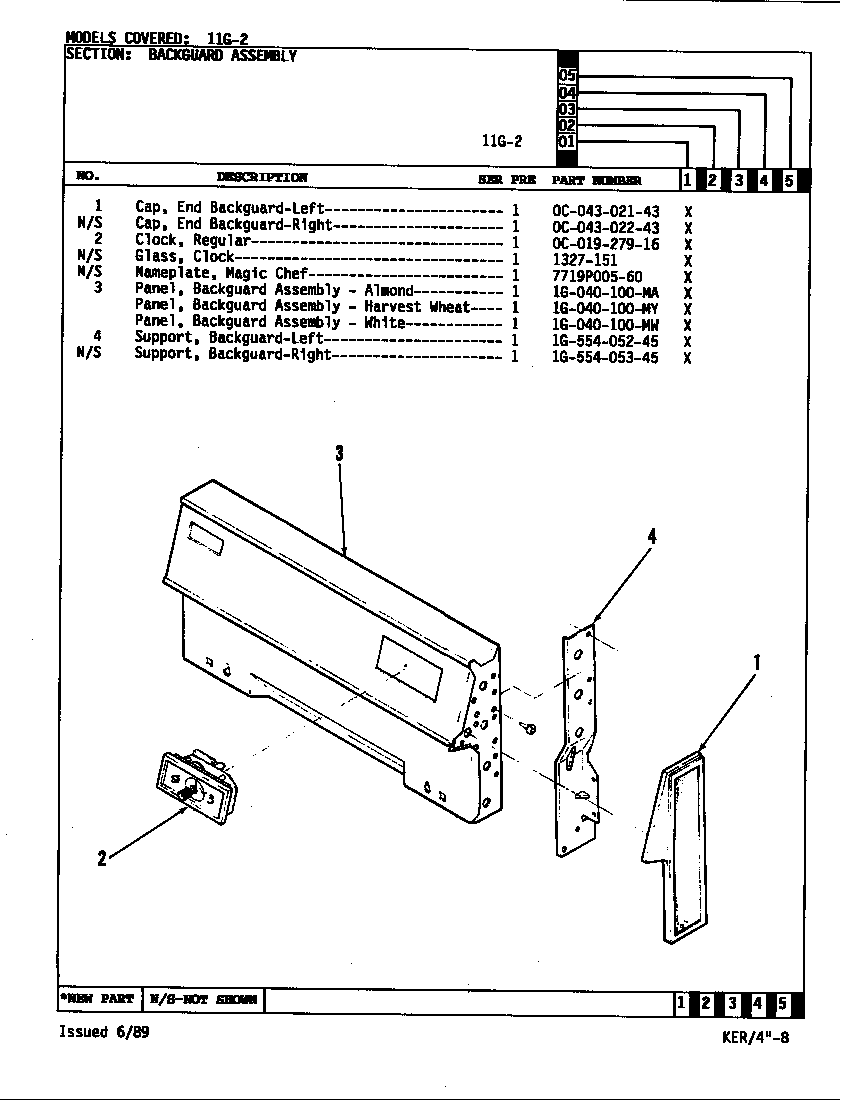

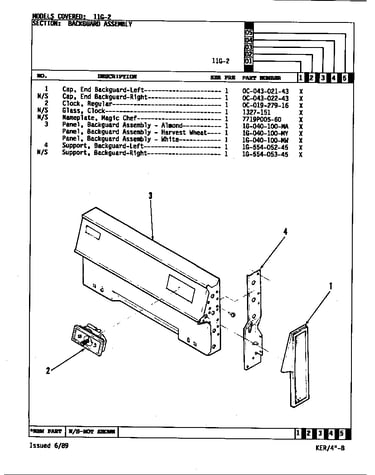

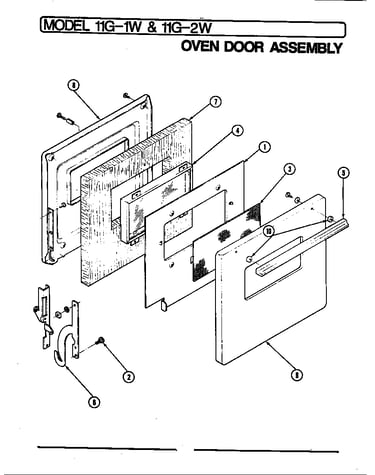

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Manifold Panel 2616W026-81
#29

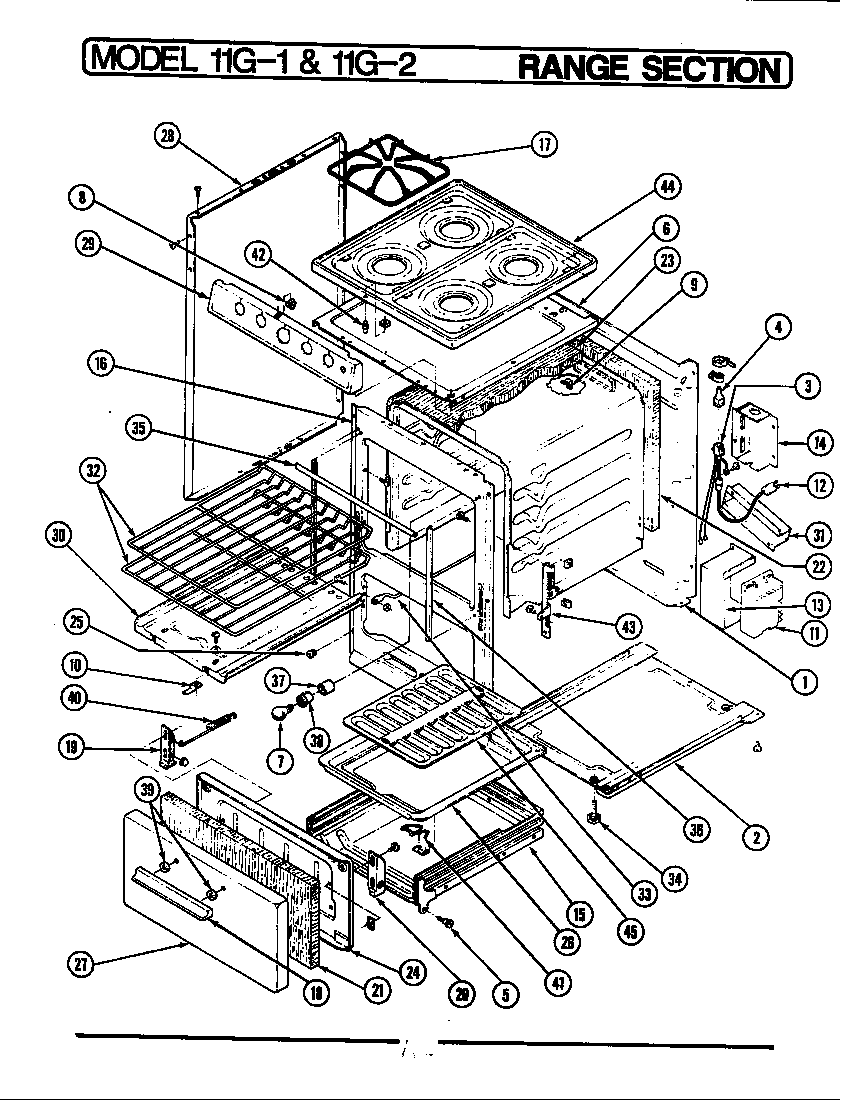

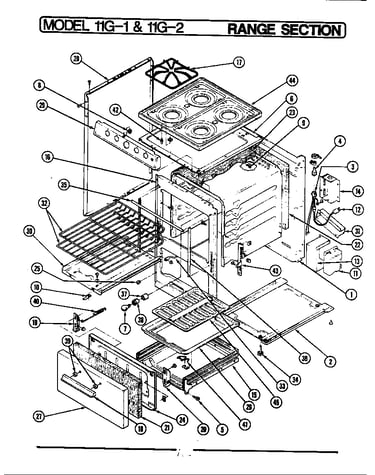

Range diagram

Manifold panel

Part #2616W026-81

$21.82
In Stock
Catch 0C04000126
#8

Range diagram

Catch

Part #0C04000126

The manufacturer no longer makes this part, and there's no substitute part

Oven Shutter 4G12401322
#13

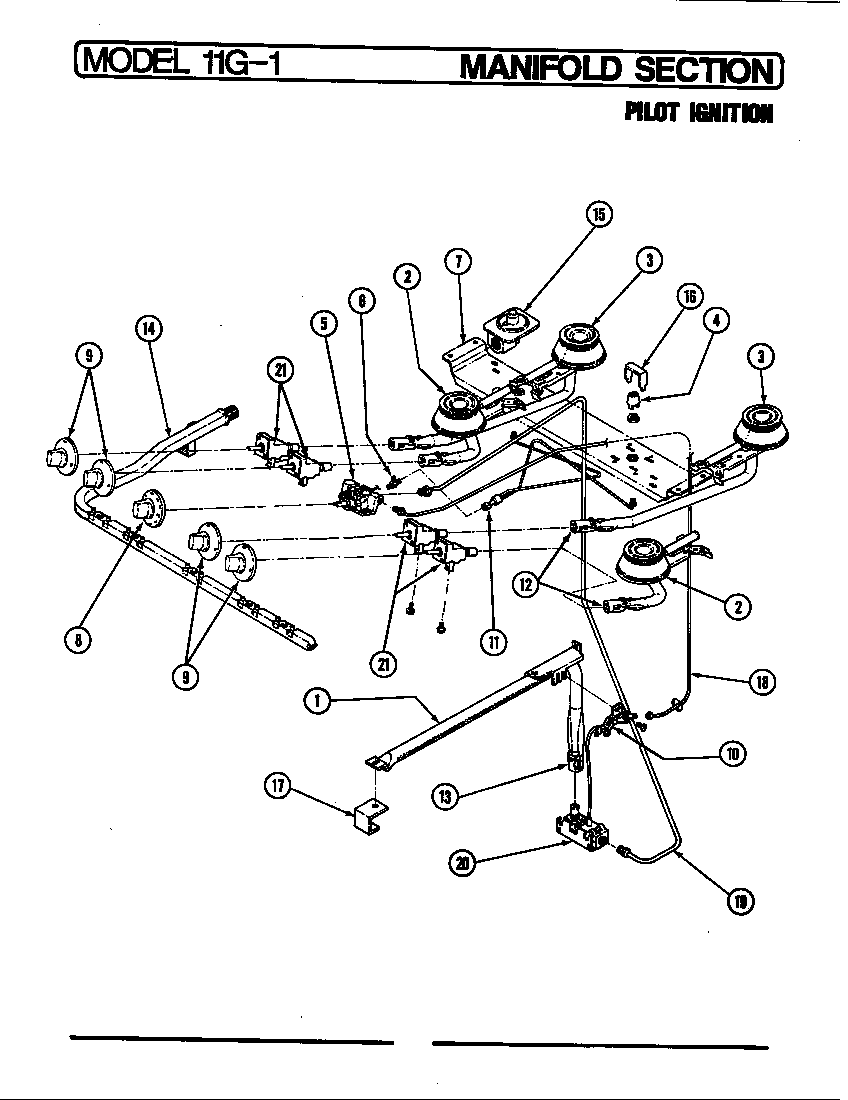

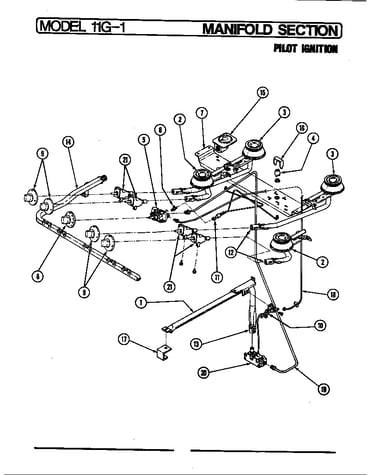

Manifold (pilot ignition) diagram

Oven shutter

Part #4G12401322

The manufacturer no longer makes this part, and there's no substitute part

End Panel 1G060027MW
#28A

Range diagram

End panel

Part #1G060027MW

The manufacturer no longer makes this part, and there's no substitute part

Regulator P 0R00301516
#15

Manifold (pilot ignition) diagram

Regulator p

Part #0R00301516

The manufacturer no longer makes this part, and there's no substitute part

Manifold Panel 2616W026-84
#29A

Range diagram

Manifold panel

Part #2616W026-84

The manufacturer no longer makes this part, and there's no substitute part

Clip, O C Ca 0C00100199
#9

Range diagram

Clip, o c ca

Part #0C00100199

The manufacturer no longer makes this part, and there's no substitute part

End Panel 1G060027MA
#28

Range diagram

End panel

Part #1G060027MA

The manufacturer no longer makes this part, and there's no substitute part

Nut 0N10131550
#25

Range diagram

Nut

Part #0N10131550

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Manual 8110P058-60
#45A

Range diagram

Use and care manual

Part #8110P058-60

The manufacturer no longer makes this part, and there's no substitute part
