Craftsman
Front-Engine Lawn Tractor

Model # 536255230 Official Craftsman 36" 10-hp lawn tractor with electric start

Here are the diagrams and repair parts for Official Craftsman 536255230 36" 10-hp lawn tractor with electric start, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

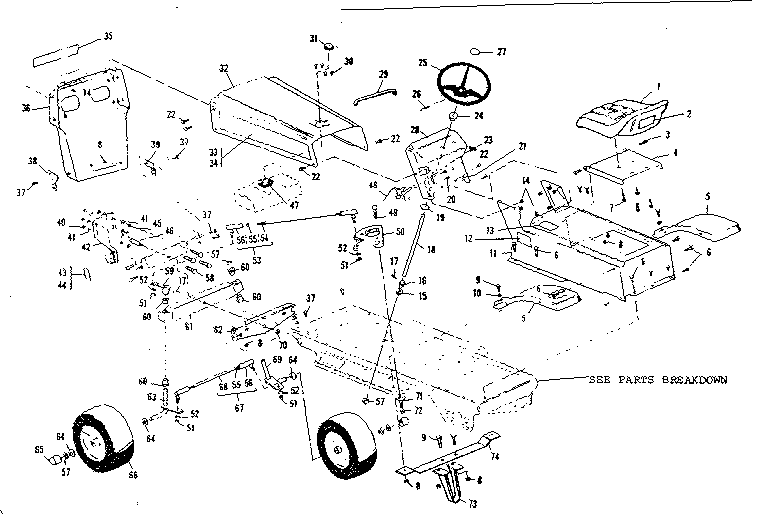

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 304 parts  |
Solenoid 44429
#25

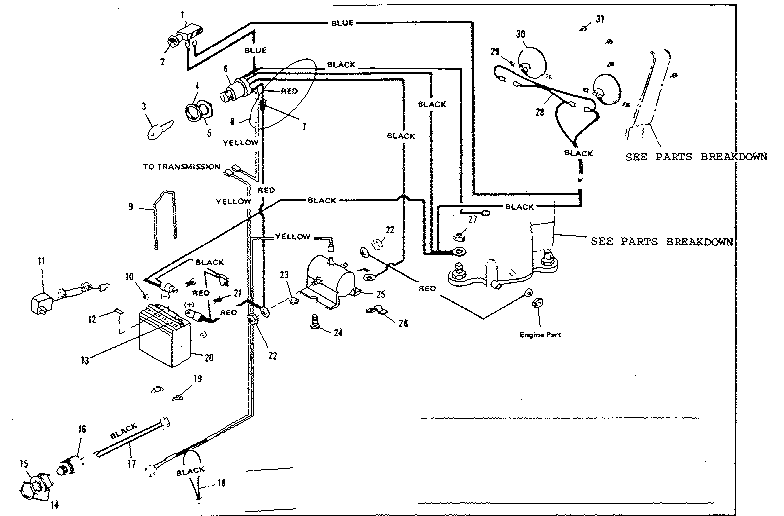

Wiring diagram diagram

Solenoid

Part #44429

Replaced by #532146154

?
Manufacturer substitution
This part replaces 44429. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Lock Nut 9424215
Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07 |
11% OFF Phone Price : $9.07
In Stock
Carriage Bolt 998013
#44

Drive assembly diagram

Carriage bolt

Part #998013

The manufacturer no longer makes this part, and there's no substitute part

Housing 774345
#1B

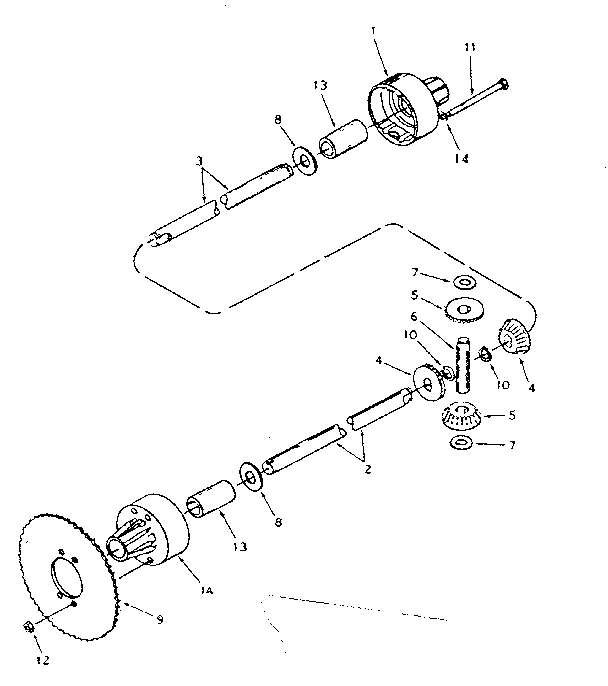

Differential diagram

Housing

Part #774345

Replaced by #774660

?
Manufacturer substitution
This part replaces 774345. Substitute parts can look different from the original.
$58.20
In Stock
Harpin Cottr 39521
#37

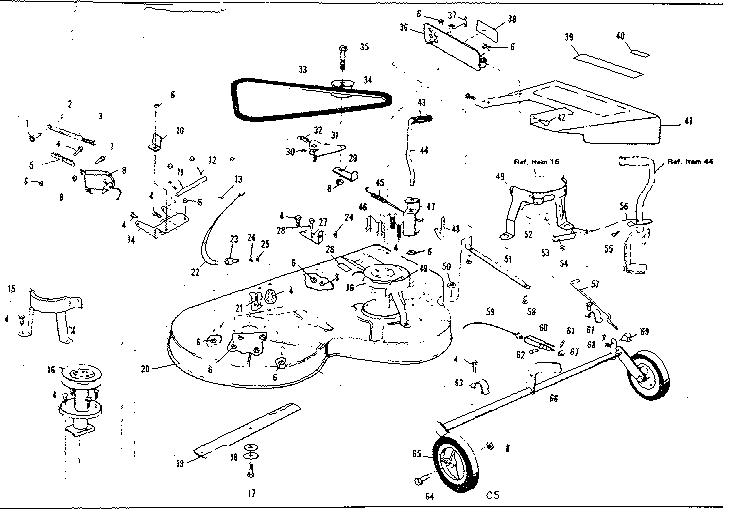

Mower deck diagram

Harpin cottr

Part #39521

Replaced by #31X9MA

?
Manufacturer substitution
This part replaces 39521. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
Puck 47166
#49

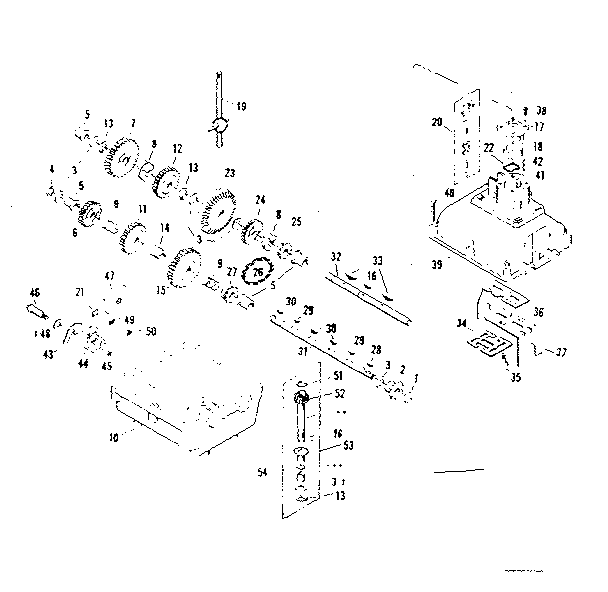

Transmission diagram

Puck

Part #47166

Replaced by #583775101

?
Manufacturer substitution
This part replaces 47166. Substitute parts can look different from the original.
$46.64
In Stock
Washer 792061
#14

Differential diagram

Washer

Part #792061

Replaced by #792061

?
Manufacturer substitution
This part replaces 792061. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Differential 44056
#53

Drive assembly diagram

Differential

Part #44056

Replaced by #794182A

?
Manufacturer substitution
This part replaces 44056. Substitute parts can look different from the original.
$147.06
In Stock
Retaining Ring 36625
Retaining ring

Part #36625

Replaced by #812000029

?
Manufacturer substitution
This part replaces 36625. Substitute parts can look different from the original.
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Washer 780001
#8

Differential diagram

Washer

Part #780001

Replaced by #780001

?
Manufacturer substitution
This part replaces 780001. Substitute parts can look different from the original.
This item is not returnable
$4.34
In Stock
