Jenn-Air
Gas Range

Model # JGS9900BDS Official Jenn-Air gas slide-in range

Here are the diagrams and repair parts for Official Jenn-Air JGS9900BDS gas slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

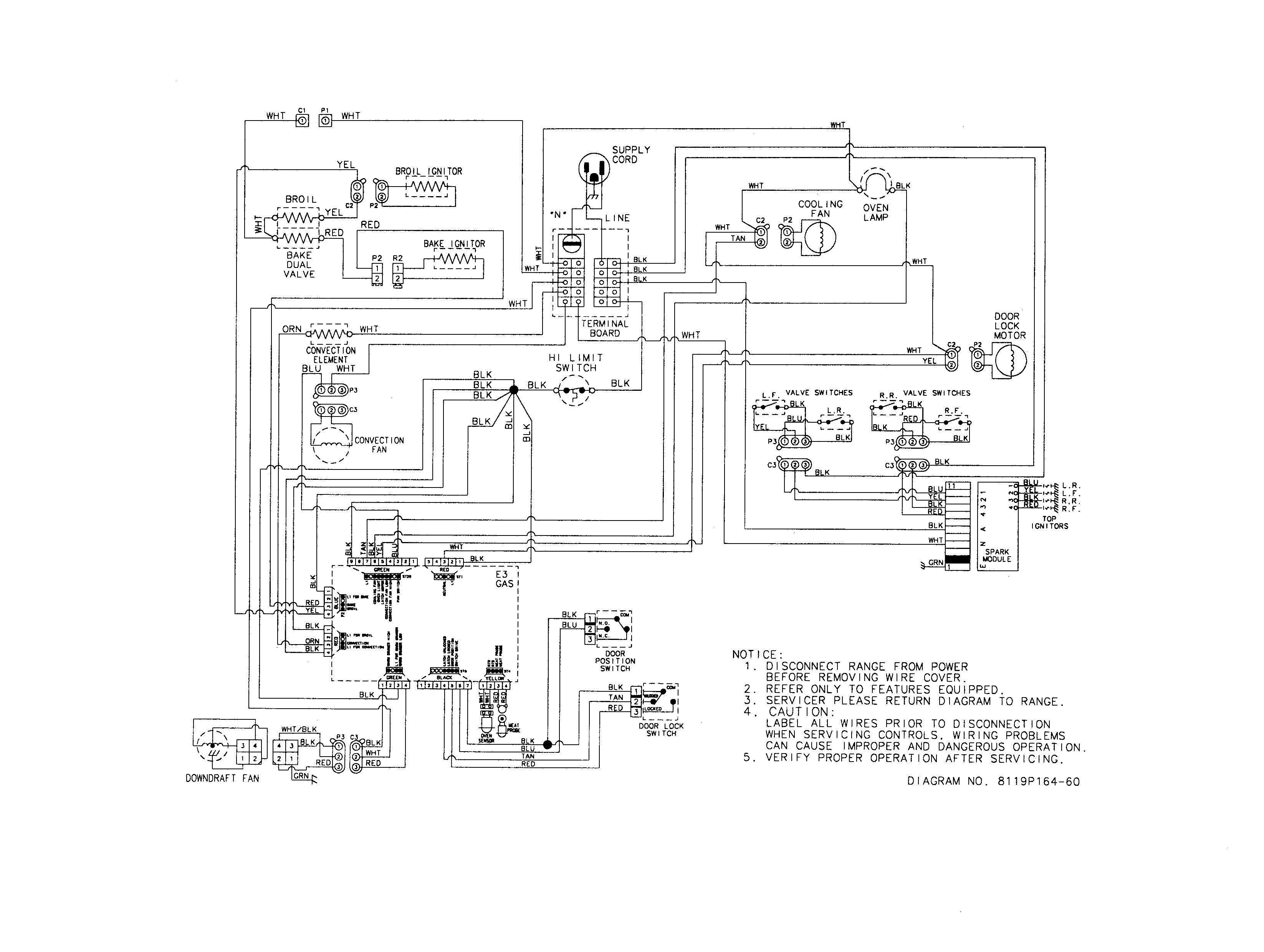

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Sealer, Rtv M0275597
#14A

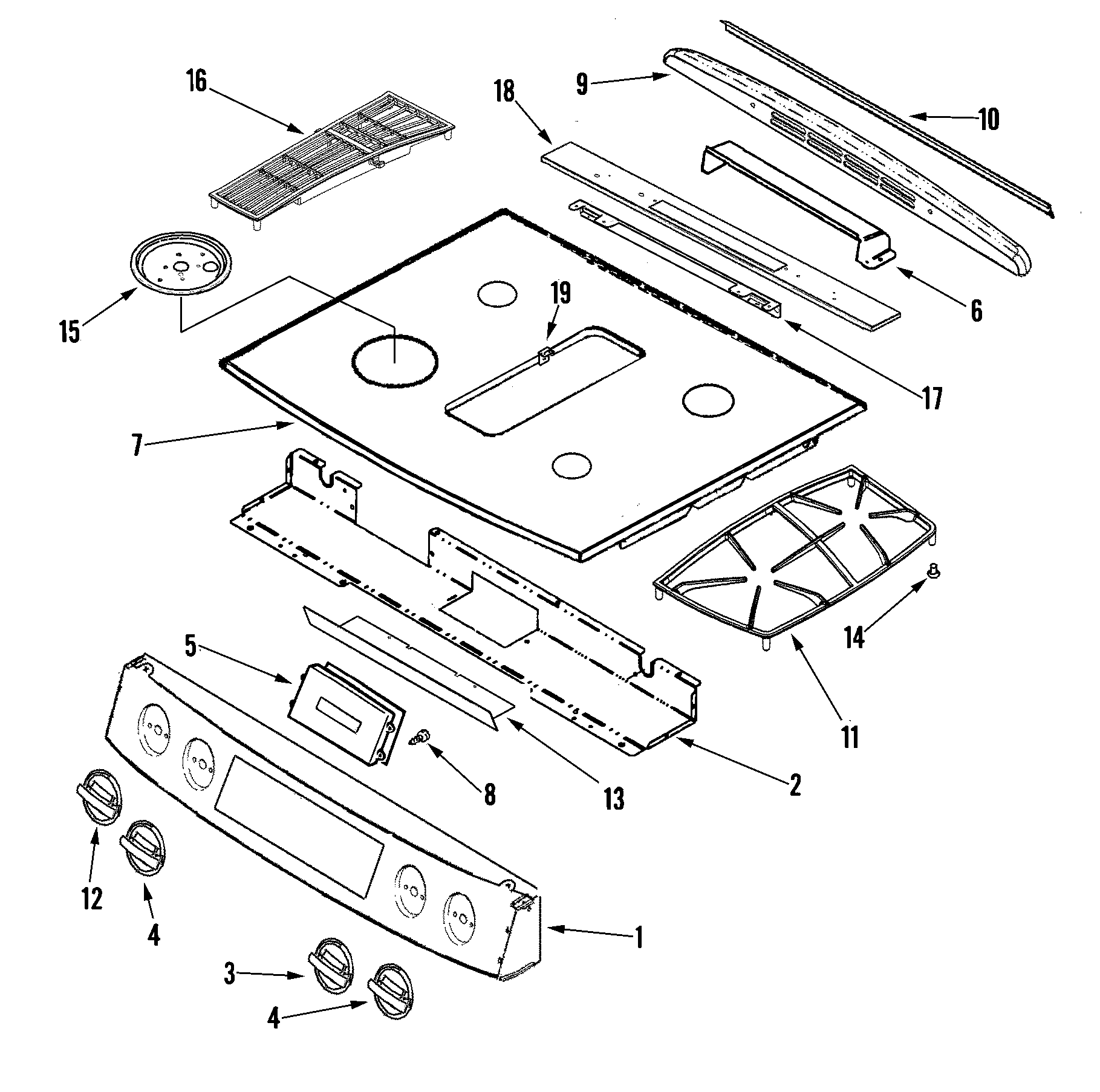

Control panel/top assembly diagram

Sealer, rtv

Part #M0275597

Replaced by #W10841140

?
Manufacturer substitution
This part replaces M0275597. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
12% OFF Phone Price : $16.99
In Stock
Self Screw 74007410
#13

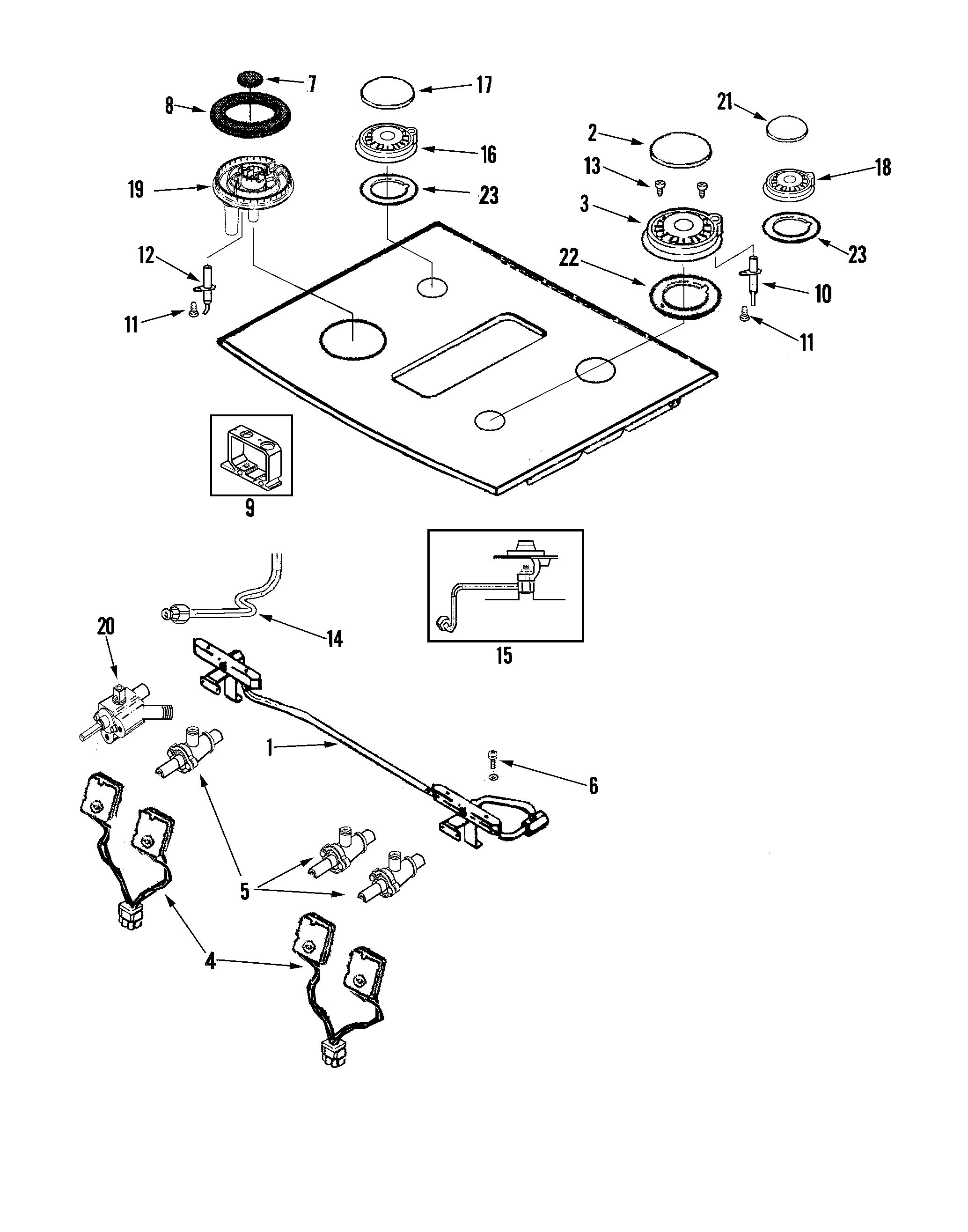

Gas controls/surface burners diagram

Self screw

Part #74007410

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 74007410. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.34 |
14% OFF Phone Price : $7.34
In Stock
Igniter 74007965
#7

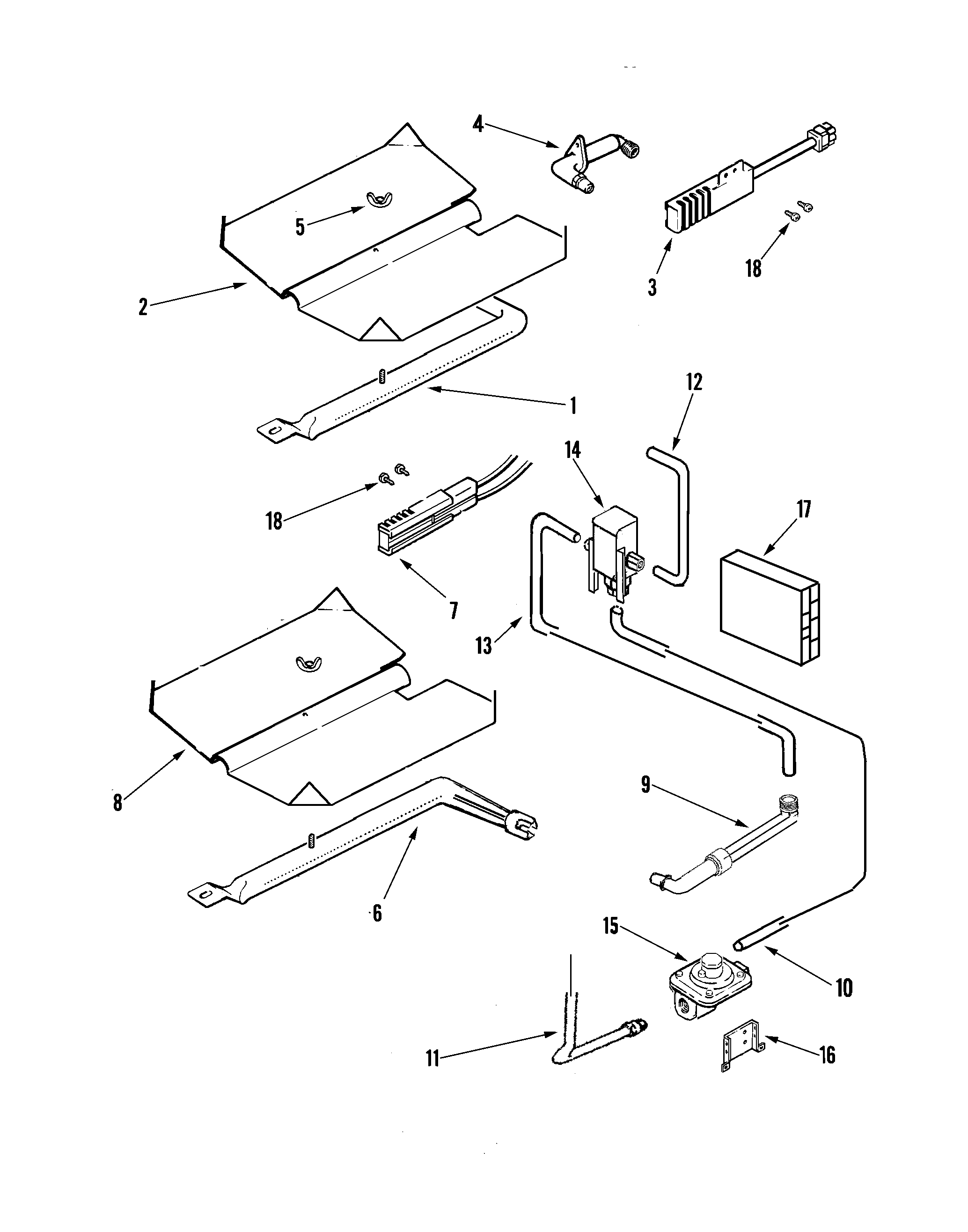

Gas controls/oven diagram

Igniter

Part #74007965

Replaced by #W11596211

?
Manufacturer substitution
This part replaces 74007965. Substitute parts can look different from the original.
BEST SELLER
$45.86 |
12% OFF Phone Price : $51.86
In Stock
Igniter Screw 74009337
#11

Gas controls/surface burners diagram

Igniter screw

Part #74009337

Replaced by #WP8273062

?
Manufacturer substitution
This part replaces 74009337. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock

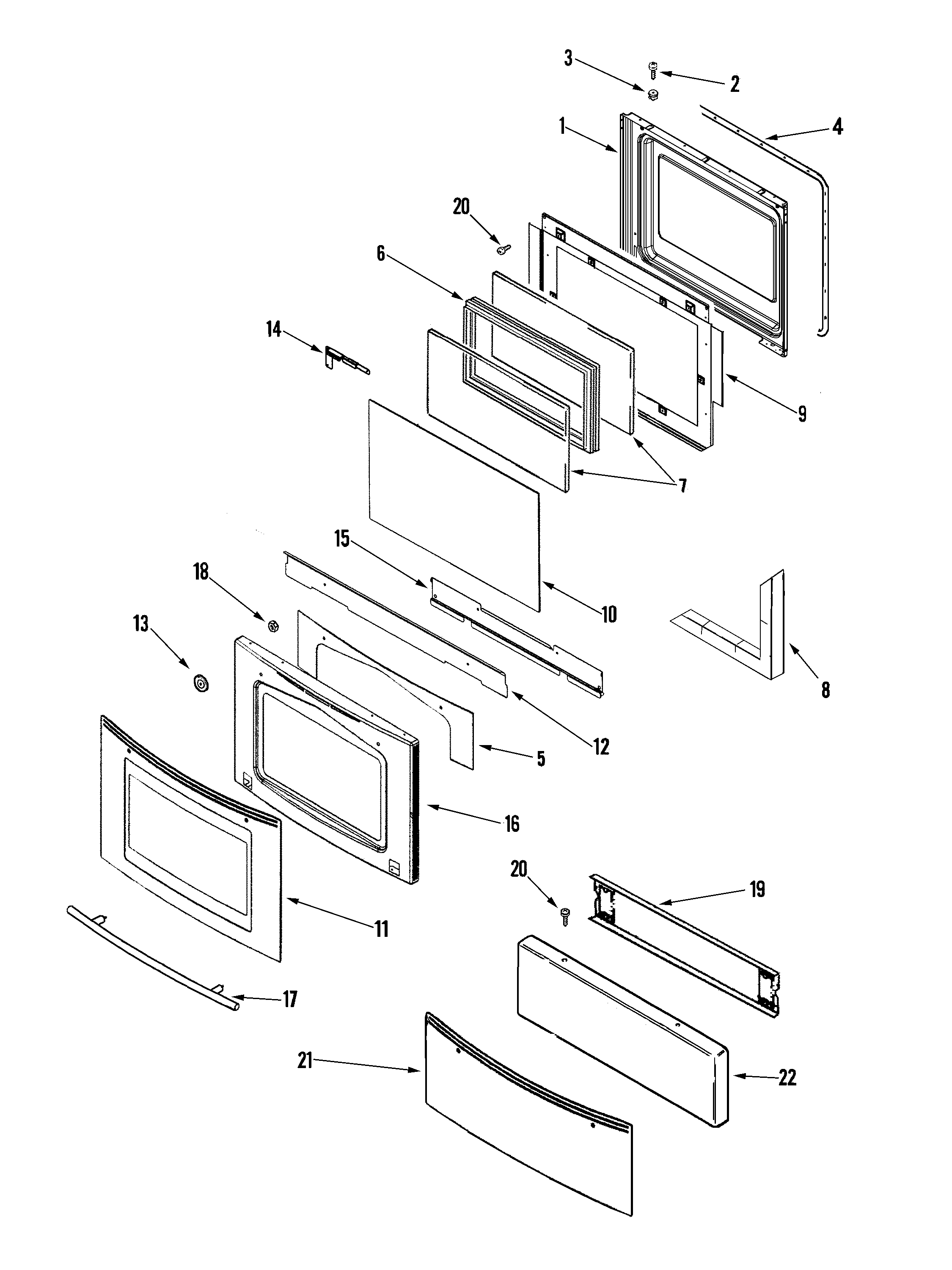

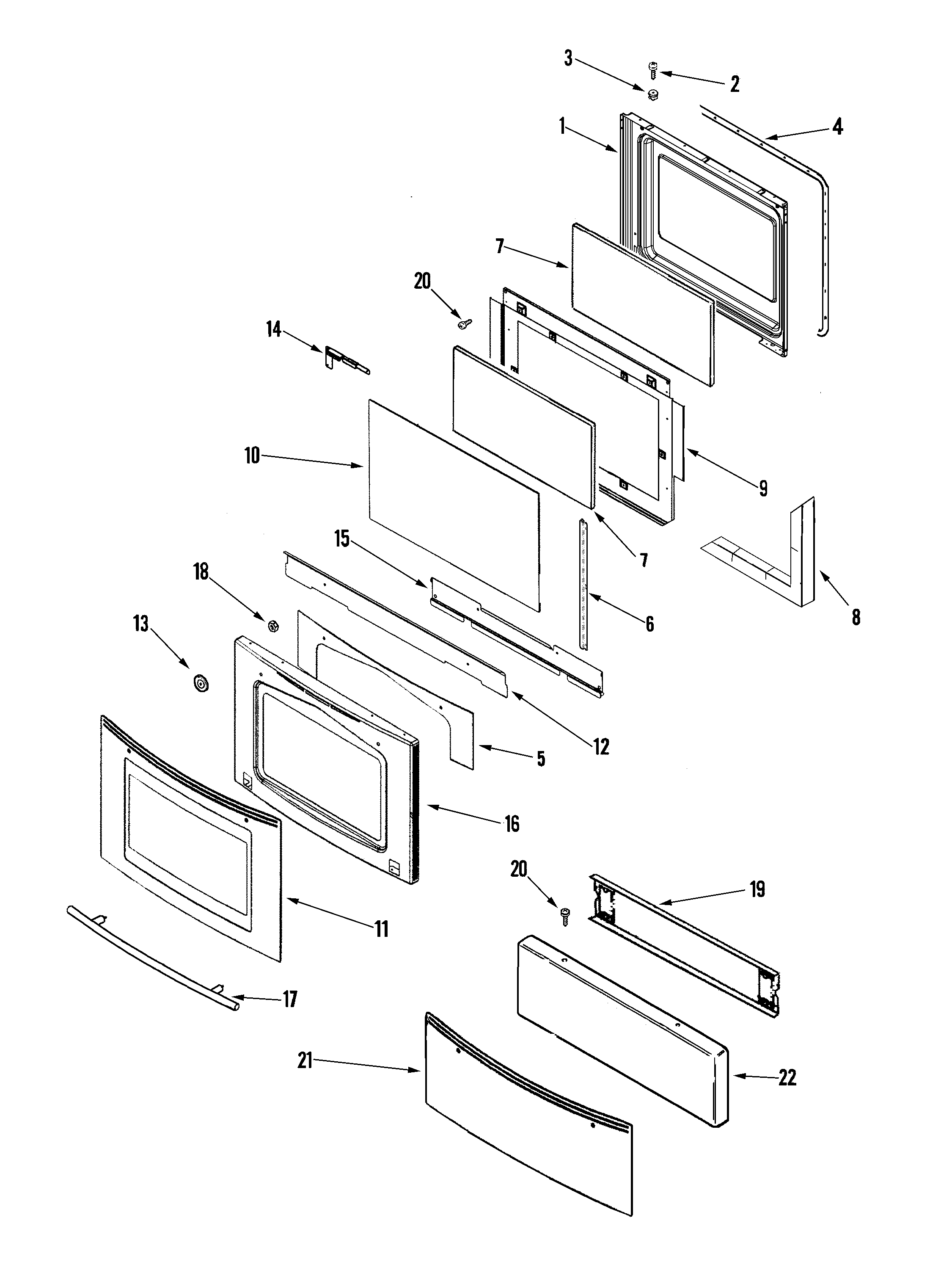

Door Gasket 7201P046-60
Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Screw 7101P112-60
Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Torx Screw 04100336
#3A

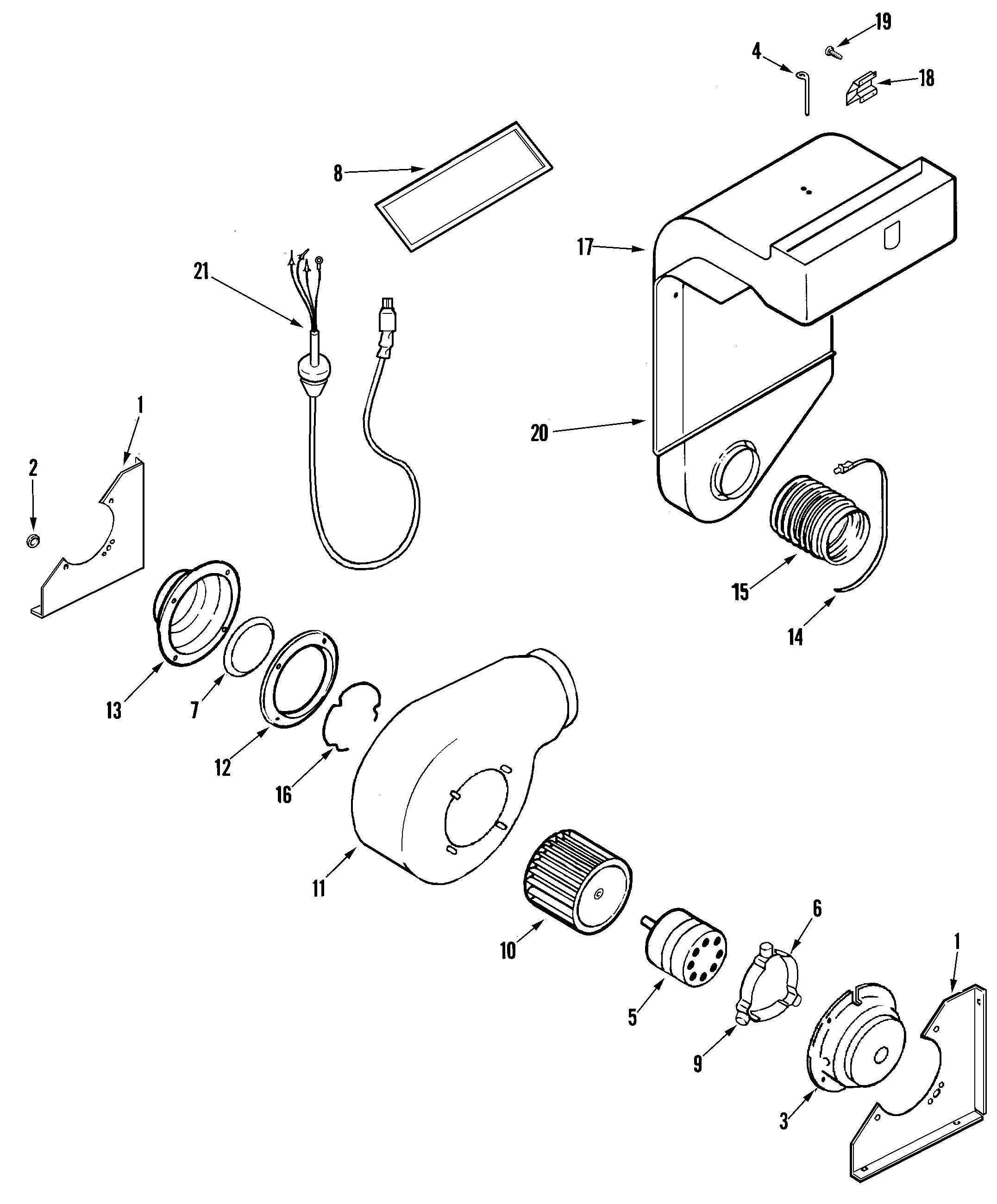

Blower assembly (plenum) diagram

Torx screw

Part #04100336

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 04100336. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw Isolator 71003542
#9A

Blower assembly (plenum) diagram

Screw isolator

Part #71003542

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 71003542. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Range Downdraft Vent Grease Filter 74011989
#8

Blower assembly (plenum) diagram

Range downdraft vent grease filter

Part #74011989

Replaced by #WP8310P007-60

?
Manufacturer substitution
This part replaces 74011989. Substitute parts can look different from the original.
This item is not returnable
$18.80 |
10% OFF Was : $20.89
In Stock
Range Surface Burner Grate Pad 74007356
#14

Control panel/top assembly diagram

Range surface burner grate pad

Part #74007356

Replaced by #W10919249

?
Manufacturer substitution
This part replaces 74007356. Substitute parts can look different from the original.
$8.53 |
10% OFF Phone Price : $9.53
In Stock
