Model # WFVC3300UC/19 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFVC3300UC-19 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

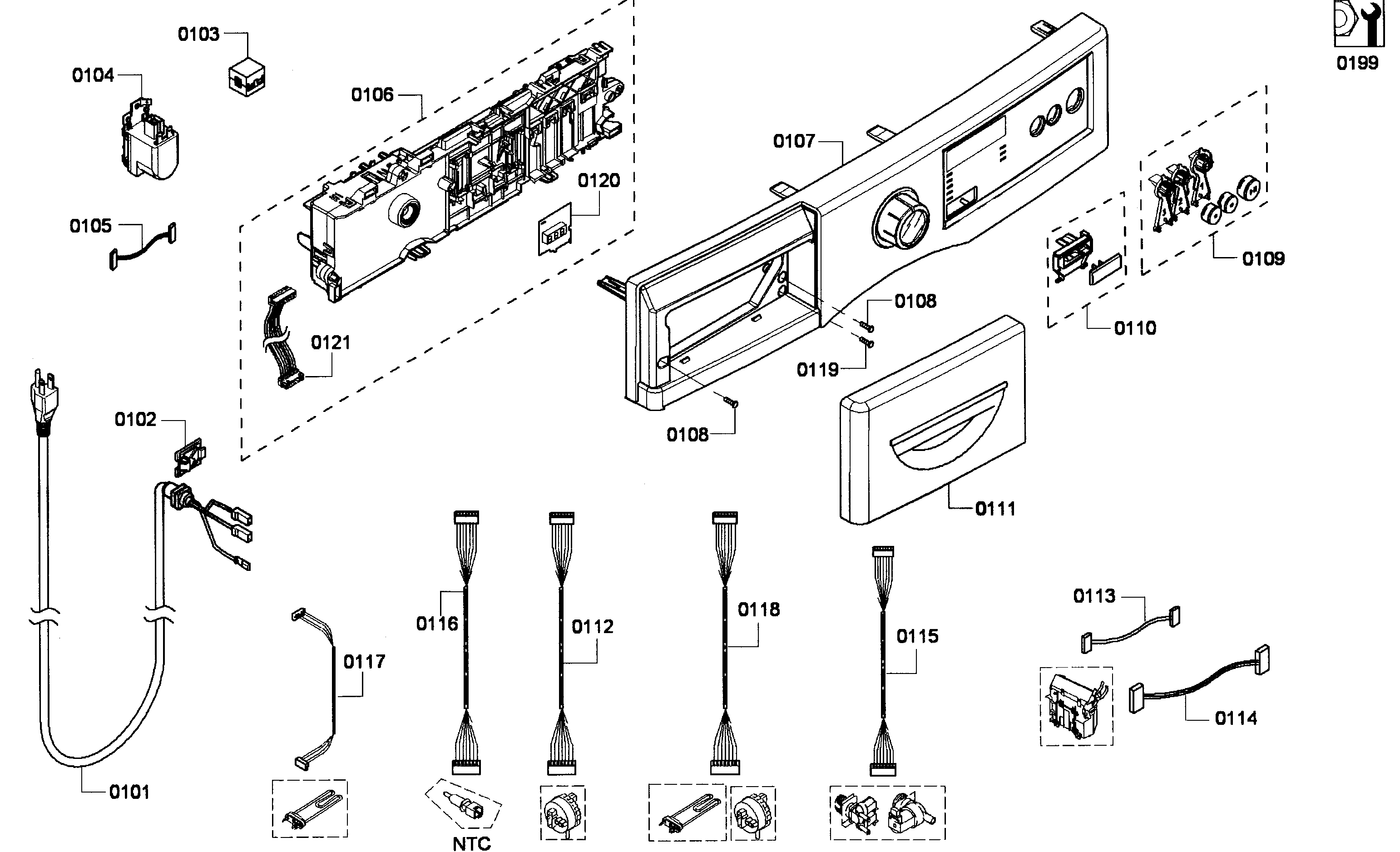

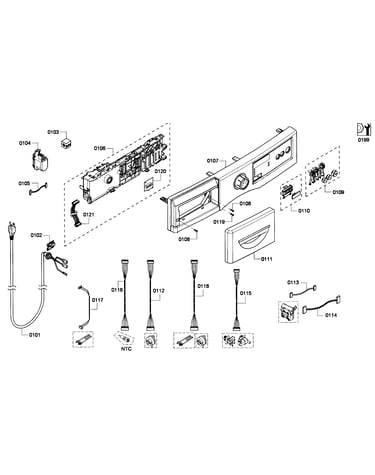

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Washer Hot Water Inlet Valve 422245
#407

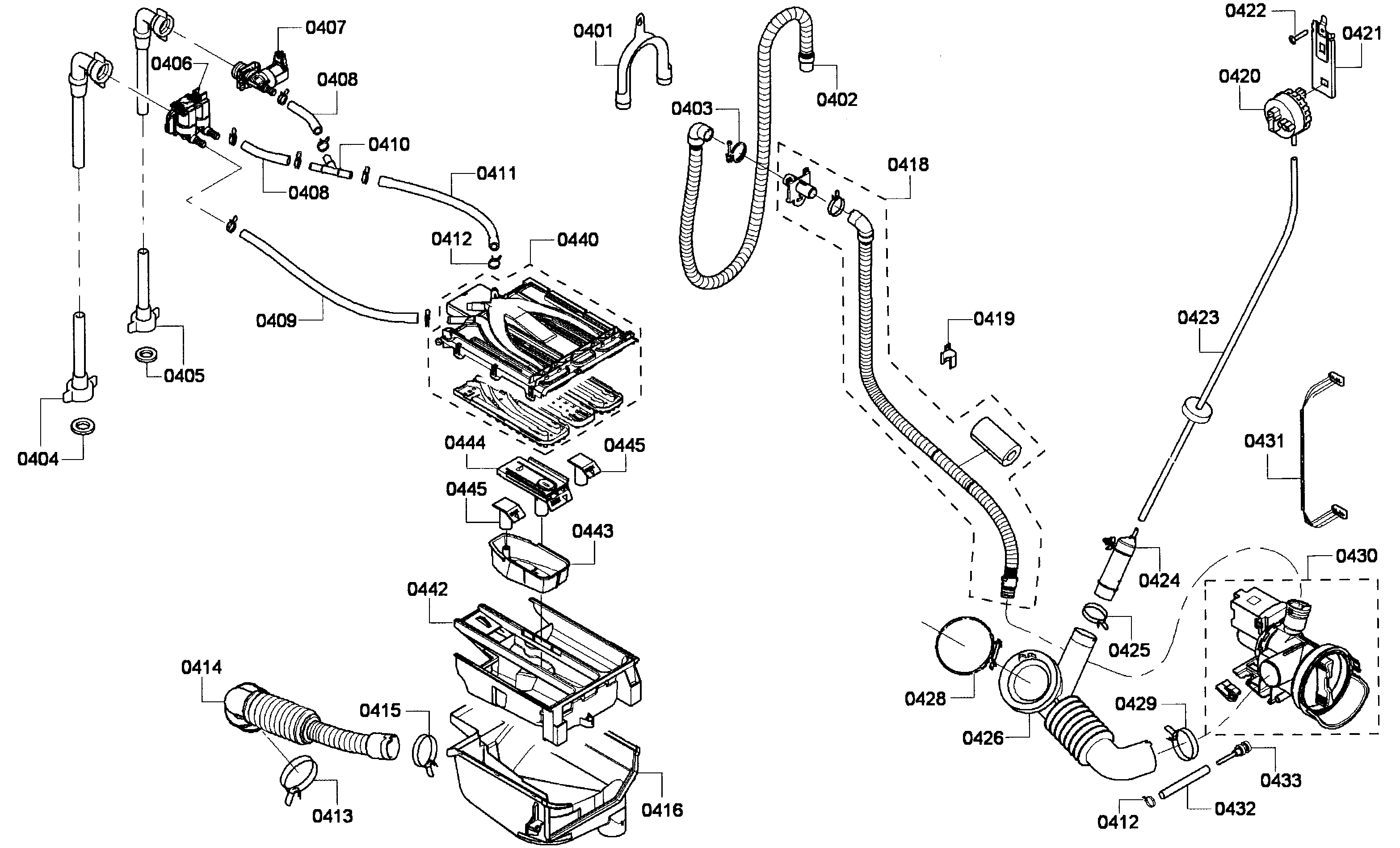

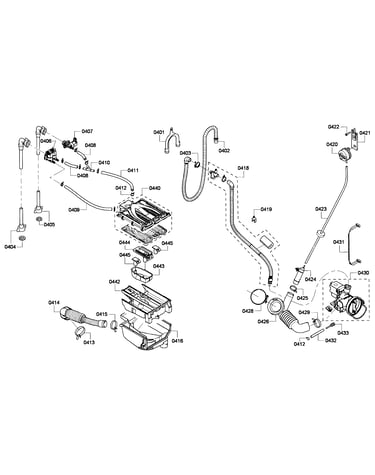

Pump assy diagram

Washer hot water inlet valve

Part #422245

Replaced by #00422245

?
Manufacturer substitution
This part replaces 422245. Substitute parts can look different from the original.
$38.99 |
13% OFF Phone Price : $44.99
In Stock
Magnet Valve 422244
#406

Pump assy diagram

Magnet valve

Part #422244

Replaced by #00422244

?
Manufacturer substitution
This part replaces 422244. Substitute parts can look different from the original.
$59.49 |
9% OFF Phone Price : $65.49
In Stock
Washer Door Lock Assembly 648526
#210

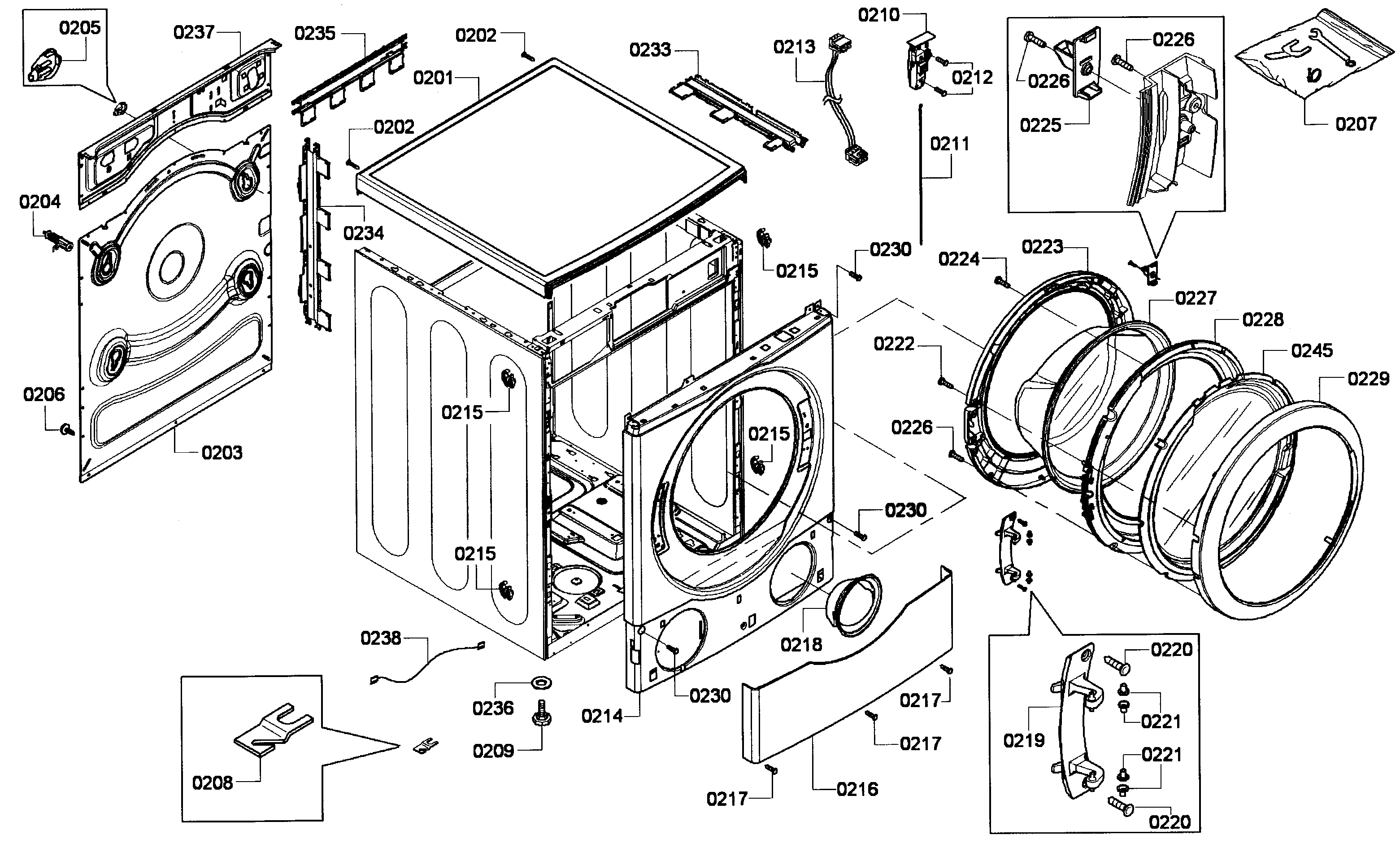

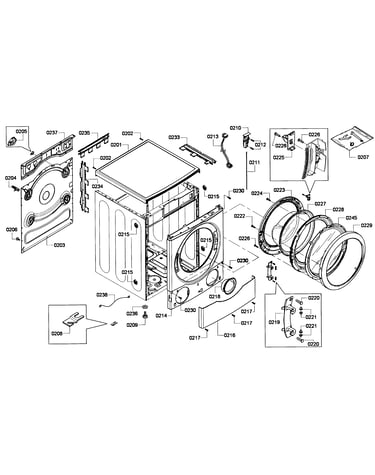

Cabinet assy diagram

Washer door lock assembly

Part #648526

Replaced by #00648526

?
Manufacturer substitution
This part replaces 648526. Substitute parts can look different from the original.
$78.71 |
7% OFF Phone Price : $84.71
In Stock
Clamp 648528
#320

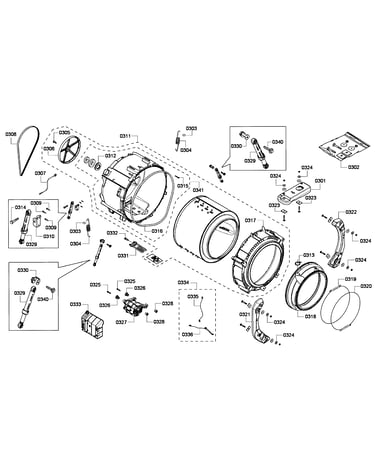

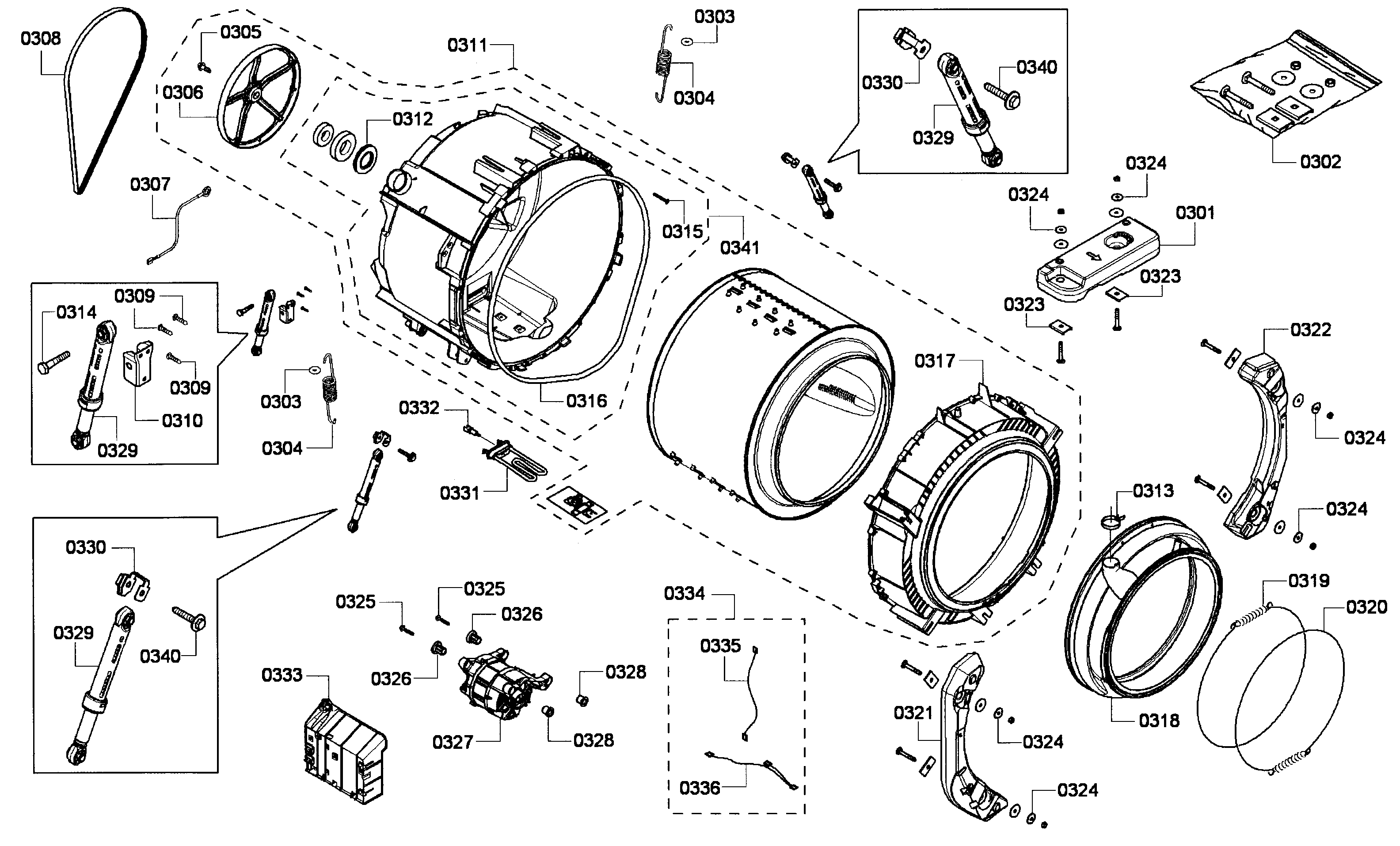

Drum assy diagram

Clamp

Part #648528

Replaced by #00648528

?
Manufacturer substitution
This part replaces 648528. Substitute parts can look different from the original.
This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Shaft Seal 613084
#312A

Drum assy diagram

Shaft seal

Part #613084

Replaced by #00613084

?
Manufacturer substitution
This part replaces 613084. Substitute parts can look different from the original.
$22.89 |
21% OFF Phone Price : $28.89
In Stock
Seal 416363
#312

Drum assy diagram

Seal

Part #416363

Replaced by #00613084

?
Manufacturer substitution
This part replaces 416363. Substitute parts can look different from the original.
$22.89 |
21% OFF Phone Price : $28.89
In Stock
Washer Inlet Hose 493766
#405

Pump assy diagram

Washer inlet hose

Part #493766

Replaced by #00493766

?
Manufacturer substitution
This part replaces 493766. Substitute parts can look different from the original.
$43.98
In Stock
Washer Window 684123
#227

Cabinet assy diagram

Washer window

Part #684123

Replaced by #00684123

?
Manufacturer substitution
This part replaces 684123. Substitute parts can look different from the original.
$119.66
In Stock
Washer 422246
#303

Drum assy diagram

Washer

Part #422246

Replaced by #00422246

?
Manufacturer substitution
This part replaces 422246. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Washer Inlet Hose 648274
#414

Pump assy diagram

Washer inlet hose

Part #648274

Replaced by #00648274

?
Manufacturer substitution
This part replaces 648274. Substitute parts can look different from the original.
$30.18
In Stock
