Amana
Bottom-Mount Refrigerator

Model # AB1924PEKS13 Official Amana bottom-mount refrigerator

Here are the diagrams and repair parts for Official Amana AB1924PEKS13 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

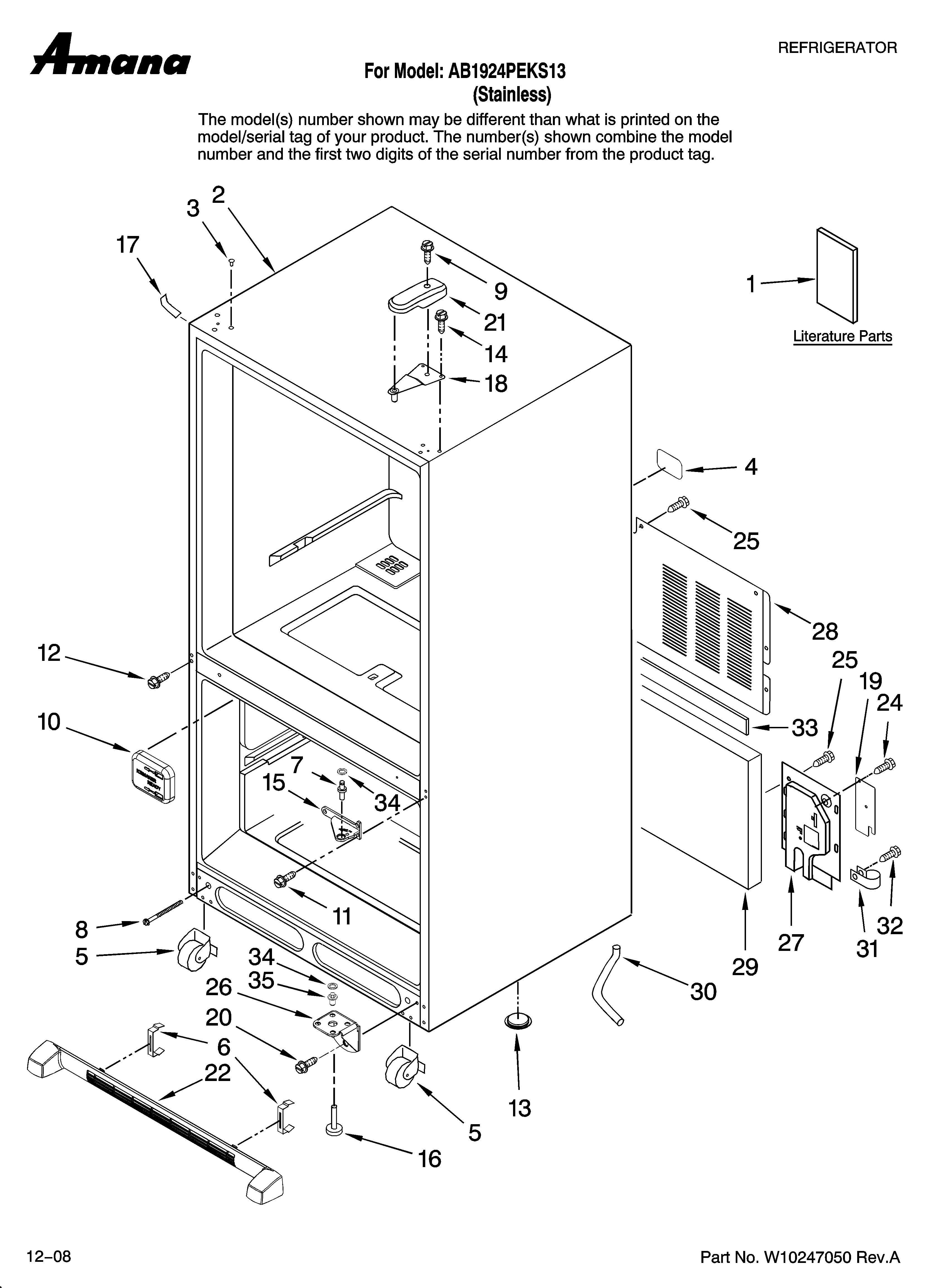

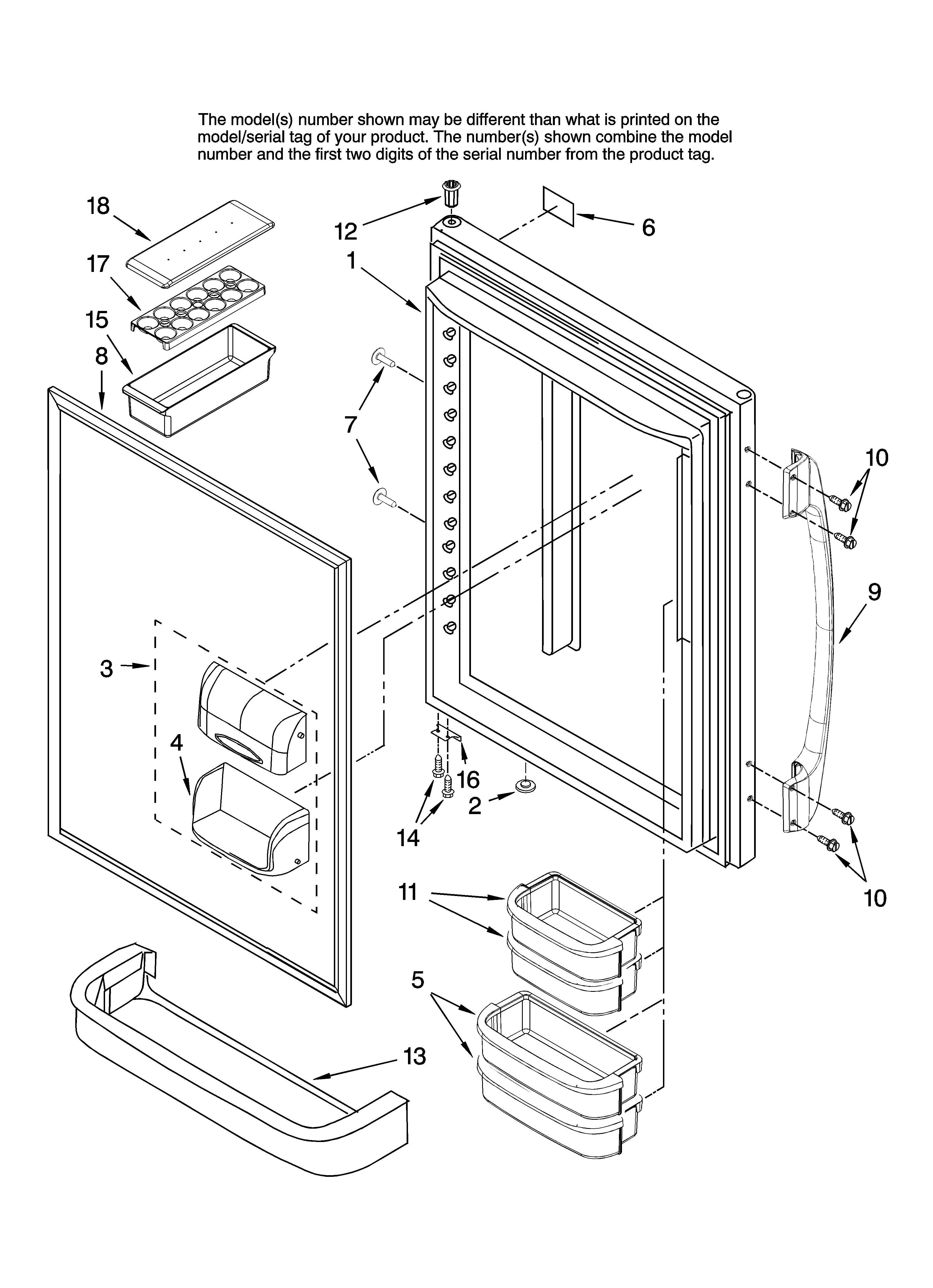

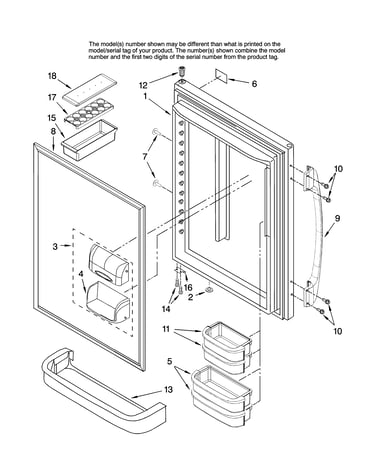

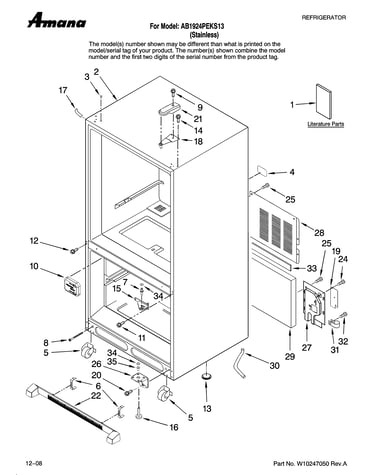

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |
Refrigerator Uv Filter Dryer W10143759
#27

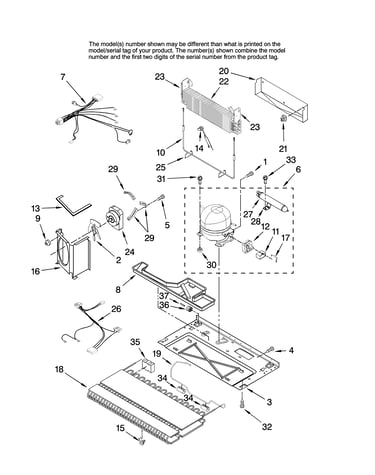

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Switch C3680310
#6

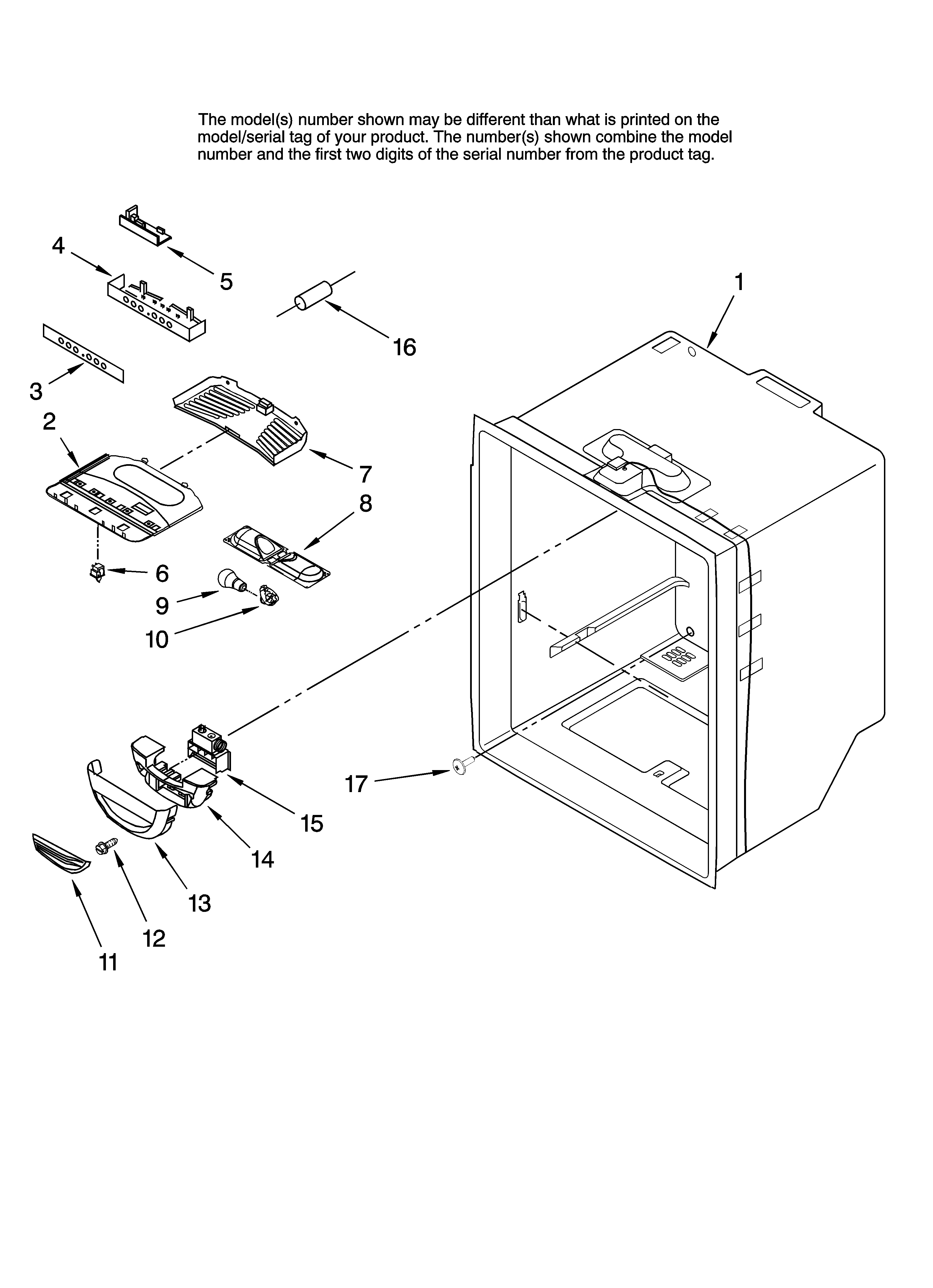

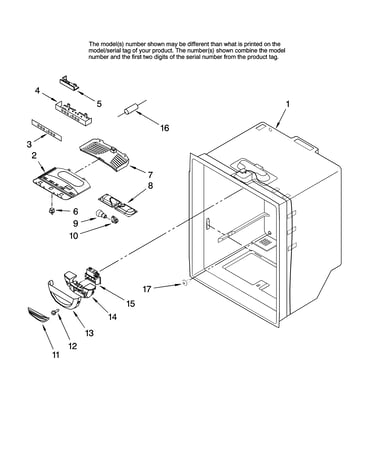

Refrigerator liner parts diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Crisper Drawer Support Rail, Center 67001057
#12

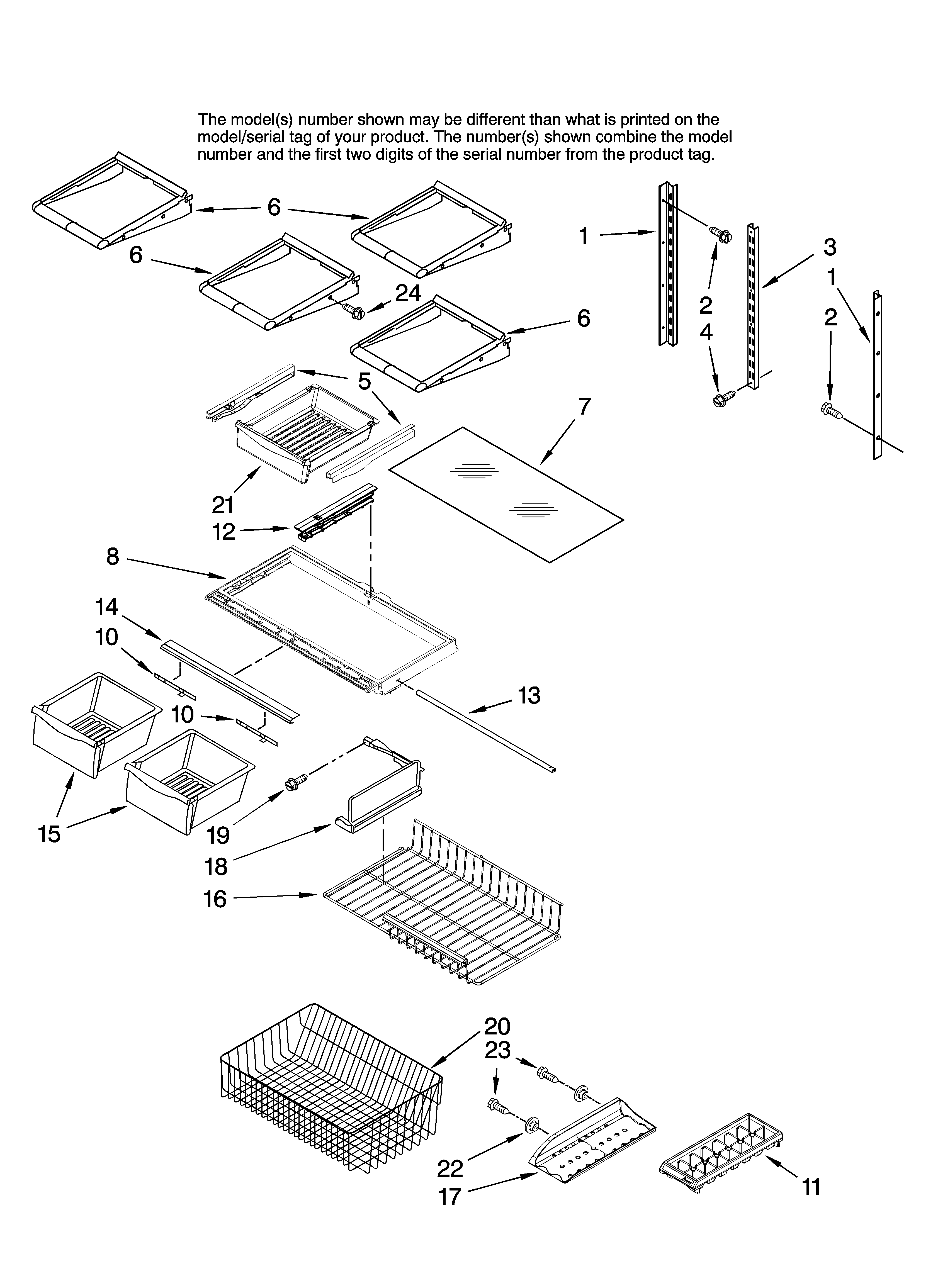

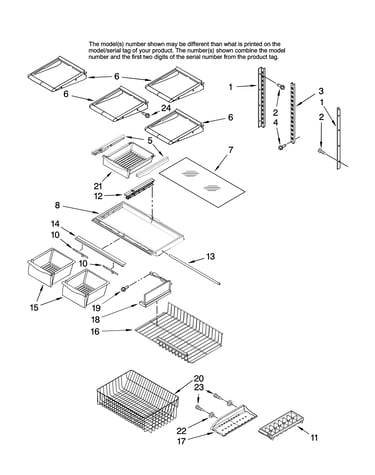

Shelf parts diagram

Refrigerator crisper drawer support rail, center

Part #67001057

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 67001057. Substitute parts can look different from the original.
BEST SELLER
$47.26 |
11% OFF Phone Price : $53.26
In Stock
Refrigerator Light Switch 67005653
#11

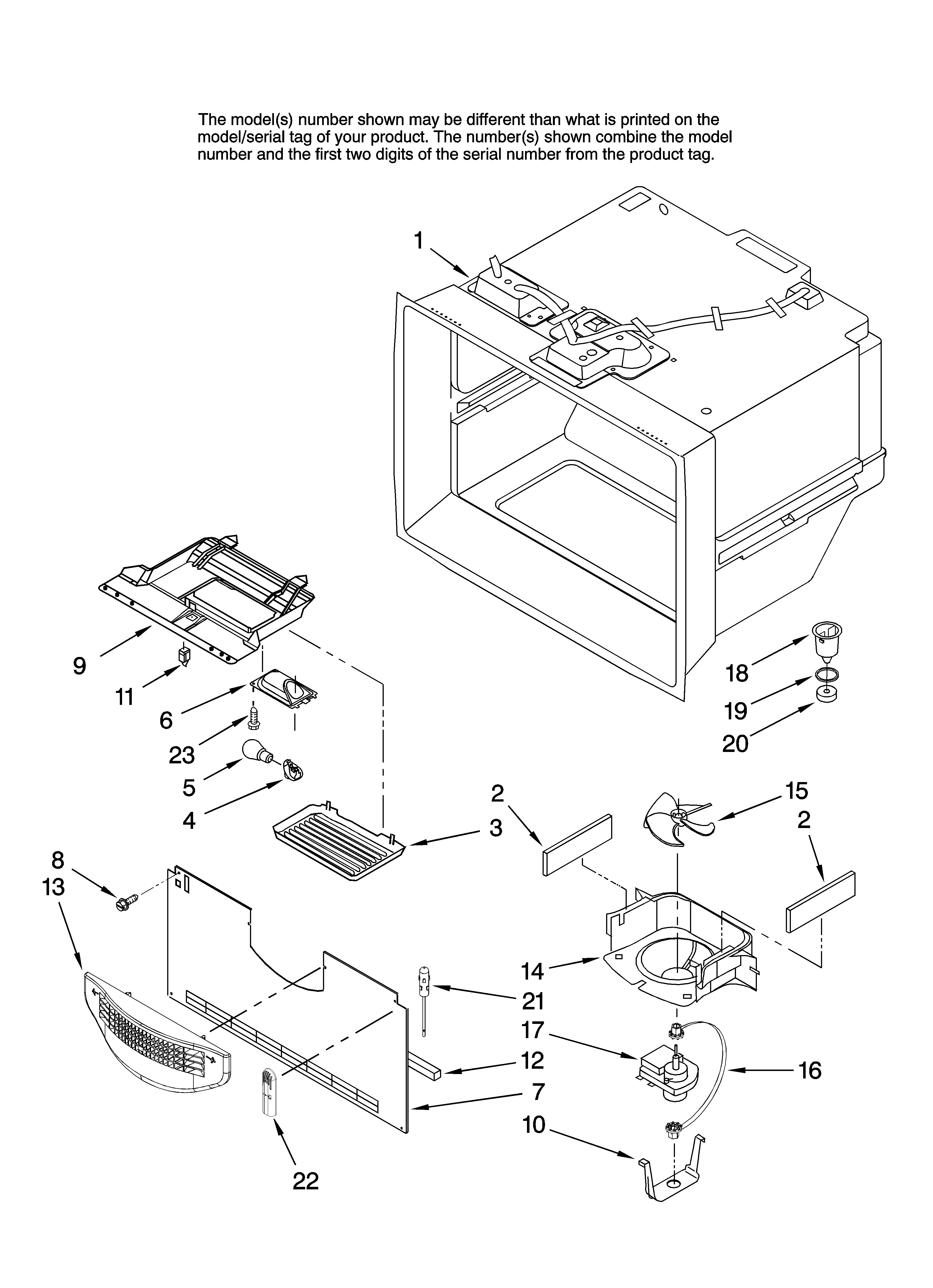

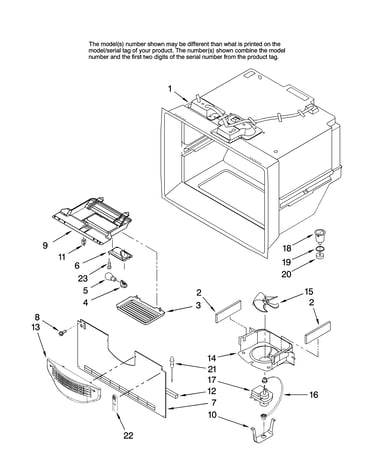

Freezer liner parts diagram

Refrigerator light switch

Part #67005653

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 67005653. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Temperature Sensor (replaces 12002356, 12791403, 12791403sp, 12791404, 12791404sp, 12791405, 12791405sp, 12791406, 12791406sp, 12791407, 12791407sp, 67003871, 67004034, 8208196, 8208278, Y67003872) 12002355
Refrigerator temperature sensor (replaces 12002356, 12791403, 12791403sp, 12791404, 12791404sp, 12791405, 12791405sp, 12791406, 12791406sp, 12791407, 12791407sp, 67003871, 67004034, 8208196, 8208278, y67003872)

Part #12002355

BEST SELLER
$33.33 |
15% OFF Phone Price : $39.33
In Stock
Refrigerator Water Inlet Valve Assembly 67006531
#12

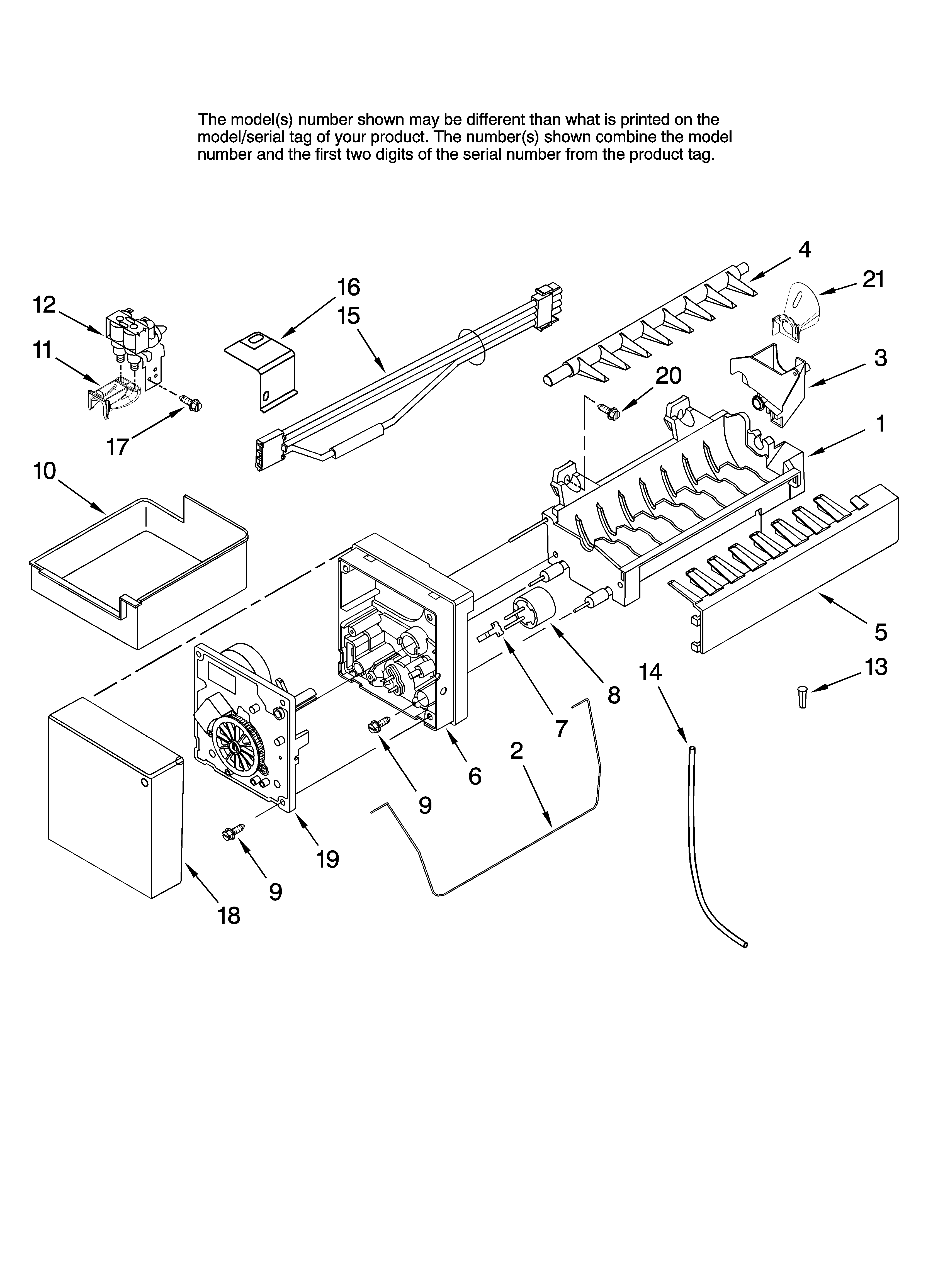

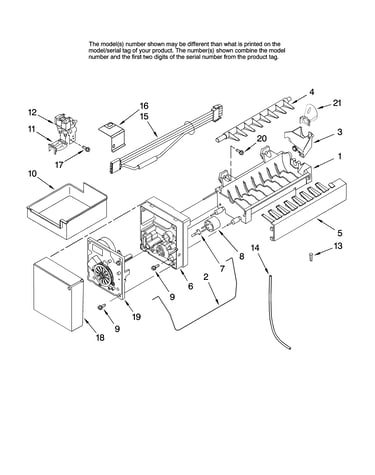

Icemaker parts, optional parts (not included) diagram

Refrigerator water inlet valve assembly

Part #67006531

Replaced by #WP67006531

?
Manufacturer substitution
This part replaces 67006531. Substitute parts can look different from the original.
BEST SELLER
$96.16 |
11% OFF Phone Price : $108.16
In Stock
Refrigerator Fan Blade W10162928
#2

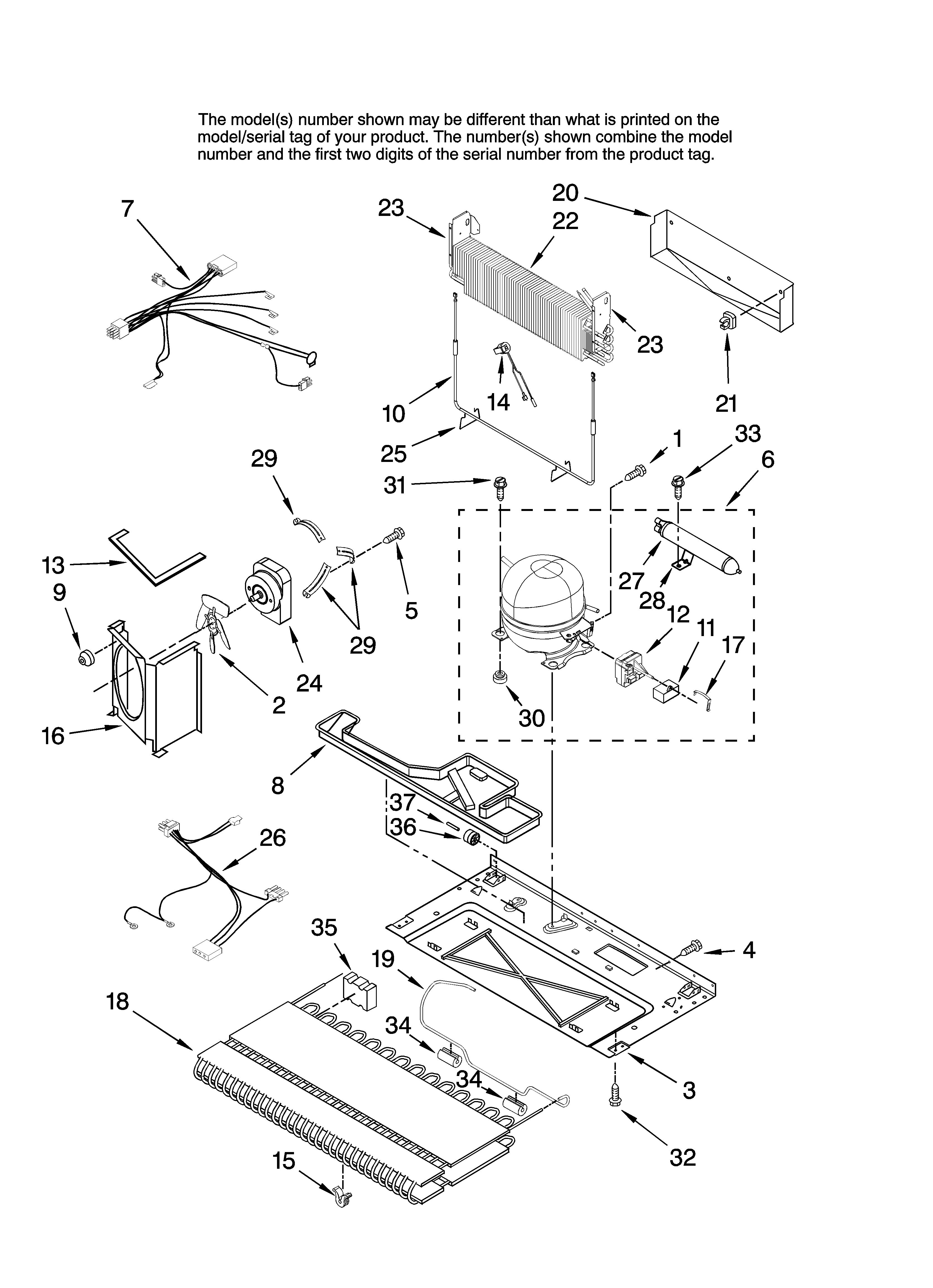

Unit parts diagram

Refrigerator fan blade

Part #W10162928

Replaced by #W10156818

?
Manufacturer substitution
This part replaces W10162928. Substitute parts can look different from the original.
BEST SELLER
$41.43 |
13% OFF Phone Price : $47.43
In Stock
Appliance Touch-up Paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, W10831982) 72032
#NI

Icemaker parts, optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032

BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Refrigerator Wire Harness W10146389
#15

Icemaker parts, optional parts (not included) diagram

Refrigerator wire harness

Part #W10146389

Replaced by #WPD7813010

?
Manufacturer substitution
This part replaces W10146389. Substitute parts can look different from the original.
$40.39 |
13% OFF Phone Price : $46.39
In Stock
Gasket, Fz D 12683816B
#3

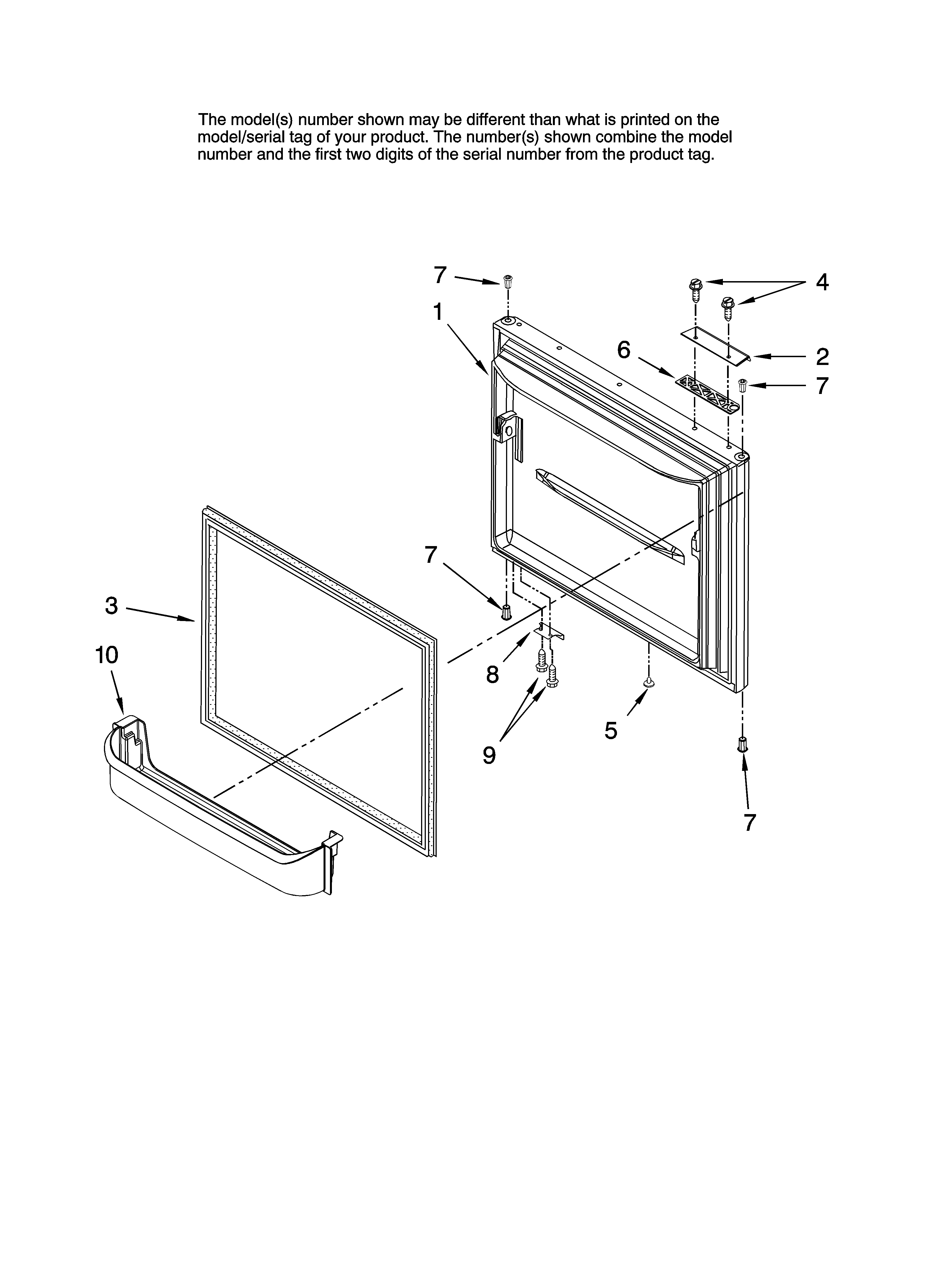

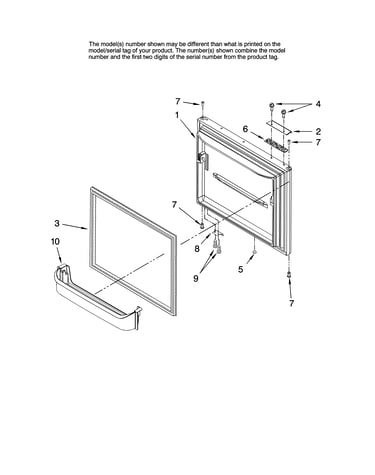

Freezer door parts diagram

Gasket, fz d

Part #12683816B

Replaced by #WPW10436247

?
Manufacturer substitution
This part replaces 12683816B. Substitute parts can look different from the original.
BEST SELLER
$166.84 |
7% OFF Phone Price : $178.84
In Stock
