Electric Range

Model # ARR626W1-P1143407NW Official Amana electric range

Here are the diagrams and repair parts for Official Amana ARR626W1-P1143407NW electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

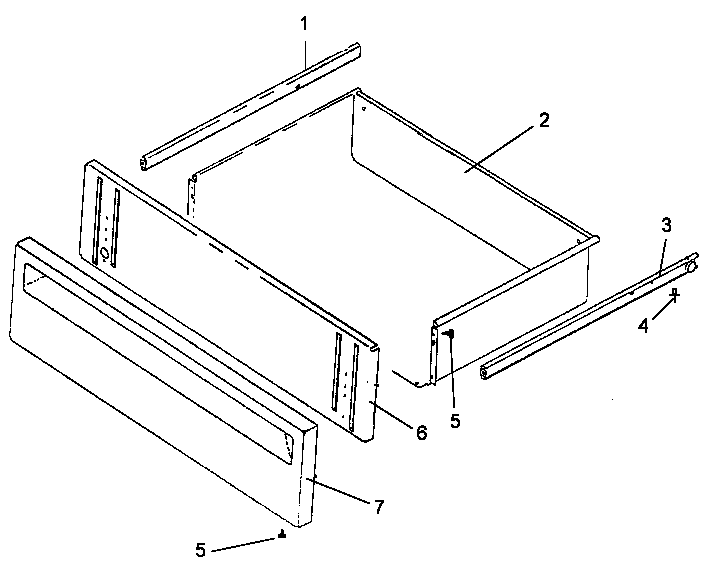

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forARR626W1-P1143407NW Ranges

  • Lamp 0042175
    #4

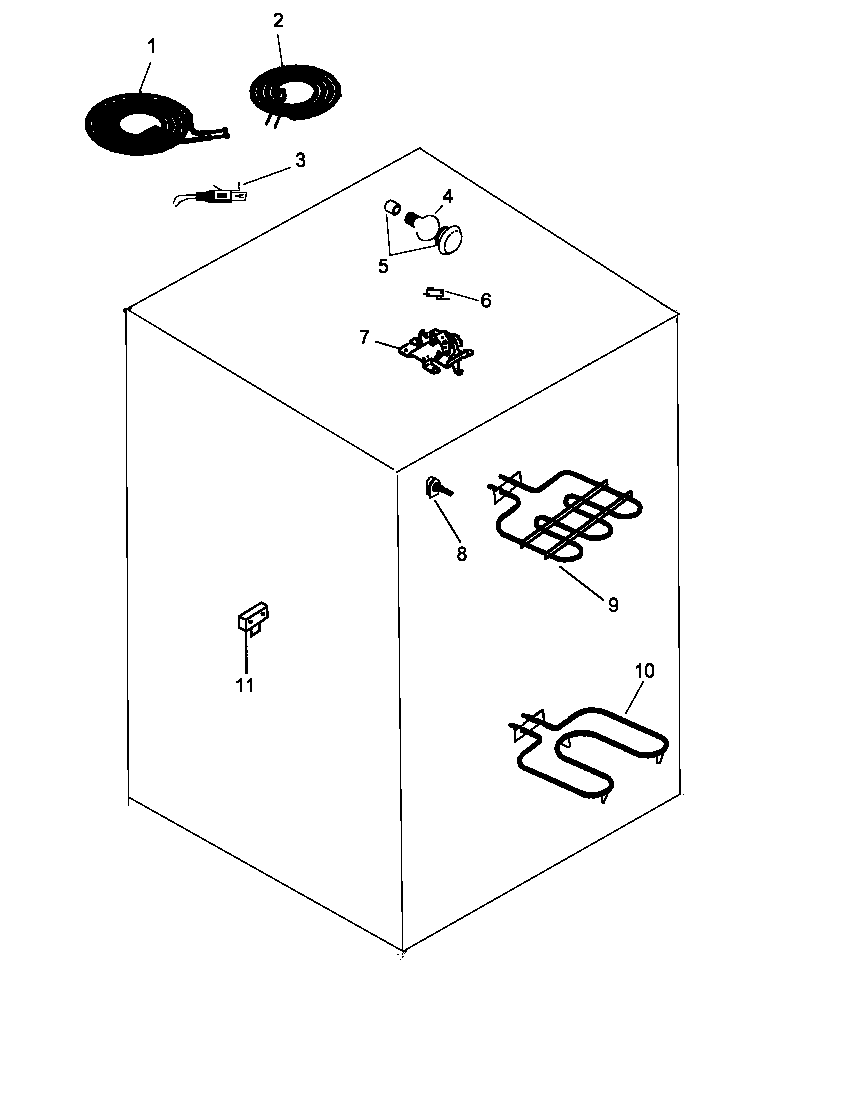

    Electical components diagram

    Lamp

    Part #0042175

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces 0042175. Substitute parts can look different from the original.
    BEST SELLER
    $13.61
    15% OFF Phone Price : $16.03
    In Stock
  • Thermal Blck 0089336
    #3

    Electical components diagram

    Thermal blck

    Part #0089336

    Replaced by #330031

    ?
    Manufacturer substitution
    This part replaces 0089336. Substitute parts can look different from the original.
    BEST SELLER
    $8.76
    10% OFF Phone Price : $9.76
    In Stock
  • Infinite Switch 0315563
    #6B

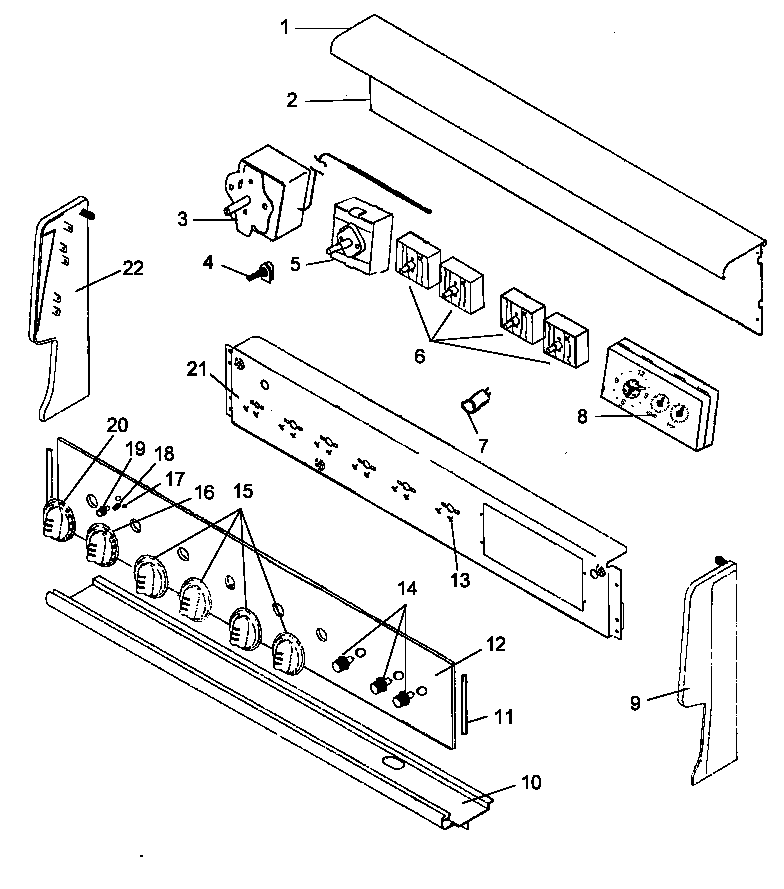

    Backguard diagram

    Infinite switch

    Part #0315563

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner Bowl 308648T
    #4B

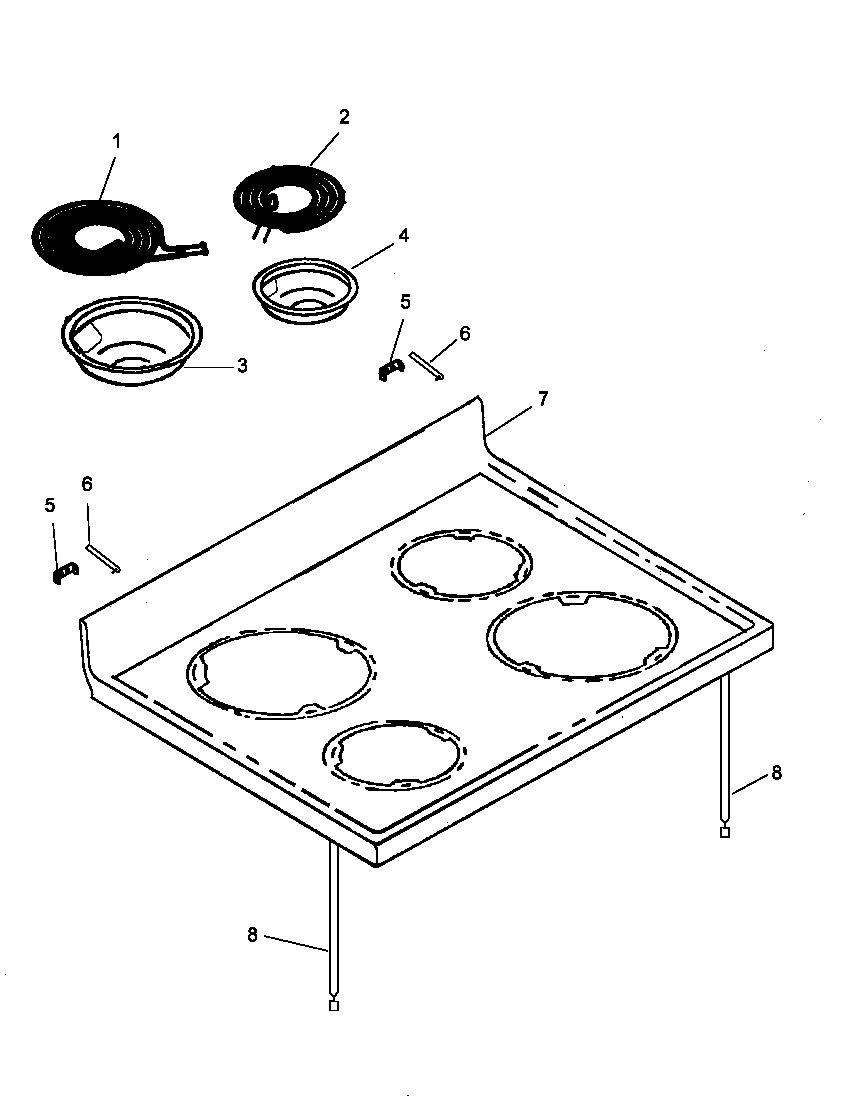

    Main top diagram

    Burner bowl

    Part #308648T

    Replaced by #W10291024

    ?
    Manufacturer substitution
    This part replaces 308648T. Substitute parts can look different from the original.
    $46.11
    12% OFF Phone Price : $52.11
    In Stock
  • Drip Bowl 308649T
    #3B

    Main top diagram

    Drip bowl

    Part #308649T

    Replaced by #W10291024

    ?
    Manufacturer substitution
    This part replaces 308649T. Substitute parts can look different from the original.
    $46.11
    12% OFF Phone Price : $52.11
    In Stock
  • Switch 0309862
    #6A

    Backguard diagram

    Switch

    Part #0309862

    Replaced by #W11121639

    ?
    Manufacturer substitution
    This part replaces 0309862. Substitute parts can look different from the original.
    In Stock
  • Broiler Pan 314175CG
    #9

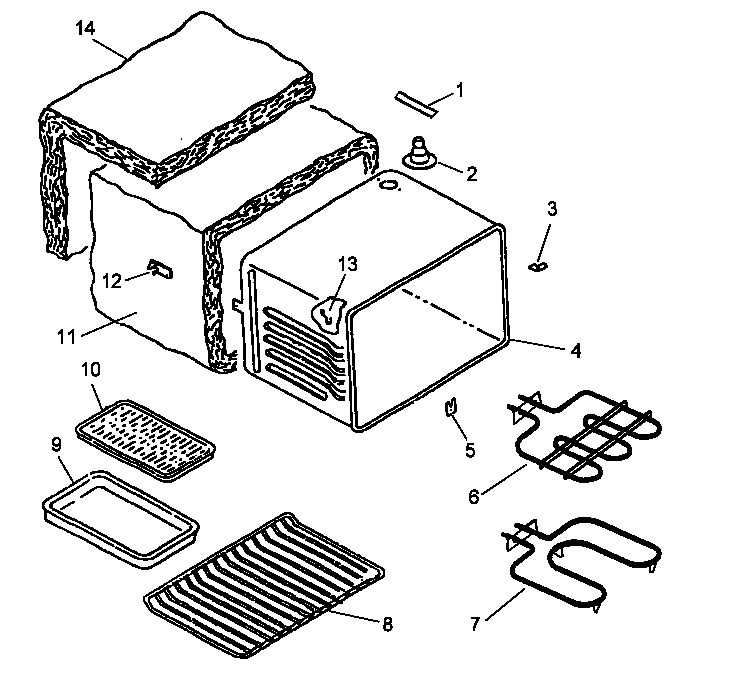

    Cavity diagram

    Broiler pan

    Part #314175CG

    Replaced by #4396923

    ?
    Manufacturer substitution
    This part replaces 314175CG. Substitute parts can look different from the original.
    $31.03
    13% OFF Phone Price : $35.55
    In Stock
  • Broiler Grid 304451E
    #10

    Cavity diagram

    Broiler grid

    Part #304451E

    Replaced by #4396923

    ?
    Manufacturer substitution
    This part replaces 304451E. Substitute parts can look different from the original.
    $31.03
    13% OFF Phone Price : $35.55
    In Stock
  • Spacer 309882B
    #2A

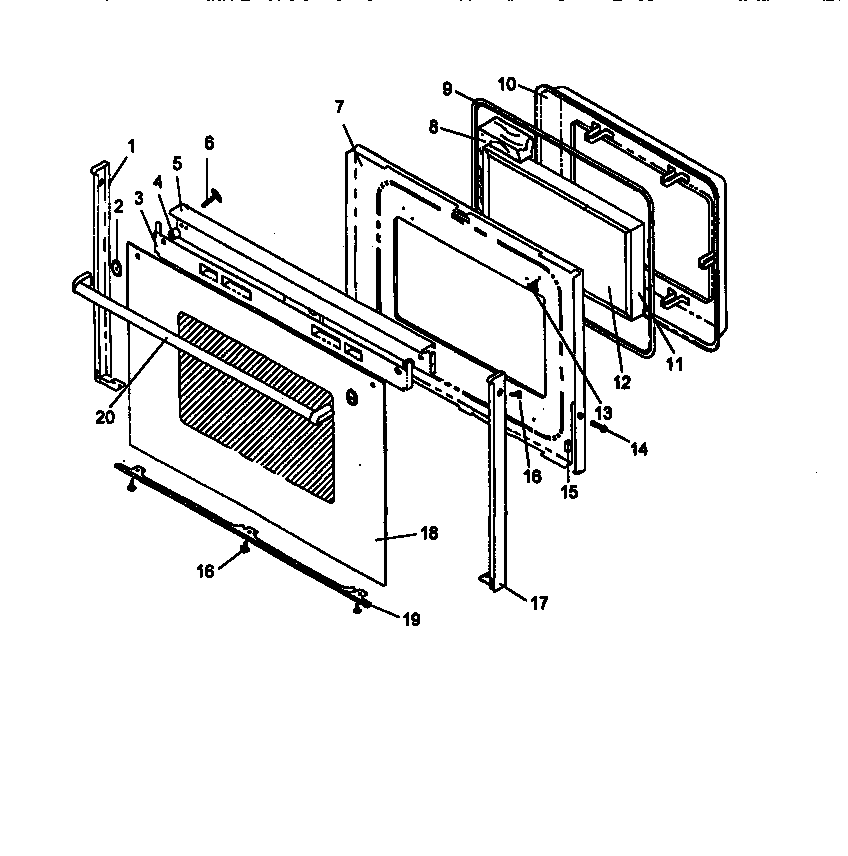

    Oven door diagram

    Spacer

    Part #309882B

    In Stock
  • Screw M0210816

    #NI

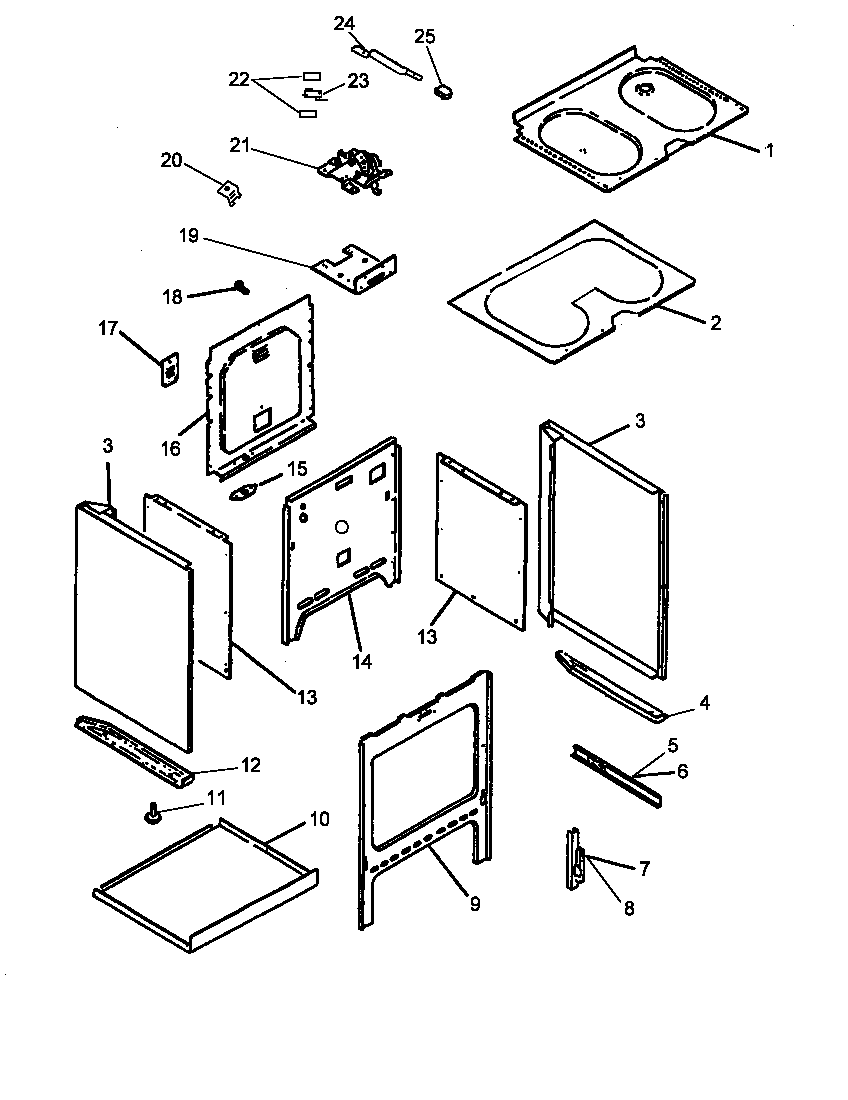

    All parts diagram

    Screw

    Part #M0210816

    Replaced by #12991101

    ?
    Manufacturer substitution
    This part replaces M0210816. Substitute parts can look different from the original.
    $16.21
    11% OFF Phone Price : $18.21
    In Stock
