Dacor
Range Hood

Model # DHI421 Official Dacor range hood

Here are the diagrams and repair parts for Official Dacor DHI421 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Range Hood Lamp Lens 102462
#NI

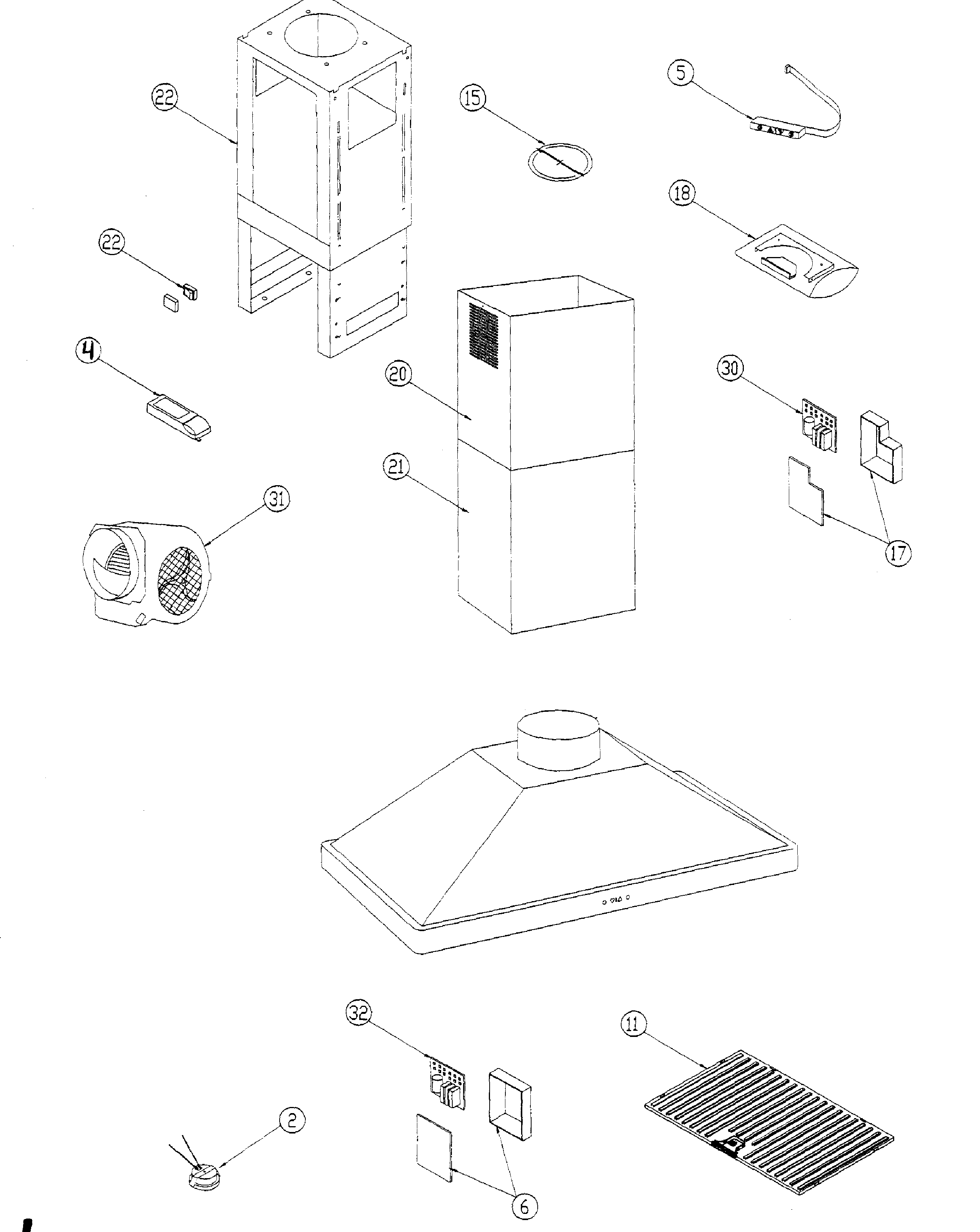

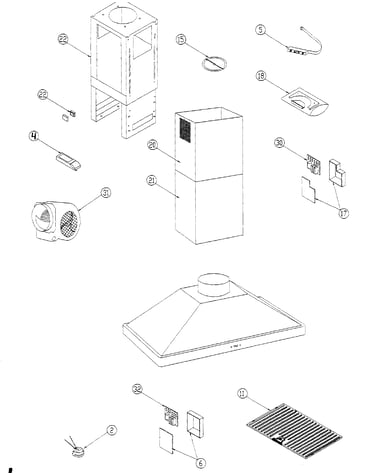

Range hood diagram

Range hood lamp lens

Part #102462

$16.49
In Stock
Box Cover 106204
#NI

Range hood diagram

Box cover

Part #106204

$24.99
In Stock
Lo Chimney 102465
#21

Range hood diagram

Lo chimney

Part #102465

$342.49
In Stock
Bracket Set 102463
#18

Range hood diagram

Bracket set

Part #102463

$14.99
In Stock
Lamp Assembly 101944
#2

Range hood diagram

Lamp assembly

Part #101944

$71.49
In Stock
Transformer 101946
#4

Range hood diagram

Transformer

Part #101946

$162.49
In Stock
Motor Assembly 101958
#31

Range hood diagram

Motor assembly

Part #101958

$634.49
In Stock
Filter 101952
#11

Range hood diagram

Filter

Part #101952

$359.99
In Stock
Ground Cable 106201
#NI

Range hood diagram

Ground cable

Part #106201

This item is not returnable
$4.99
In Stock
Junction Box 106203
#NI

Range hood diagram

Junction box

Part #106203

$40.49
In Stock
