Kenmore
Compact Refrigerator

Model # 46197182010 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 46197182010 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Danby Refrigerator Door Switch 0488W.03
#3

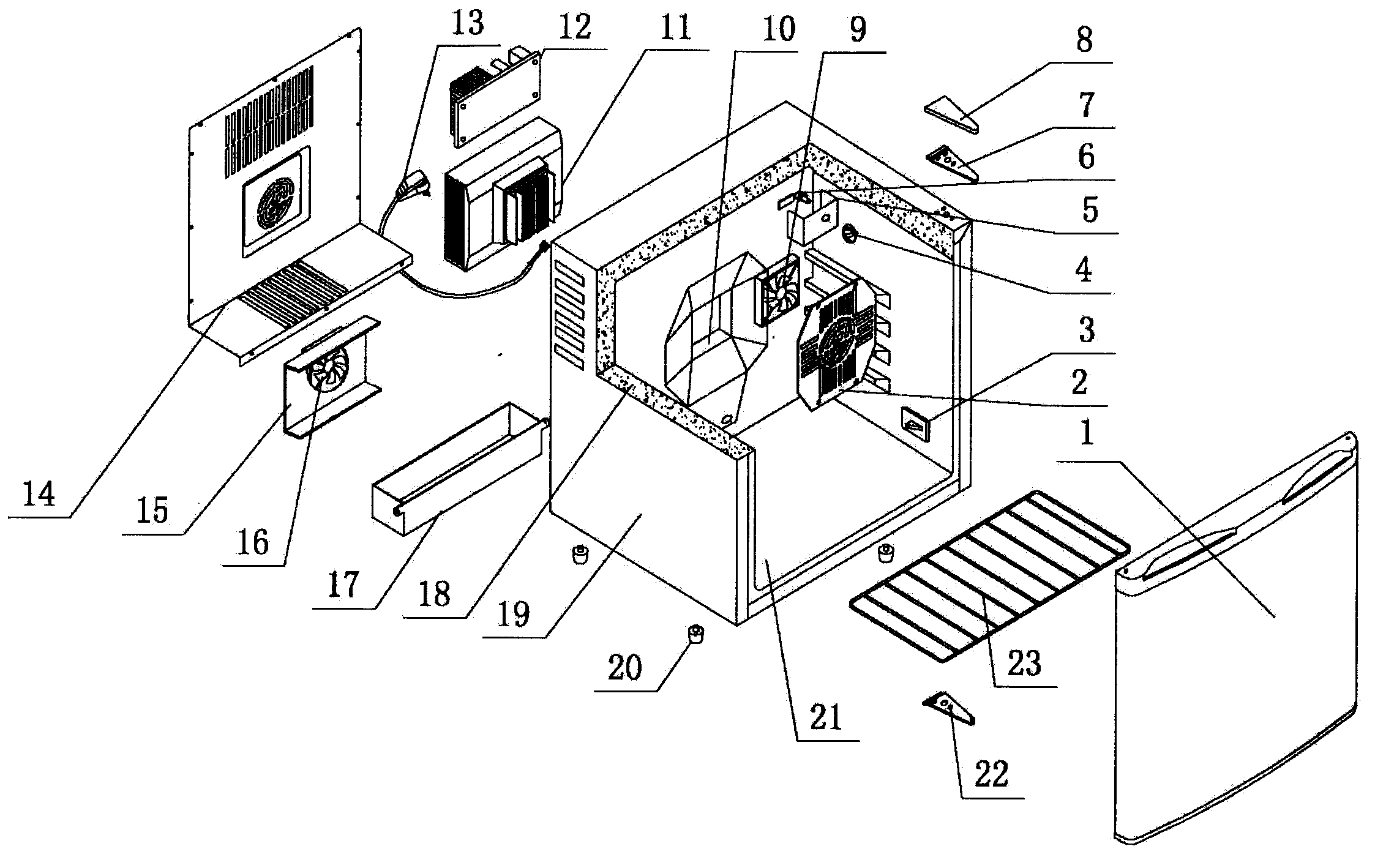

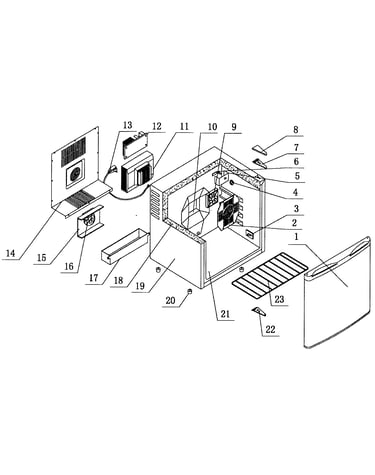

Cabinet parts diagram

Danby refrigerator door switch

Part #0488W.03

$10.13
In Stock
Danby Refrigerator Hinge, Lower 0488W.22
#22

Cabinet parts diagram

Danby refrigerator hinge, lower

Part #0488W.22

This item is not returnable
$5.56
In Stock
Danby Water Box 0488W.17
#17

Cabinet parts diagram

Danby water box

Part #0488W.17

This item is not returnable
$6.95
In Stock
Danby Refrigerator Hinge, Upper 0488W.07
#7

Cabinet parts diagram

Danby refrigerator hinge, upper

Part #0488W.07

This item is not returnable
$5.56
In Stock
Danby Danby Refrigerator Door Assembly 0488W.01
#1

Cabinet parts diagram

Danby danby refrigerator door assembly

Part #0488W.01

$50.49 |
11% OFF Phone Price : $56.49
In Stock
Danby Fan Mask 0488W.15
#15

Cabinet parts diagram

Danby fan mask

Part #0488W.15

$10.34
In Stock
Danby Fan Mask 0488W.02
#2

Cabinet parts diagram

Danby fan mask

Part #0488W.02

$10.34
In Stock
Danby Refrigerator Cover 0488W.14
#14

Cabinet parts diagram

Danby refrigerator cover

Part #0488W.14

$16.56
In Stock
Danby Refrigerator Foot 0488W.20
#20

Cabinet parts diagram

Danby refrigerator foot

Part #0488W.20

This item is not returnable
$6.98
In Stock
Danby Danby Refrigerator Shelf 0488W.23
#23

Cabinet parts diagram

Danby danby refrigerator shelf

Part #0488W.23

$8.88 |
10% OFF Phone Price : $9.88
In Stock
