Craftsman
Power Drill

Model # 315111220 Official Craftsman 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 315111220 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Housing 981594-000
#1

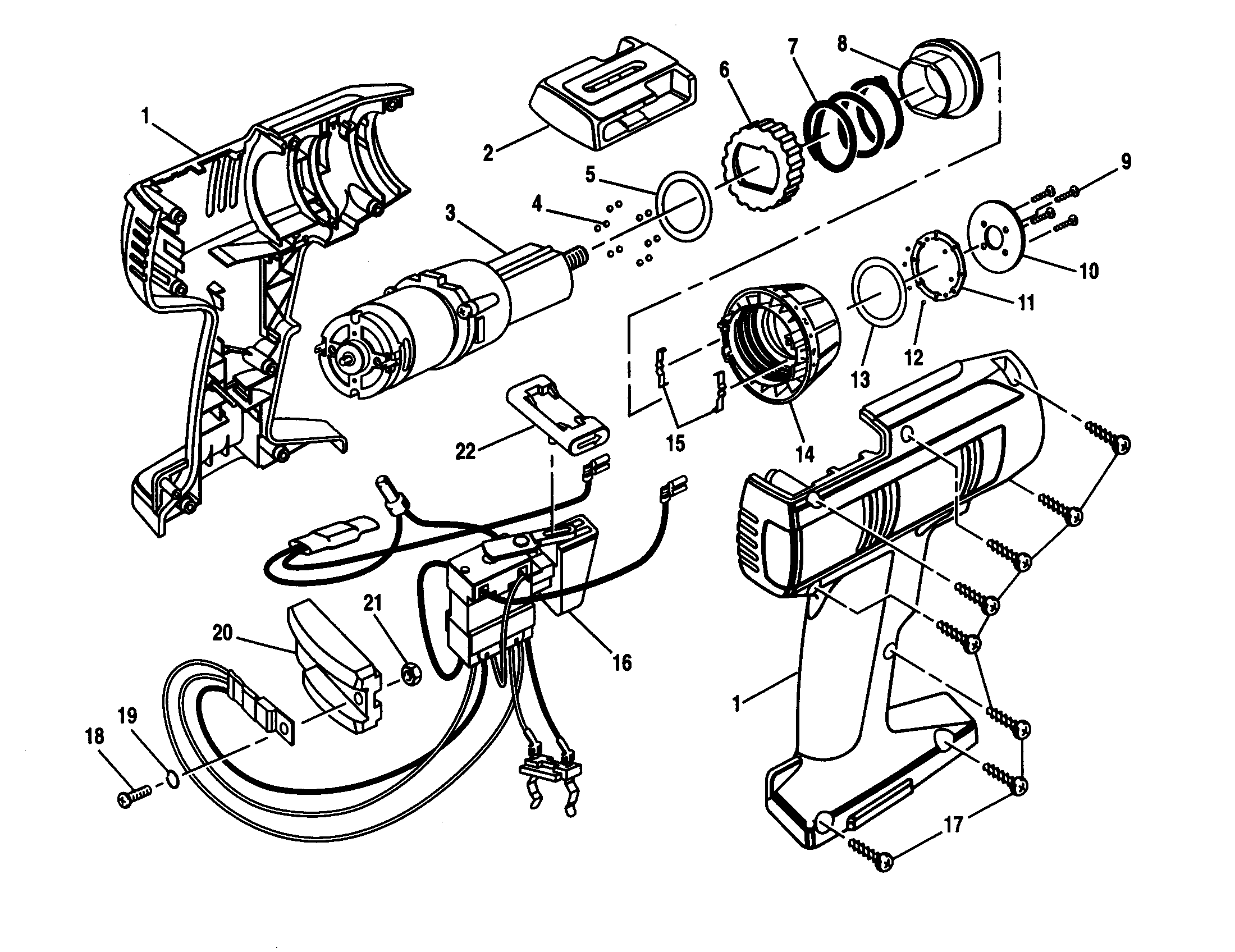

Housing assembly diagram

Housing

Part #981594-000

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 972000-675

#NI

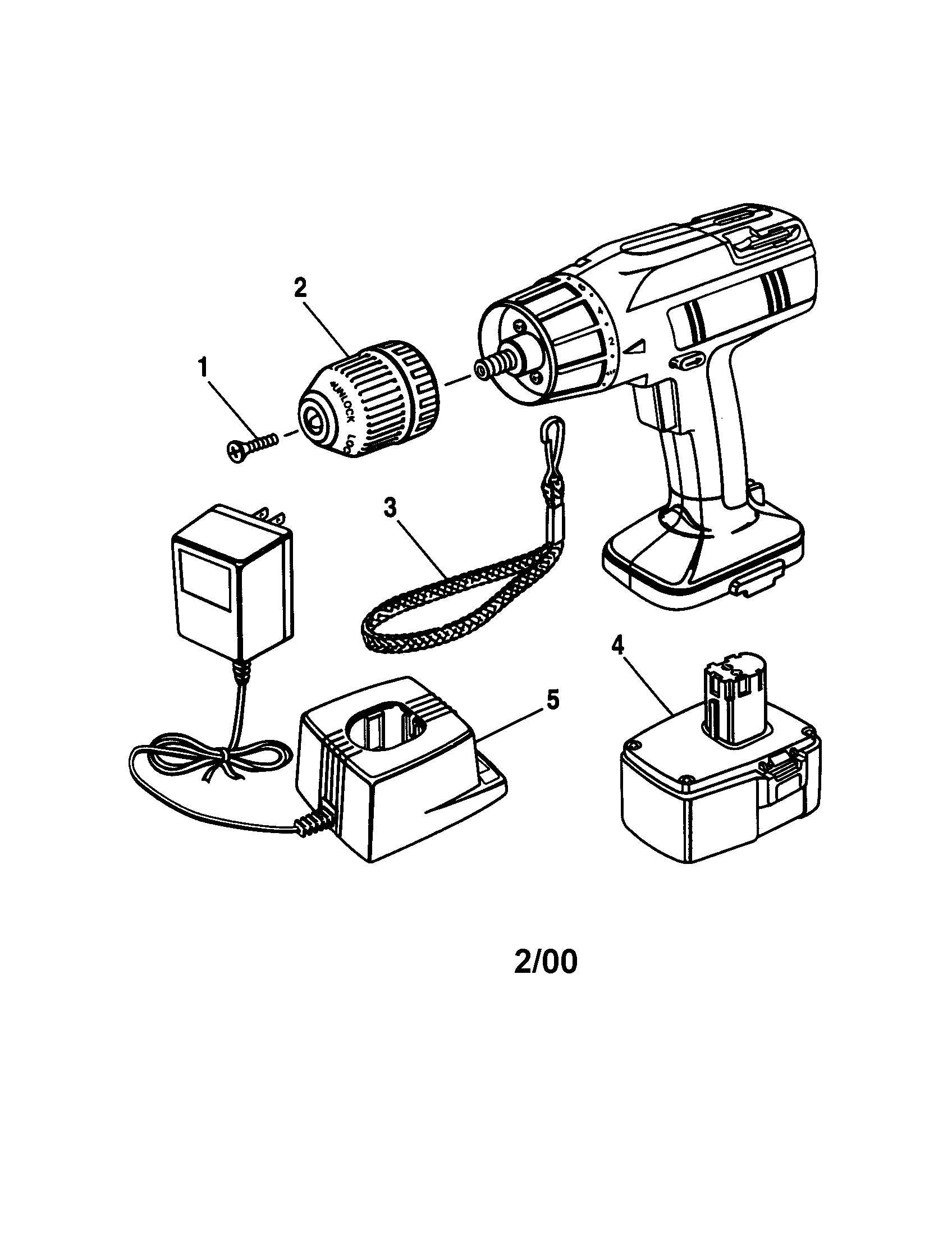

All parts diagram

Owner's manual

Part #972000-675

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 981716-000
#21

Housing assembly diagram

Lock nut

Part #981716-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 974367-000
#9

Housing assembly diagram

Screw

Part #974367-000

The manufacturer no longer makes this part, and there's no substitute part

Ball 974402-000
#4

Housing assembly diagram

Ball

Part #974402-000

The manufacturer no longer makes this part, and there's no substitute part

Ball Ret 974361-000
#11

Housing assembly diagram

Ball ret

Part #974361-000

The manufacturer no longer makes this part, and there's no substitute part

Spring 974357-000
#7

Housing assembly diagram

Spring

Part #974357-000

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink 977395-000
#20

Housing assembly diagram

Heat sink

Part #977395-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 981715-000
#18

Housing assembly diagram

Screw

Part #981715-000

The manufacturer no longer makes this part, and there's no substitute part

Ring 974360-000
#6

Housing assembly diagram

Ring

Part #974360-000

The manufacturer no longer makes this part, and there's no substitute part
