LG
Plasma Television

Model # 50PM1M-UCAUSDLJR Official LG plasma television

Here are the diagrams and repair parts for Official LG 50PM1M-UCAUSDLJR plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Lg Pcb, Cntrl EBR41944001
#201

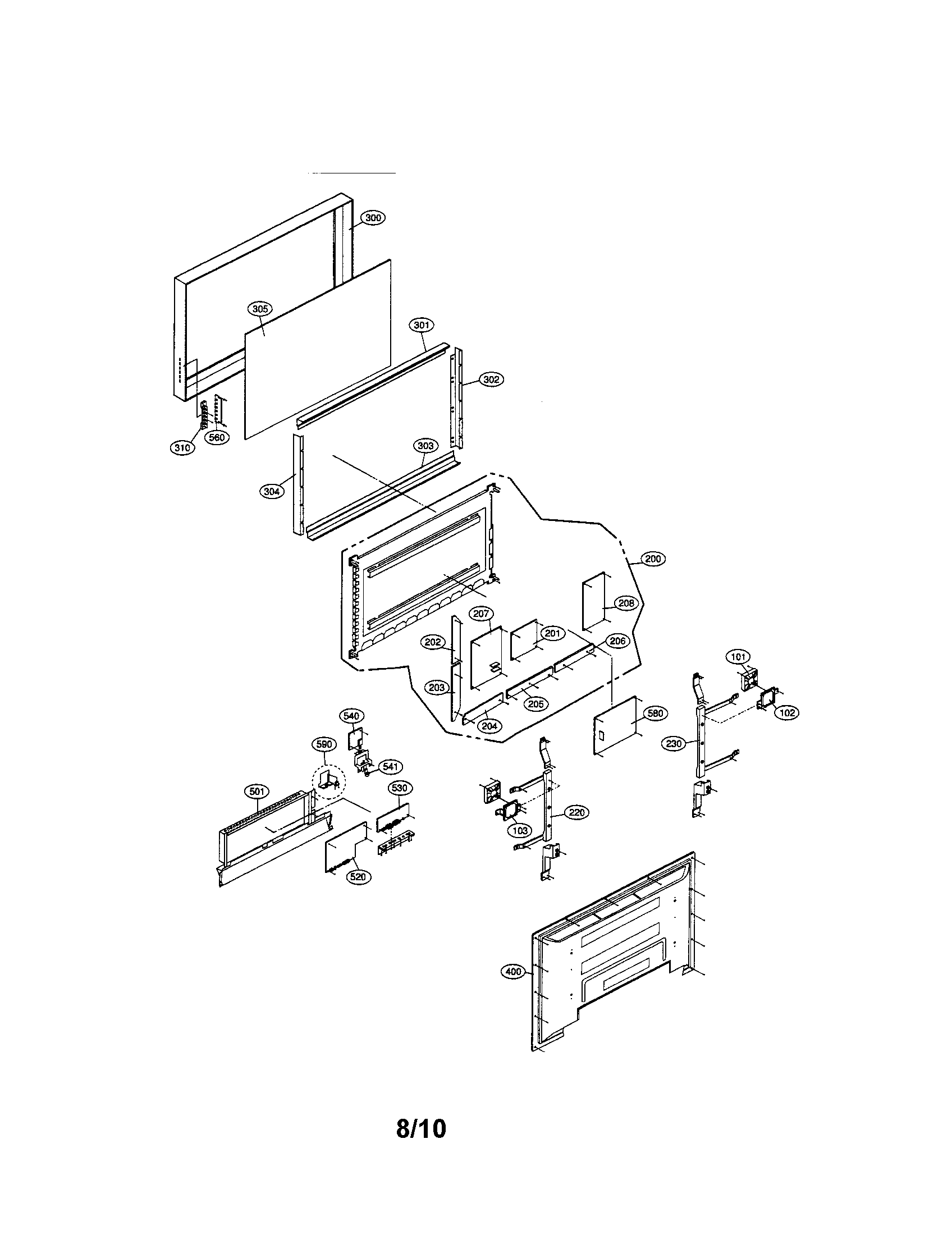

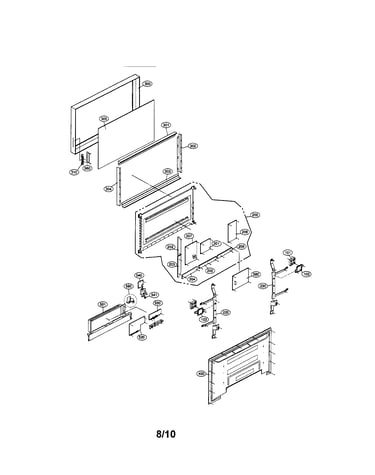

Plasma tv diagram

Lg pcb, cntrl

Part #EBR41944001

$202.31
In Stock
Chassis Assembly 31419SF081A
#590

Plasma tv diagram

Chassis assembly

Part #31419SF081A

$43.87
In Stock
Zenith Filter 5230V00017B
#305

Plasma tv diagram

Zenith filter

Part #5230V00017B

$408.55
In Stock
Lg Y-driver EBR39574201
#203

Plasma tv diagram

Lg y-driver

Part #EBR39574201

$178.88
In Stock
Lg Pcb EBR39523001
#208

Plasma tv diagram

Lg pcb

Part #EBR39523001

$249.11
In Stock
Ac Cord 6410VUH005E

#NI02

All parts diagram

Ac cord

Part #6410VUH005E

Replaced by #6410TUW008A

?
Manufacturer substitution
This part replaces 6410VUH005E. Substitute parts can look different from the original.
$14.64 |
12% OFF Phone Price : $16.64
In Stock
Supporter 4980V00C24C
#301

Plasma tv diagram

Supporter

Part #4980V00C24C

The manufacturer no longer makes this part, and there's no substitute part

Hand Insert Pcb Assembly EBR39577701
#204

Plasma tv diagram

Hand insert pcb assembly

Part #EBR39577701

The manufacturer no longer makes this part, and there's no substitute part

Pdp, Module-xga EAJ41504910
#200

Plasma tv diagram

Pdp, module-xga

Part #EAJ41504910

The manufacturer no longer makes this part, and there's no substitute part

Pcb EBR39522801
#207

Plasma tv diagram

Pcb

Part #EBR39522801

The manufacturer no longer makes this part, and there's no substitute part
