Whirlpool
Gas Range

Model # SF3100SPW0 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SF3100SPW0 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

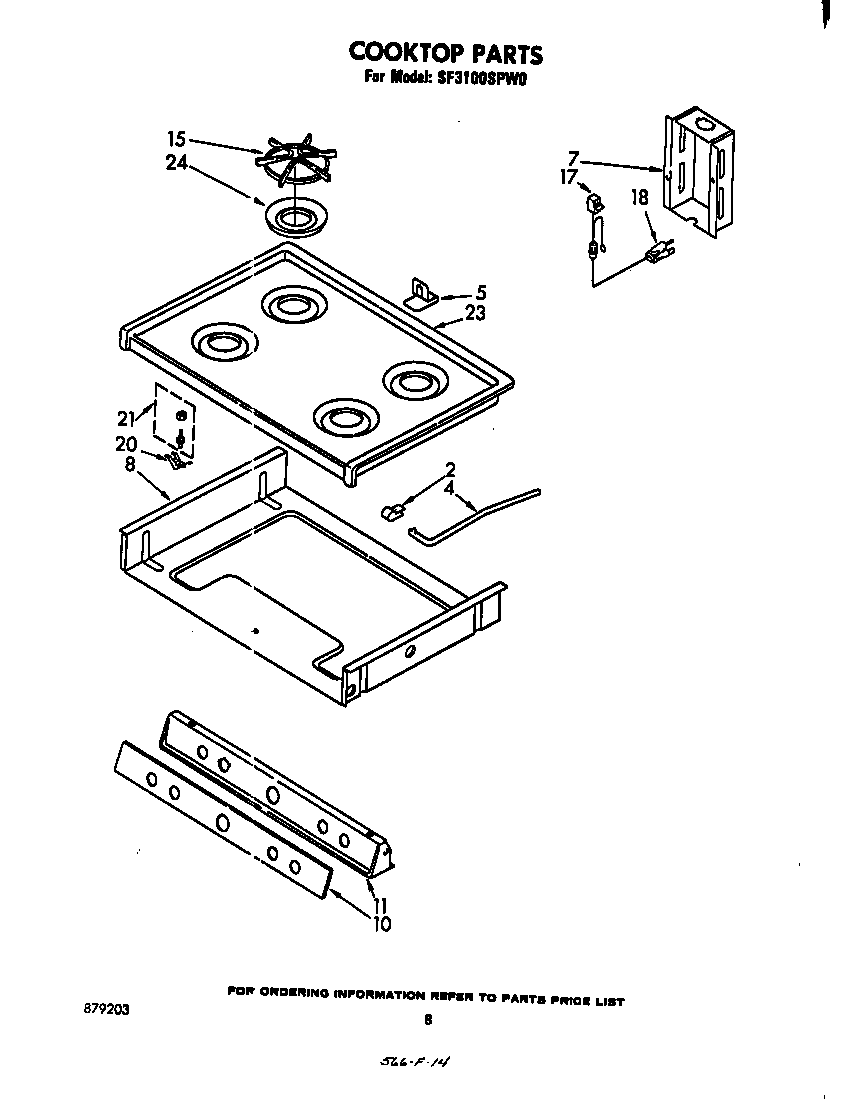

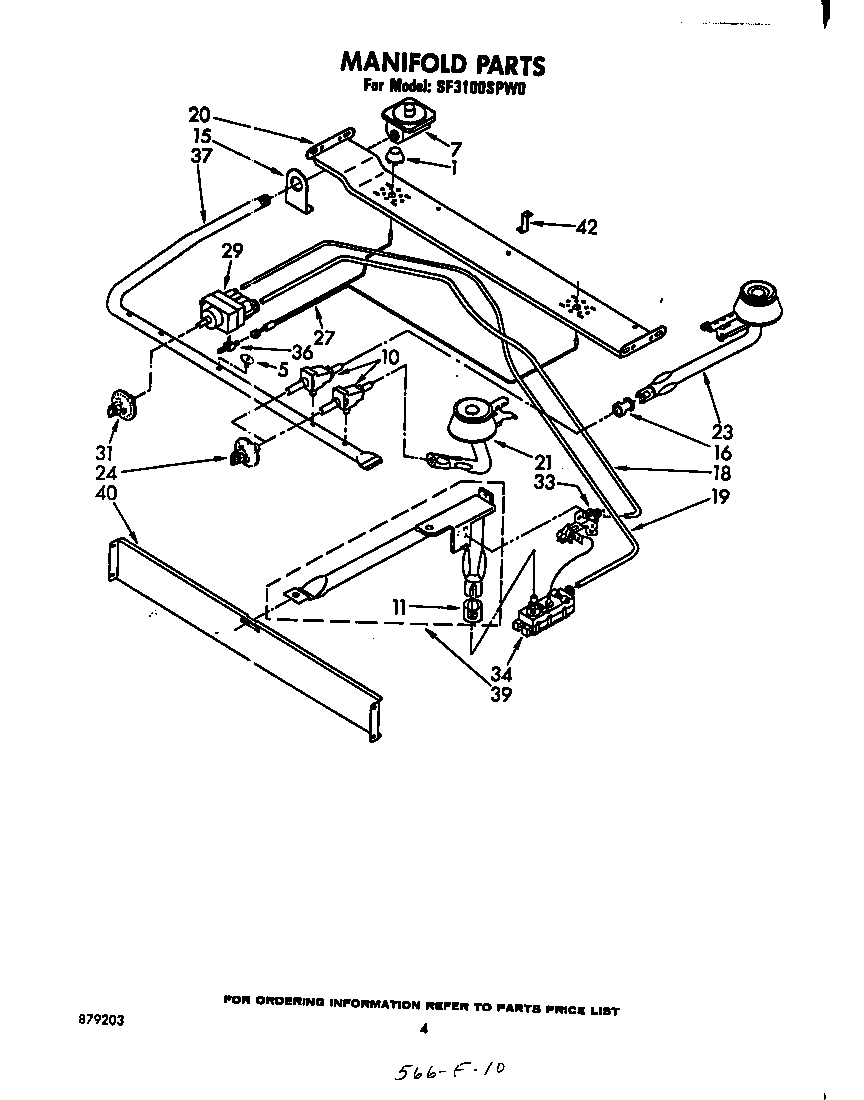

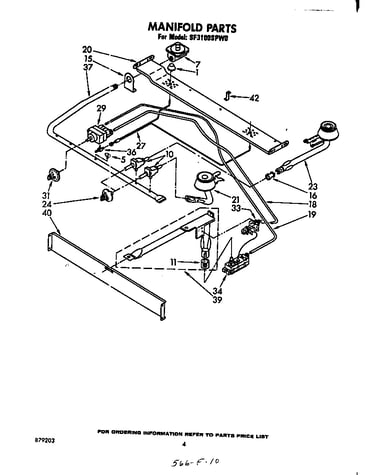

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Light Bulb 878937
#24

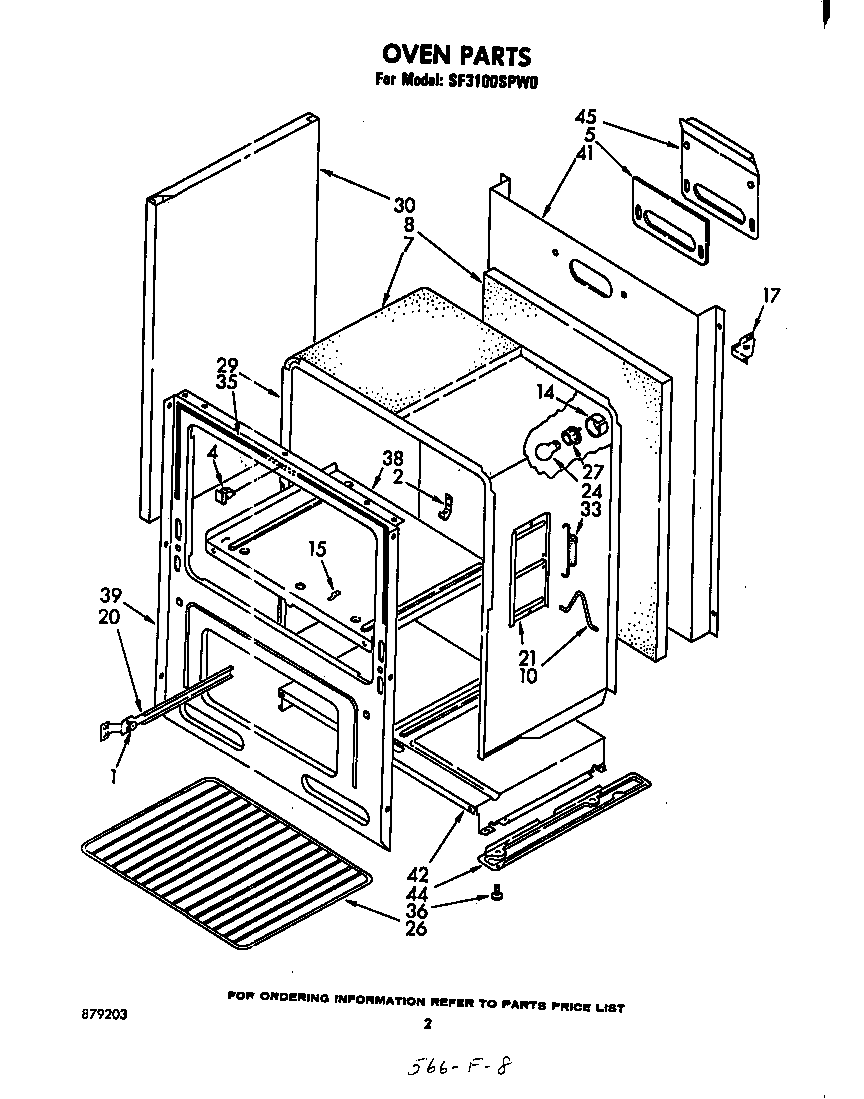

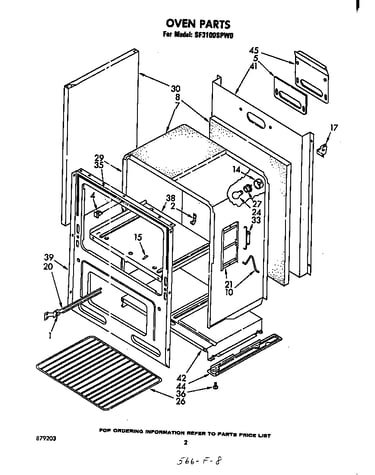

Oven diagram

Light bulb

Part #878937

Replaced by #40A15

?
Manufacturer substitution
This part replaces 878937. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Insulation 878093
#8

Oven diagram

Insulation

Part #878093

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878093. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 878089
#5

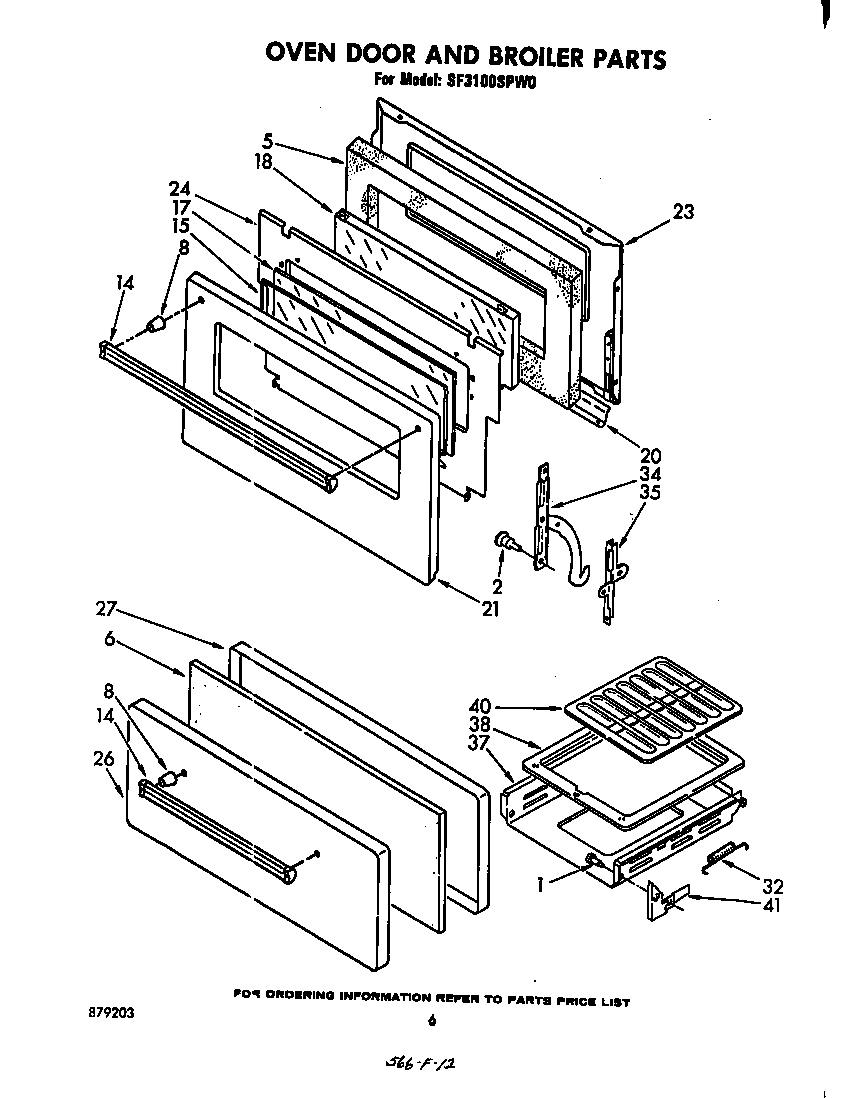

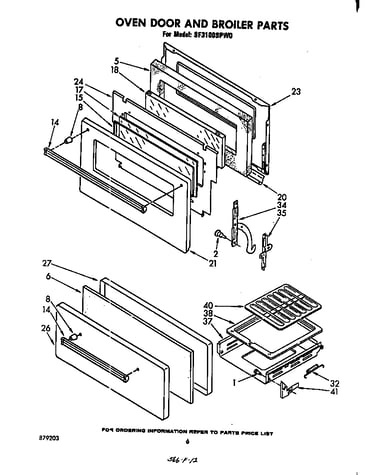

Oven door and broiler diagram

Insulation

Part #878089

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878089. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 878092
#7

Oven diagram

Insulation

Part #878092

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878092. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Knob Timer (black) 330206
#18

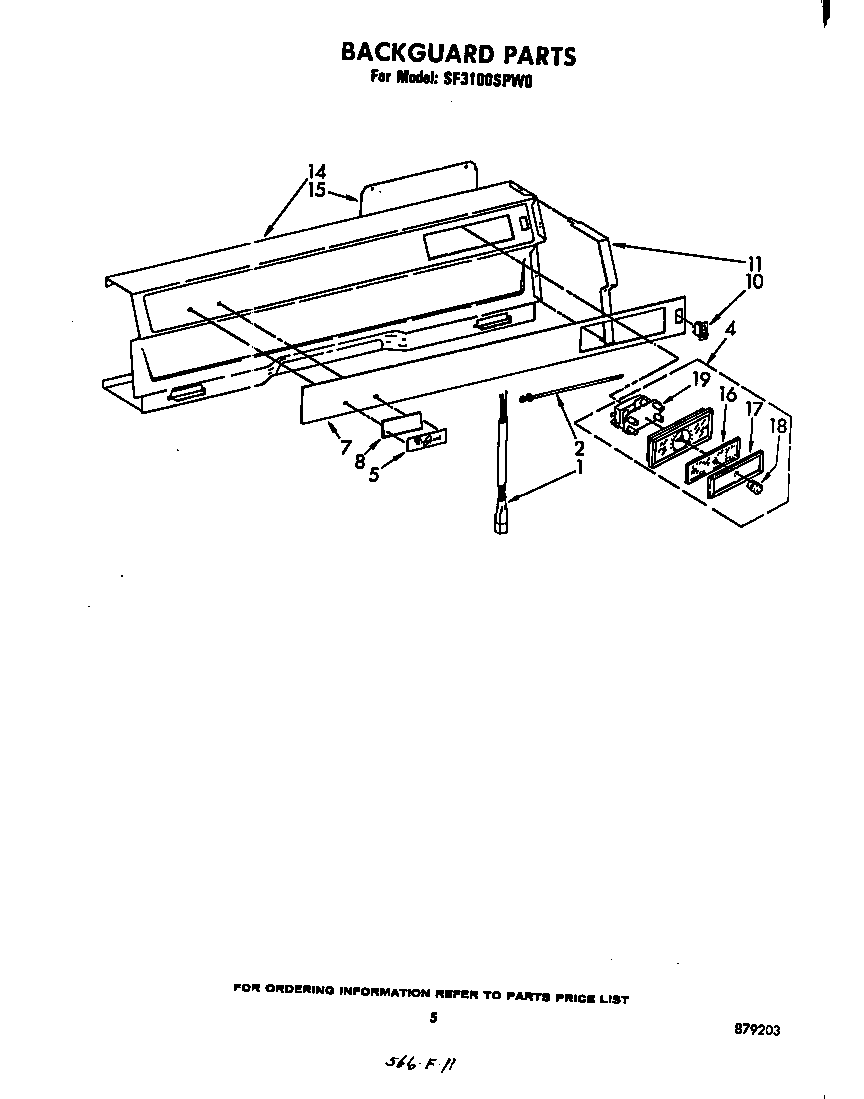

Backguard diagram

Knob timer (black)

Part #330206

Replaced by #WP3169181

?
Manufacturer substitution
This part replaces 330206. Substitute parts can look different from the original.
This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
Panel Al 879054
#21A

Oven door and broiler diagram

Panel al

Part #879054

The manufacturer no longer makes this part, and there's no substitute part

Panel Backguard (white) 878795
#14B

Backguard diagram

Panel backguard (white)

Part #878795

The manufacturer no longer makes this part, and there's no substitute part

Panel To P 879184
#21C

Oven door and broiler diagram

Panel to p

Part #879184

The manufacturer no longer makes this part, and there's no substitute part

Strip Seal 878472
#20

Oven door and broiler diagram

Strip seal

Part #878472

The manufacturer no longer makes this part, and there's no substitute part

Panel Pl 879086
#26D

Oven door and broiler diagram

Panel pl

Part #879086

The manufacturer no longer makes this part, and there's no substitute part
