Kenmore
Bottom-Mount Refrigerator

Model # 79575084401 Official Kenmore bottom-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 79575084401 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

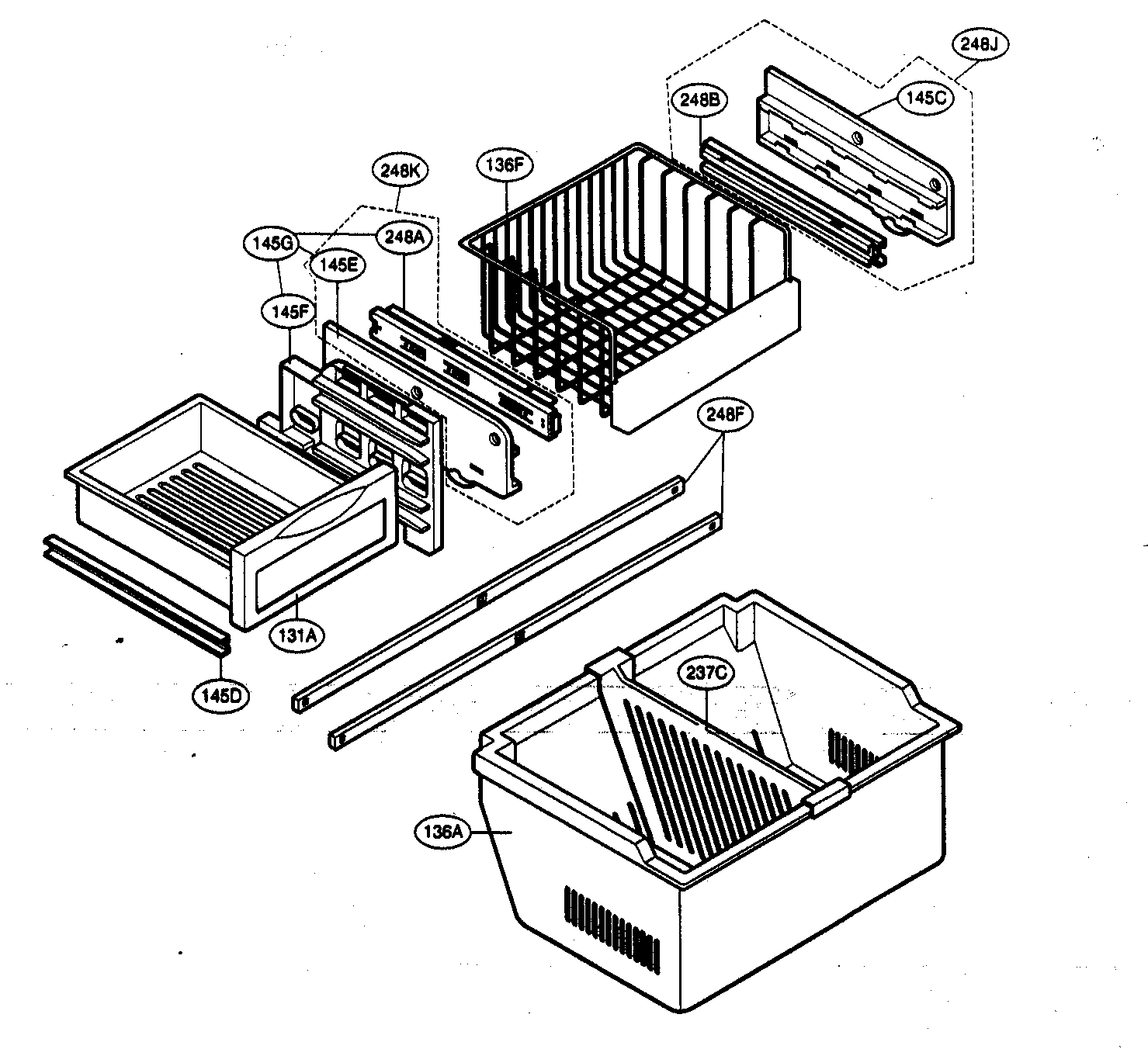

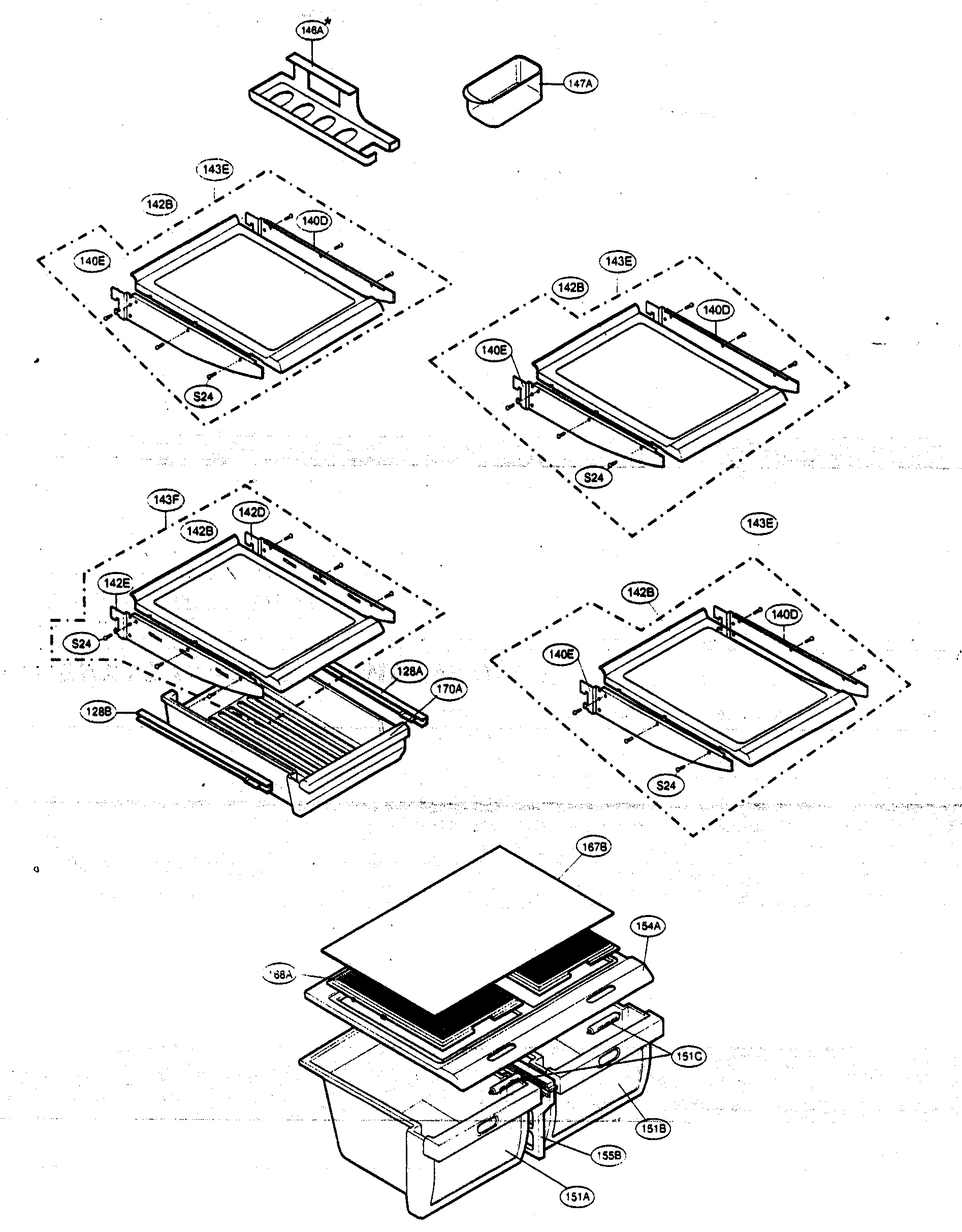

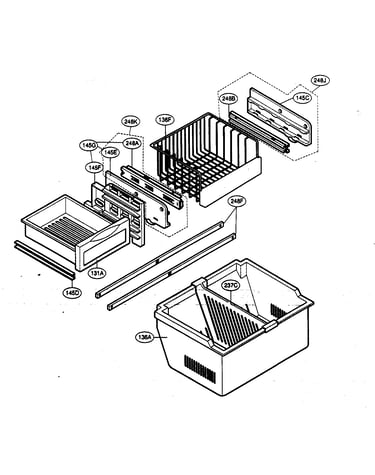

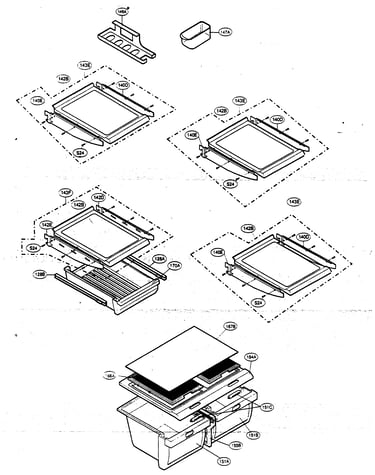

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Refrigerator Drier Assembly 5851JJ2002B
#317A

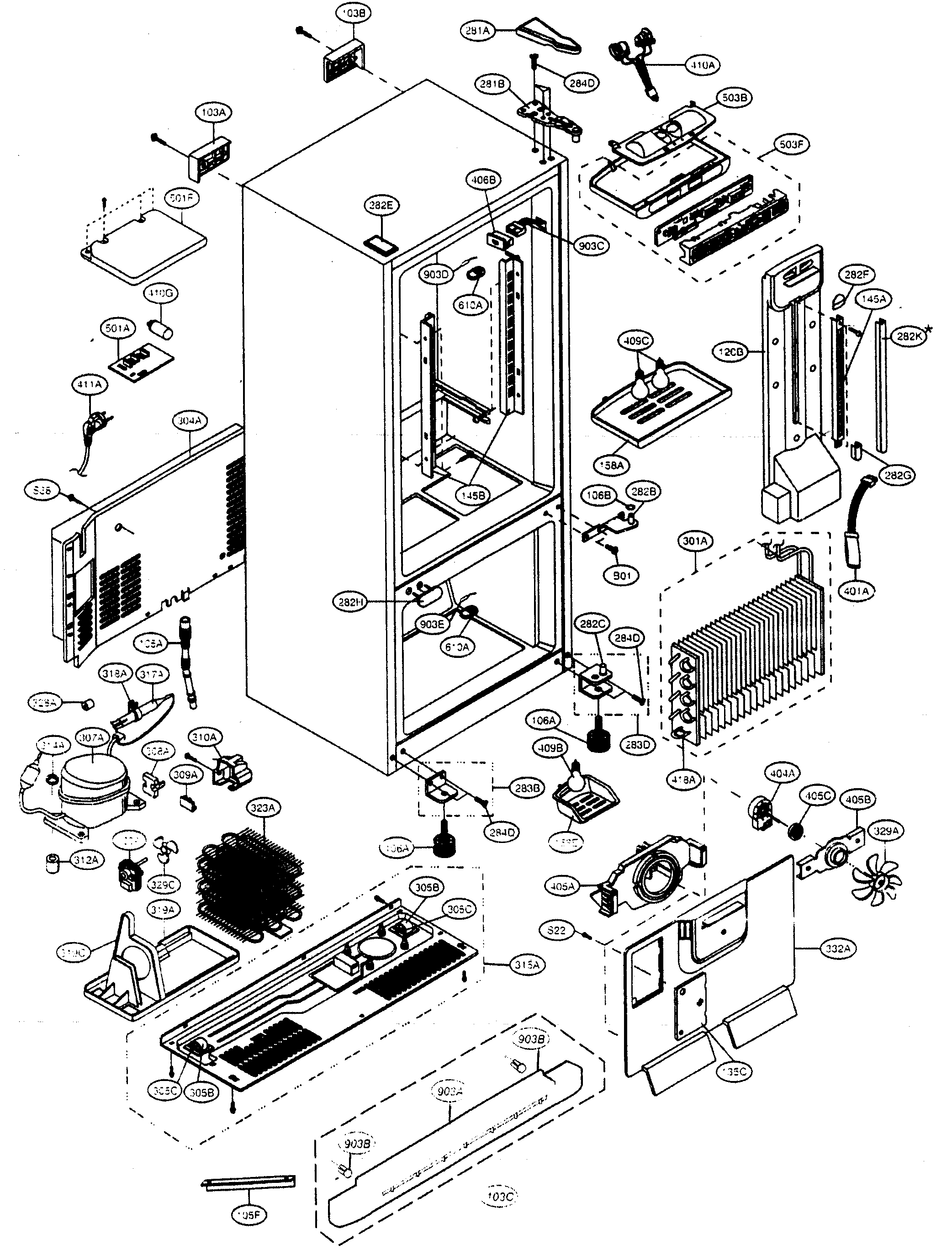

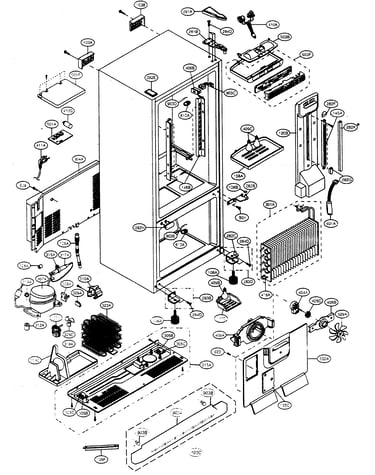

Case parts diagram

Refrigerator drier assembly

Part #5851JJ2002B

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JJ2002B. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Refrigerator Door Push-button Switch 6600JB1004A
#406B

Case parts diagram

Refrigerator door push-button switch

Part #6600JB1004A

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1004A. Substitute parts can look different from the original.
BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Drain Assembly 5251JJ2003A
#105A

Case parts diagram

Refrigerator drain assembly

Part #5251JJ2003A

Replaced by #5251JA3003D

?
Manufacturer substitution
This part replaces 5251JJ2003A. Substitute parts can look different from the original.
BEST SELLER
$11.11 |
15% OFF Phone Price : $13.11
In Stock
Refrigerator Sensor 6500JK1003A
#903D

Case parts diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Refrigerator Water Inlet Valve (replaces 5220ja2003a, 5220ja2009b, 5221ja2008g) 5220JA2009D
#619A

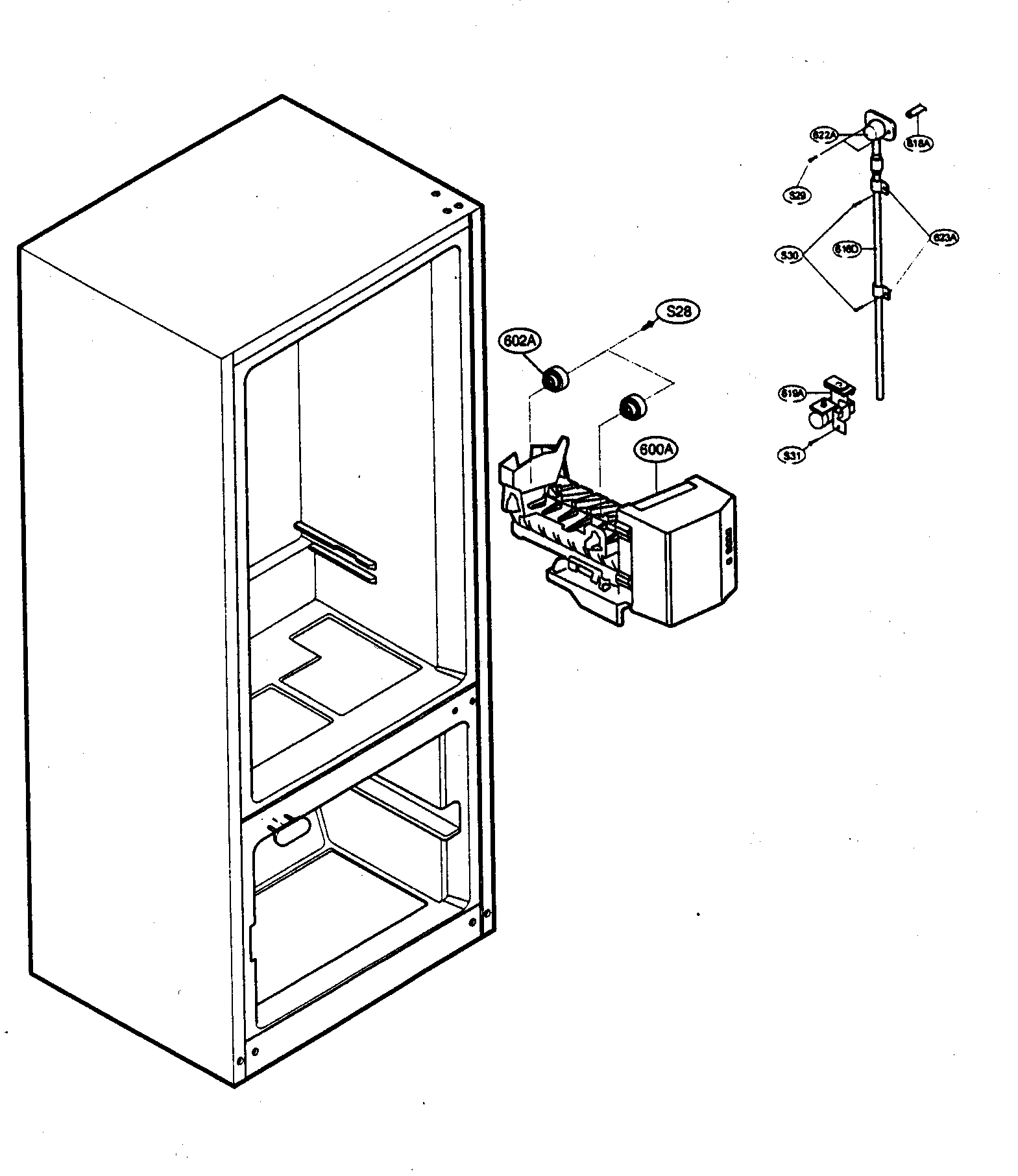

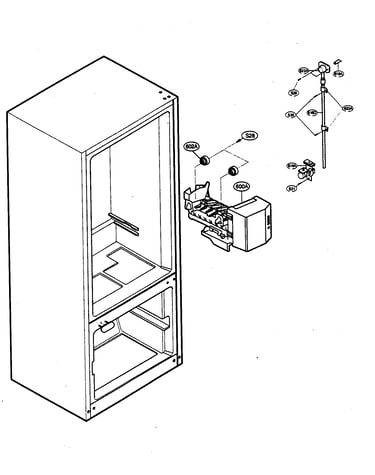

Icemaker diagram

Refrigerator water inlet valve (replaces 5220ja2003a, 5220ja2009b, 5221ja2008g)

Part #5220JA2009D

BEST SELLER
$63.83 |
9% OFF Phone Price : $69.83
In Stock
Refrigerator Light Socket 6621JK2002D
#410A

Case parts diagram

Refrigerator light socket

Part #6621JK2002D

Replaced by #EAG62831801

?
Manufacturer substitution
This part replaces 6621JK2002D. Substitute parts can look different from the original.
BEST SELLER
$96.22
In Stock
Refrigerator Water Tubing 5210JA3005N
#616D

Icemaker diagram

Refrigerator water tubing

Part #5210JA3005N

Replaced by #5210JA3005W

?
Manufacturer substitution
This part replaces 5210JA3005N. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.18 |
15% OFF Phone Price : $13.18
In Stock
Refrigerator Gasket Assembly 4987JJ1004D
#233A

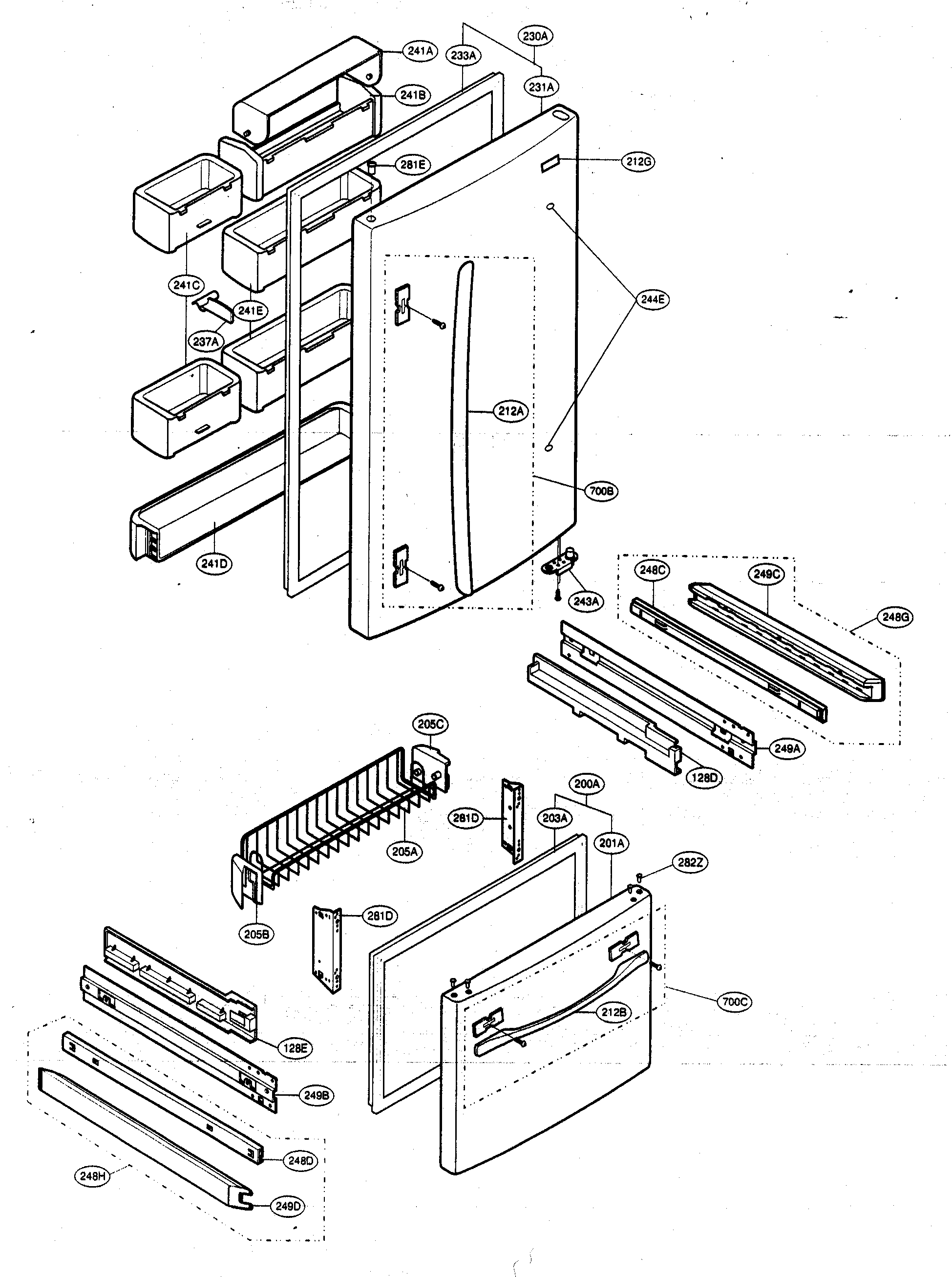

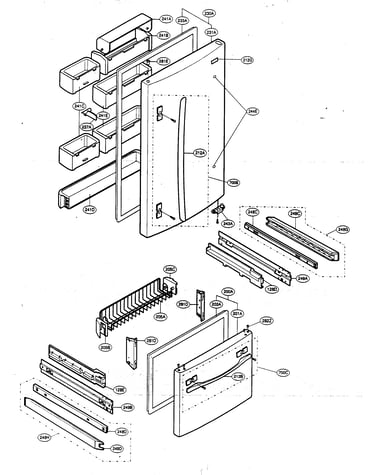

Door parts diagram

Refrigerator gasket assembly

Part #4987JJ1004D

Replaced by #ADX73350922

?
Manufacturer substitution
This part replaces 4987JJ1004D. Substitute parts can look different from the original.
$161.66 |
7% OFF Phone Price : $173.66
In Stock
Refrigerator Evaporator 5421JJ1001A
#301A

Case parts diagram

Refrigerator evaporator

Part #5421JJ1001A

$235.09 |
5% OFF Phone Price : $247.09
In Stock
Refrigerator Lamp Cover 3550JJ1040A
#158A

Case parts diagram

Refrigerator lamp cover

Part #3550JJ1040A

This item is not returnable
$32.35 |
16% OFF Phone Price : $38.35
