Model # 67094 Official Craftsman motor

Here are the diagrams and repair parts for Official Craftsman 67094 motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Power Tool Washer 64551
#1

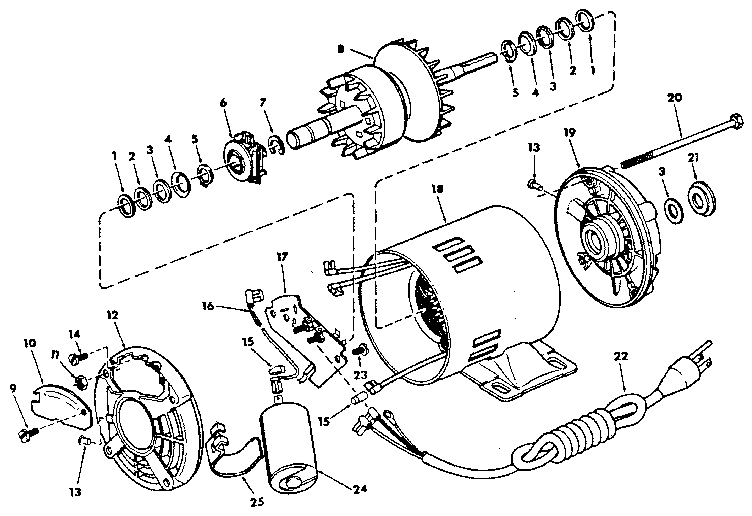

Motor 67094 diagram

Power tool washer

Part #64551

The manufacturer no longer makes this part, and there's no substitute part

Plug 64831
#13

Motor 67094 diagram

Plug

Part #64831

The manufacturer no longer makes this part, and there's no substitute part

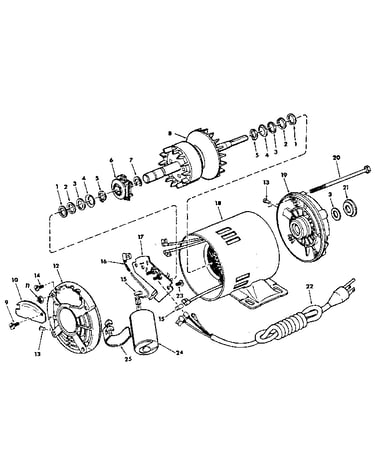

Motor 67094
#1A

Motor 67094 diagram

Motor

Part #67094

The manufacturer no longer makes this part, and there's no substitute part

Washer-plstc 30766
#2

Motor 67094 diagram

Washer-plstc

Part #30766

The manufacturer no longer makes this part, and there's no substitute part

Capacitor (black) 64141
#24

Motor 67094 diagram

Capacitor (black)

Part #64141

The manufacturer no longer makes this part, and there's no substitute part

Washer-rubr 30768
#3

Motor 67094 diagram

Washer-rubr

Part #30768

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 64832
#17

Motor 67094 diagram

Switch assembly

Part #64832

The manufacturer no longer makes this part, and there's no substitute part

Lead Assembly 64834
#16

Motor 67094 diagram

Lead assembly

Part #64834

The manufacturer no longer makes this part, and there's no substitute part

Stator Screw 64345
#20

Motor 67094 diagram

Stator screw

Part #64345

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 64827
#7

Motor 67094 diagram

Retain ring

Part #64827

The manufacturer no longer makes this part, and there's no substitute part
