Kenmore
Electric Wall Oven

Model # 79040452800 Official Kenmore electric oven

Here are the diagrams and repair parts for Official Kenmore 79040452800 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

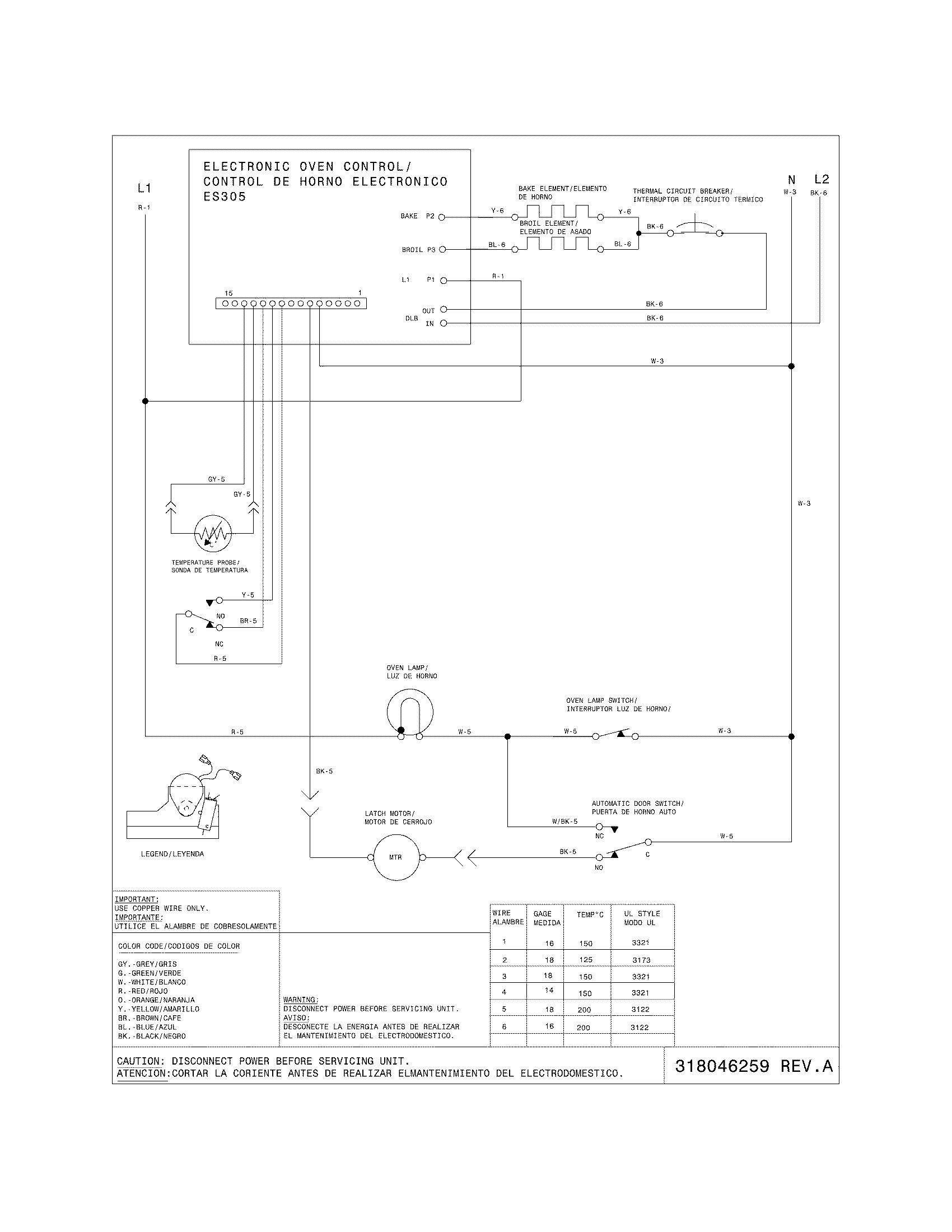

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Range Oven Light Bulb 5303013071
#15

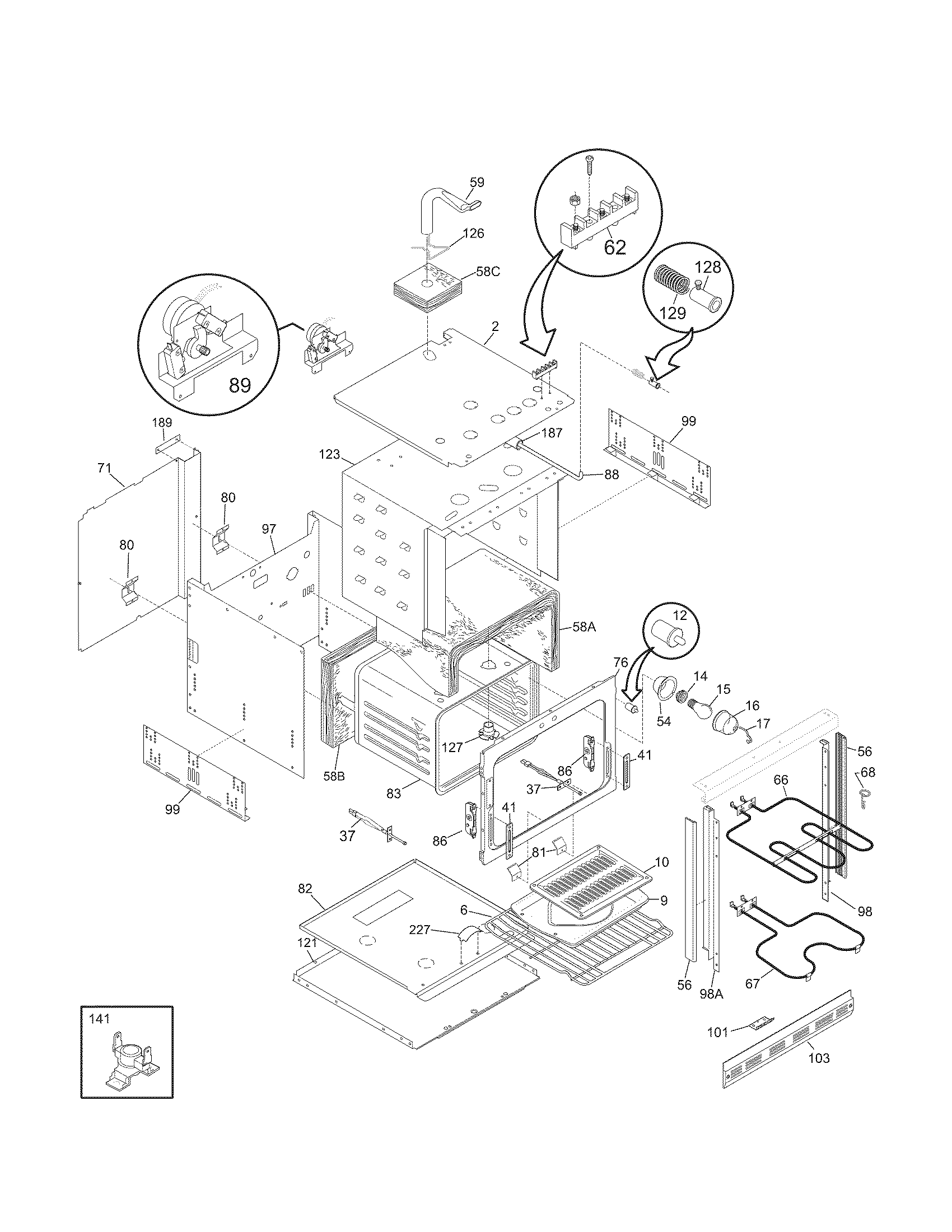

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$43.55 |
12% OFF Phone Price : $49.55
In Stock
Terminal Block 316056000
#62

Body diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Cover 08011086
#16

Body diagram

Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Wall Oven Door Outer Panel (black) 318051525
Wall oven door outer panel (black)

Part #318051525

$310.36 |
$12.00 OFF Phone Price : $322.36
In Stock
Wall Oven Door Outer Panel (bisque) 318051526
#4

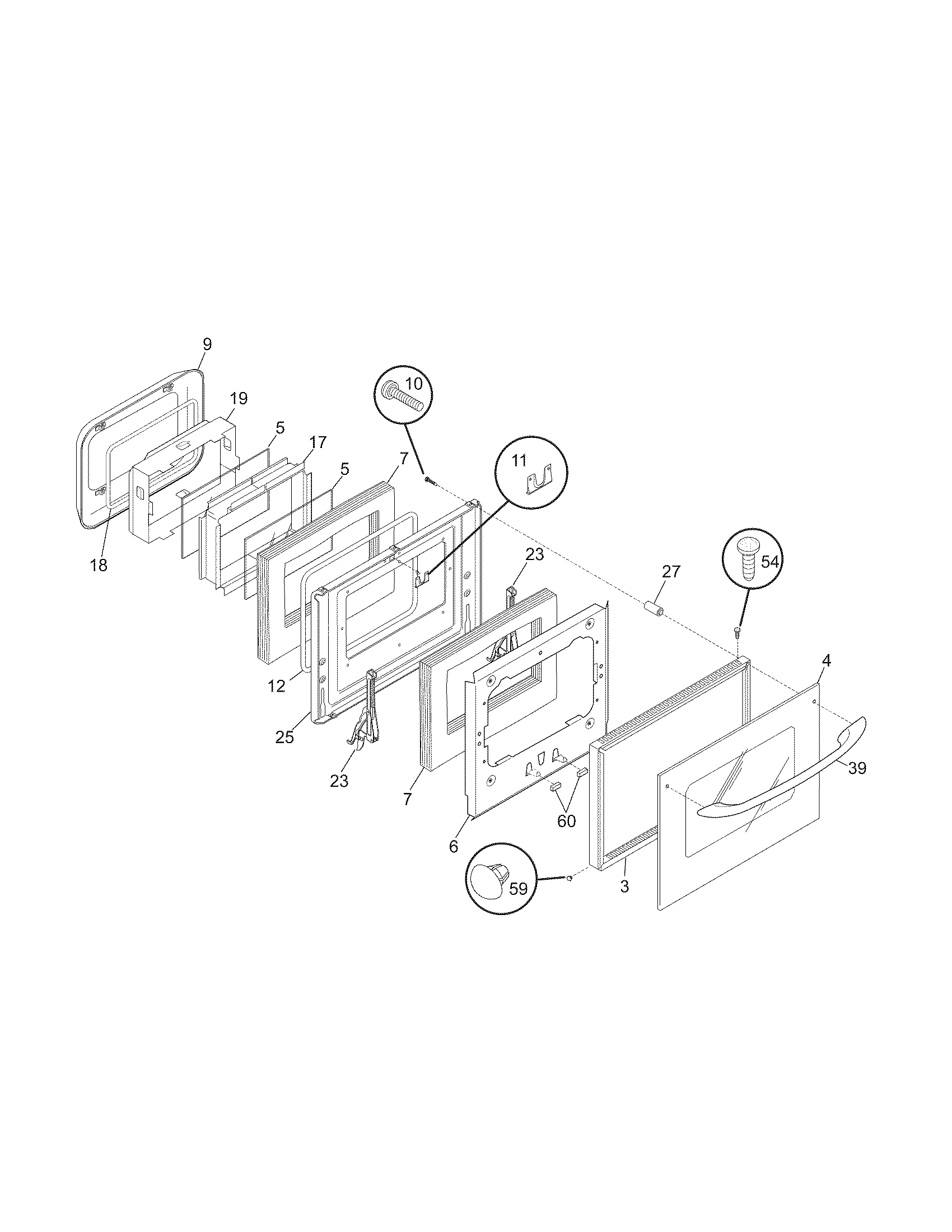

Door diagram

Wall oven door outer panel (bisque)

Part #318051526

Replaced by #318051525

?
Manufacturer substitution
This part replaces 318051526. Substitute parts can look different from the original.
$310.36 |
$12.00 OFF Phone Price : $322.36
In Stock
Light Switch 316005602
#24

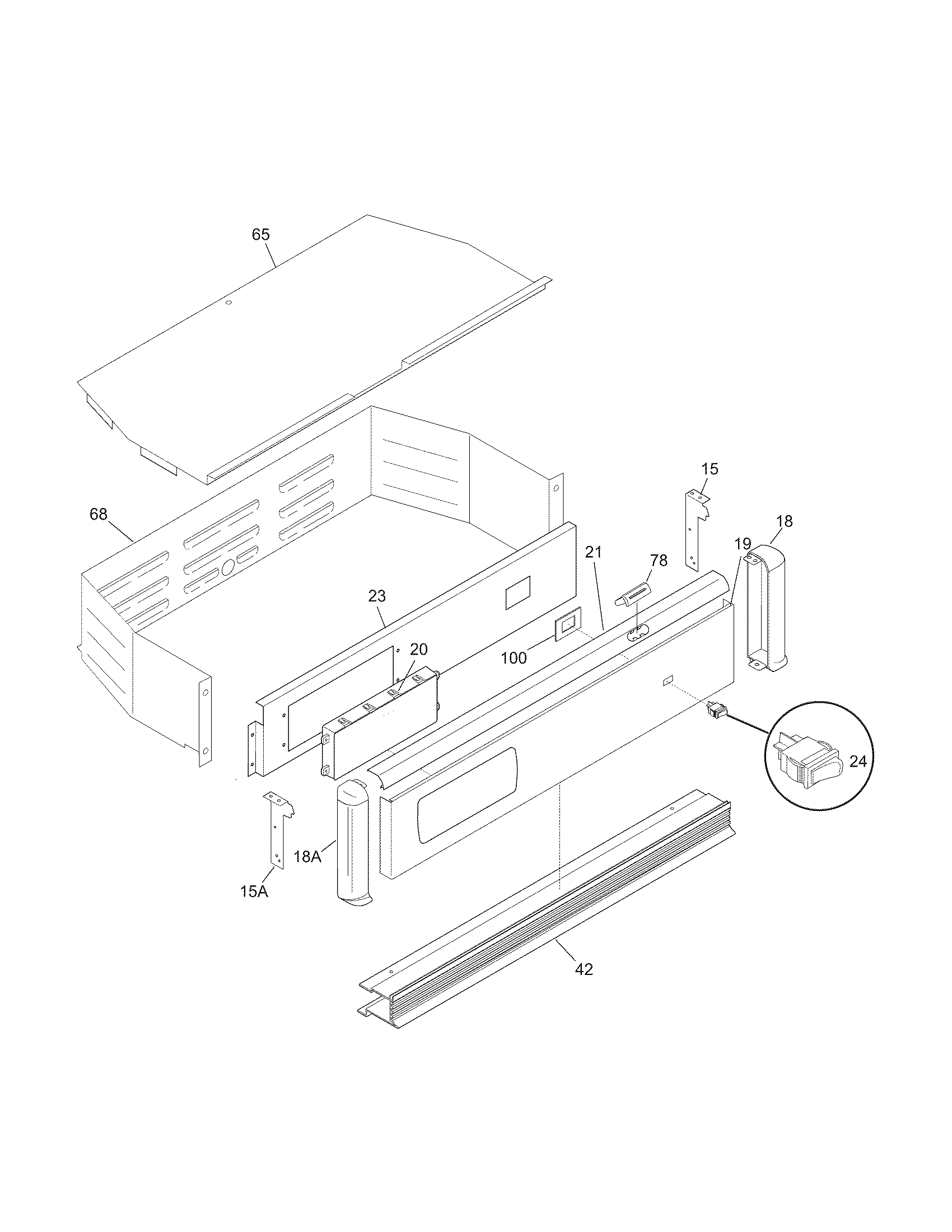

Control panel diagram

Light switch

Part #316005602

Replaced by #5304527841

?
Manufacturer substitution
This part replaces 316005602. Substitute parts can look different from the original.
This item is not returnable
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Range Oven Light Socket (replaces 7318224000) 318224000
#14

Body diagram

Range oven light socket (replaces 7318224000)

Part #318224000

This item is not returnable
$59.18 |
9% OFF Phone Price : $65.18
In Stock
Kenmore Elite Range Oven Door Lock Assembly 318095957
#89

Body diagram

Kenmore elite range oven door lock assembly

Part #318095957

$85.36 |
7% OFF Phone Price : $91.36
In Stock
Range Screw 5303300265
#54

Door diagram

Range screw

Part #5303300265

This item is not returnable
$16.63
In Stock
