Model # 315212080 Official Craftsman 8-1/4" compound miter saw

Here are the diagrams and repair parts for Official Craftsman 315212080 8-1/4" compound miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Screw 901010-506
#8

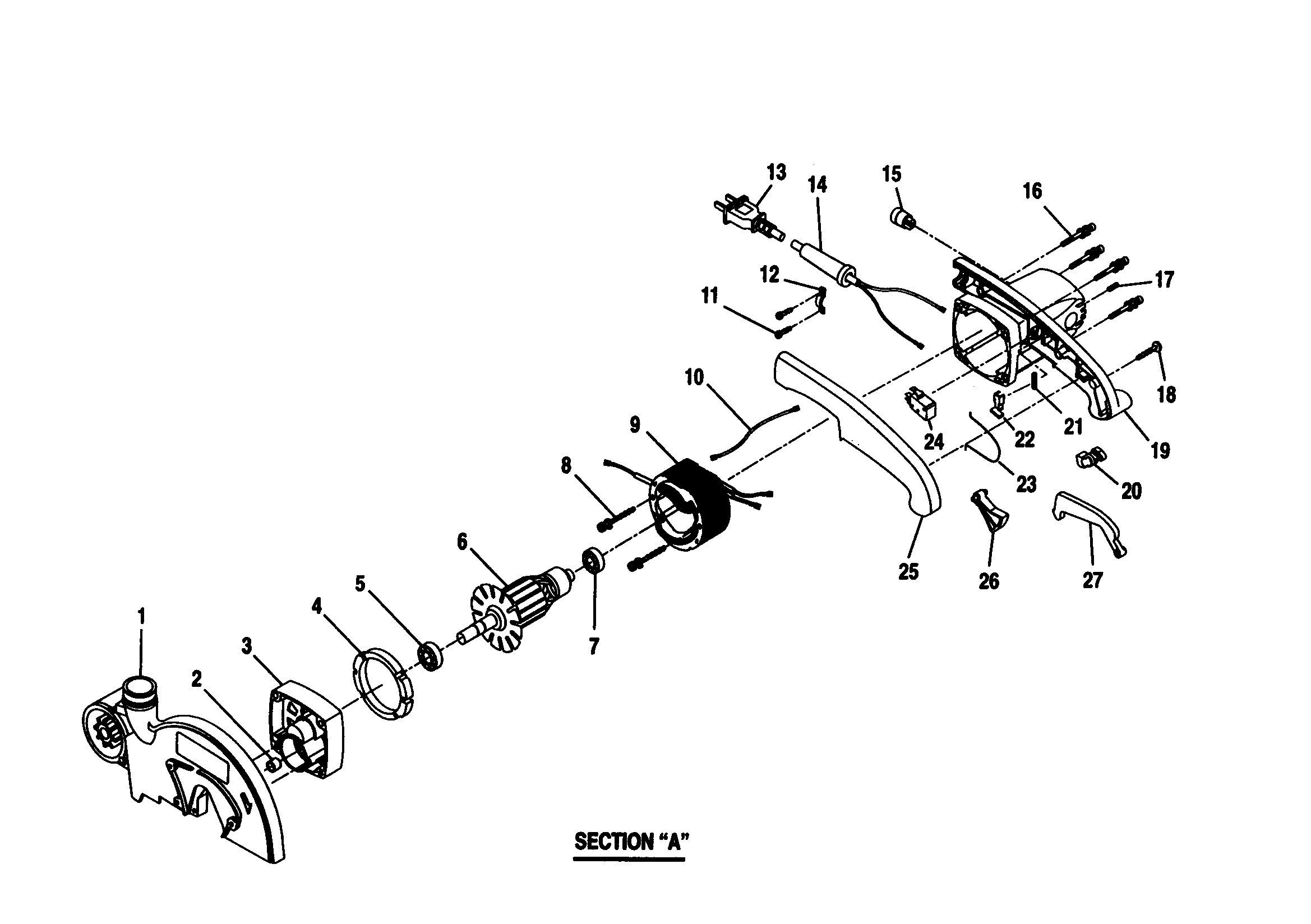

Section "a" diagram

Screw

Part #901010-506

The manufacturer no longer makes this part, and there's no substitute part

Lock Knob 980120-001
#7

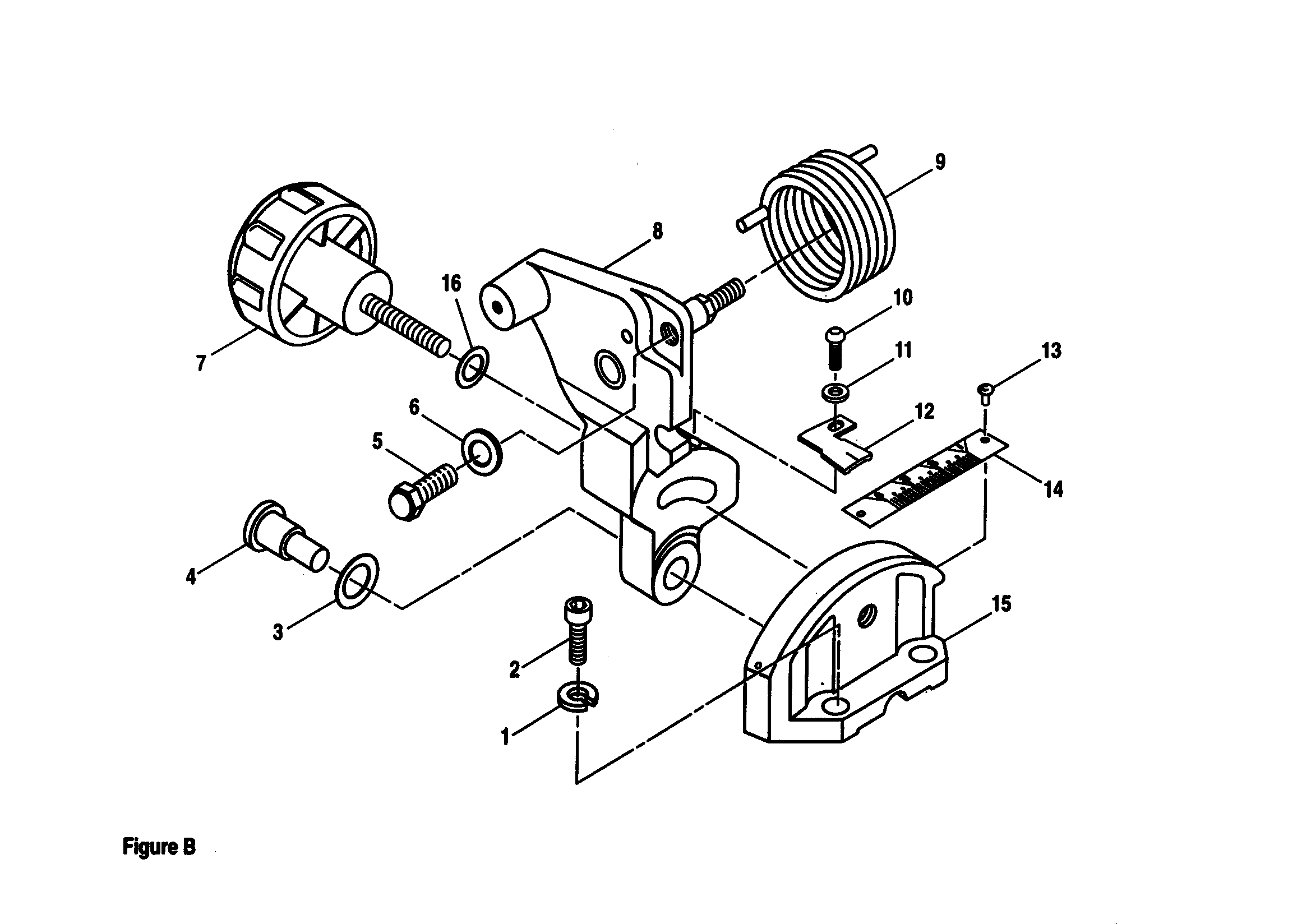

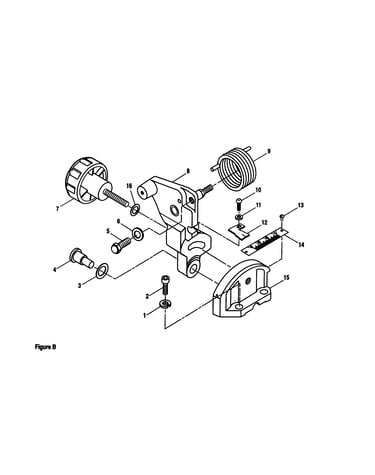

Figure b diagram

Lock knob

Part #980120-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 979788-001
#17

Section "a" diagram

Screw

Part #979788-001

The manufacturer no longer makes this part, and there's no substitute part

Wire 588011-004
#10

Section "a" diagram

Wire

Part #588011-004

The manufacturer no longer makes this part, and there's no substitute part

Line Label 980143-001
#20

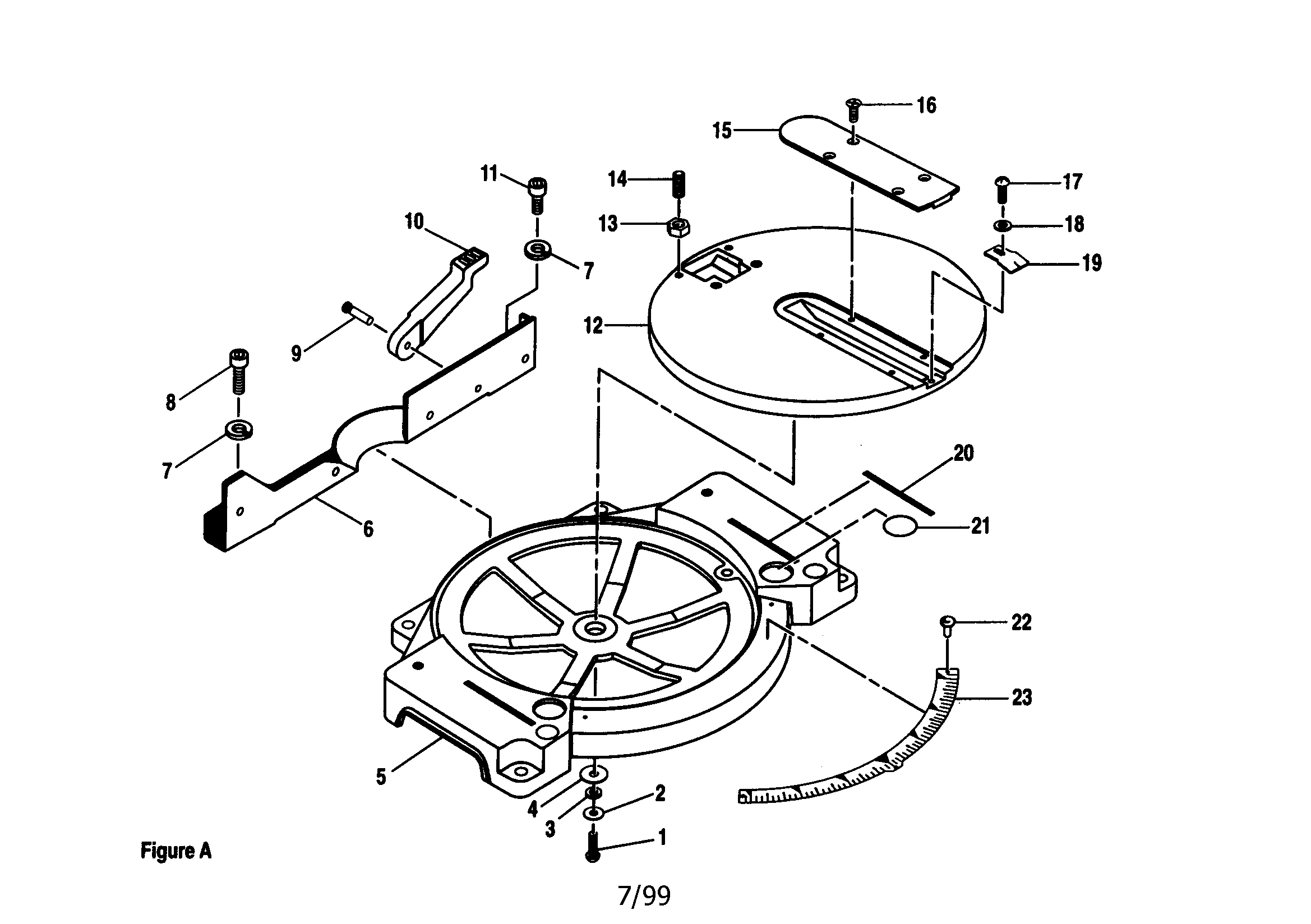

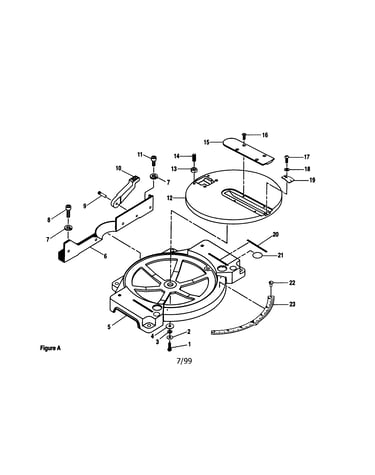

Compound miter saw -- 315212080 diagram

Line label

Part #980143-001

The manufacturer no longer makes this part, and there's no substitute part

Plate 980095-001
#10

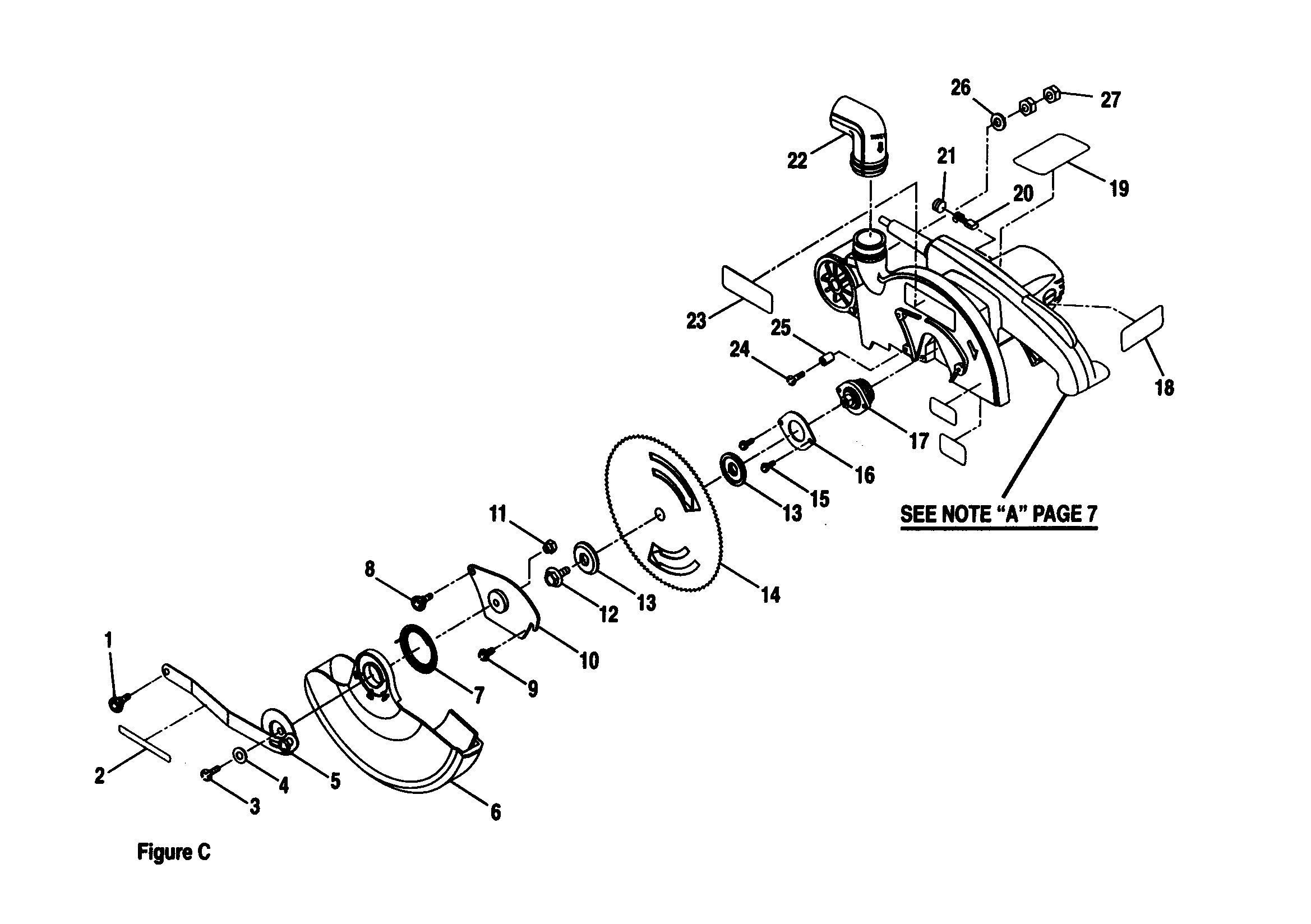

Figure c diagram

Plate

Part #980095-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 578406-003
#8

Figure c diagram

Screw

Part #578406-003

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 979779-001
#5

Section "a" diagram

Ball bearing

Part #979779-001

The manufacturer no longer makes this part, and there's no substitute part

Rivet 976729-001
Rivet

Part #976729-001

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 980152-001
#9

Section "a" diagram

Field assembly

Part #980152-001

The manufacturer no longer makes this part, and there's no substitute part
