Whirlpool
Bottom-Mount Refrigerator

Model # GI0FSAXVA00 Official Whirlpool bottom-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool GI0FSAXVA00 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

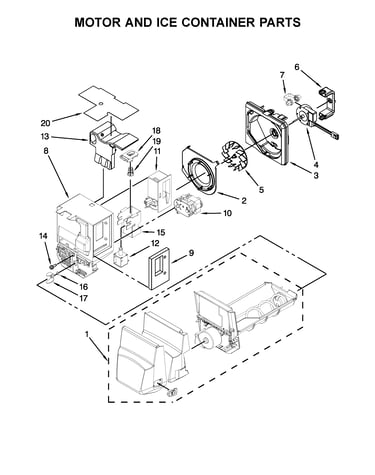

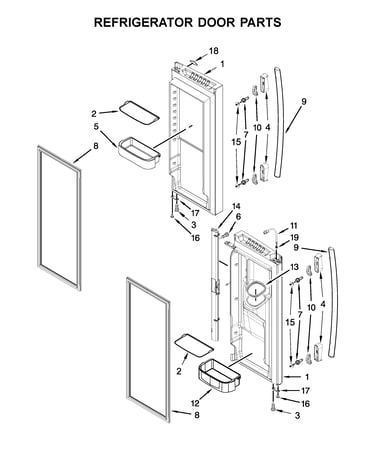

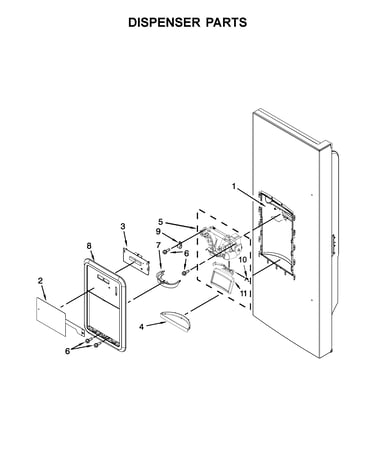

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |
Refrigerator Water Filter UKF8001AXX
#14

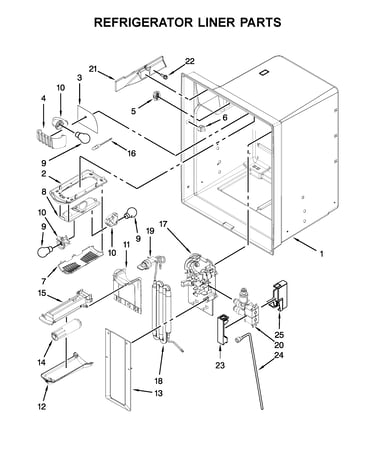

Refrigerator liner parts diagram

Refrigerator water filter

Part #UKF8001AXX

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces UKF8001AXX. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Uv Filter Dryer W10143759
#27

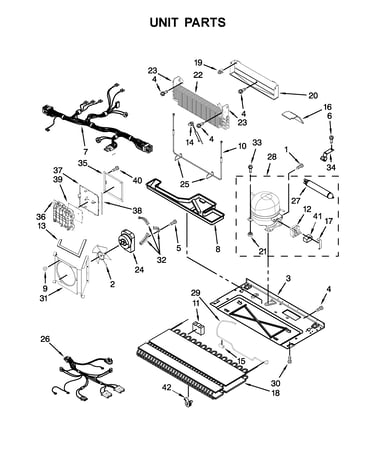

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Ice Maker D7824706Q
#100

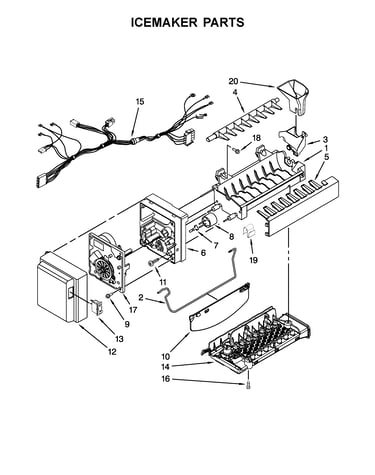

Icemaker parts diagram

Refrigerator ice maker

Part #D7824706Q

BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Light Bulb A0282812
Refrigerator light bulb

Part #A0282812

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch 12466103
#6

Refrigerator liner parts diagram

Refrigerator light switch

Part #12466103

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466103. Substitute parts can look different from the original.
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Refrigerator Shelf 67005903
#23

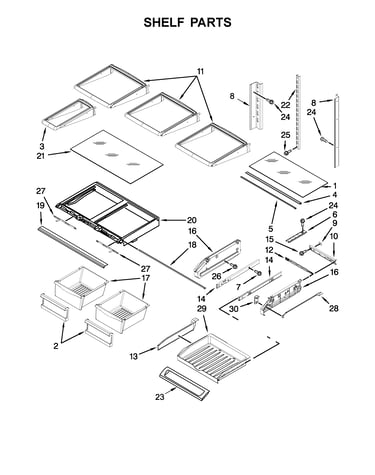

Shelf parts diagram

Refrigerator shelf

Part #67005903

Replaced by #W10827015

?
Manufacturer substitution
This part replaces 67005903. Substitute parts can look different from the original.
BEST SELLER
$100.46 |
11% OFF Phone Price : $112.46
In Stock
Refrigerator Water Tubing 67006317
#2

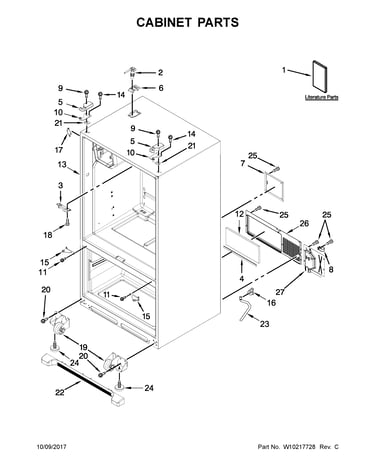

Cabinet parts diagram

Refrigerator water tubing

Part #67006317

Replaced by #W11415785

?
Manufacturer substitution
This part replaces 67006317. Substitute parts can look different from the original.
BEST SELLER
$36.68 |
14% OFF Phone Price : $42.68
In Stock
Refrigerator Evaporator Fan Blade 67006337
#24

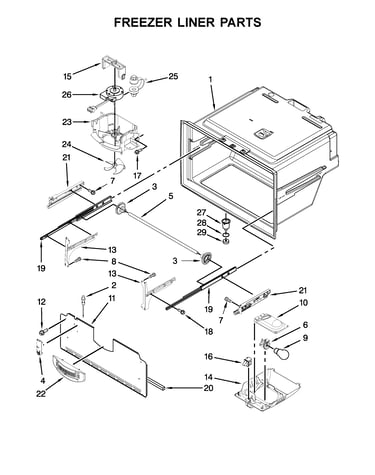

Freezer liner parts diagram

Refrigerator evaporator fan blade

Part #67006337

Replaced by #WP67006337

?
Manufacturer substitution
This part replaces 67006337. Substitute parts can look different from the original.
BEST SELLER
$55.65 |
10% OFF Phone Price : $61.65
In Stock
Refrigerator Mounting Screw 67002935
#5

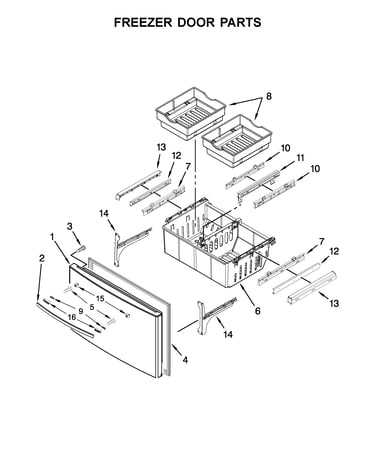

Freezer door parts diagram

Refrigerator mounting screw

Part #67002935

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 67002935. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
