Amana
Electric Cooktop

Model # AKR3001LL-P1143727NLL Official Amana cooktop

Here are the diagrams and repair parts for Official Amana AKR3001LL-P1143727NLL cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Thermal Blck 0089336
#24

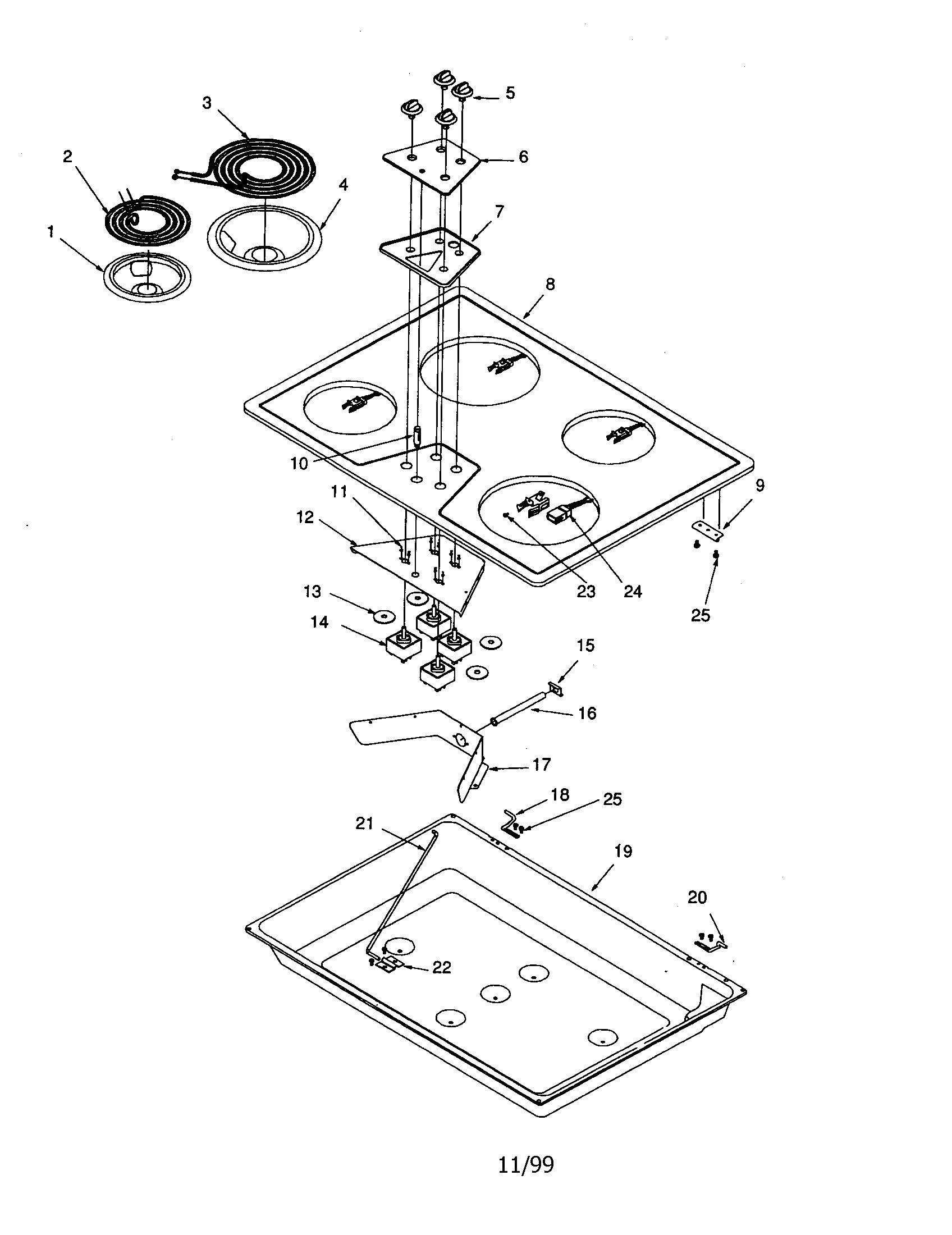

All components diagram

Thermal blck

Part #0089336

Replaced by #330031

?
Manufacturer substitution
This part replaces 0089336. Substitute parts can look different from the original.
BEST SELLER
$10.13 |
16% OFF Phone Price : $12.13
In Stock
Drip Bowl 308648K
#1

All components diagram

Drip bowl

Part #308648K

Replaced by #WPW10196406

?
Manufacturer substitution
This part replaces 308648K. Substitute parts can look different from the original.
BEST SELLER
$7.46 |
12% OFF Phone Price : $8.46
In Stock
R F Burner 31734607
#3

All components diagram

R f burner

Part #31734607

Replaced by #WP3191454

?
Manufacturer substitution
This part replaces 31734607. Substitute parts can look different from the original.
$88.82 |
6% OFF Phone Price : $94.82
In Stock
Burner Bowl 308649K
#4

All components diagram

Burner bowl

Part #308649K

Replaced by #WPW10196405

?
Manufacturer substitution
This part replaces 308649K. Substitute parts can look different from the original.
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Screw, #6-32 31750310

#NI

All parts diagram

Screw, #6-32

Part #31750310

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 31750310. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0234422
#11

All components diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Coil 31734602
#2

All components diagram

Coil

Part #31734602

Replaced by #WPW10259868

?
Manufacturer substitution
This part replaces 31734602. Substitute parts can look different from the original.
$76.43 |
7% OFF Phone Price : $82.43
In Stock
Indicator Light 0316314
#10A

All components diagram

Indicator light

Part #0316314

The manufacturer no longer makes this part, and there's no substitute part

Screw, #8-32 31750402
#25

All components diagram

Screw, #8-32

Part #31750402

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Wire Raceway 0316026
#15

All components diagram

Bracket, wire raceway

Part #0316026

The manufacturer no longer makes this part, and there's no substitute part
