Model # AKGD3060WW/P1131630NWW Official Amana gas cooktop & module

Here are the diagrams and repair parts for Official Amana AKGD3060WW-P1131630NWW gas cooktop & module, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Screw 31750432
#99

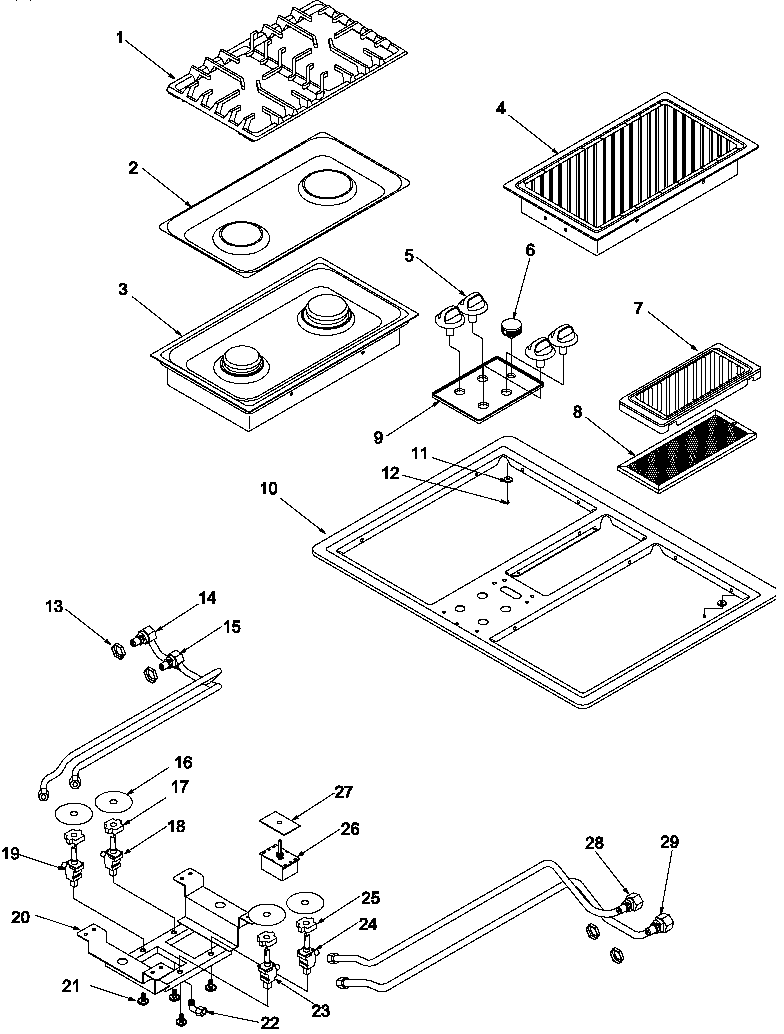

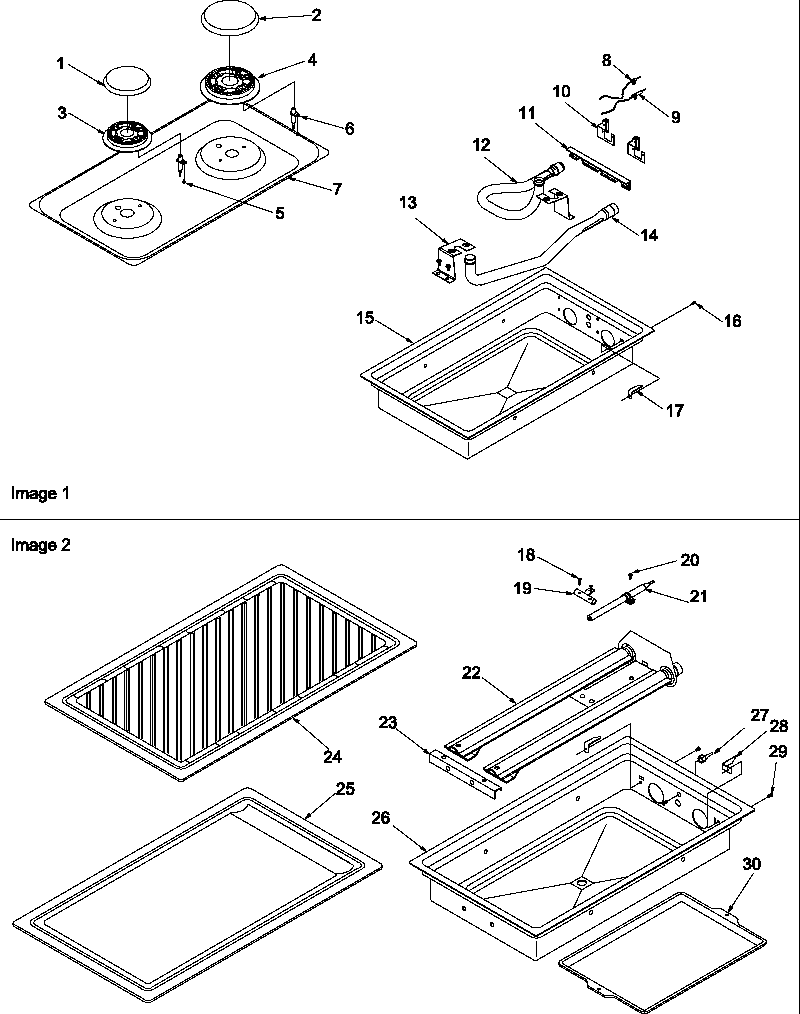

Burner, grille assy and acs200 griddle diagram

Screw

Part #31750432

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Igniter 0316773
#6

Burner, grille assy and acs200 griddle diagram

Cooktop igniter

Part #0316773

The manufacturer no longer makes this part, and there's no substitute part

Burner 0315768
#3

Burner, grille assy and acs200 griddle diagram

Burner

Part #0315768

The manufacturer no longer makes this part, and there's no substitute part

12k Burn Cap 31782701MB
#2

Burner, grille assy and acs200 griddle diagram

12k burn cap

Part #31782701MB

The manufacturer no longer makes this part, and there's no substitute part

Screw 31750316
#99

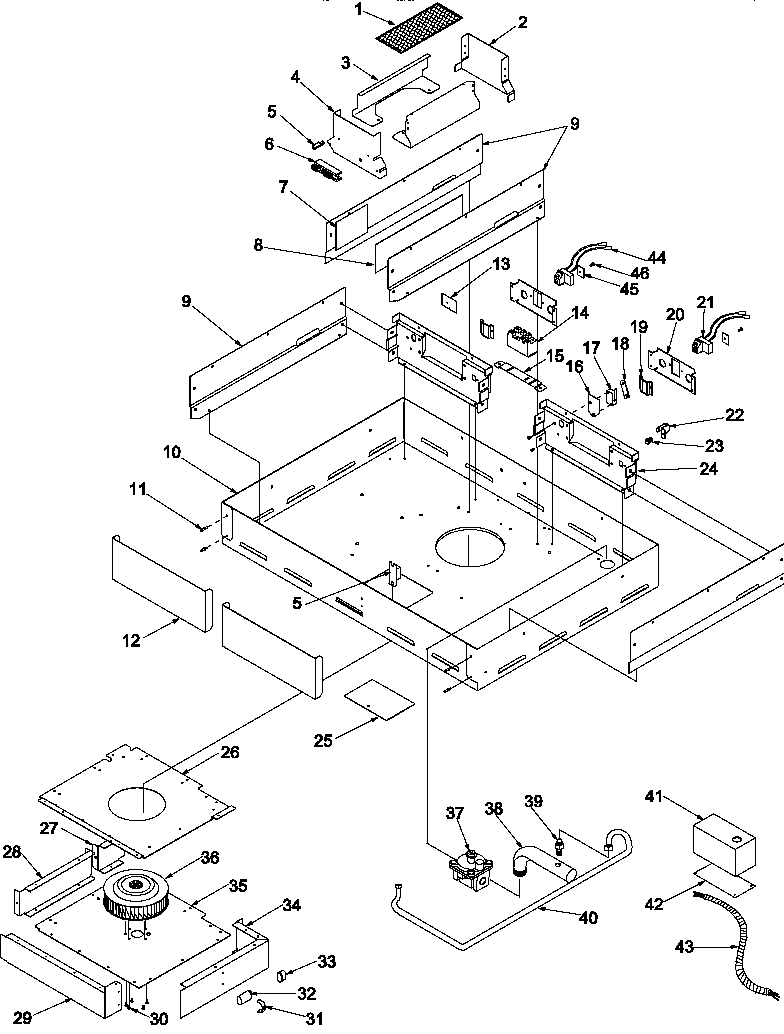

Main top diagram

Screw

Part #31750316

Replaced by #31750316

?
Manufacturer substitution
This part replaces 31750316. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw 31750410
#12

Main top diagram

Screw

Part #31750410

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 31750410. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Shield Switch 0314316
#16

Main top diagram

Shield switch

Part #0314316

The manufacturer no longer makes this part, and there's no substitute part

Srvc-manl RS2410003

#0

All parts diagram

Srvc-manl

Part #RS2410003

The manufacturer no longer makes this part, and there's no substitute part

Pipe 31752901
#38

Cavity diagram

Pipe

Part #31752901

The manufacturer no longer makes this part, and there's no substitute part

Fitting 0303219
#39

Cavity diagram

Fitting

Part #0303219

The manufacturer no longer makes this part, and there's no substitute part
