Model # PDWT585V50SS Official GE dishwasher

Here are the diagrams and repair parts for Official GE PDWT585V50SS dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Dishwasher Detergent Dispenser Assembly WD12X10163
#811

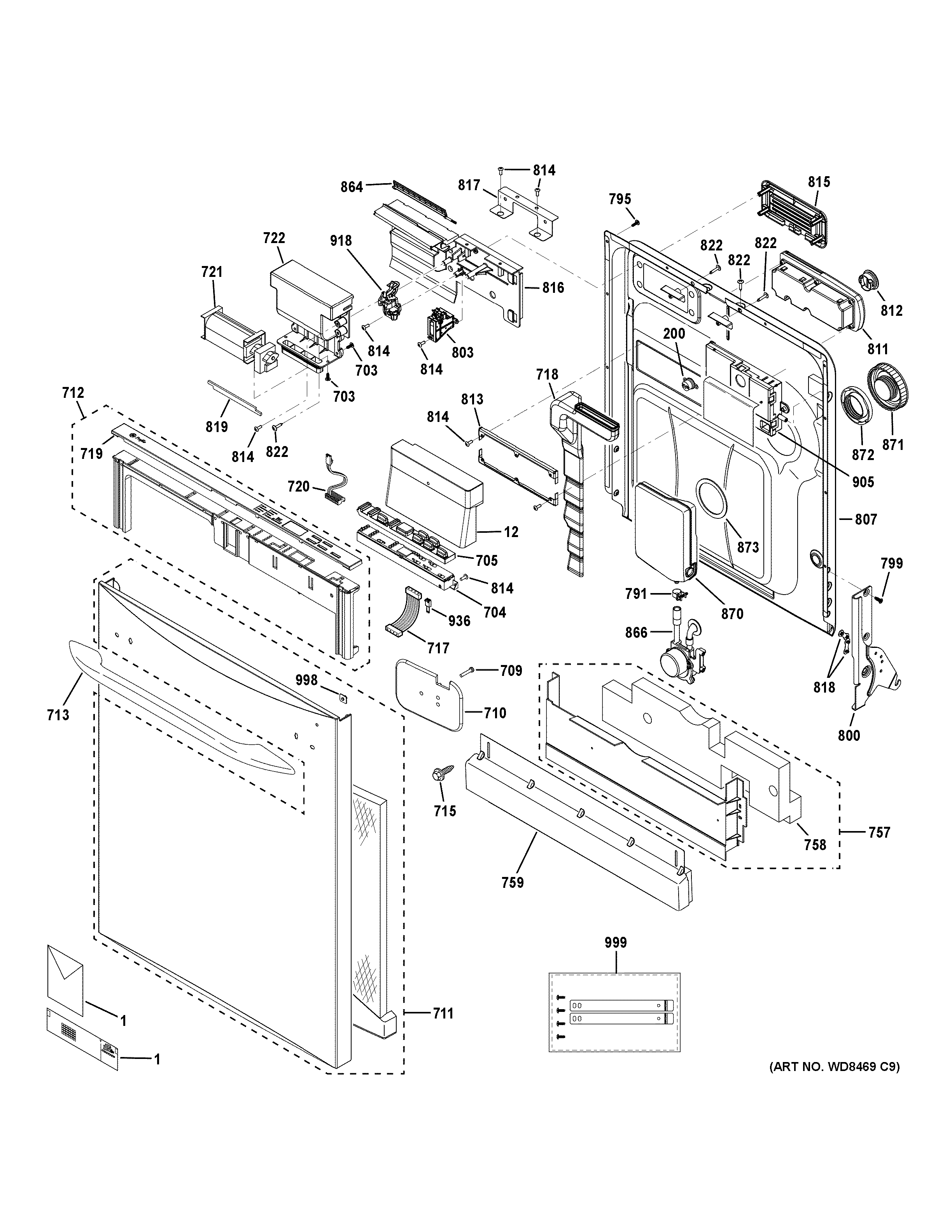

Escutcheon & door assembly diagram

Dishwasher detergent dispenser assembly

Part #WD12X10163

Replaced by #WD12X10237

?
Manufacturer substitution
This part replaces WD12X10163. Substitute parts can look different from the original.
BEST SELLER
$38.03 |
14% OFF Phone Price : $44.03
In Stock
Dishwasher Tub Gasket WD08X10032
#843

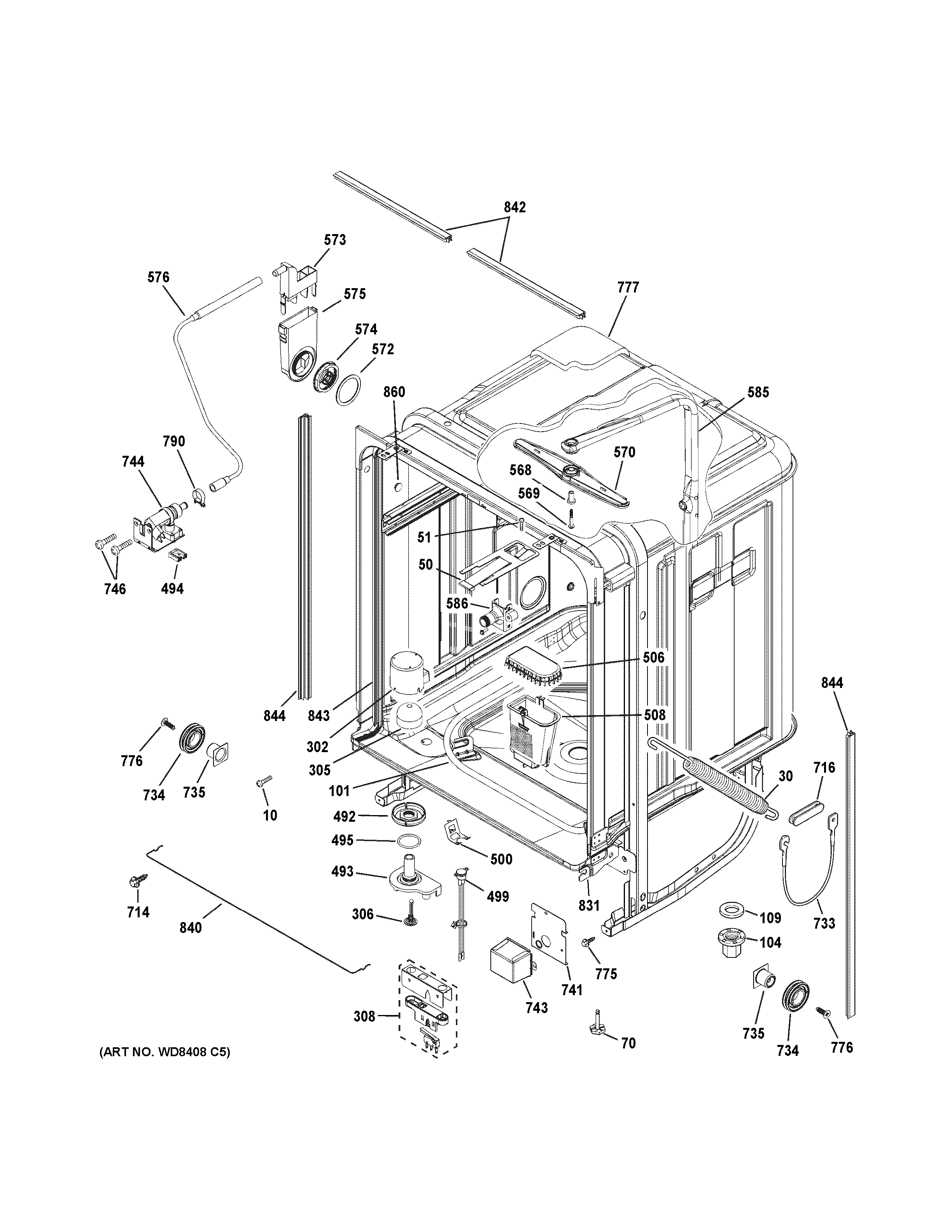

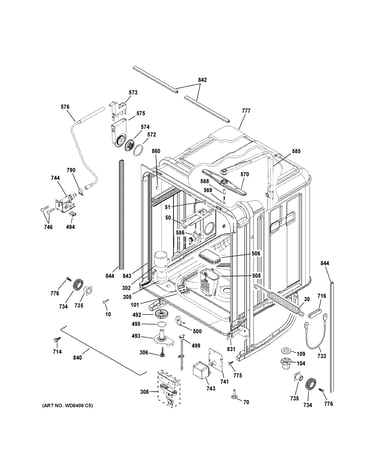

Body parts diagram

Dishwasher tub gasket

Part #WD08X10032

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Dishwasher Sump Inlet WD18X10026
#505

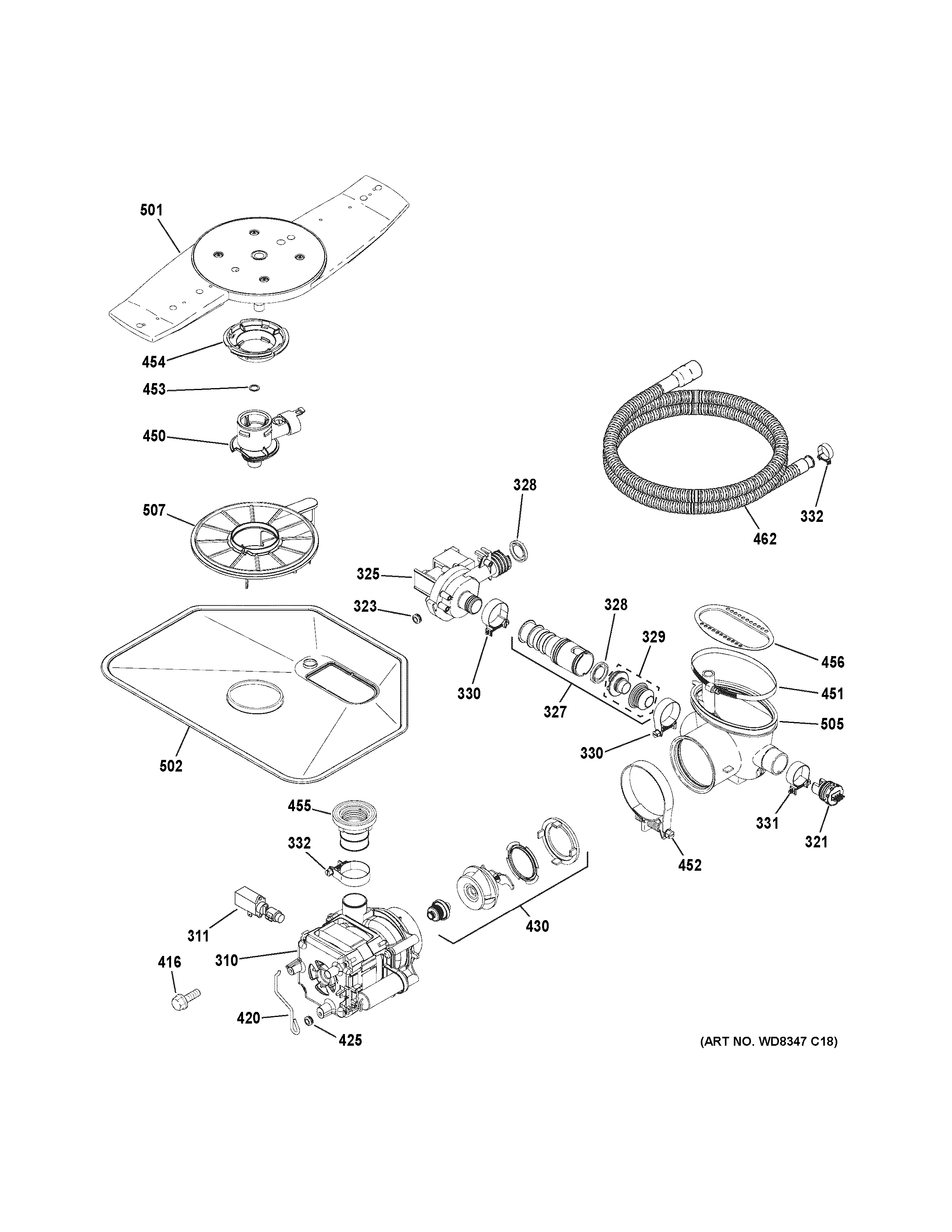

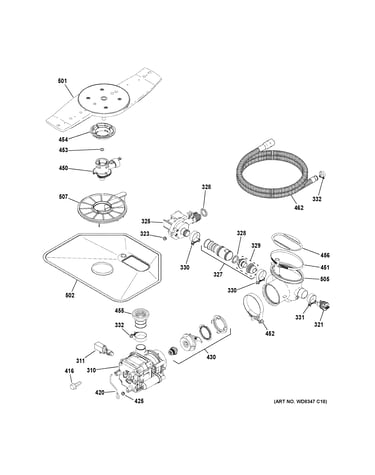

Motor-pump mechanism diagram

Dishwasher sump inlet

Part #WD18X10026

BEST SELLER
$29.40 |
17% OFF Phone Price : $35.40
In Stock
Rack Roller WD28X10318
#701

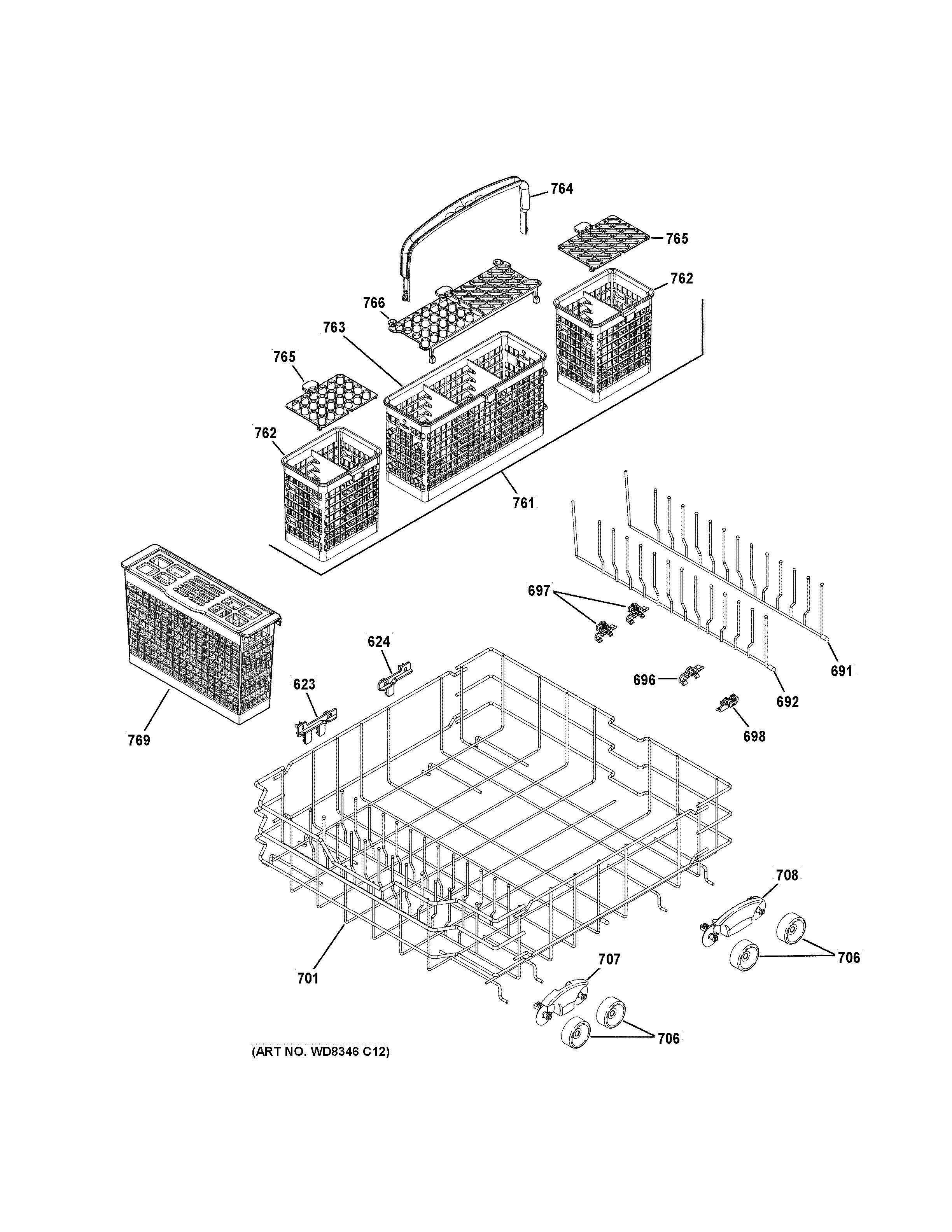

Lower rack assembly diagram

Rack roller

Part #WD28X10318

Replaced by #WD28X25960

?
Manufacturer substitution
This part replaces WD28X10318. Substitute parts can look different from the original.
BEST SELLER
$162.39 |
7% OFF Phone Price : $174.39
In Stock
Drain Tube WD24X10035
#462

Motor-pump mechanism diagram

Drain tube

Part #WD24X10035

Replaced by #WD24X10045

?
Manufacturer substitution
This part replaces WD24X10035. Substitute parts can look different from the original.
$30.13 |
17% OFF Phone Price : $36.13
In Stock
Dishwasher Drain Pump (replaces Wd12x10279, Wd26x10042) WD26X10048
#325

Motor-pump mechanism diagram

Dishwasher drain pump (replaces wd12x10279, wd26x10042)

Part #WD26X10048

$80.28 |
7% OFF Phone Price : $86.28
In Stock
Dishwasher Screw WD02X10067
#622

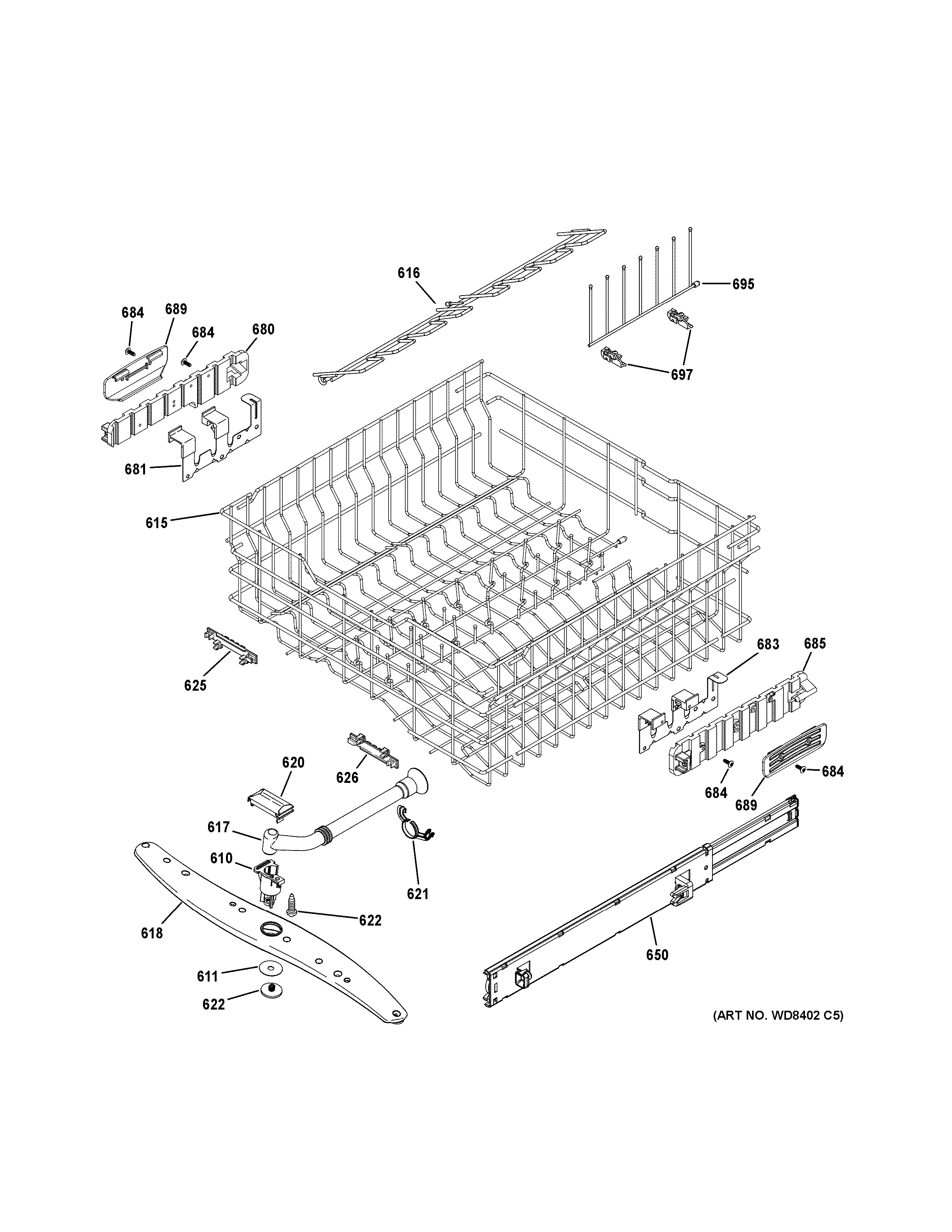

Upper rack assembly diagram

Dishwasher screw

Part #WD02X10067

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Pump Adapter WD12X10279
#327

Motor-pump mechanism diagram

Pump adapter

Part #WD12X10279

Replaced by #WD26X10048

?
Manufacturer substitution
This part replaces WD12X10279. Substitute parts can look different from the original.
$80.28 |
7% OFF Phone Price : $86.28
In Stock
Dishwasher Door Seal (replaces Wd08x10040) WD08X10055
#844

Body parts diagram

Dishwasher door seal (replaces wd08x10040)

Part #WD08X10055

This item is not returnable
$13.01 |
13% OFF Phone Price : $15.01
In Stock
Dishwasher Circulation Pump Adapter WD18X10010
#455

Motor-pump mechanism diagram

Dishwasher circulation pump adapter

Part #WD18X10010

$32.91 |
15% OFF Phone Price : $38.91
In Stock
