Black & Decker
Electric Leaf Blower

Model # BV5600 TYPE 1 Official Black & Decker blower

Here are the diagrams and repair parts for Official Black & Decker BV5600-TYPE-1 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Attachment 90516147
#4

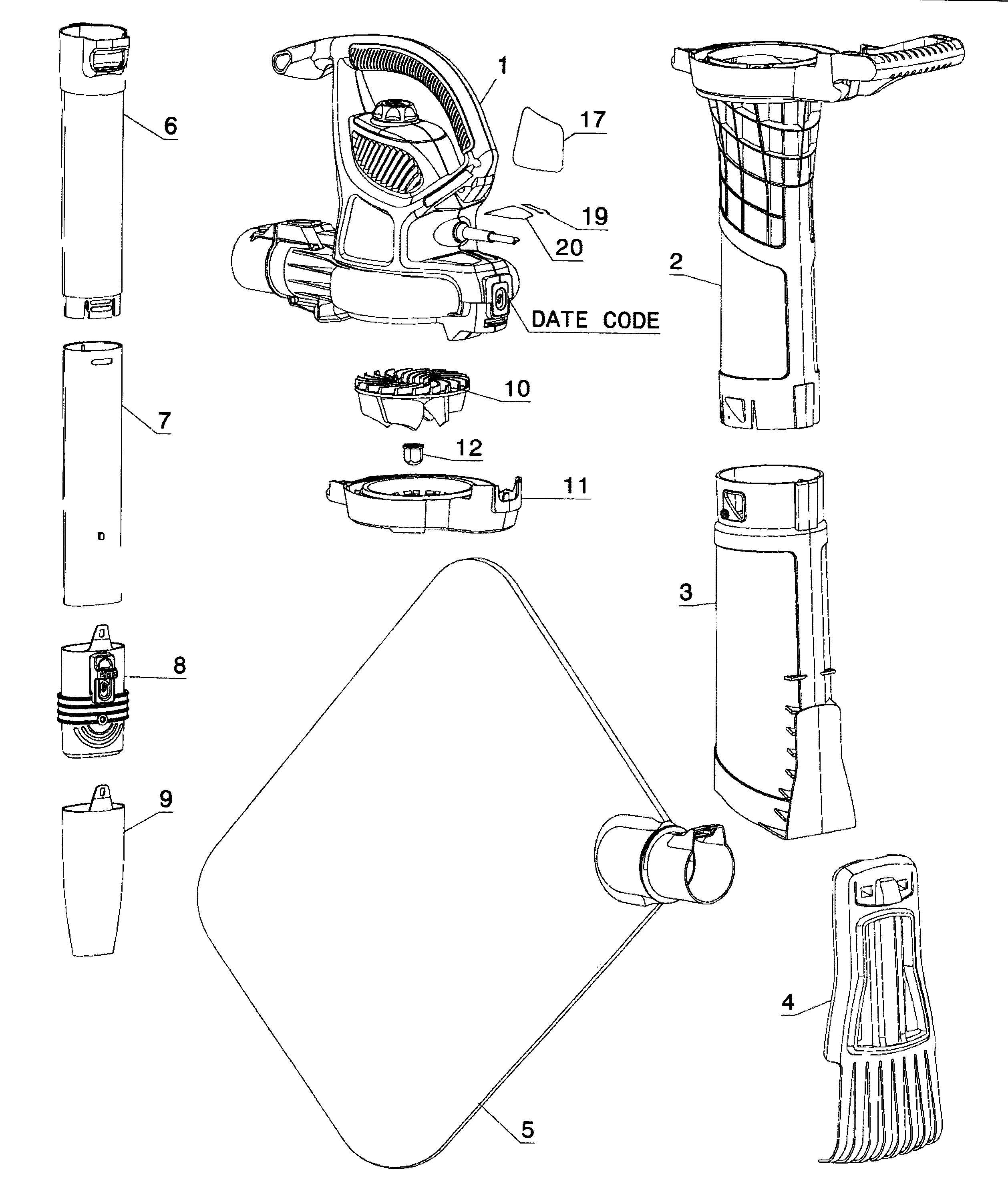

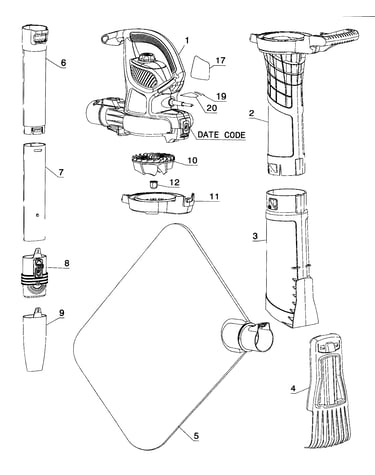

Blower assy diagram

Attachment

Part #90516147

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Fan 90593175
#10

Blower assy diagram

Lawn mower fan

Part #90593175

The manufacturer no longer makes this part, and there's no substitute part

Label 90517186
#20

Blower assy diagram

Label

Part #90517186

The manufacturer no longer makes this part, and there's no substitute part

Adapter 90593149
#2

Blower assy diagram

Adapter

Part #90593149

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Leaf Blower Tube 90519931
#6

Blower assy diagram

Craftsman leaf blower tube

Part #90519931

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Nameplate 90591896
#17

Blower assy diagram

Black & decker nameplate

Part #90591896

The manufacturer no longer makes this part, and there's no substitute part

Leaf Blower Lock Nut 90556361
#12

Blower assy diagram

Leaf blower lock nut

Part #90556361

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Leaf Blower Motor And Housing Assembly 90593518
#1

Blower assy diagram

Black & decker leaf blower motor and housing assembly

Part #90593518

The manufacturer no longer makes this part, and there's no substitute part

Label 90517184
#19

Blower assy diagram

Label

Part #90517184

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Leaf Blower Tube 90519932
#7

Blower assy diagram

Craftsman leaf blower tube

Part #90519932

The manufacturer no longer makes this part, and there's no substitute part
