Craftsman
Water Pump

Model # 14926315 Official Craftsman engine driven thermoplastic pump

Here are the diagrams and repair parts for Official Craftsman 14926315 engine driven thermoplastic pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Screw 1753-001-00
#8

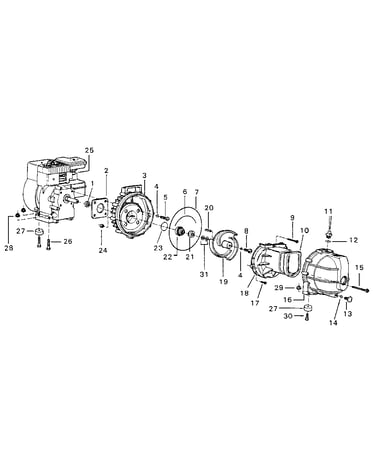

Replacement parts diagram

Screw

Part #1753-001-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 1734-000-00
#15

Replacement parts diagram

Screw

Part #1734-000-00

The manufacturer no longer makes this part, and there's no substitute part

Seal Head 1652-001-00
#22

Replacement parts diagram

Seal head

Part #1652-001-00

The manufacturer no longer makes this part, and there's no substitute part

O-ring 2102-007-00
#7

Replacement parts diagram

O-ring

Part #2102-007-00

The manufacturer no longer makes this part, and there's no substitute part

Drain Plug 3827-171-70
#13

Replacement parts diagram

Drain plug

Part #3827-171-70

The manufacturer no longer makes this part, and there's no substitute part

Head Cap 1748-000-00
#26

Replacement parts diagram

Head cap

Part #1748-000-00

The manufacturer no longer makes this part, and there's no substitute part

Casing 3827-002-70
#16

Replacement parts diagram

Casing

Part #3827-002-70

The manufacturer no longer makes this part, and there's no substitute part

Roll Of Teflon Tape 1696-094-00

#NI

All parts diagram

Roll of teflon tape

Part #1696-094-00

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 1785-000-00
#28

Replacement parts diagram

Hex nut

Part #1785-000-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 1707-003-00
#9

Replacement parts diagram

Screw

Part #1707-003-00

The manufacturer no longer makes this part, and there's no substitute part
