Countertop Microwave

Model # JE1240WN01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1240WN01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Use And Care Guide 49-8489

#NI

All parts diagram

Use and care guide

Part #49-8489

$8.49
In Stock
Je1240 Gv Wv 49-8613

#NI

All parts diagram

Je1240 gv wv

Part #49-8613

$17.99
In Stock
Bot Plate Rt WB56X2119
#5000

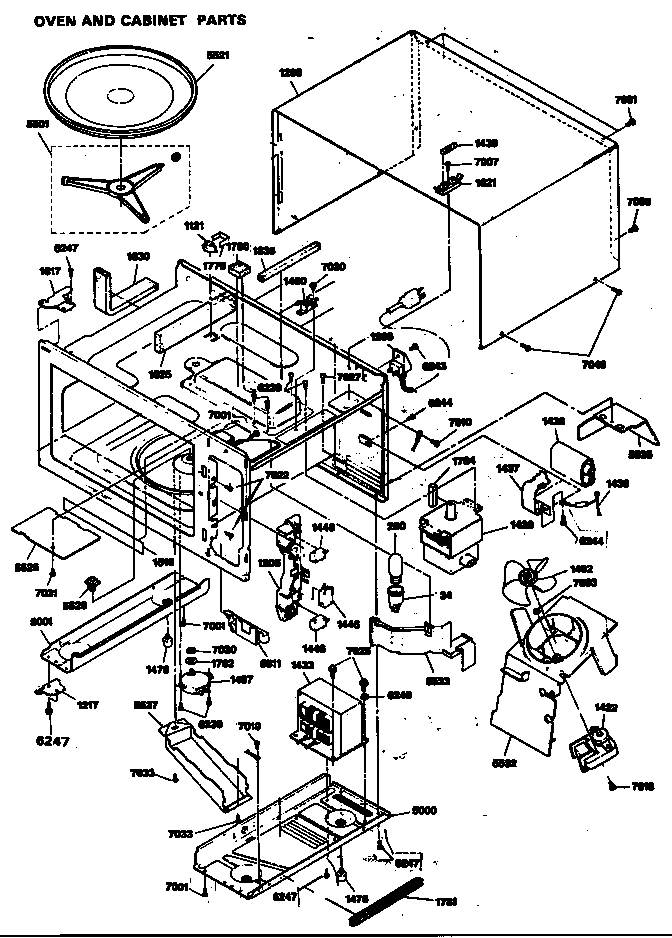

Oven and cabinet parts diagram

Bot plate rt

Part #WB56X2119

$29.49
In Stock
Button Do WB3X850
#5510

Wiring harness diagram

Button do

Part #WB3X850

The manufacturer no longer makes this part, and there's no substitute part

Magnetron WB27X757
#1428

Oven and cabinet parts diagram

Magnetron

Part #WB27X757

The manufacturer no longer makes this part, and there's no substitute part

"bot Plate,lt" WB56X2074
#5001

Oven and cabinet parts diagram

"bot plate,lt"

Part #WB56X2074

The manufacturer no longer makes this part, and there's no substitute part

Microwave Fuse, 20-amp WB27X816
#1439

Oven and cabinet parts diagram

Microwave fuse, 20-amp

Part #WB27X816

The manufacturer no longer makes this part, and there's no substitute part

Cushion E WB6X270
#1825

Oven and cabinet parts diagram

Cushion e

Part #WB6X270

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor WB26X137
#1487

Oven and cabinet parts diagram

Microwave turntable motor

Part #WB26X137

The manufacturer no longer makes this part, and there's no substitute part

Key Panel Frame WB27X1000
#1654

Wiring harness diagram

Key panel frame

Part #WB27X1000

The manufacturer no longer makes this part, and there's no substitute part
