Model # DC300K TYPE1 Official DeWalt circular saw

Here are the diagrams and repair parts for Official DeWalt DC300K-TYPE1 circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

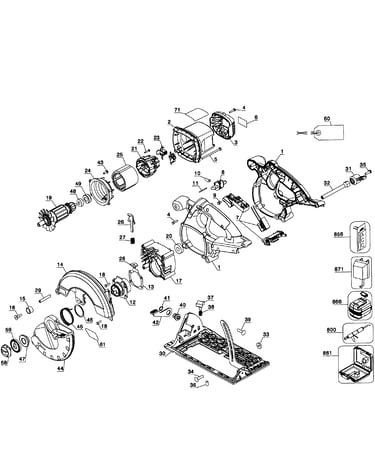

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Screw 330045-45
#43

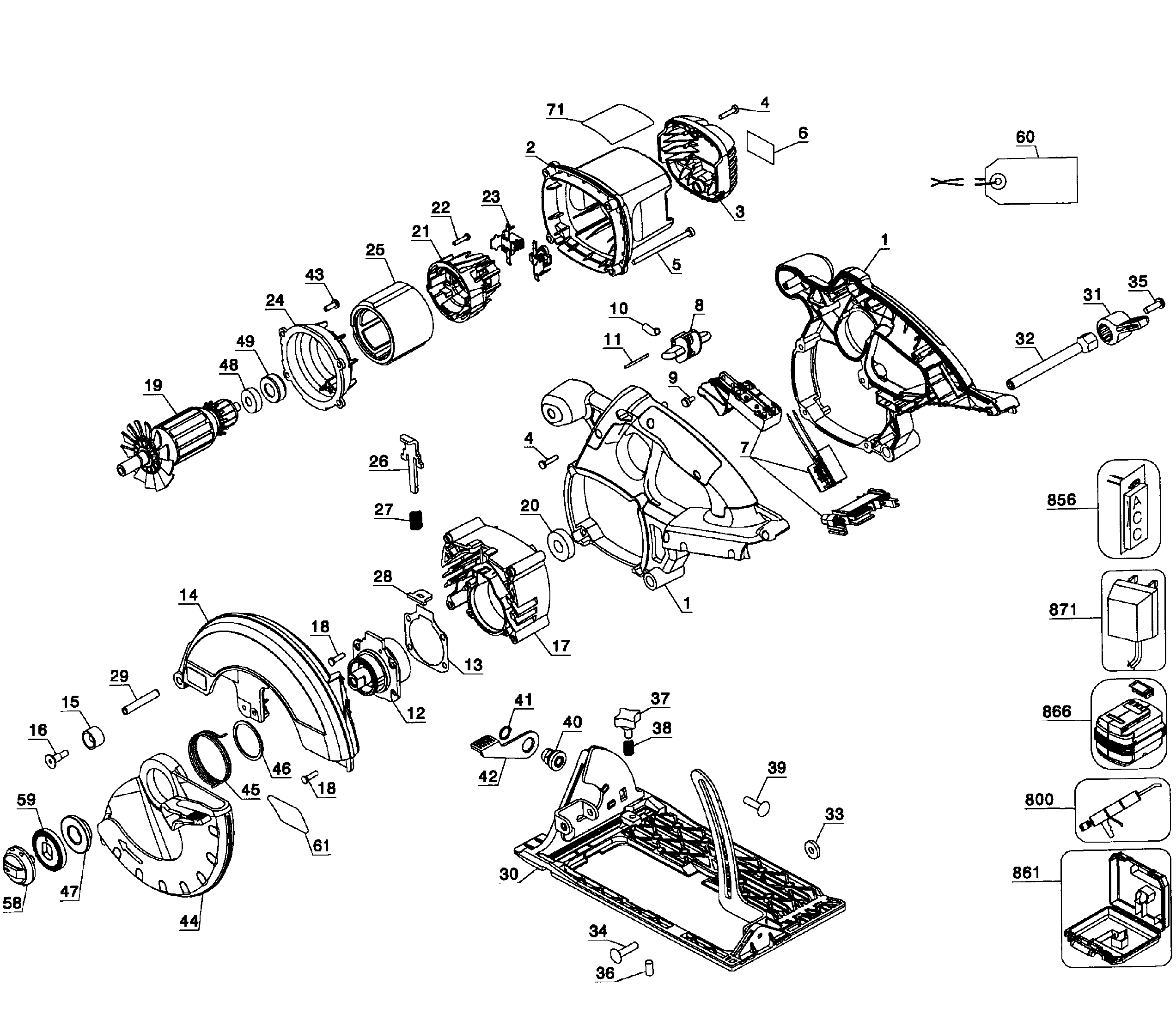

Circular saw diagram

Screw

Part #330045-45

The manufacturer no longer makes this part, and there's no substitute part

Button 605107-00
#8

Circular saw diagram

Button

Part #605107-00

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 381069-00
#36

Circular saw diagram

Set screw

Part #381069-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Armature 629549-00SV
#19

Circular saw diagram

Dewalt armature

Part #629549-00SV

The manufacturer no longer makes this part, and there's no substitute part

Baffle 610124-01
#24

Circular saw diagram

Baffle

Part #610124-01

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Spindle 629573-00SV
#12

Circular saw diagram

Dewalt spindle

Part #629573-00SV

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Retaining Ring 388496-01
#46

Circular saw diagram

Dewalt retaining ring

Part #388496-01

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Spring 648059-00
#45

Circular saw diagram

Dewalt spring

Part #648059-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Shoe Assembly 629591-00SV
#30

Circular saw diagram

Dewalt shoe assembly

Part #629591-00SV

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Lock Lever 145347-00
#42

Circular saw diagram

Black & decker lock lever

Part #145347-00

The manufacturer no longer makes this part, and there's no substitute part
