GE
Countertop Microwave

Model # JE1019H01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JE1019H01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

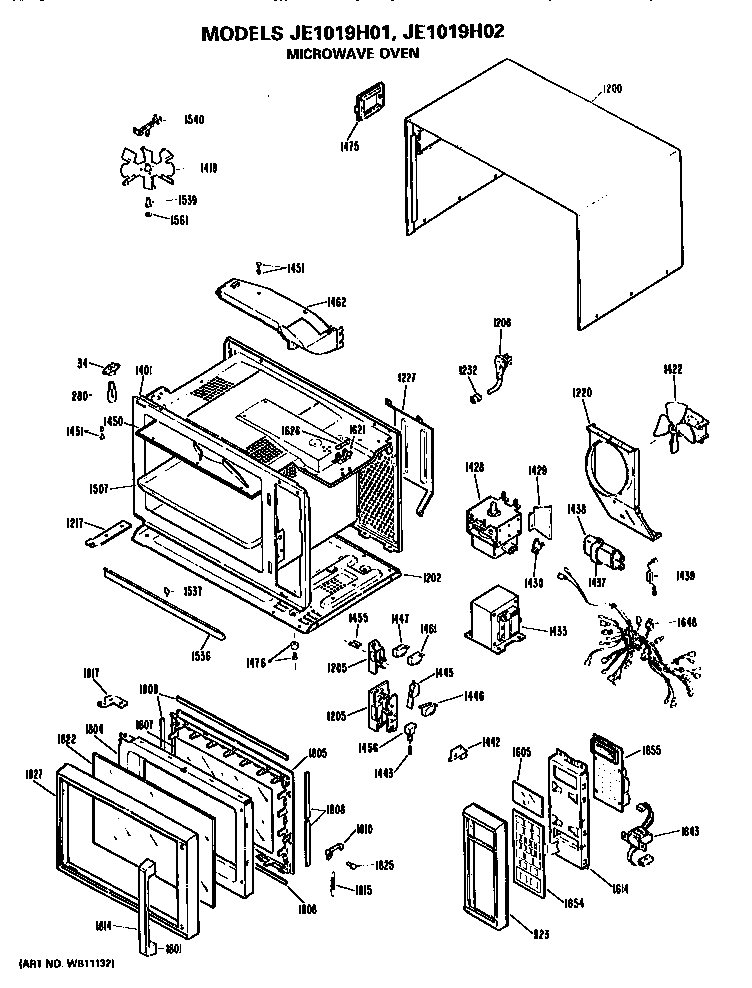

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Primary Switch WB24X368

#1447

All parts diagram

Primary switch

Part #WB24X368

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X368. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Diode WB27X350

#1439

All parts diagram

Diode

Part #WB27X350

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X350. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Magnetron WB27X5334

#1428

All parts diagram

Magnetron

Part #WB27X5334

The manufacturer no longer makes this part, and there's no substitute part

Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Door Key WB2X9767

#1810

All parts diagram

Door key

Part #WB2X9767

The manufacturer no longer makes this part, and there's no substitute part

Key Panel WB27X370

#1654

All parts diagram

Key panel

Part #WB27X370

The manufacturer no longer makes this part, and there's no substitute part

Slide Lat WB2X4056

#1456

All parts diagram

Slide lat

Part #WB2X4056

The manufacturer no longer makes this part, and there's no substitute part

Spring WB9X214

#1815

All parts diagram

Spring

Part #WB9X214

The manufacturer no longer makes this part, and there's no substitute part

Bracket WB2X132

#1227

All parts diagram

Bracket

Part #WB2X132

The manufacturer no longer makes this part, and there's no substitute part

Window WB36X735

#1605

All parts diagram

Window

Part #WB36X735

The manufacturer no longer makes this part, and there's no substitute part
