Universal/Multiflex (Frigidaire)
Trash Compactor

Model # MTC500AWW2 Official Universal/Multiflex (Frigidaire) trash compactor

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MTC500AWW2 trash compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Compactor Bag 5303296400

#NI

All parts diagram

Compactor bag

Part #5303296400

$30.11
In Stock
Safety Switch 08017605
#7

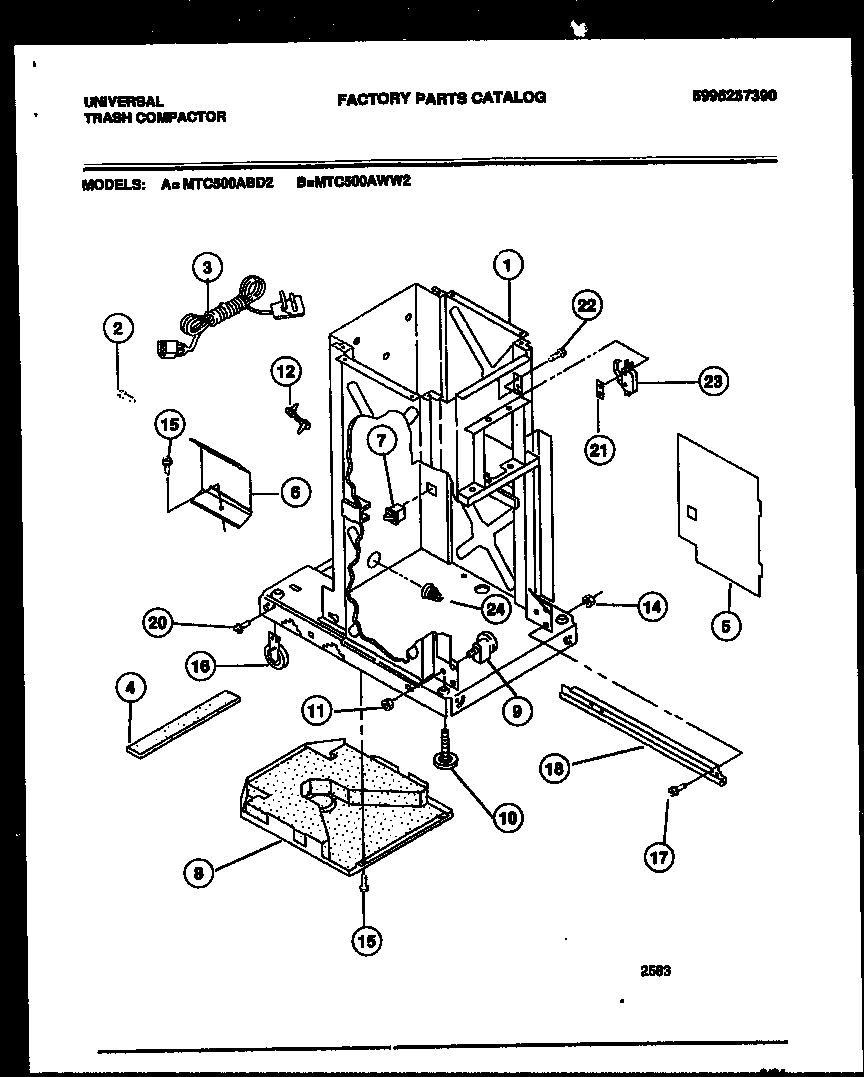

Interior parts diagram

Safety switch

Part #08017605

$19.37
In Stock
Trim-container Front 5303300702
#19

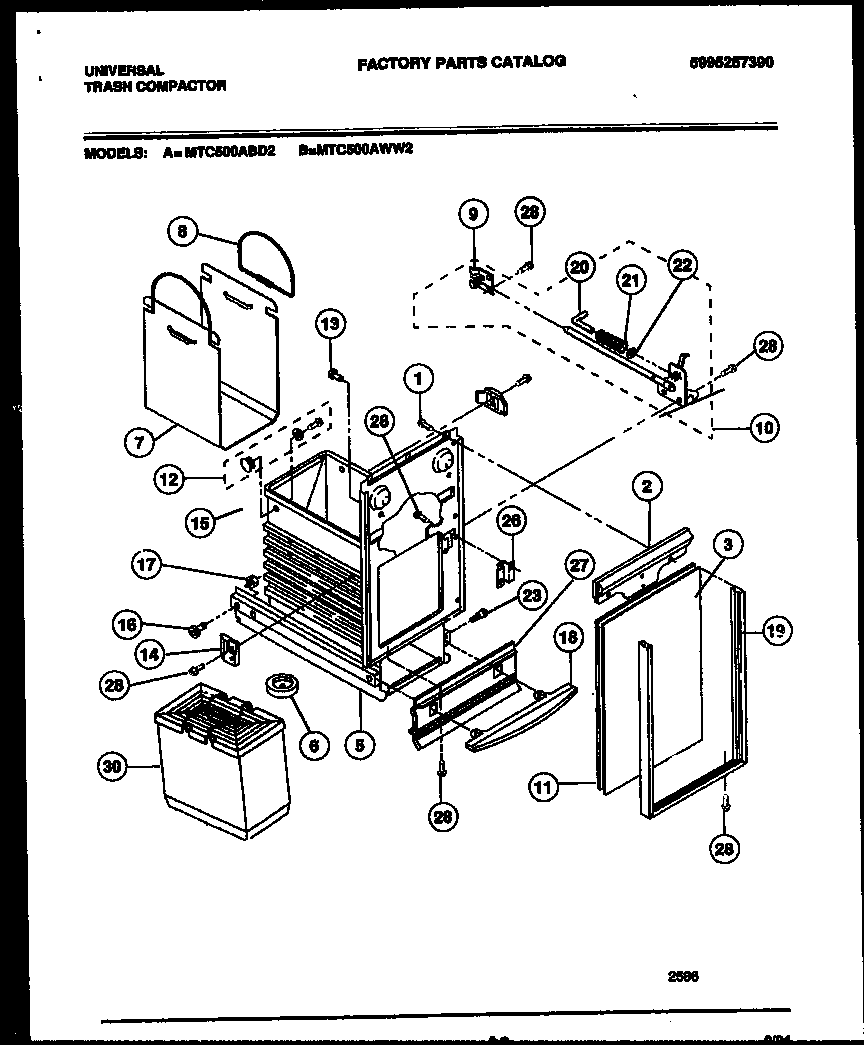

Latch and container assembly diagram

Trim-container front

Part #5303300702

The manufacturer no longer makes this part, and there's no substitute part

Washer - Cone (2) 08003533
#9

Screw-power and ram assembly diagram

Washer - cone (2)

Part #08003533

The manufacturer no longer makes this part, and there's no substitute part

Bushing 08003504
#18

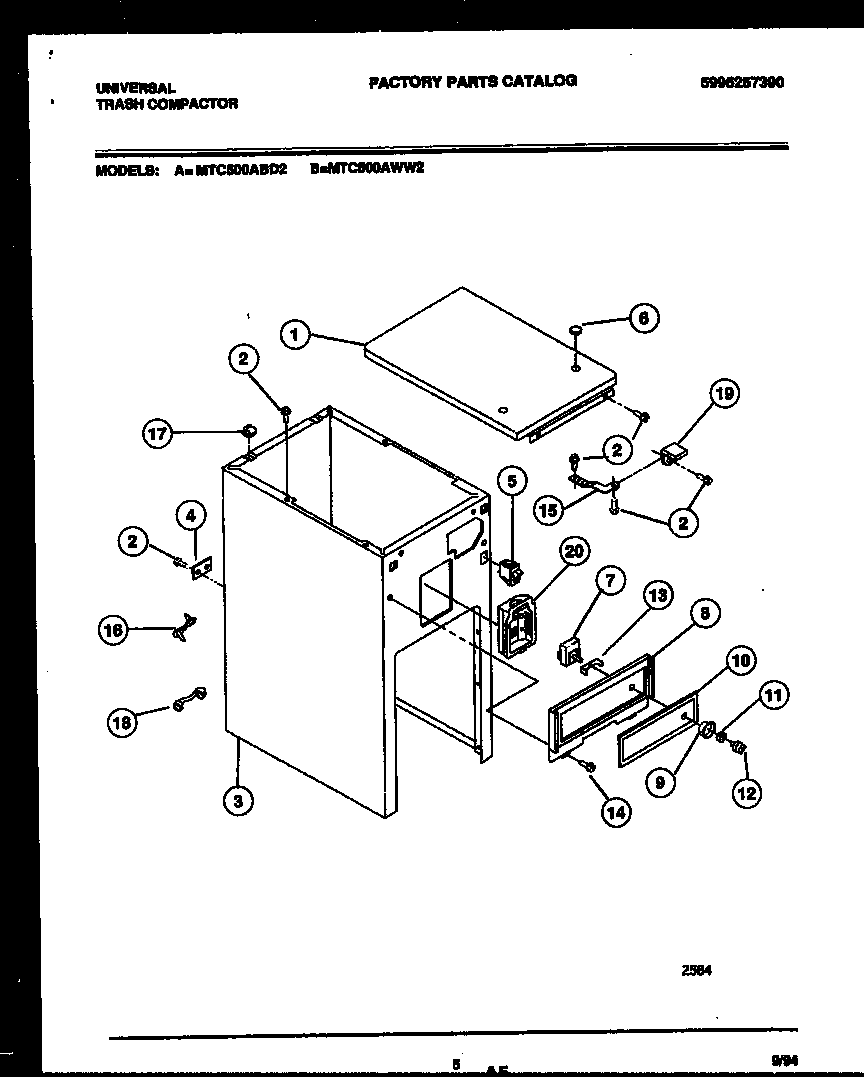

Cabinet and control parts diagram

Bushing

Part #08003504

The manufacturer no longer makes this part, and there's no substitute part

Chain - Drive 08016320
#12

Motor and drive parts diagram

Chain - drive

Part #08016320

The manufacturer no longer makes this part, and there's no substitute part

Screw - Power Complete Assembly (2) 5303293177
#1

Screw-power and ram assembly diagram

Screw - power complete assembly (2)

Part #5303293177

The manufacturer no longer makes this part, and there's no substitute part

Nut - Rotary Switch 08003536
#11

Cabinet and control parts diagram

Nut - rotary switch

Part #08003536

The manufacturer no longer makes this part, and there's no substitute part

Ring Clip 08003500
#11

Motor and drive parts diagram

Ring clip

Part #08003500

The manufacturer no longer makes this part, and there's no substitute part

Slide- Frame Lh 5303305468
#18

Interior parts diagram

Slide- frame lh

Part #5303305468

The manufacturer no longer makes this part, and there's no substitute part
