Viking Range
Side-By-Side Refrigerator

Model # VCSB480 Official Viking Range side-by-side refrigerator

Here are the diagrams and repair parts for Official Viking Range VCSB480 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

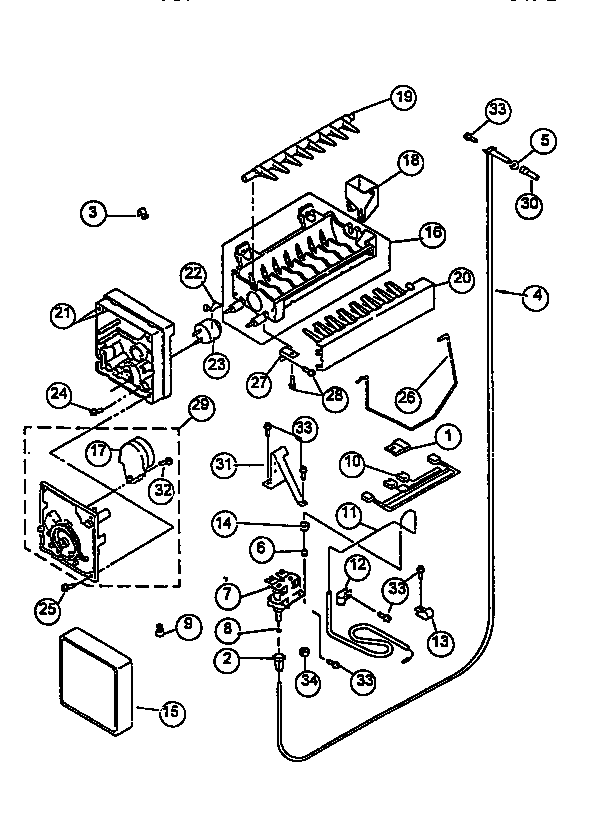

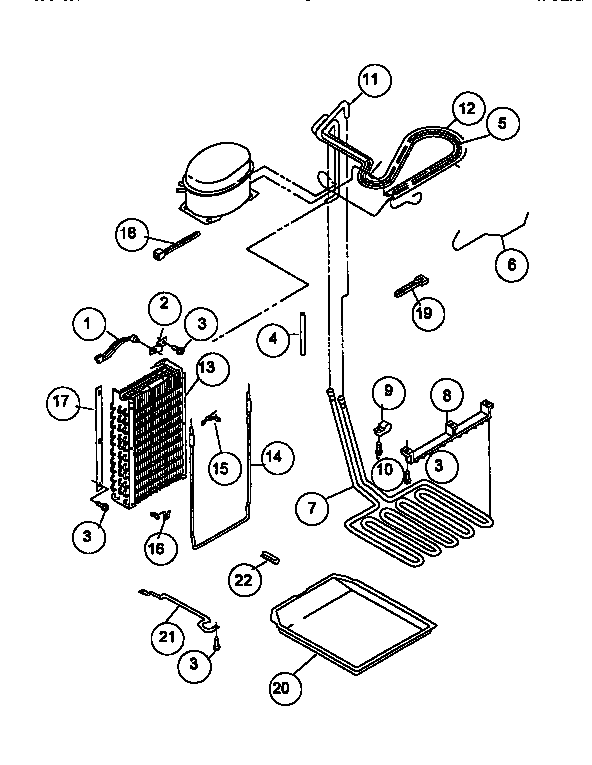

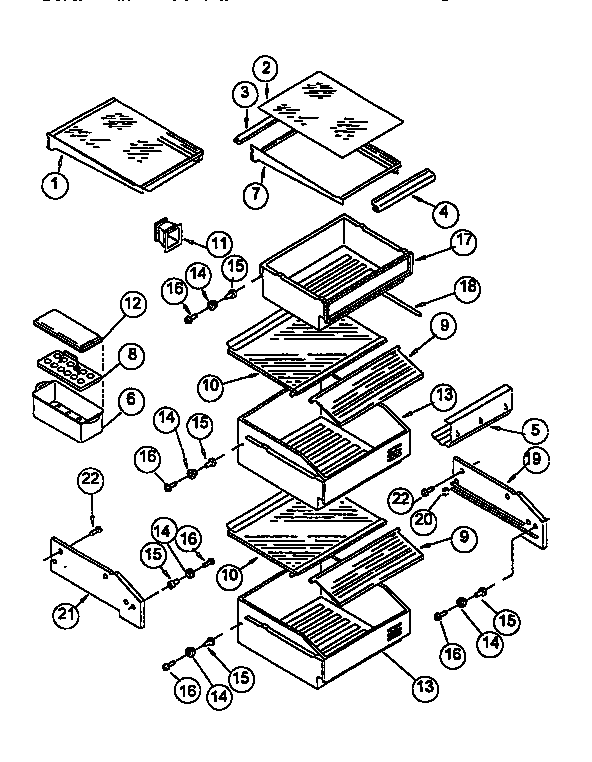

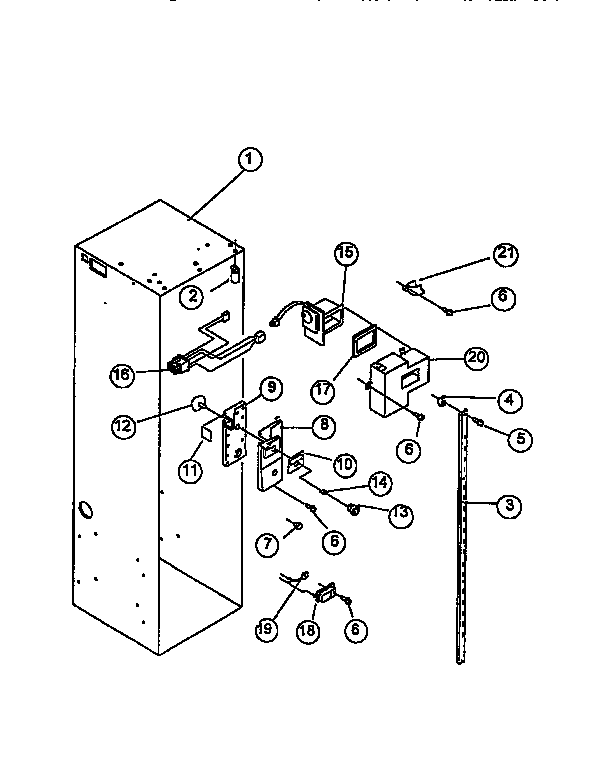

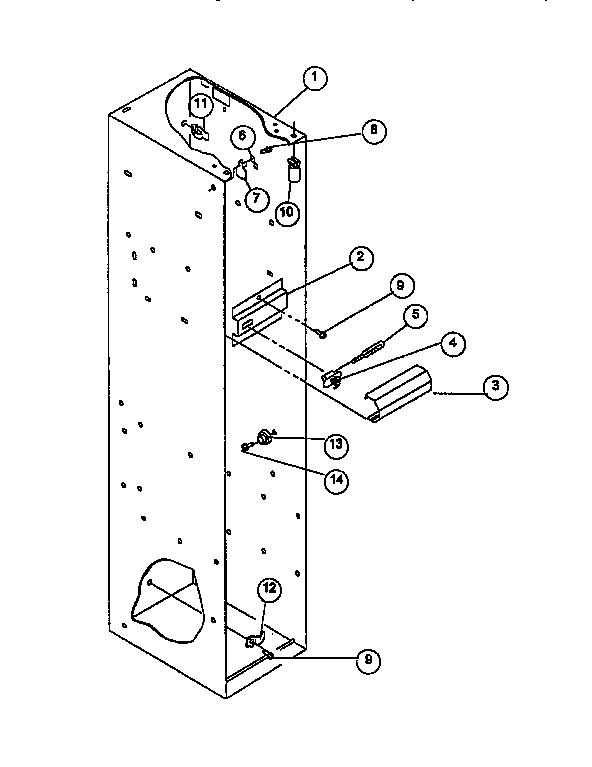

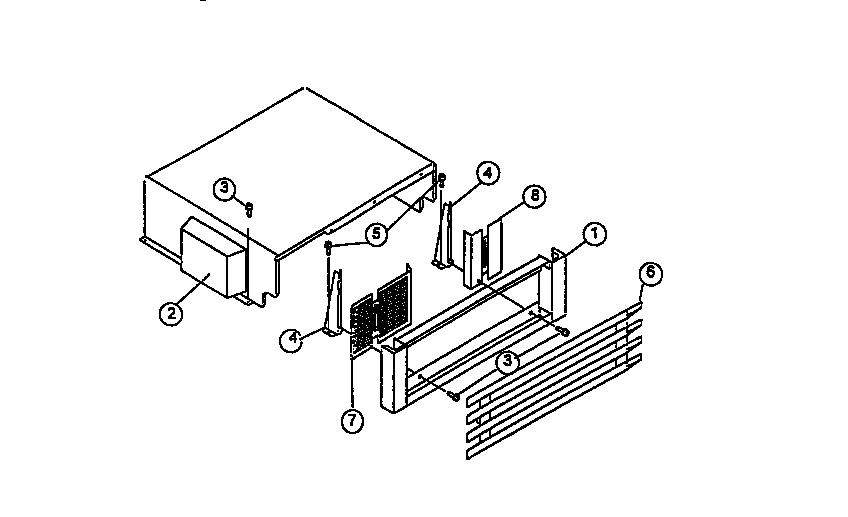

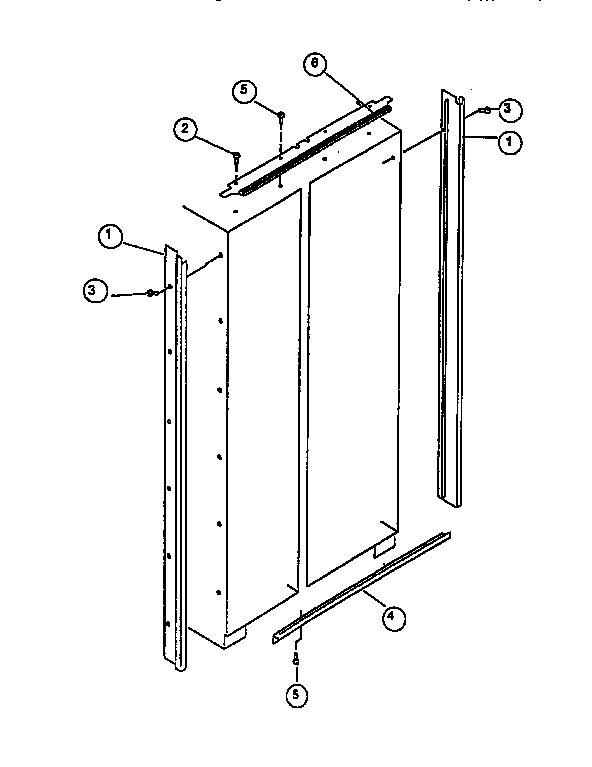

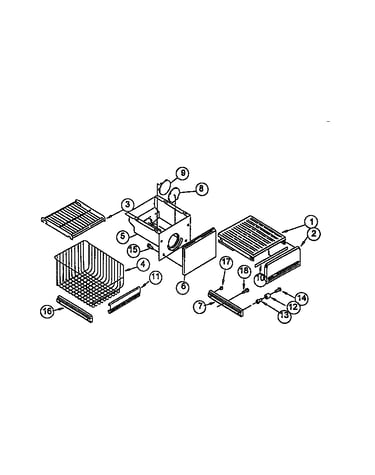

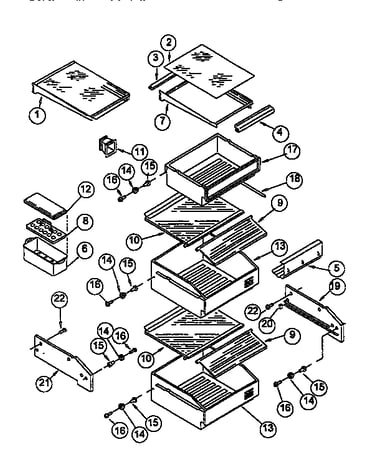

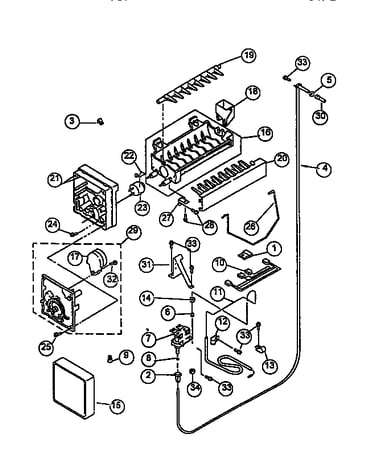

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 323 parts  |
Refrigerator Cover, Rear PR100022
#32

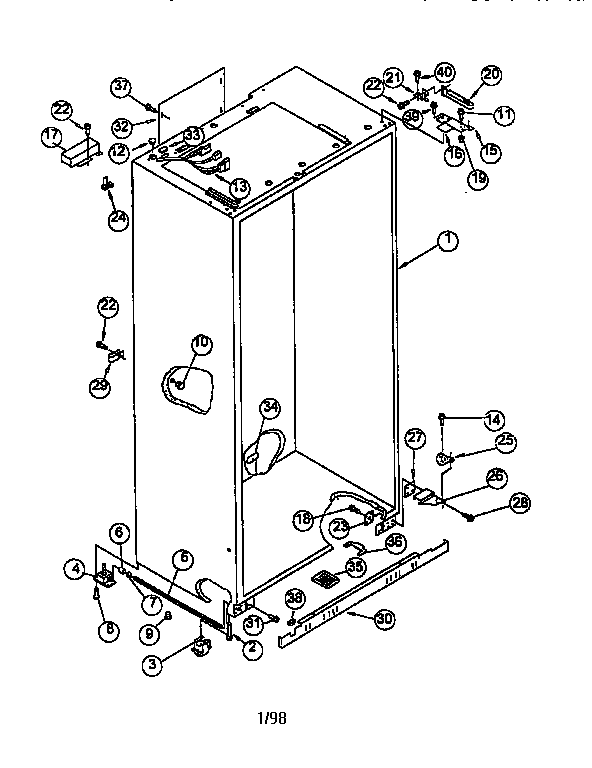

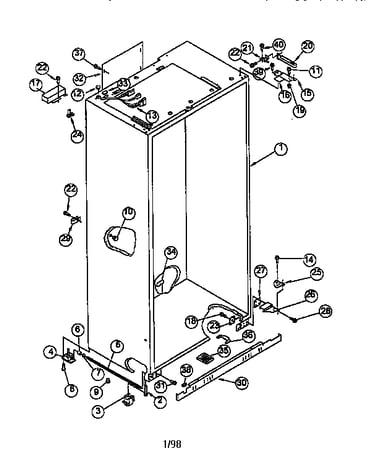

Cabinet diagram

Refrigerator cover, rear

Part #PR100022

$152.49
In Stock
Refrigerator Screw PR120036
#12

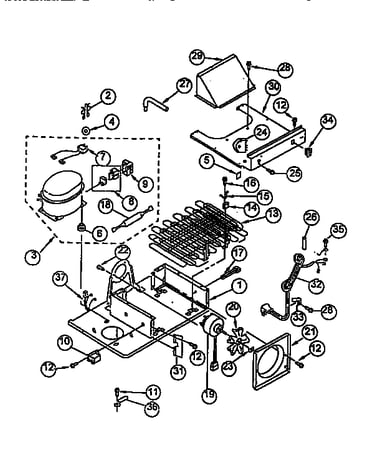

Upper unit diagram

Refrigerator screw

Part #PR120036

$14.49
In Stock
Viking Range Refrigerator Control Panel Inlay PR100035
#2

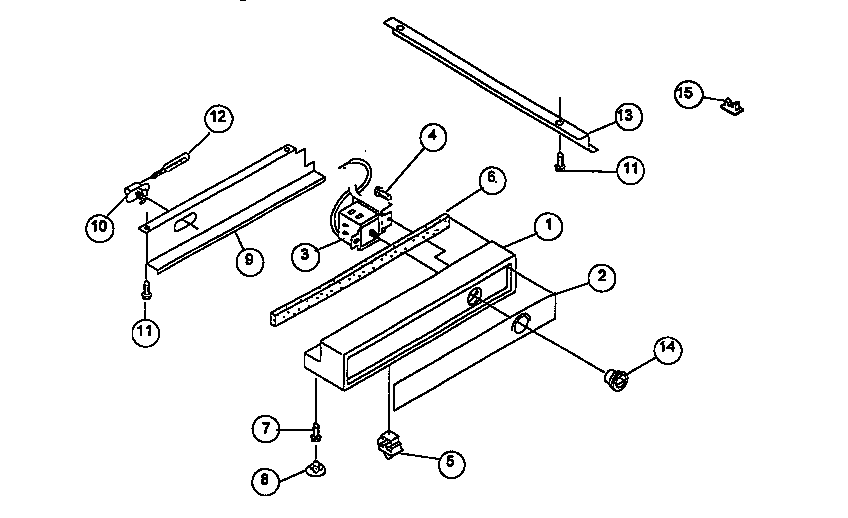

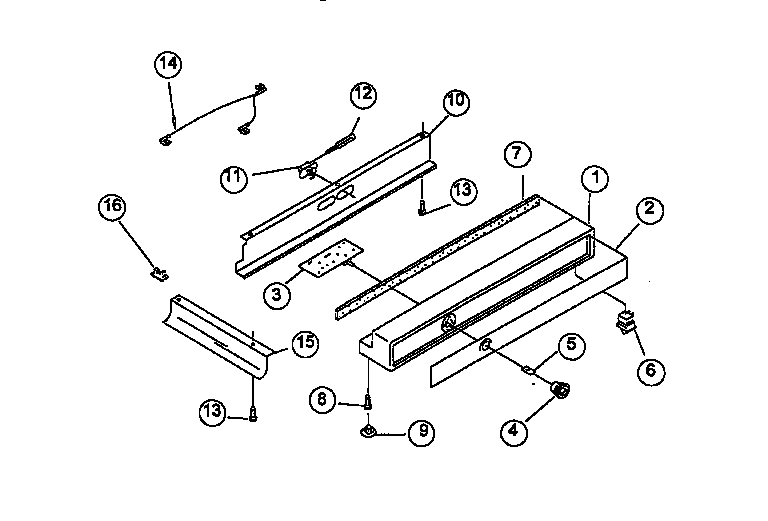

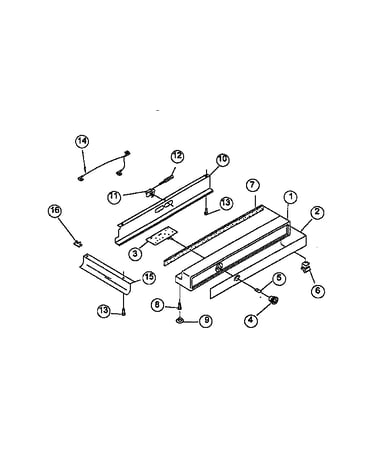

Freezer control panel diagram

Viking range refrigerator control panel inlay

Part #PR100035

$48.99
In Stock
Refrigerator Thermostat PR110009
#3

Freezer control panel diagram

Refrigerator thermostat

Part #PR110009

$383.99
In Stock
Refrigerator Ice Maker Air Deflector PR130048
#18

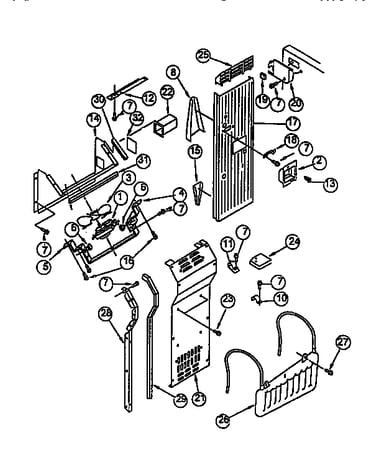

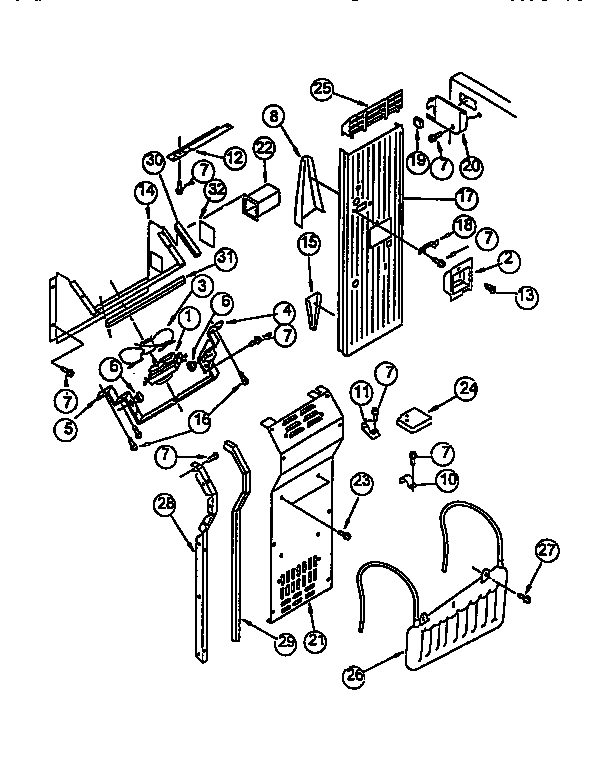

Air flow and reservoir diagram

Refrigerator ice maker air deflector

Part #PR130048

$14.49
In Stock
Refrigerator Screw PR120078
#37

Cabinet diagram

Refrigerator screw

Part #PR120078

$14.49
In Stock
Refrigerator Logo PE010036
#17F

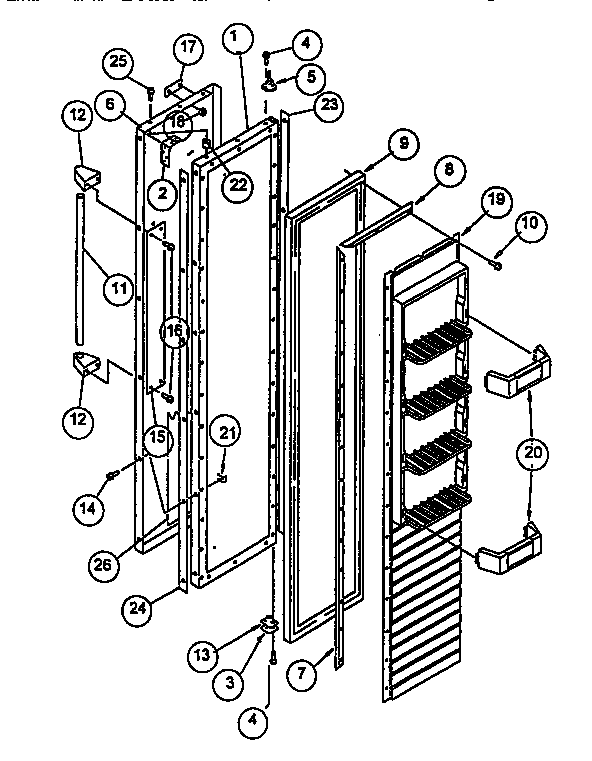

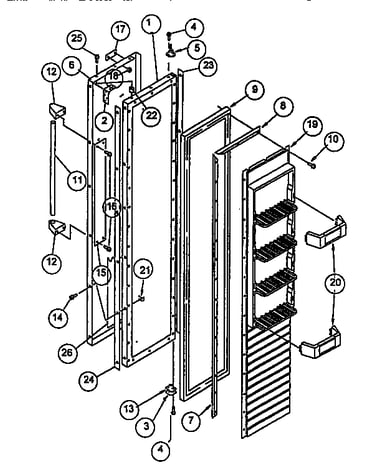

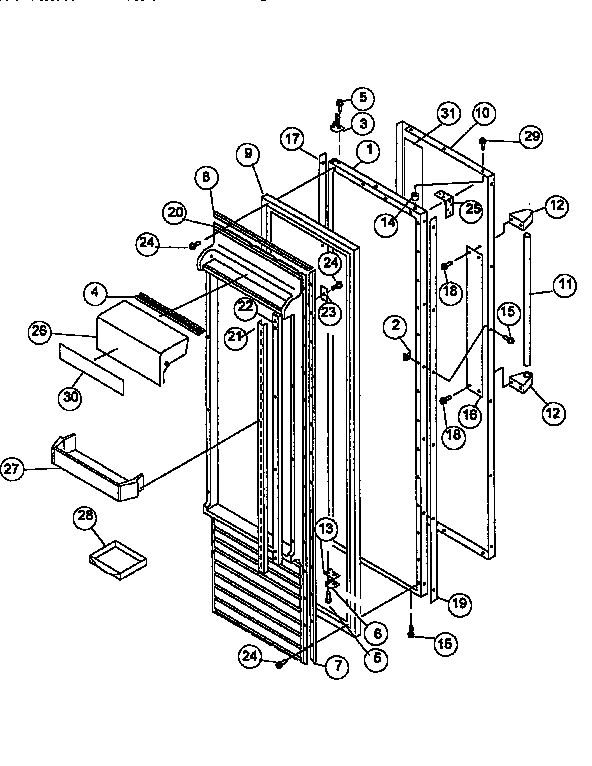

Freezer door diagram

Refrigerator logo

Part #PE010036

$61.49
In Stock
Refrigerator Grommet PR120079
#38

Cabinet diagram

Refrigerator grommet

Part #PR120079

$10.49
In Stock
Refrigerator Bracket PR130000
#2

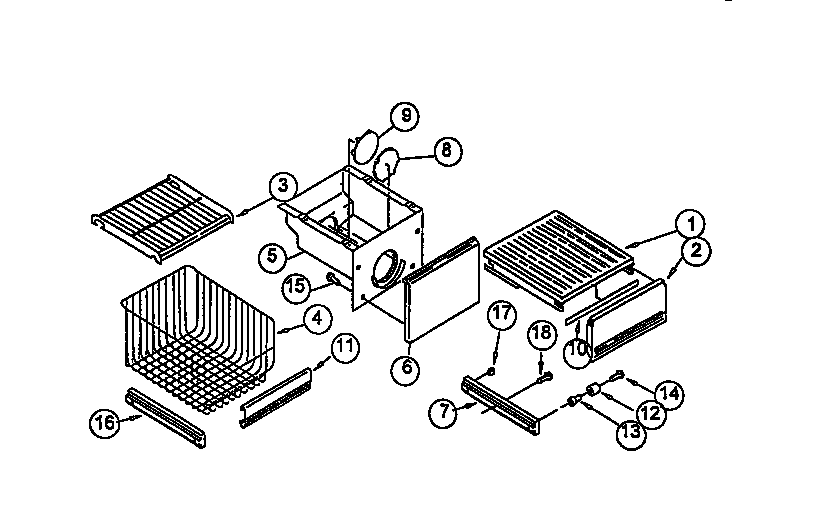

Freezer liner diagram

Refrigerator bracket

Part #PR130000

$26.49
In Stock
Refrigerator Guard PR130014
#21

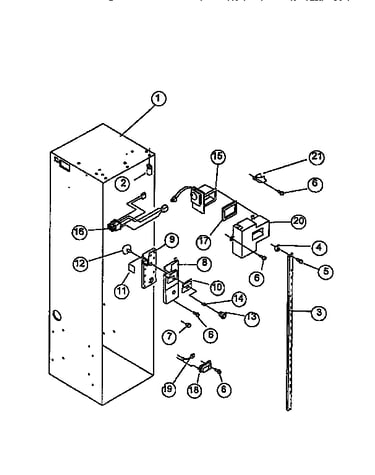

Refrigerator liner diagram

Refrigerator guard

Part #PR130014

$33.49
In Stock
