Model # DSC-WX80/W Official Panasonic digital camera

Here are the diagrams and repair parts for Official Panasonic DSC-WX80-W digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |

Spacer-mf 444565201
#4

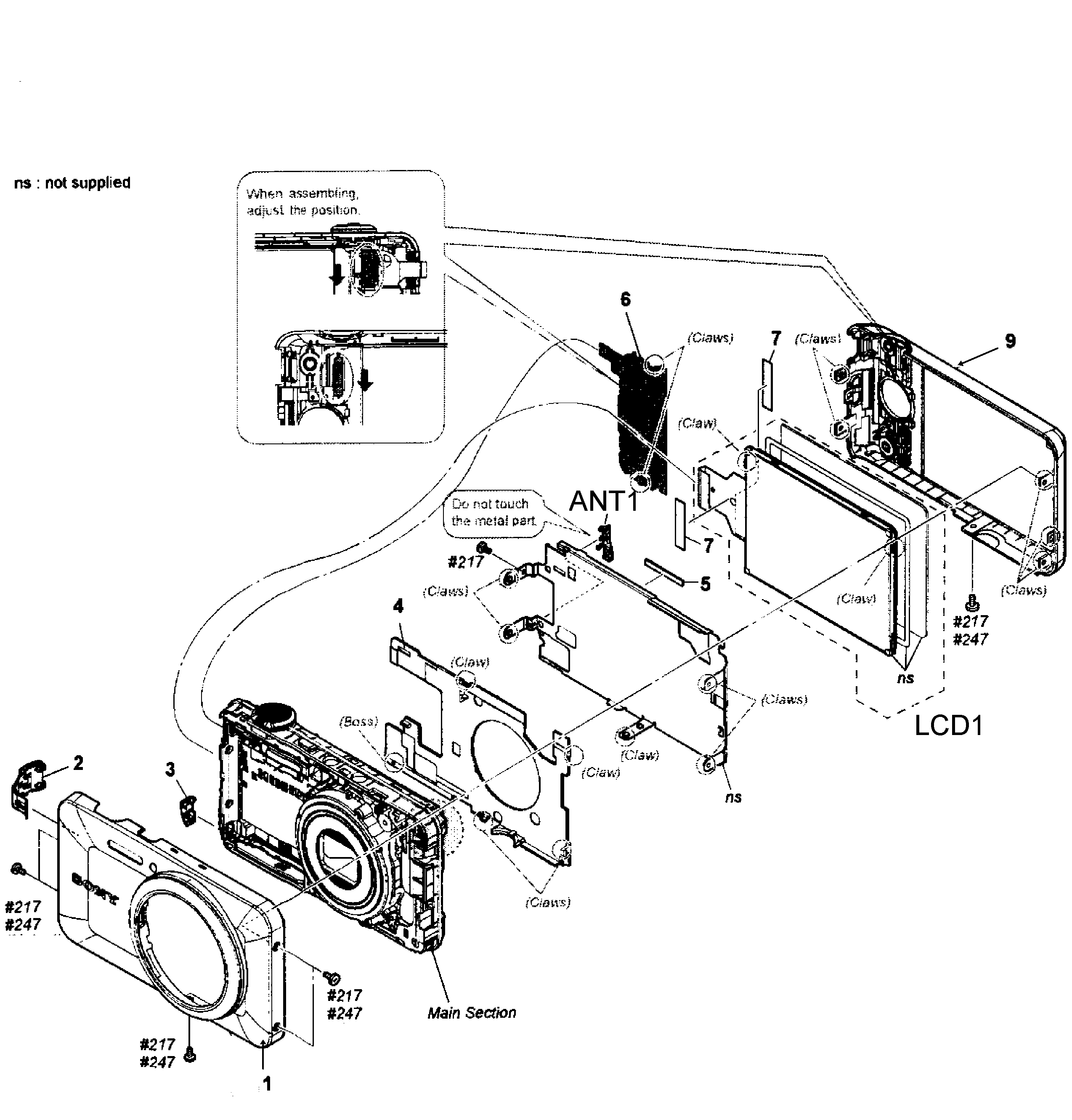

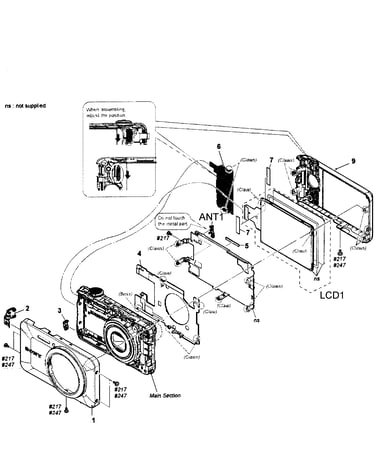

Overall assy diagram

Spacer-mf

Part #444565201

In Stock
Cushion 440050401
#5

Overall assy diagram

Cushion

Part #440050401

This item is not returnable
In Stock
Sony Cabinet-up X25862701
#57

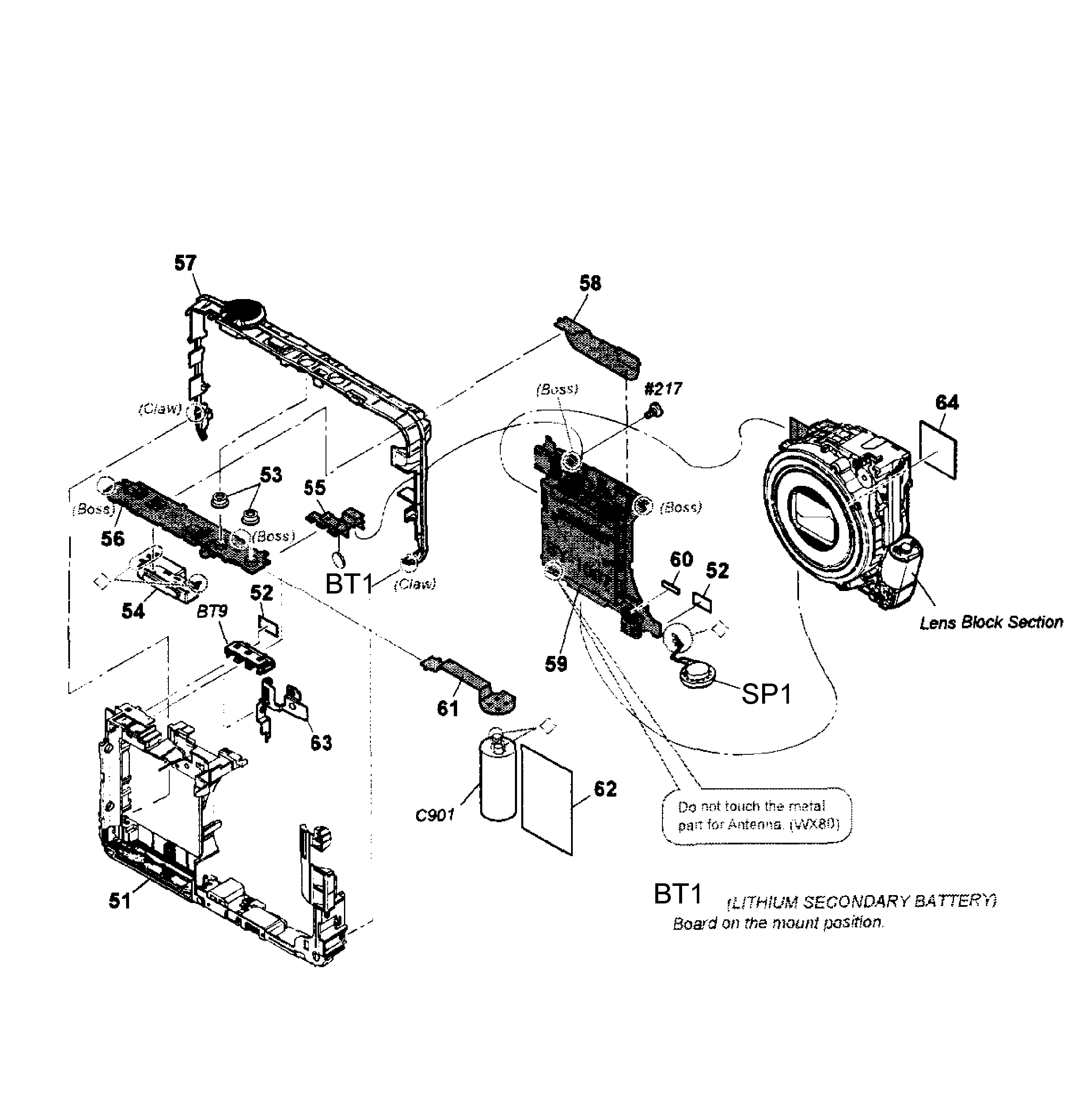

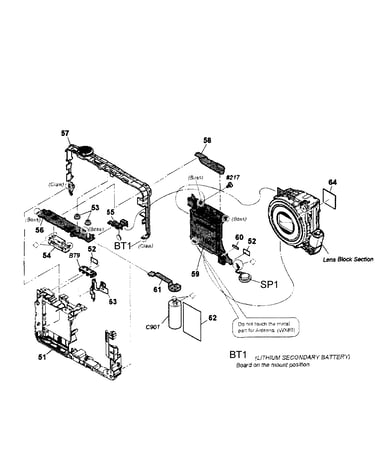

Main assy diagram

Sony cabinet-up

Part #X25862701

In Stock
Panasonic Switch Block 149197741
#6

Overall assy diagram

Panasonic switch block

Part #149197741

In Stock
Sony Lid-wht X25862681
#2

Overall assy diagram

Sony lid-wht

Part #X25862681

In Stock
Sheet-radi 444566101
#64

Main assy diagram

Sheet-radi

Part #444566101

In Stock
Panasonic Bth-wht X25862371
#51

Main assy diagram

Panasonic bth-wht

Part #X25862371

In Stock
Battery,li 185313011
#BT1

Main assy diagram

Battery,li

Part #185313011

In Stock
Retainer-f 429434701
#104

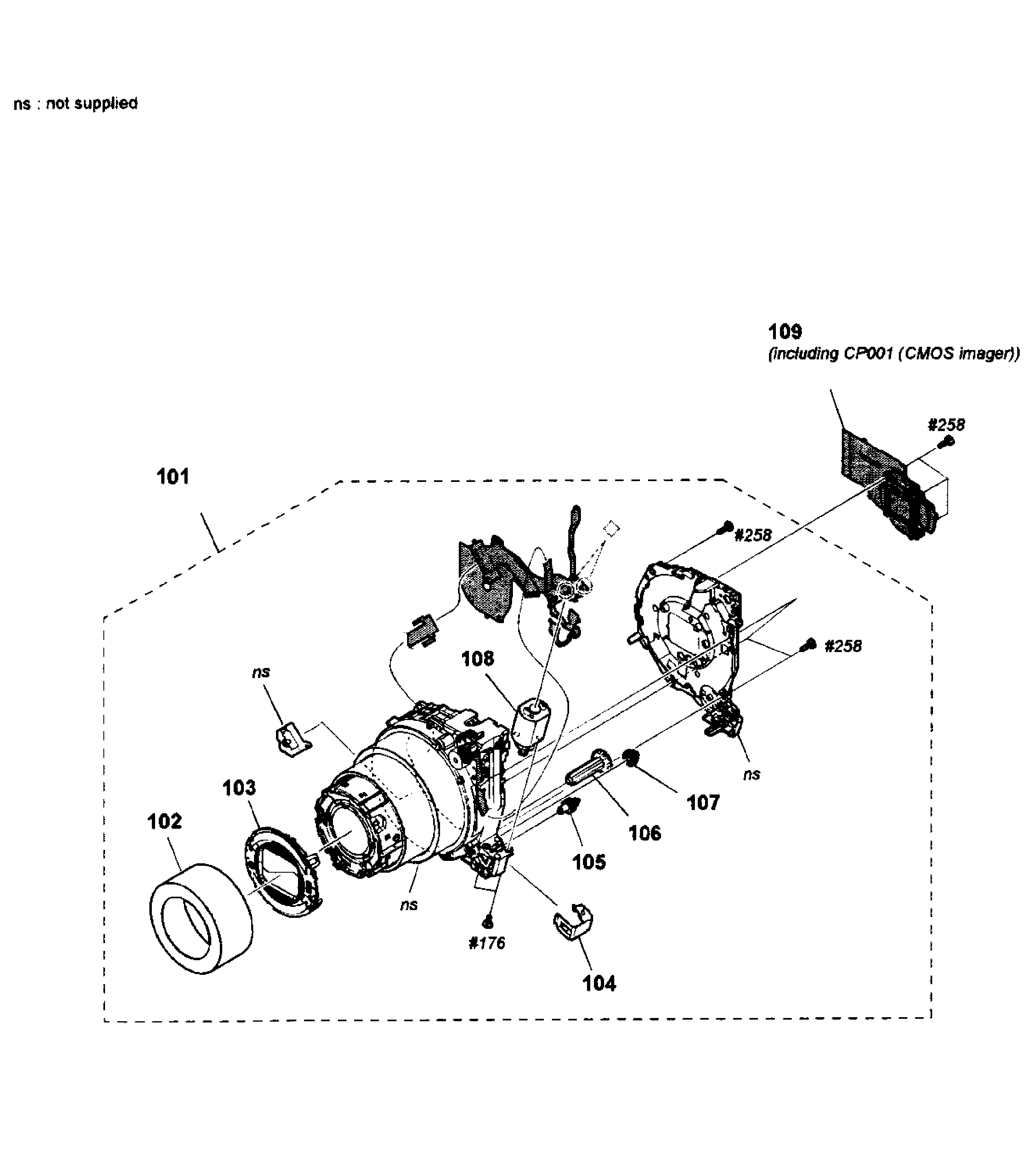

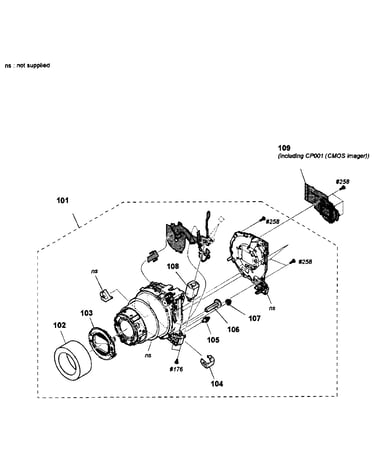

Lens assy diagram

Retainer-f

Part #429434701

In Stock
Device Lens 884890741
#101

Lens assy diagram

Device lens

Part #884890741

In Stock
