Craftsman
Electric Snowblower

Model # 536884580 Official Craftsman snow thrower

Here are the diagrams and repair parts for Official Craftsman 536884580 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

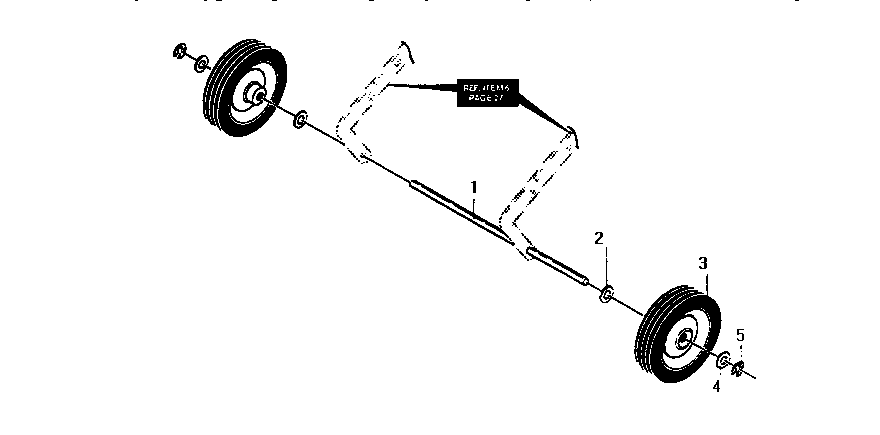

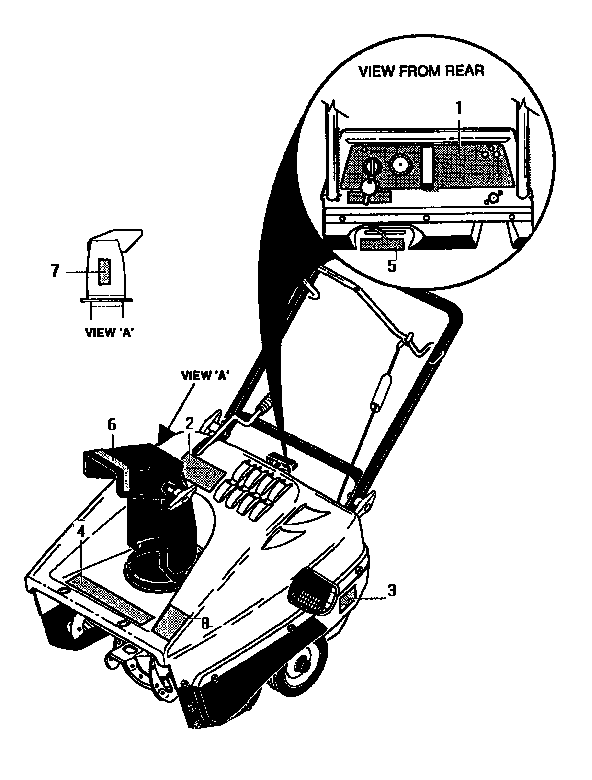

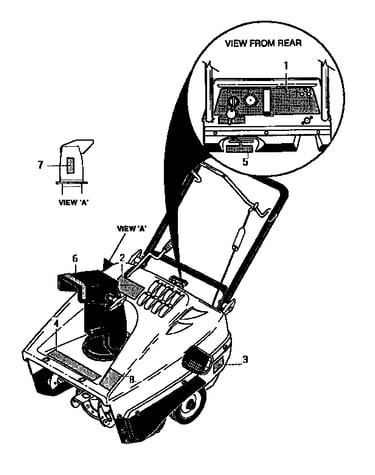

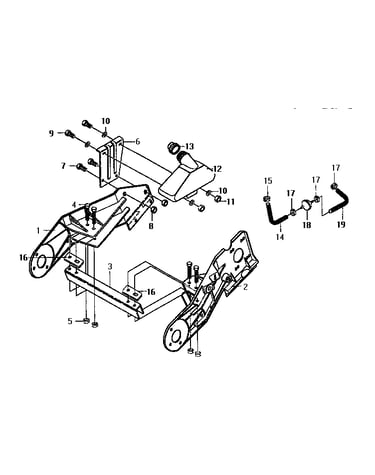

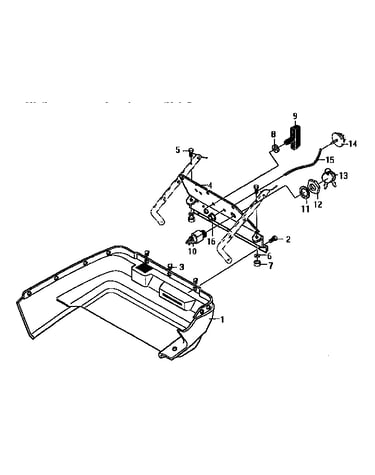

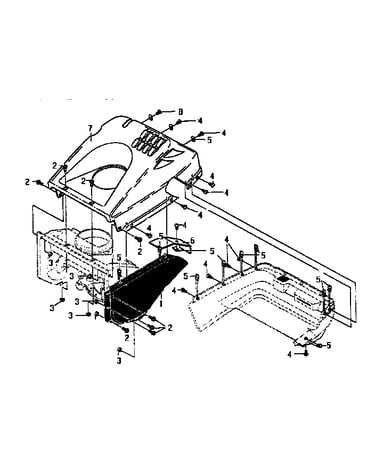

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Boot Spring 308146
#4

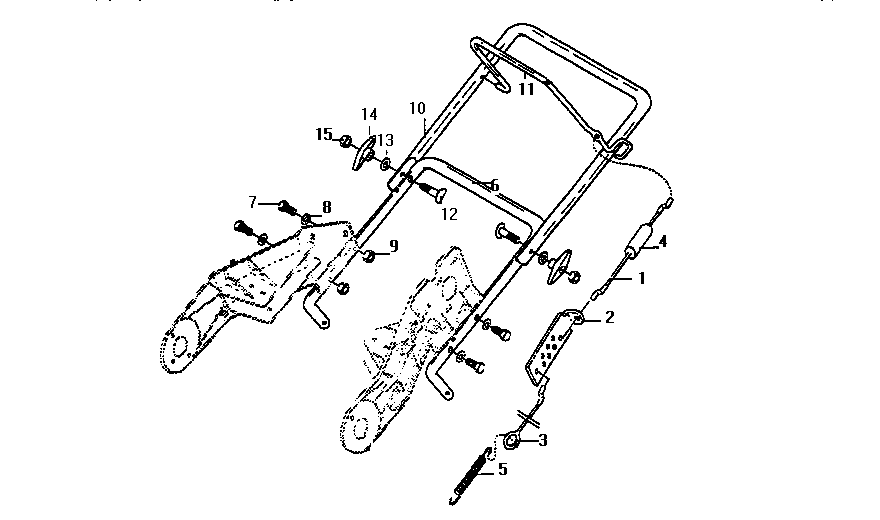

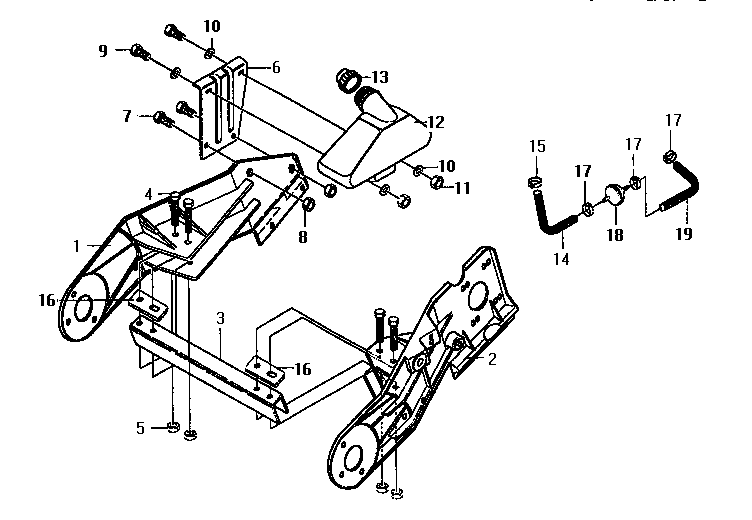

Handle assembly diagram

Boot spring

Part #308146

Replaced by #308146MA

?
Manufacturer substitution
This part replaces 308146. Substitute parts can look different from the original.
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Bearing Assembly 54837
#9

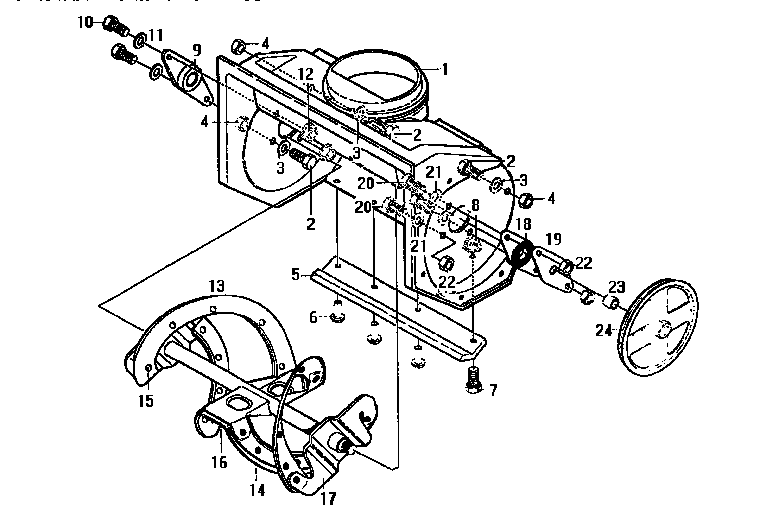

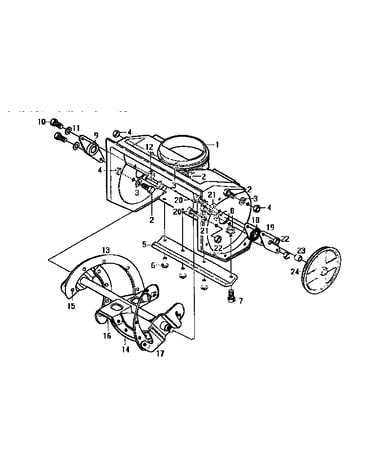

Auger housing diagram

Bearing assembly

Part #54837

Replaced by #577023MA

?
Manufacturer substitution
This part replaces 54837. Substitute parts can look different from the original.
$9.59 |
9% OFF Phone Price : $10.59
In Stock
V-belt 319596
#33

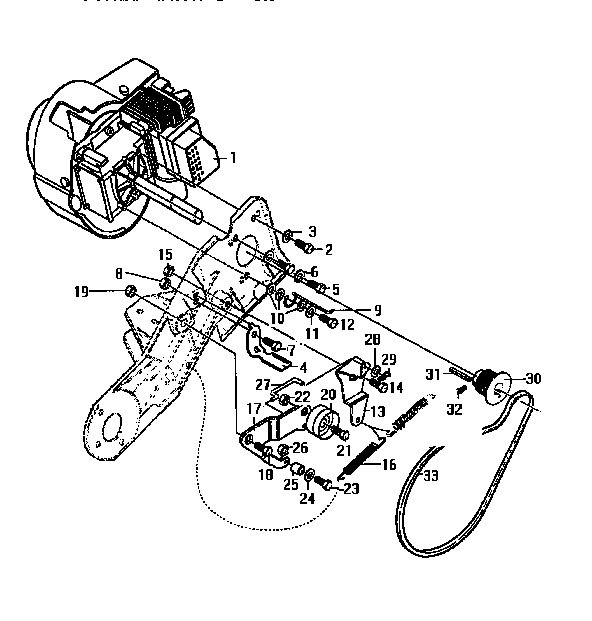

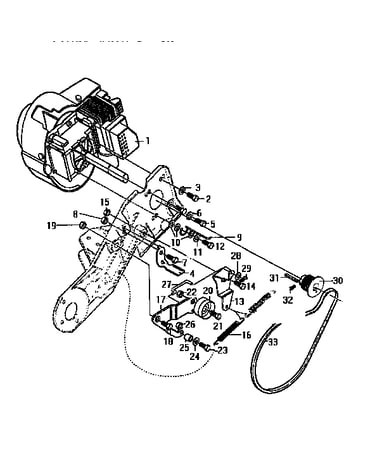

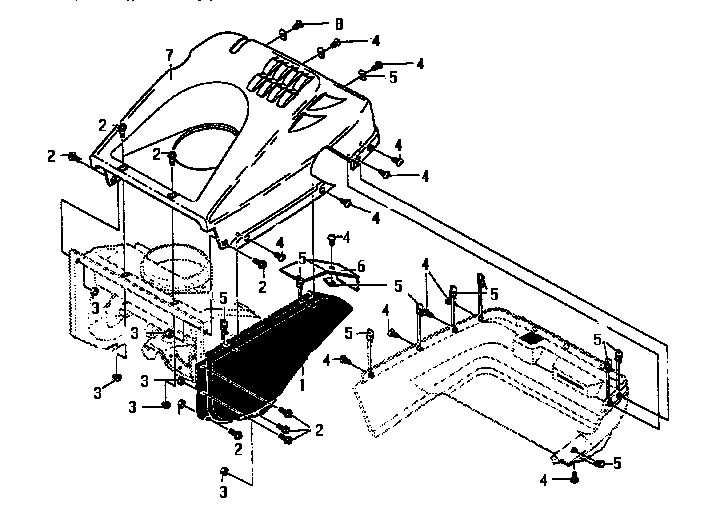

Engine and drive assembly diagram

V-belt

Part #319596

Replaced by #319596MA

?
Manufacturer substitution
This part replaces 319596. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$31.01 |
16% OFF Phone Price : $37.01
In Stock
Scraper 55323
#5

Auger housing diagram

Scraper

Part #55323

Replaced by #55323MA

?
Manufacturer substitution
This part replaces 55323. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Bolt 70993
#14

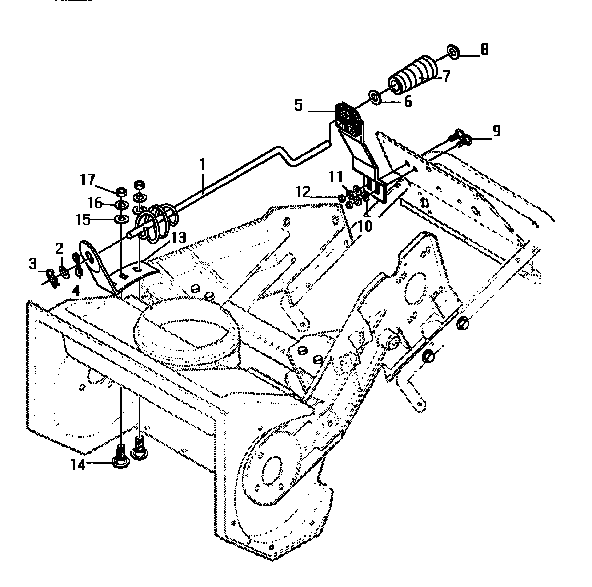

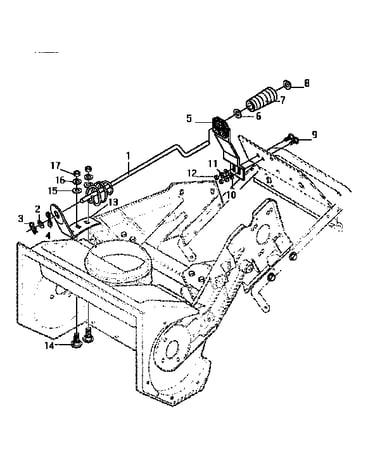

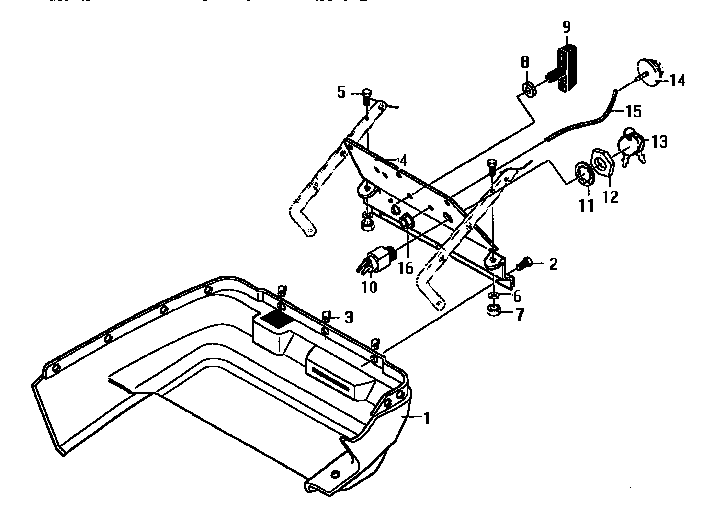

Chute control rod diagram

Bolt

Part #70993

The manufacturer no longer makes this part, and there's no substitute part

Blade 302565
#14

Auger housing diagram

Blade

Part #302565

Replaced by #302565MA

?
Manufacturer substitution
This part replaces 302565. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$30.58 |
16% OFF Phone Price : $36.58
In Stock
Extension Cord 56023
#8

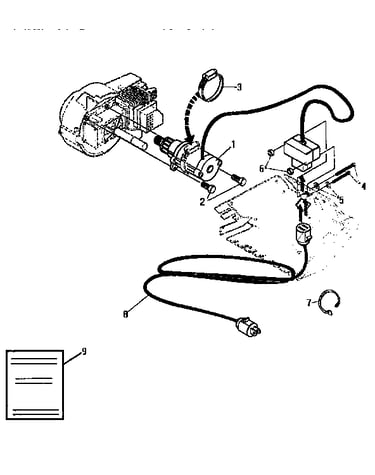

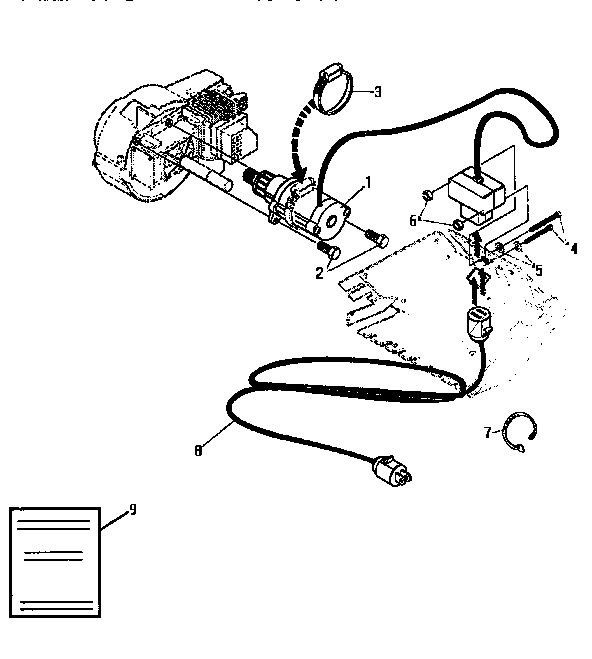

Electric starter diagram

Extension cord

Part #56023

Replaced by #56023MA

?
Manufacturer substitution
This part replaces 56023. Substitute parts can look different from the original.
$37.83 |
14% OFF Phone Price : $43.83
In Stock
Formd Washer 22025
#13

Handle assembly diagram

Formd washer

Part #22025

Replaced by #311936MA

?
Manufacturer substitution
This part replaces 22025. Substitute parts can look different from the original.
This item is not returnable
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Mp Hdl, Upr. 333919-830
#10

Handle assembly diagram

Mp hdl, upr.

Part #333919-830

Replaced by #1742109HYP

?
Manufacturer substitution
This part replaces 333919-830. Substitute parts can look different from the original.
$86.55 |
6% OFF Phone Price : $92.55
In Stock
Bolt 58208
#14

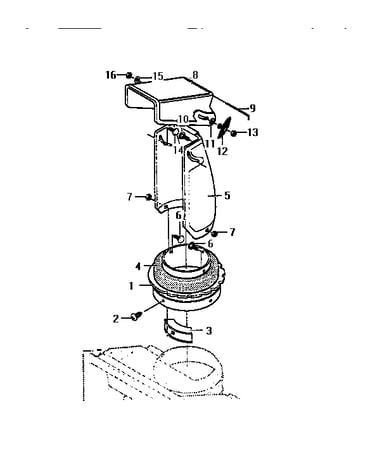

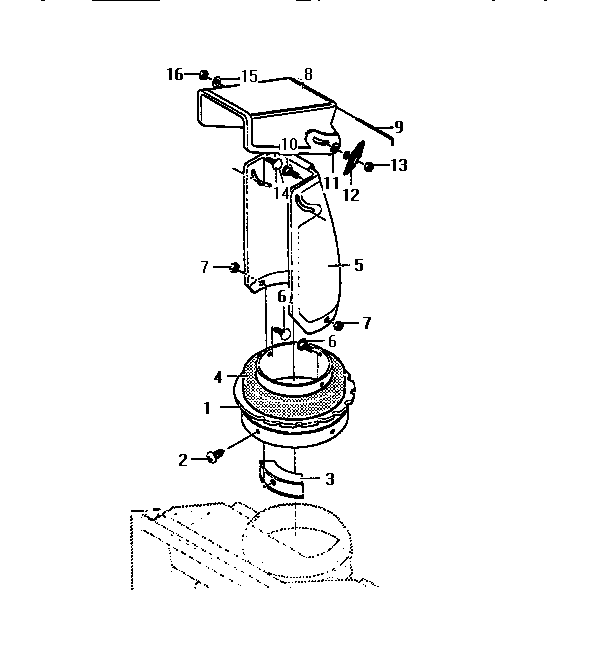

Discharge chute diagram

Bolt

Part #58208

Replaced by #578088MA

?
Manufacturer substitution
This part replaces 58208. Substitute parts can look different from the original.
This item is not returnable
$8.69
In Stock
