Universal/Multiflex (Frigidaire)
Chest Freezer

Model # CFC13M5AW3 Official Universal/Multiflex (Frigidaire) freezer

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) CFC13M5AW3 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Filter Drier 216634500
#4

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Door Key 216702900
#5

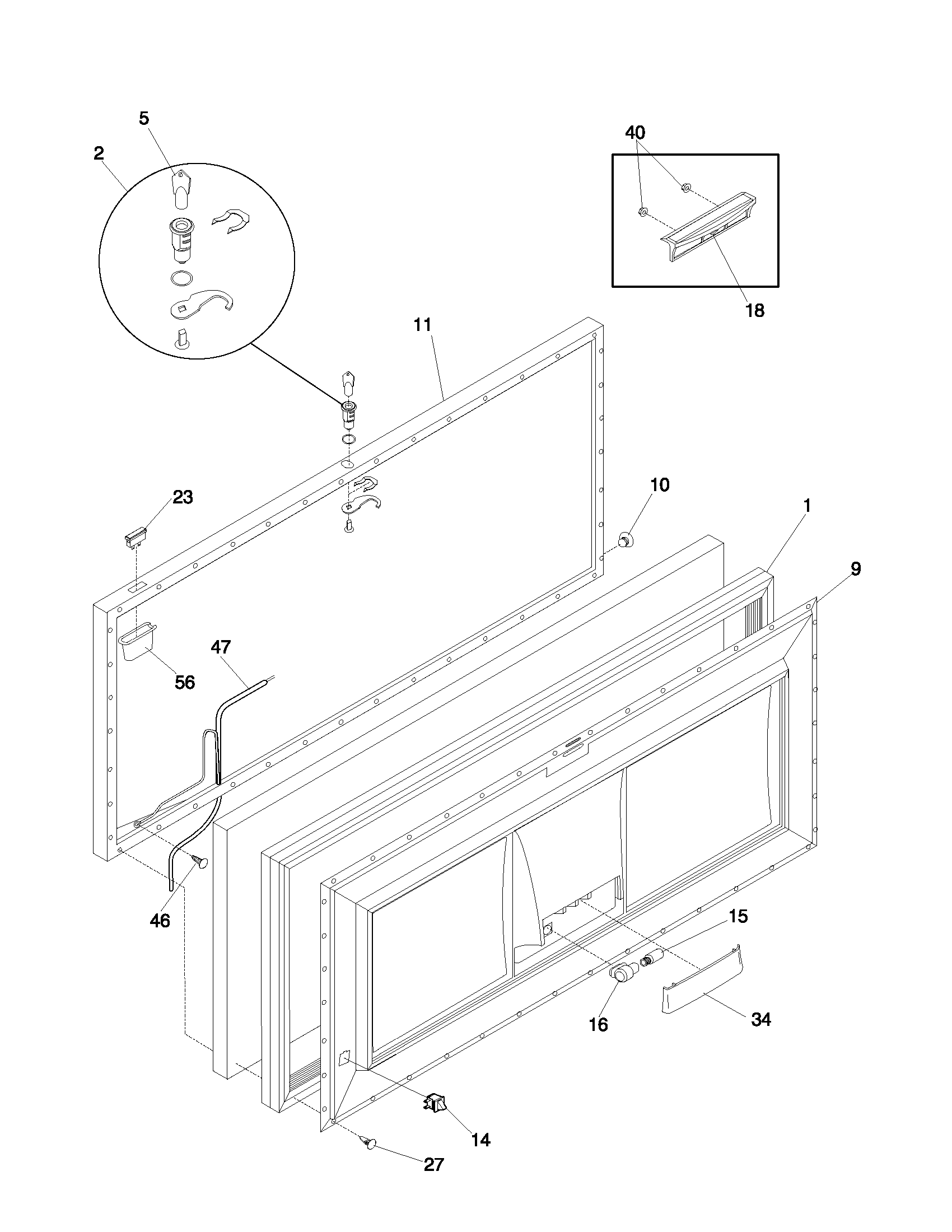

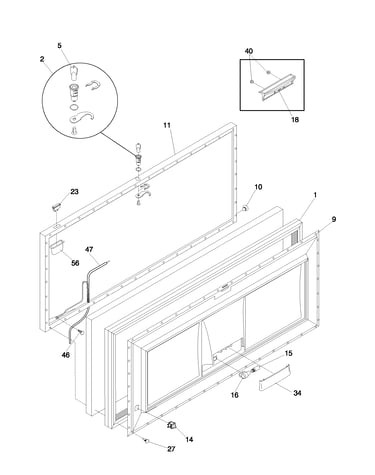

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Compressor 216888100
#29

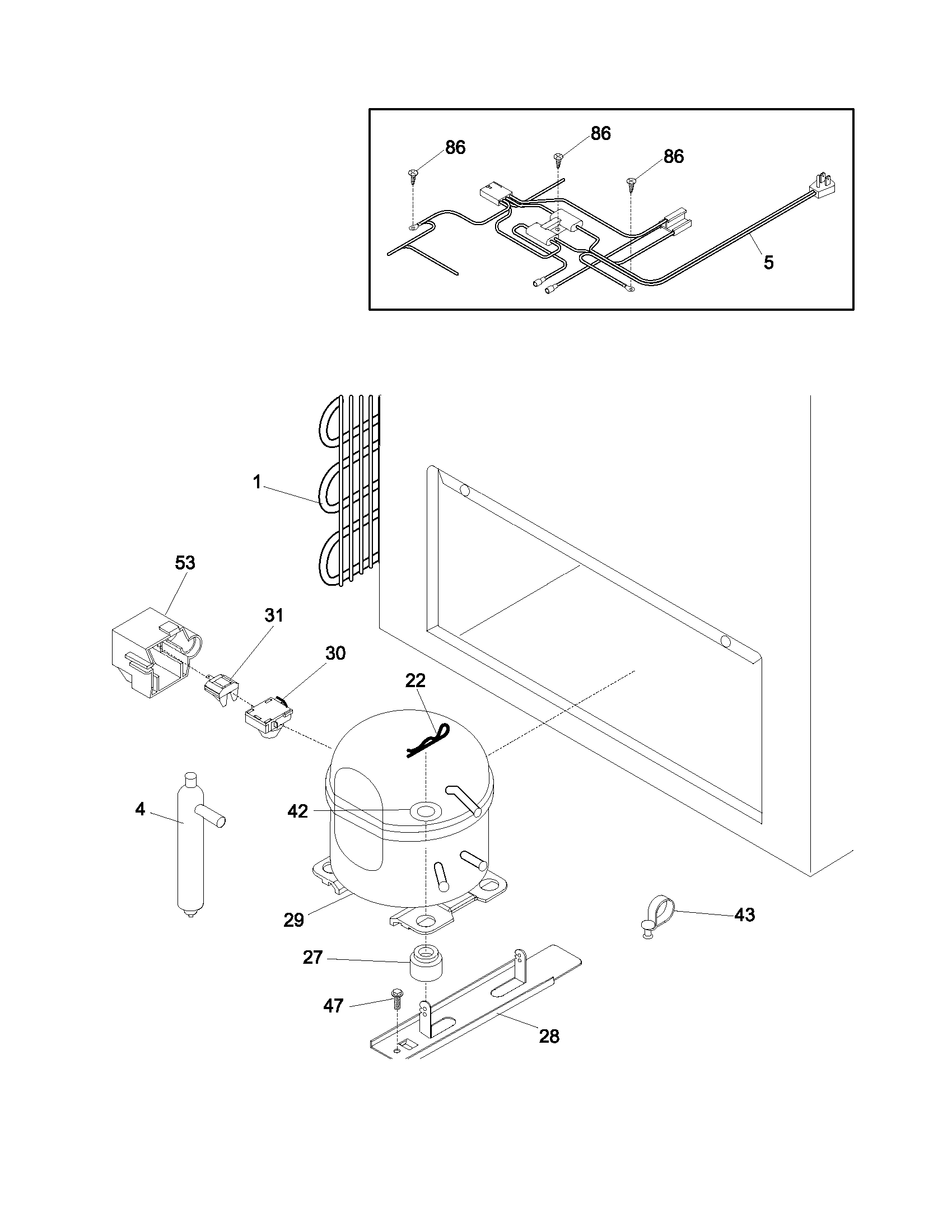

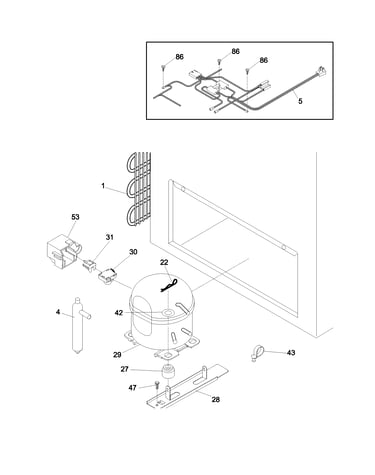

System diagram

Compressor

Part #216888100

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 216888100. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Freezer Door Switch (replaces 216998000, 7216822900) 216822900
#14

Door diagram

Freezer door switch (replaces 216998000, 7216822900)

Part #216822900

BEST SELLER
$51.35 |
10% OFF Phone Price : $57.35
In Stock
Light Socket 216817600
#16

Door diagram

Light socket

Part #216817600

Replaced by #297139501

?
Manufacturer substitution
This part replaces 216817600. Substitute parts can look different from the original.
This item is not returnable
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Freezer Temperature Control Knob 216707200
#18

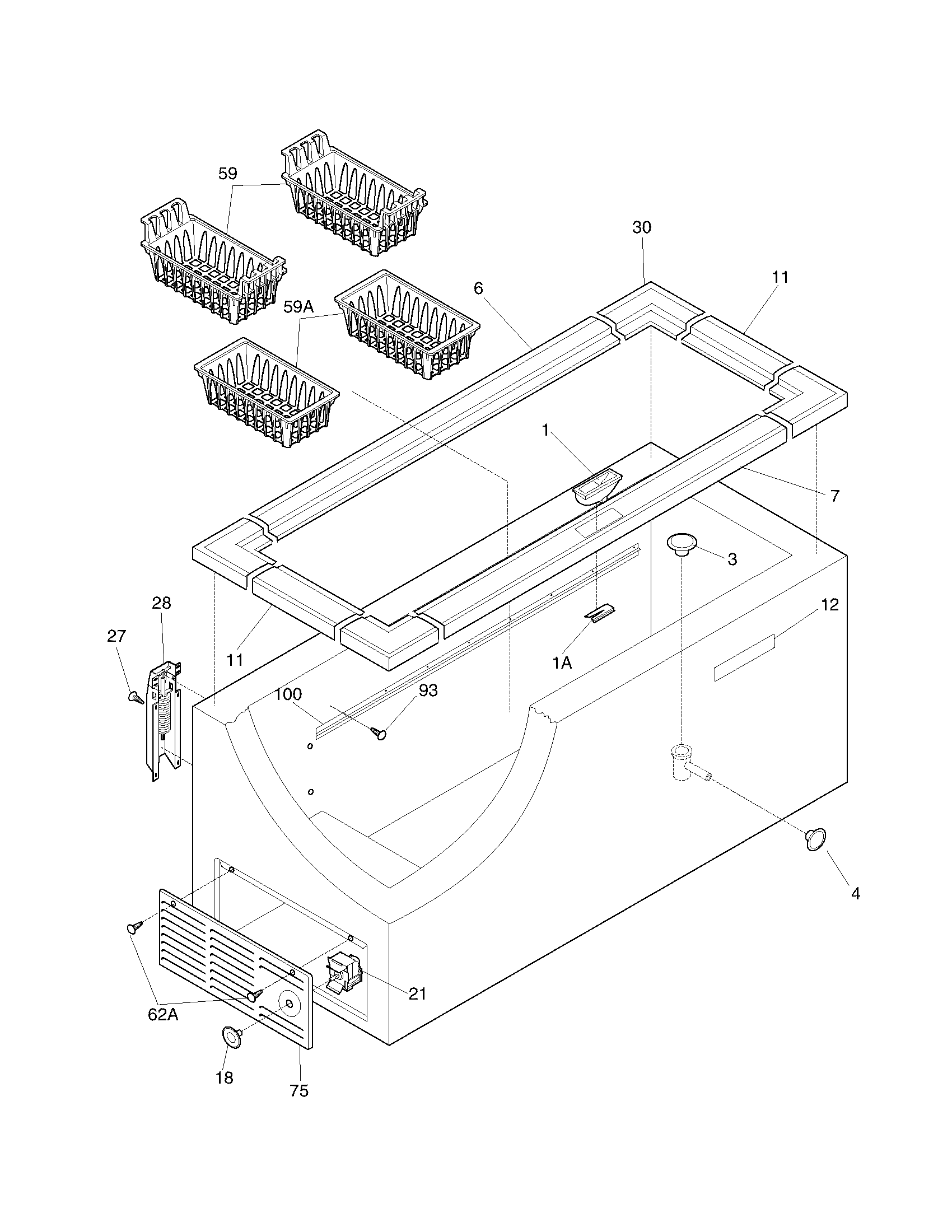

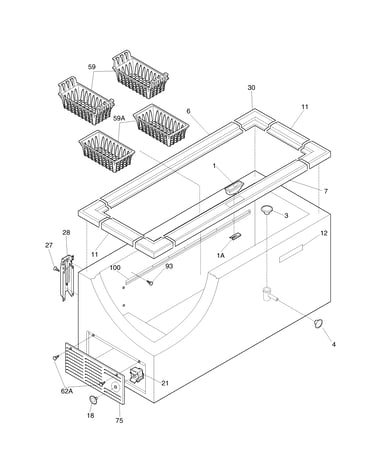

Cabinet diagram

Freezer temperature control knob

Part #216707200

$37.39 |
14% OFF Phone Price : $43.39
In Stock
Freezer Temperature Control Thermostat 216714601
#21

Cabinet diagram

Freezer temperature control thermostat

Part #216714601

This item is not returnable
$90.23 |
6% OFF Phone Price : $96.23
In Stock
Overload 216100106
#31

System diagram

Overload

Part #216100106

Replaced by #216954208

?
Manufacturer substitution
This part replaces 216100106. Substitute parts can look different from the original.
$53.38 |
10% OFF Phone Price : $59.38
In Stock
Screw (i 216036600
#86

System diagram

Screw (i

Part #216036600

Replaced by #216036601

?
Manufacturer substitution
This part replaces 216036600. Substitute parts can look different from the original.
$12.57
In Stock
Screw 131420300
#62A

Cabinet diagram

Screw

Part #131420300

Replaced by #131420300

?
Manufacturer substitution
This part replaces 131420300. Substitute parts can look different from the original.
This item is not returnable
$15.80
In Stock
