Craftsman
Power Drill

Model # 315101421 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 315101421 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

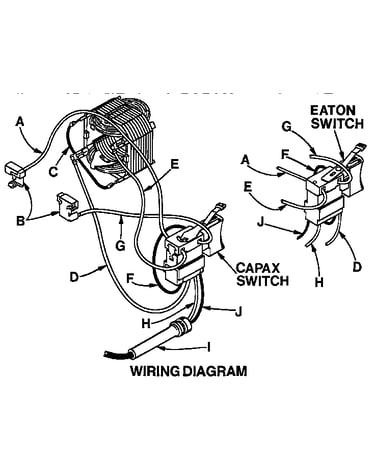

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Armature 989933-022
#10

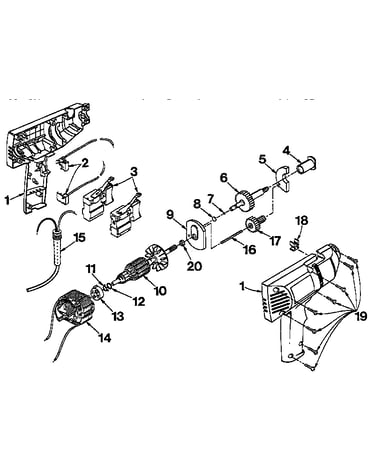

Section a diagram

Armature

Part #989933-022

The manufacturer no longer makes this part, and there's no substitute part

Spdl Gear 972694-001
#6

Section a diagram

Spdl gear

Part #972694-001

The manufacturer no longer makes this part, and there's no substitute part

Switch 968039-001
#3

Section a diagram

Switch

Part #968039-001

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Bearing 967666-001
#4

Section a diagram

Sleeve bearing

Part #967666-001

The manufacturer no longer makes this part, and there's no substitute part

Bushing 713513-912
#20

Section a diagram

Bushing

Part #713513-912

The manufacturer no longer makes this part, and there's no substitute part

Ball 703774-003
#7

Section a diagram

Ball

Part #703774-003

The manufacturer no longer makes this part, and there's no substitute part

Bearing 990133-001
#13

Section a diagram

Bearing

Part #990133-001

The manufacturer no longer makes this part, and there's no substitute part

Block Assembly 967667-004
#9

Section a diagram

Block assembly

Part #967667-004

The manufacturer no longer makes this part, and there's no substitute part

Screw 617966-030
#19

Section a diagram

Screw

Part #617966-030

The manufacturer no longer makes this part, and there's no substitute part

Handle 968438-000
#3

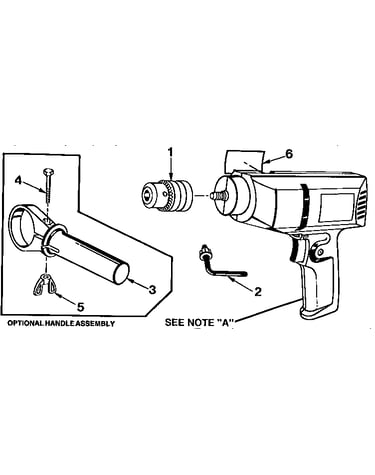

Unit parts diagram

Handle

Part #968438-000

The manufacturer no longer makes this part, and there's no substitute part
