Model # 137219090 Official Craftsman drill press

Here are the diagrams and repair parts for Official Craftsman 137219090 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 58 parts |

#48

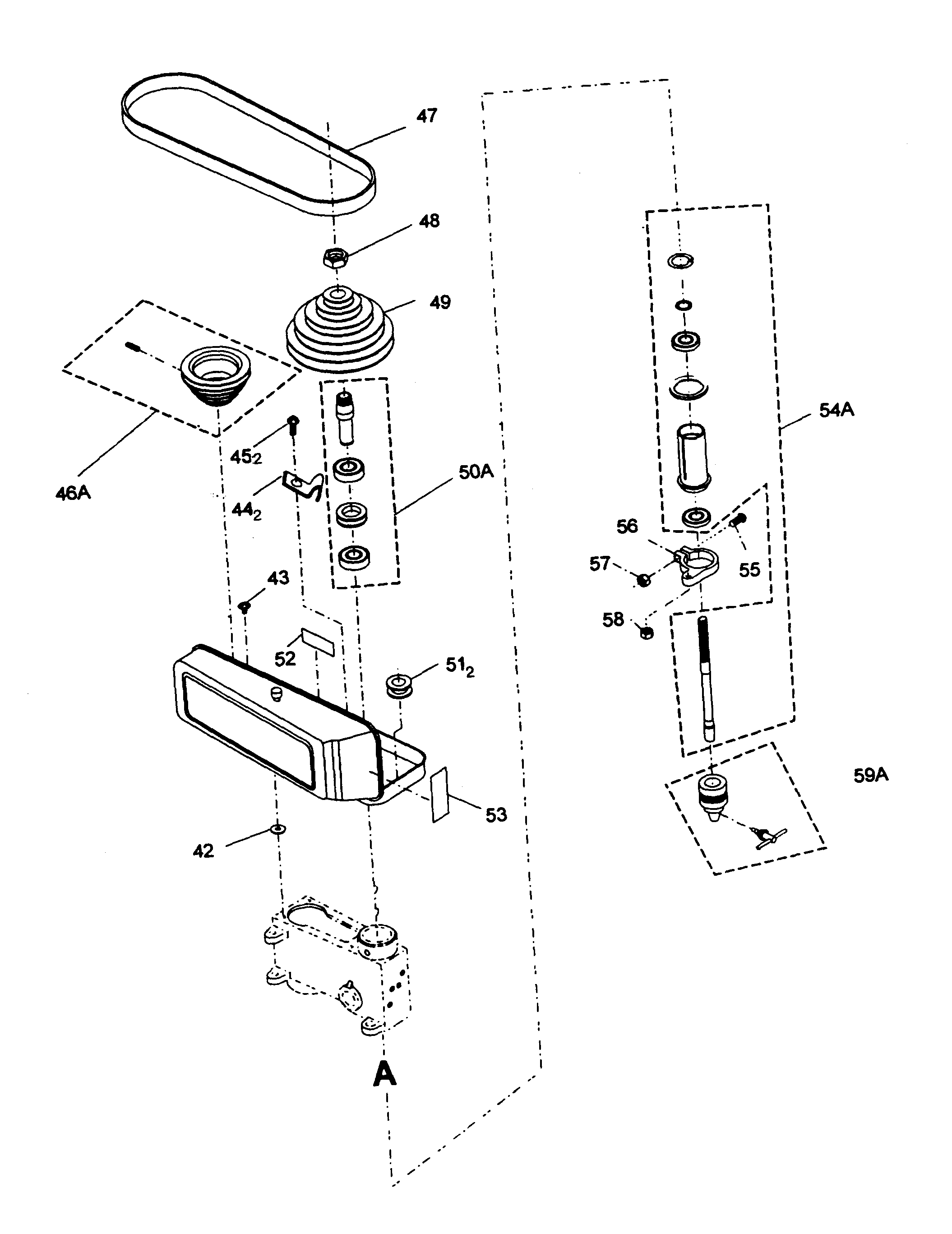

Pulley assy diagram

Set nut

Part #10306901

The manufacturer no longer makes this part, and there's no substitute part

M cap scrw

Part #2601BBDA90

The manufacturer no longer makes this part, and there's no substitute part

#12

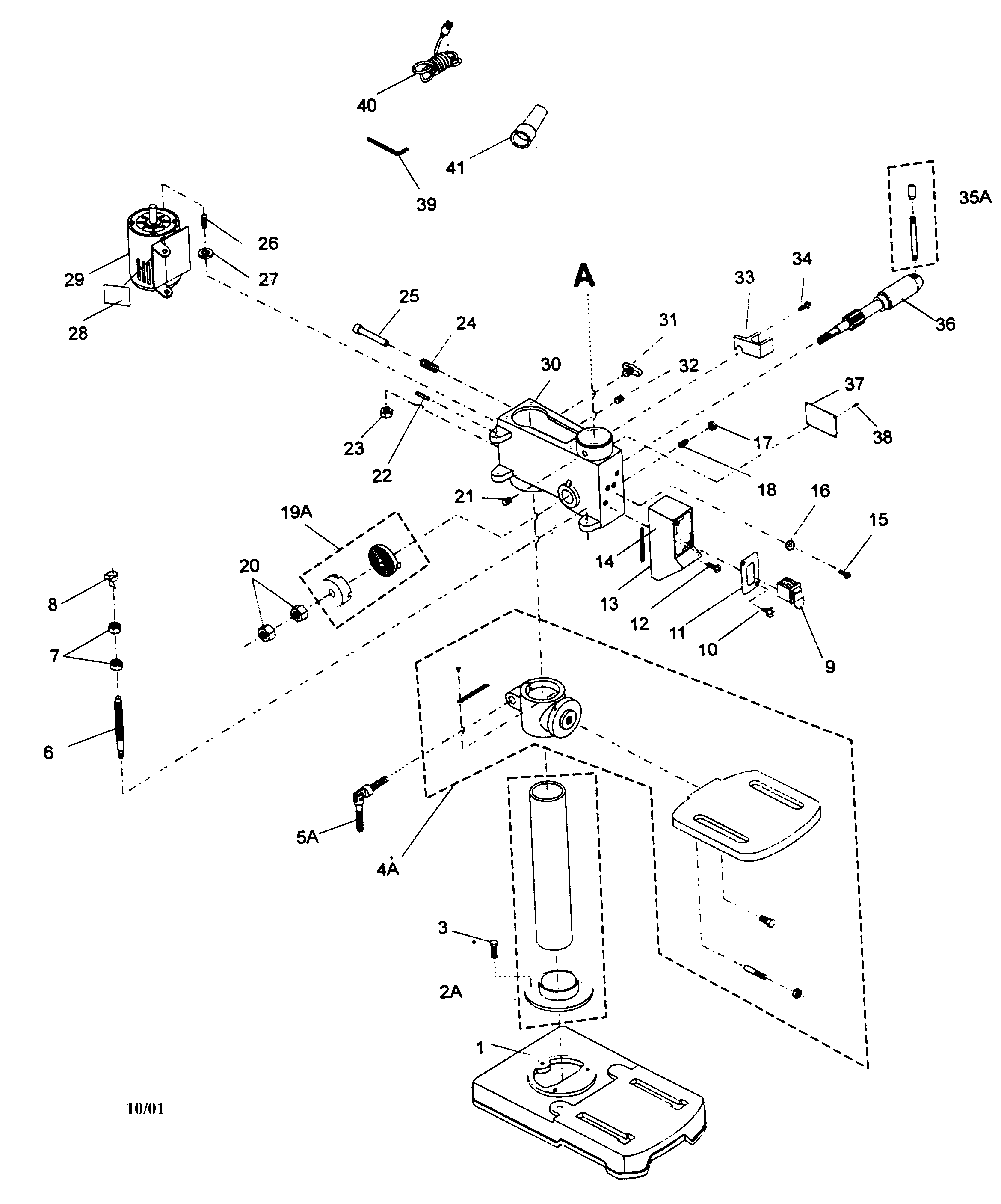

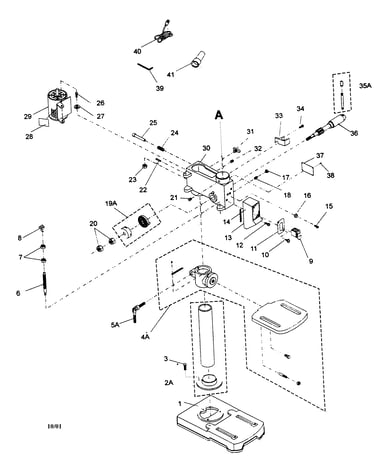

Base/motor assy diagram

Screw

Part #2668BBDA24

The manufacturer no longer makes this part, and there's no substitute part

#NI

Base/motor assy diagram

Drill press owner's manual

Part #10215093

The manufacturer no longer makes this part, and there's no substitute part

#42

Pulley assy diagram

Washer

Part #2501NNVN11

The manufacturer no longer makes this part, and there's no substitute part

#54A

Pulley assy diagram

Drill press quill assembly

Part #10205601A2

The manufacturer no longer makes this part, and there's no substitute part

#44

Pulley assy diagram

Cord clamp

Part #10208302

The manufacturer no longer makes this part, and there's no substitute part

#38

Base/motor assy diagram

Screw

Part #2658MZDU36

The manufacturer no longer makes this part, and there's no substitute part

Base/motor assy diagram

Pointer

Part #10201201

The manufacturer no longer makes this part, and there's no substitute part

#24

Base/motor assy diagram

Spring

Part #10303101

The manufacturer no longer makes this part, and there's no substitute part
