Model # 41724182300 Official Kenmore washer
Here are the diagrams and repair parts for Official Kenmore 41724182300 washer, as well as links to manuals and error code tables, if available.
Installation guideBy Schematic
By Part

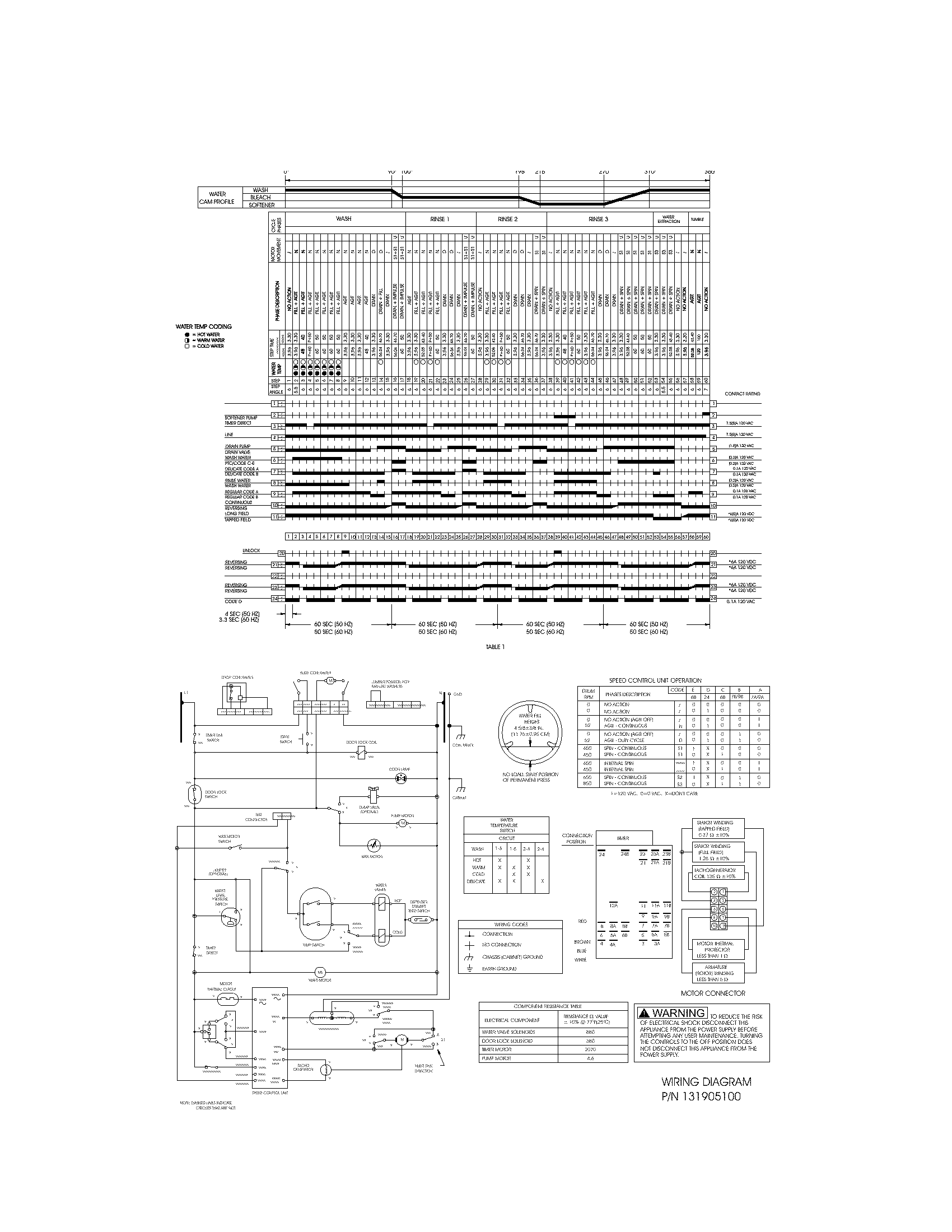

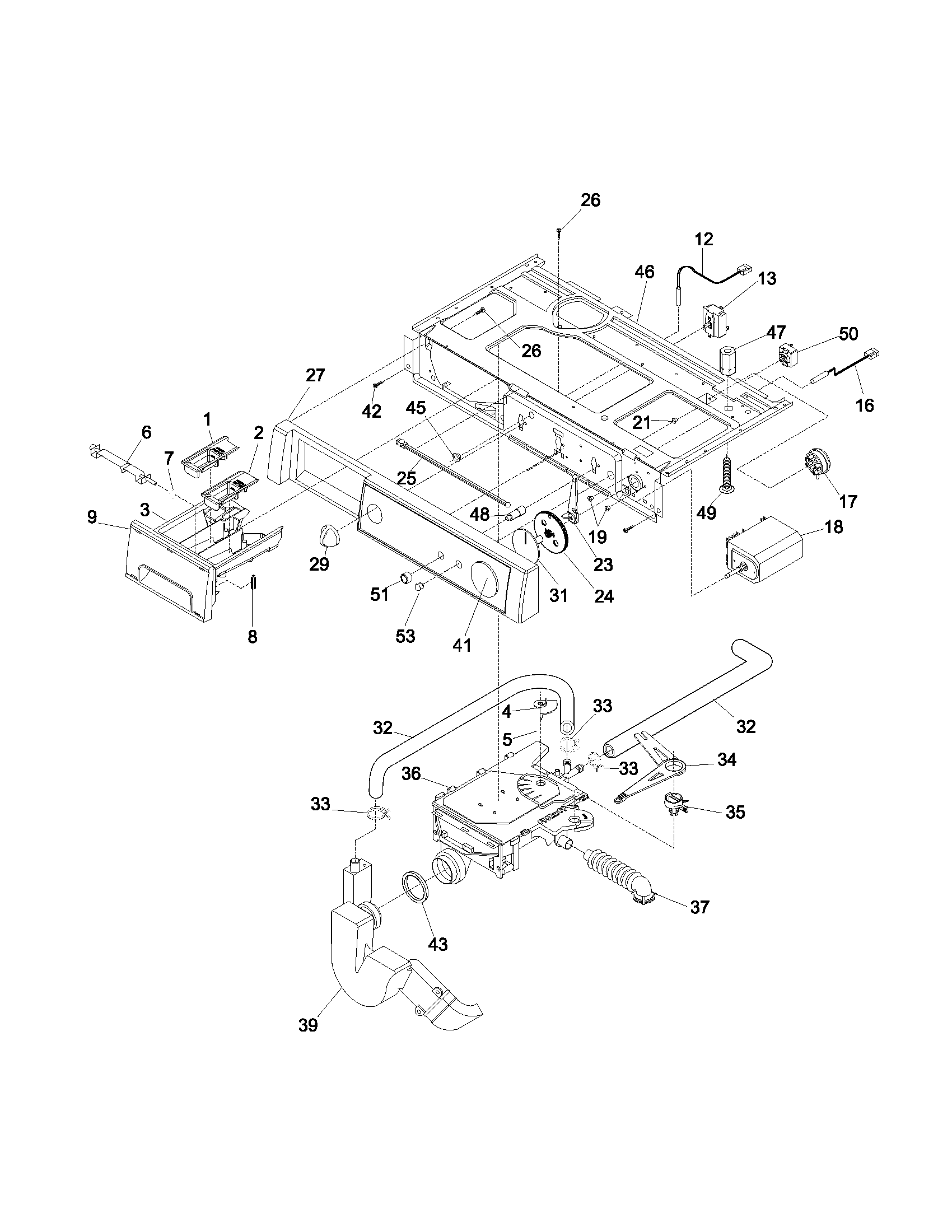

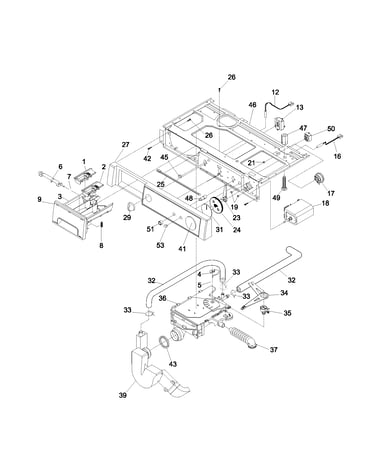

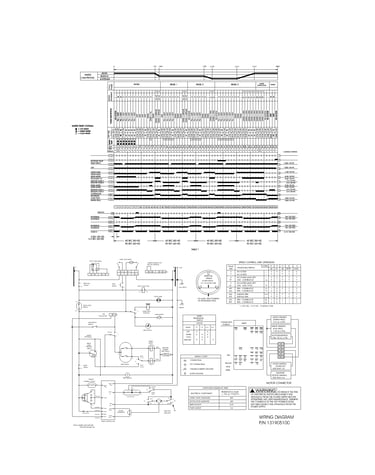

SELECT DIAGRAM
Browse Parts for41724182300 Washer
- #8

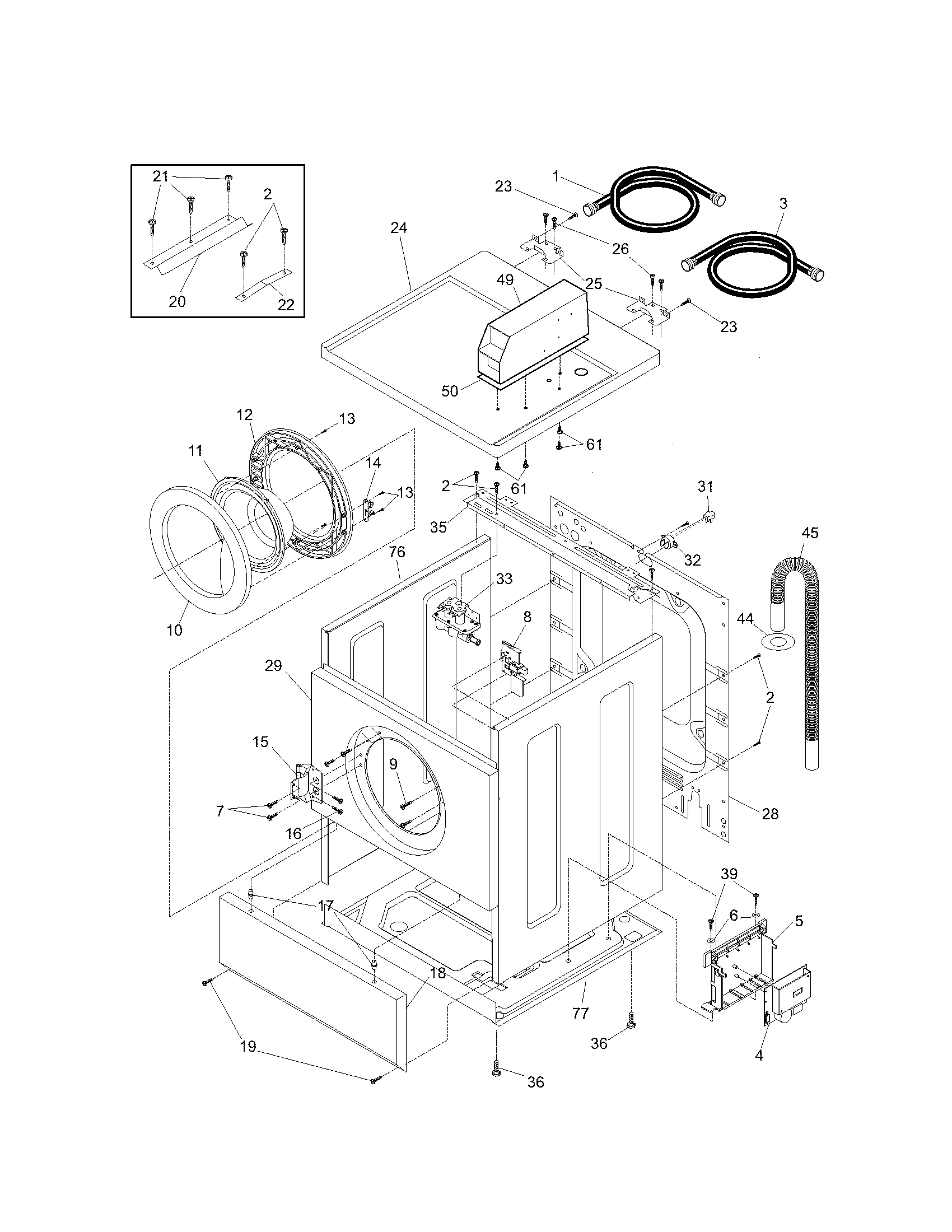

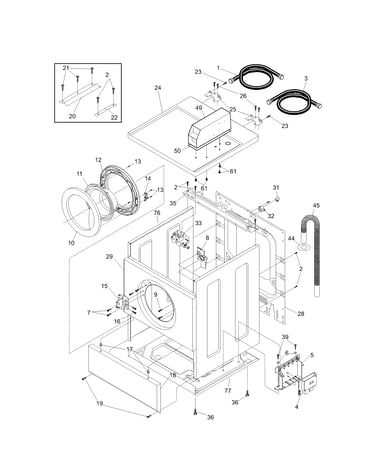

Cabinet/door/top diagram
Door catchPart #131763200
Replaced by #131763256
?Manufacturer substitutionThis part replaces 131763200. Substitute parts can look different from the original.$118.64 |9% OFF Phone Price : $130.64In Stock - #30

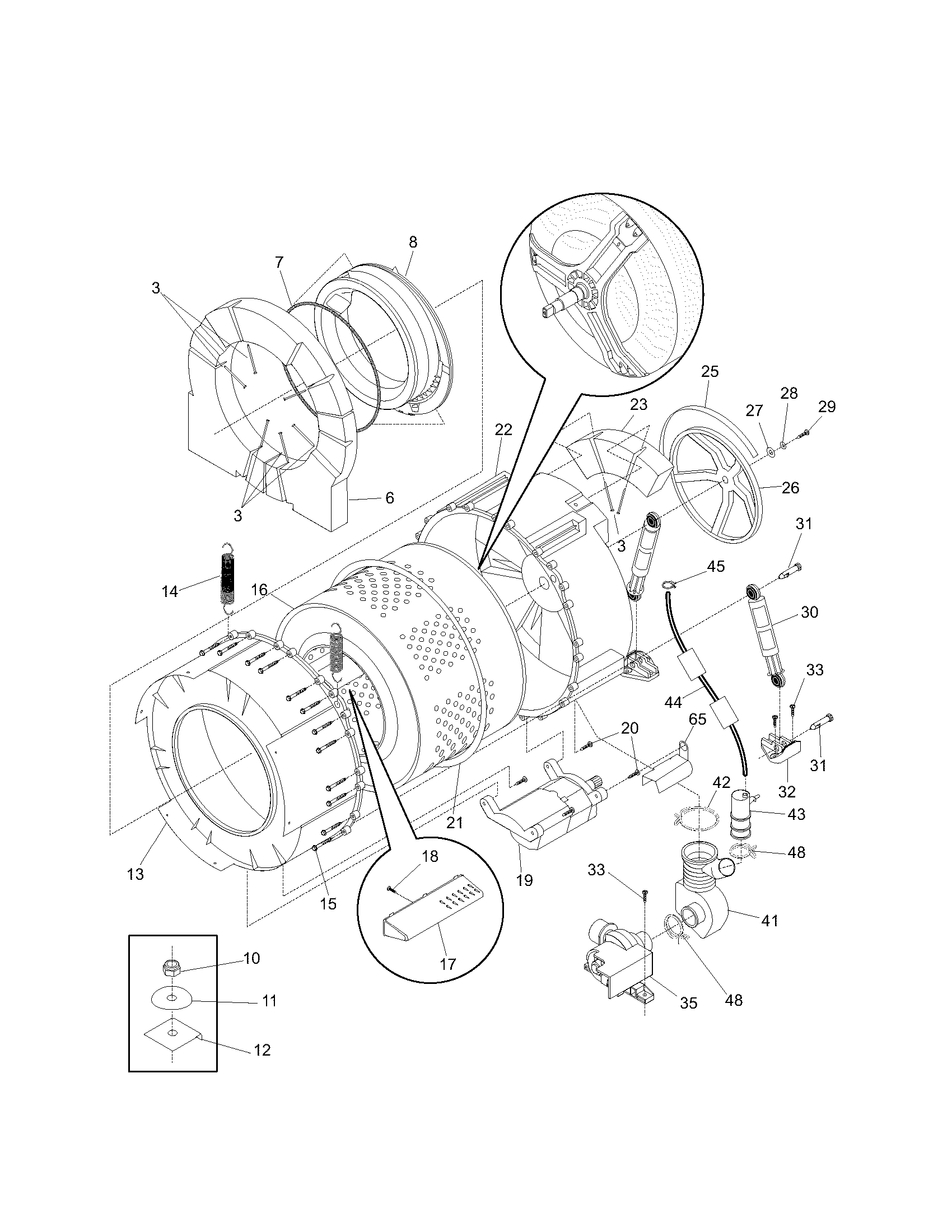

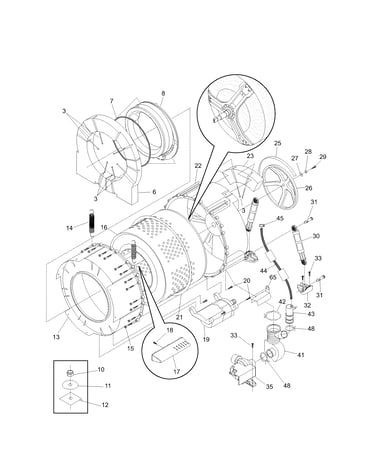

Tub/motor diagram
Level shockPart #131268200
Replaced by #5304485917
?Manufacturer substitutionThis part replaces 131268200. Substitute parts can look different from the original.$53.08 |10% OFF Phone Price : $59.08In Stock - #14
Cabinet/door/top diagram
Door strikePart #131763300
Replaced by #131763302
?Manufacturer substitutionThis part replaces 131763300. Substitute parts can look different from the original.This item is not returnable$26.51 |18% OFF Phone Price : $32.51In Stock - Laundry appliance screw, #8-18 x 31/100-in
Part #131168200
$12.76 |14% OFF Phone Price : $14.76In Stock - #18
Tub/motor diagram
Washer baffle screwPart #131302800
$13.69 |13% OFF Phone Price : $15.69In Stock - #9
Cabinet/door/top diagram
Siphon screwPart #131303300
Replaced by #131302800
?Manufacturer substitutionThis part replaces 131303300. Substitute parts can look different from the original.$13.69 |13% OFF Phone Price : $15.69In Stock - #14
Tub/motor diagram
Electrolux washer suspension springPart #134144700
$41.07 |13% OFF Phone Price : $47.07In Stock - #31
Tub/motor diagram
Washer shock absorber mounting pinPart #131268300
$17.38 |10% OFF Phone Price : $19.38In Stock - #8
Tub/motor diagram
BellowsPart #131277100
Replaced by #5303937187
?Manufacturer substitutionThis part replaces 131277100. Substitute parts can look different from the original.$94.48 |7% OFF Was : $102.08In Stock - #33
Cabinet/door/top diagram
Washer valvePart #5303207418
Replaced by #134190200
?Manufacturer substitutionThis part replaces 5303207418. Substitute parts can look different from the original.$126.82 |9% OFF Phone Price : $138.82In Stock
