Model # DPXH46GA1CC Official GE gas dryer

Here are the diagrams and repair parts for Official GE DPXH46GA1CC gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Dryer Drum Front Glide WE03X10007
#1124

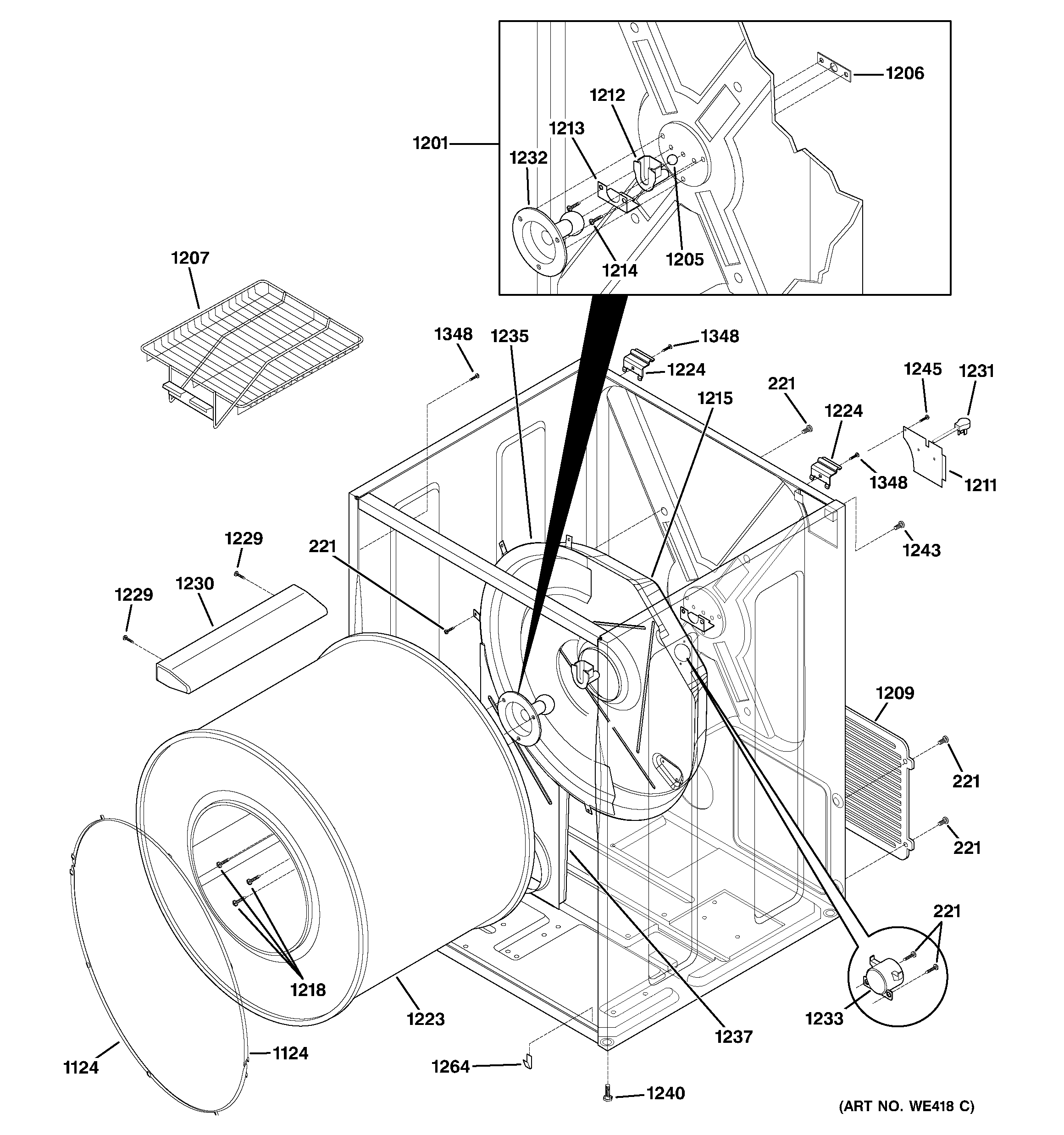

Cabinet & drum diagram

Dryer drum front glide

Part #WE03X10007

$26.13 |
19% OFF Phone Price : $32.13
In Stock
Dryer Rear Bearing Kit WE25X10001
#1201

Cabinet & drum diagram

Dryer rear bearing kit

Part #WE25X10001

$90.31 |
6% OFF Phone Price : $96.31
In Stock
Dryer Drum Ball Hitch (replaces We13x0212, We13x10043, We13x212) WE13X10011
#1232

Cabinet & drum diagram

Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)

Part #WE13X10011

$87.93 |
6% OFF Phone Price : $93.93
In Stock
Dryer Drum Felt Seal, Lower WE09X10014
#1221

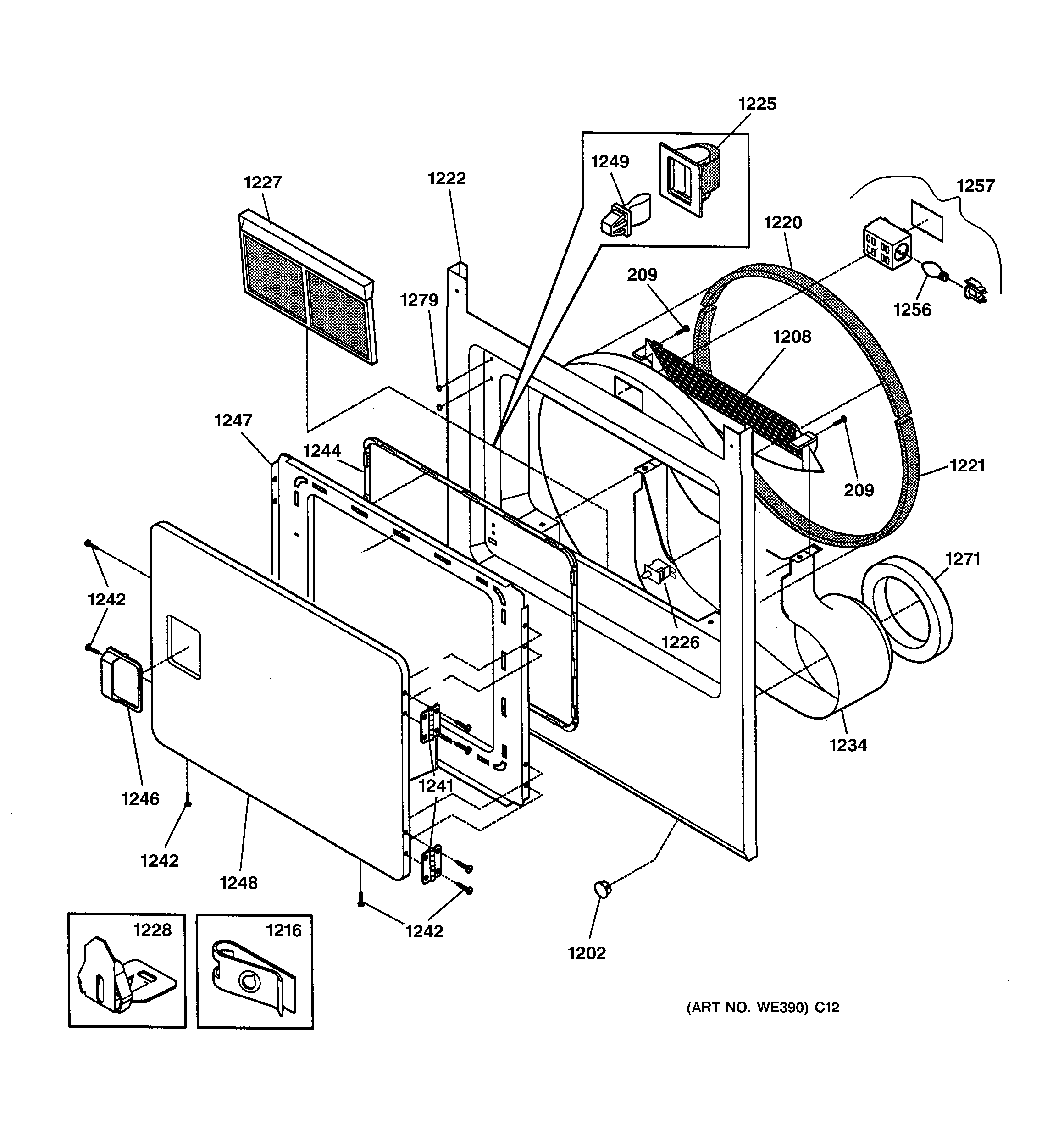

Front panel & door diagram

Dryer drum felt seal, lower

Part #WE09X10014

The manufacturer no longer makes this part, and there's no substitute part

Igniter WE04X0750
#1374

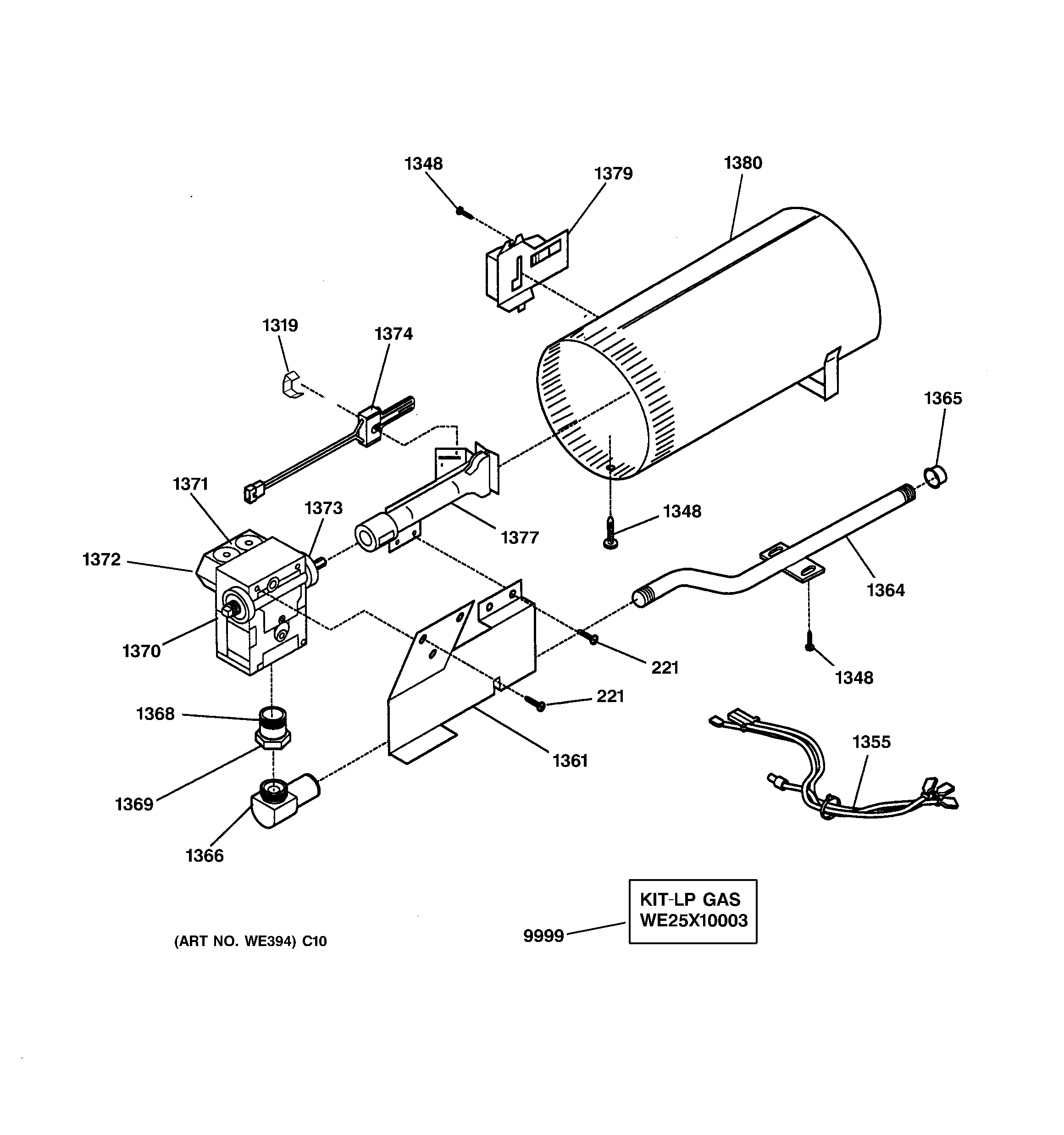

Burner diagram

Igniter

Part #WE04X0750

Replaced by #WE4X750

?
Manufacturer substitution
This part replaces WE04X0750. Substitute parts can look different from the original.
This item is not returnable
$27.31 |
18% OFF Phone Price : $33.31
In Stock
Screw WE02X10011
#1245

Cabinet & drum diagram

Screw

Part #WE02X10011

$23.71
In Stock
Dryer Drum Felt Seal, Upper WE09X10013
#1220

Front panel & door diagram

Dryer drum felt seal, upper

Part #WE09X10013

$76.76 |
7% OFF Phone Price : $82.76
In Stock
Dryer Belt WE12X10001
#1325

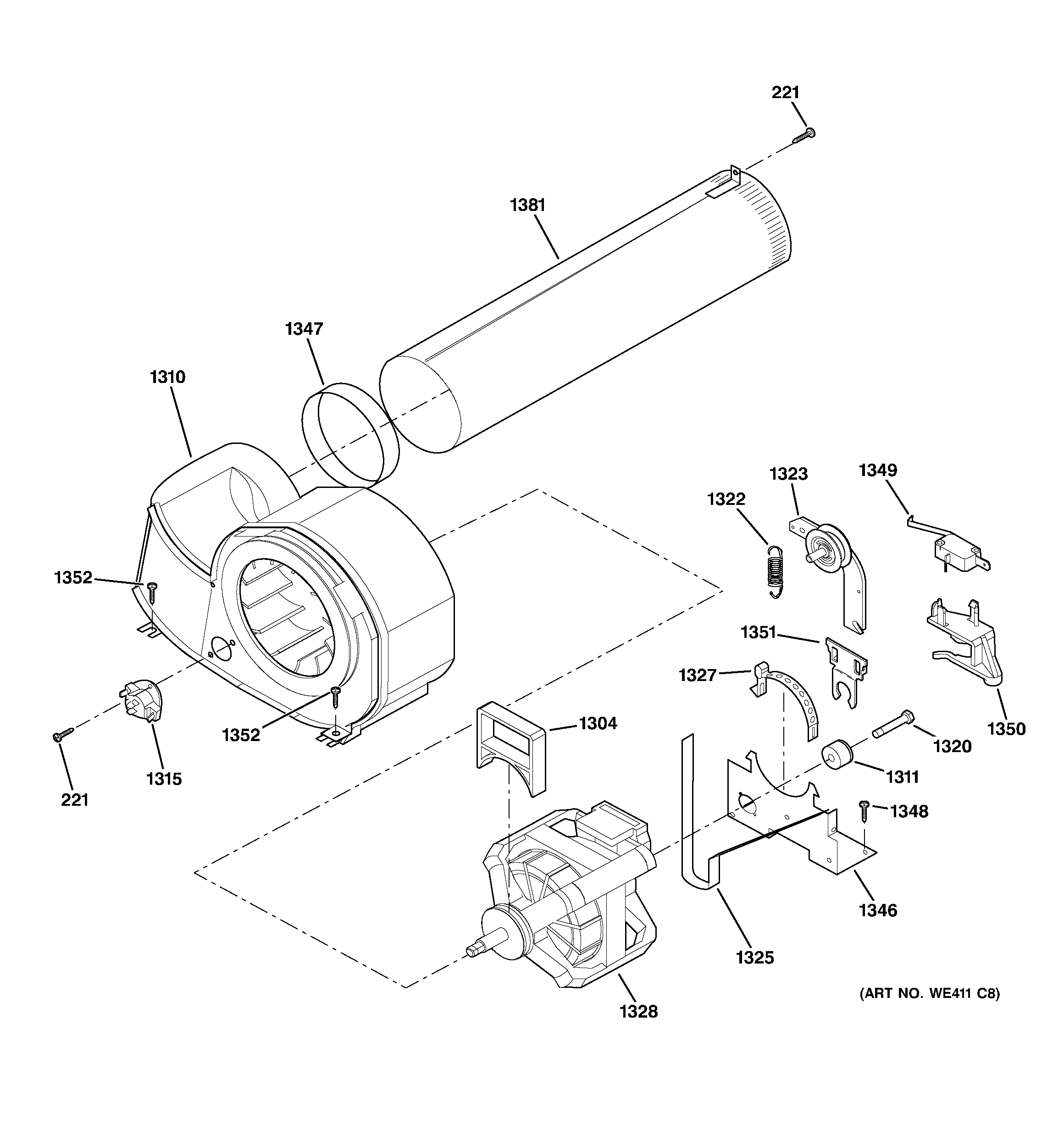

Motor diagram

Dryer belt

Part #WE12X10001

Replaced by #WE12X10009

?
Manufacturer substitution
This part replaces WE12X10001. Substitute parts can look different from the original.
$68.77 |
8% OFF Phone Price : $74.77
In Stock
Uc Spacemake 49-9963-2
#1

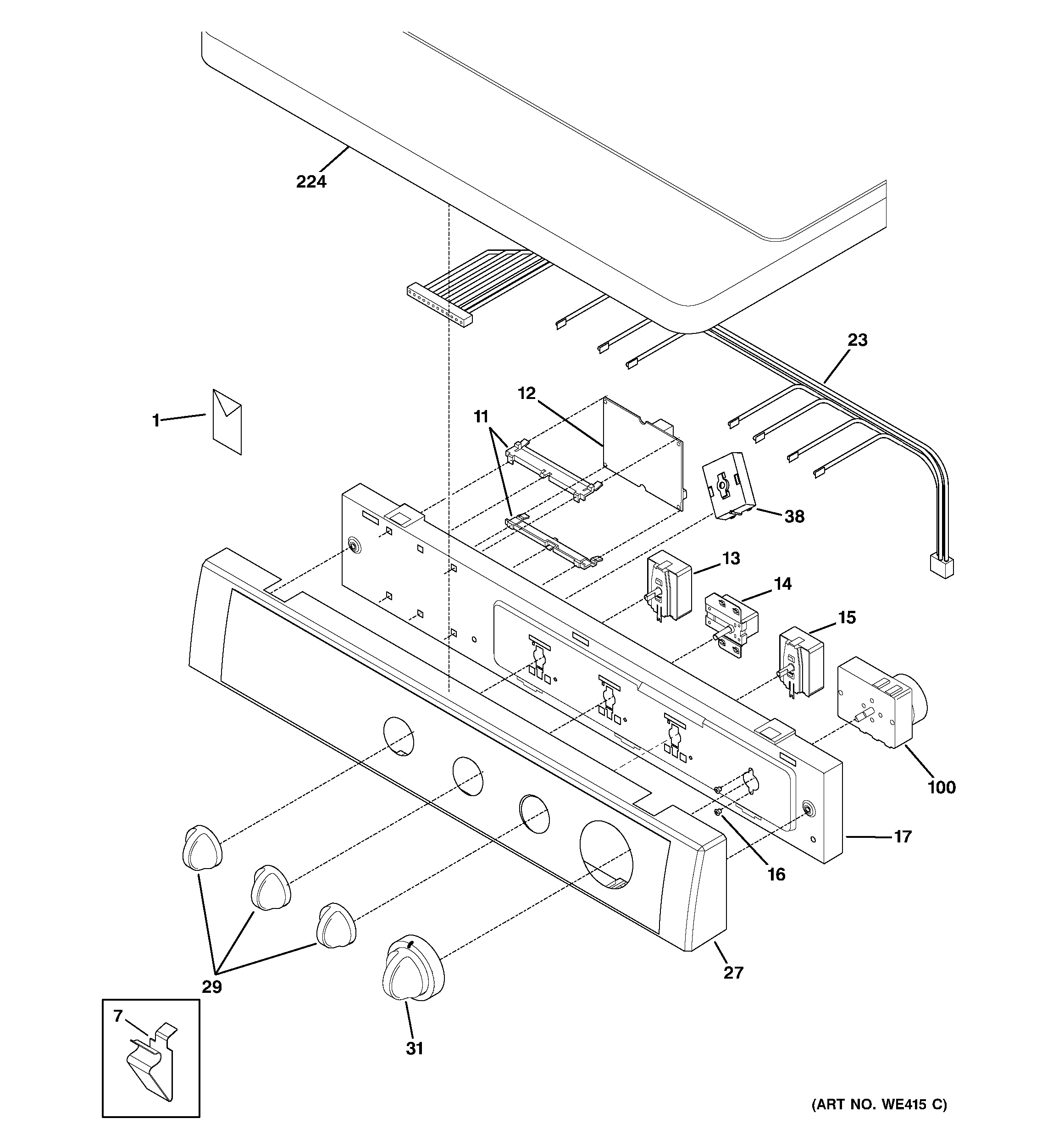

Controls & top panel diagram

Uc spacemake

Part #49-9963-2

Replaced by #049-90117-1

?
Manufacturer substitution
This part replaces 49-9963-2. Substitute parts can look different from the original.
$17.99
In Stock
Dryer Drum Bearing Bracket WE13X10009
#1213

Cabinet & drum diagram

Dryer drum bearing bracket

Part #WE13X10009

Replaced by #WE13X28680

?
Manufacturer substitution
This part replaces WE13X10009. Substitute parts can look different from the original.
$36.40
In Stock
