Sanyo
Digital Camcorder

Model # VPC-TH1BL Official Sanyo camcorder

Here are the diagrams and repair parts for Official Sanyo VPC-TH1BL camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Integrated Circuit 309-675-0101
#NI

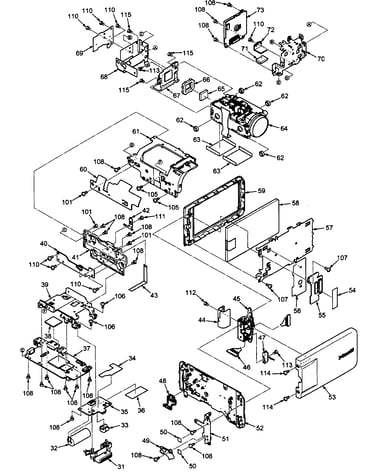

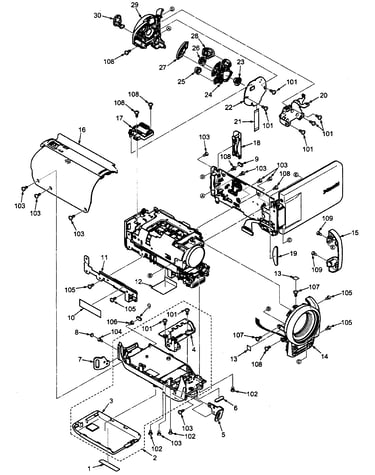

Cabinet 1 diagram

Integrated circuit

Part #309-675-0101

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 409-680-0704
#NI

Cabinet 1 diagram

Integrated circuit

Part #409-680-0704

The manufacturer no longer makes this part, and there's no substitute part

Adapter 645-095-6034
#7

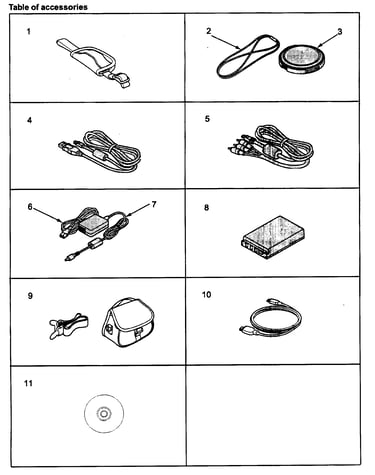

Accessories diagram

Adapter

Part #645-095-6034

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 645-098-8714
#6A

Accessories diagram

Ac cord

Part #645-098-8714

The manufacturer no longer makes this part, and there's no substitute part

Cover 636-121-4964
#30

Cabinet 1 diagram

Cover

Part #636-121-4964

The manufacturer no longer makes this part, and there's no substitute part

Button 636-121-4735
#25

Cabinet 1 diagram

Button

Part #636-121-4735

The manufacturer no longer makes this part, and there's no substitute part

Ic181,ic 309-650-3509
#NI

Cabinet 1 diagram

Ic181,ic

Part #309-650-3509

The manufacturer no longer makes this part, and there's no substitute part

T5402,transformer 645-084-1835
#NI

Cabinet 1 diagram

T5402,transformer

Part #645-084-1835

The manufacturer no longer makes this part, and there's no substitute part

F5006,fuse,1a 323-031-5500
#NI

Cabinet 1 diagram

F5006,fuse,1a

Part #323-031-5500

The manufacturer no longer makes this part, and there's no substitute part

Spacer Shield Wire 636-126-0671
#12

Cabinet 1 diagram

Spacer shield wire

Part #636-126-0671

The manufacturer no longer makes this part, and there's no substitute part
