Model # RB220PXYB3 Official Whirlpool 30" electric built-in continuous-cleaning oven
Here are the diagrams and repair parts for Official Whirlpool RB220PXYB3 30" electric built-in continuous-cleaning oven, as well as links to manuals and error code tables, if available.
By Schematic
By Part

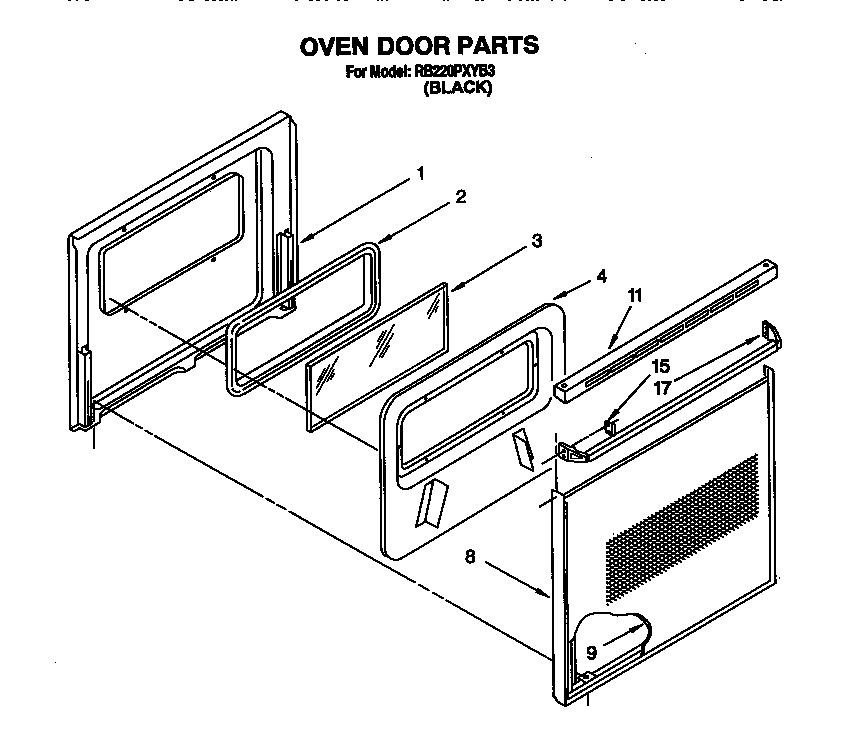

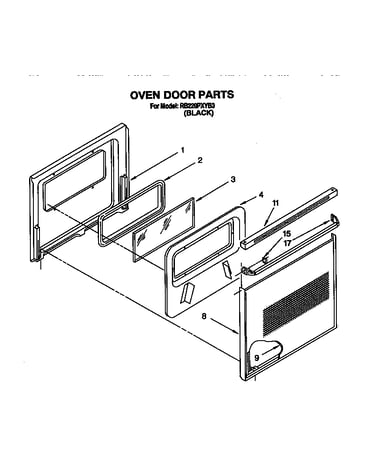

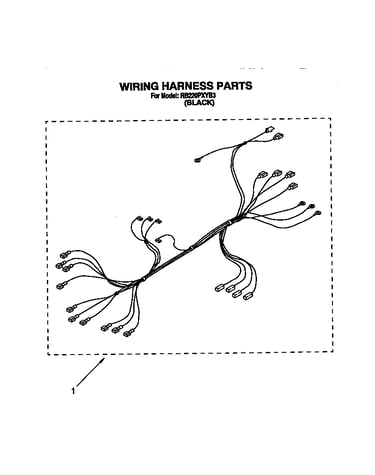

SELECT DIAGRAM
Browse Parts for
RB220PXYB3 Wall Ovens
#29

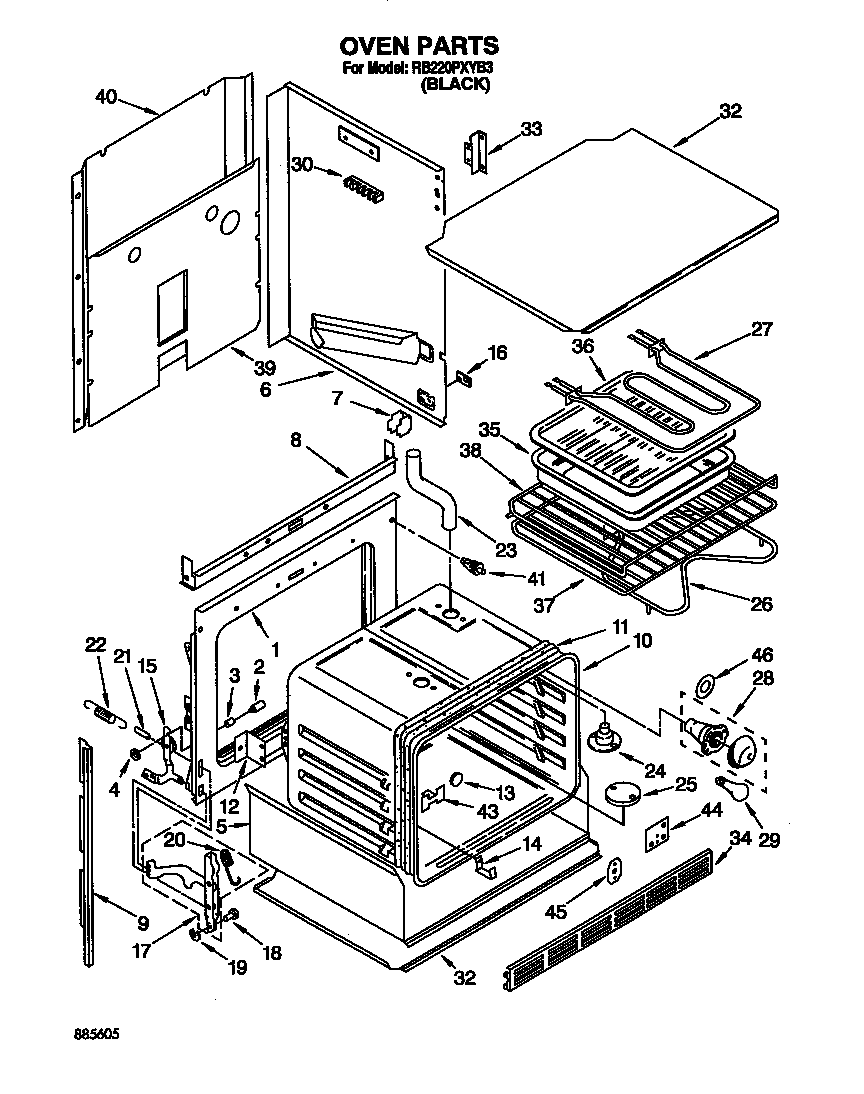

Oven diagram
Light bulb
Part #311255
Replaced by #40A15
?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
$16.80 |
11% OFF Phone Price : $18.80
In Stock
#26
Oven diagram
Bake element
Part #661170
Replaced by #WP308180
?
Manufacturer substitution
This part replaces 661170. Substitute parts can look different from the original.
$41.00 |
13% OFF Phone Price : $47.00
In Stock
Screw
Part #3148107
Replaced by #WP488729
?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw
Part #313638
Replaced by #WP488729
?
Manufacturer substitution
This part replaces 313638. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#46
Oven diagram
Gaskt-lite
Part #3184533
Replaced by #WP3184533
?
Manufacturer substitution
This part replaces 3184533. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
#30
Oven diagram
Terminal block
Part #258076
Replaced by #WP8203546
?
Manufacturer substitution
This part replaces 258076. Substitute parts can look different from the original.
This item is not returnable
$16.75 |
11% OFF Phone Price : $18.75
In Stock
#35
Oven diagram
Broiler pan
Part #3147845
Replaced by #4396923
?
Manufacturer substitution
This part replaces 3147845. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
#36
Oven diagram
Grid pan
Part #3147563
Replaced by #4396923
?
Manufacturer substitution
This part replaces 3147563. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
#14
Oven diagram
Clip bulb
Part #313382
Replaced by #98005642
?
Manufacturer substitution
This part replaces 313382. Substitute parts can look different from the original.
$67.51
In Stock
#26

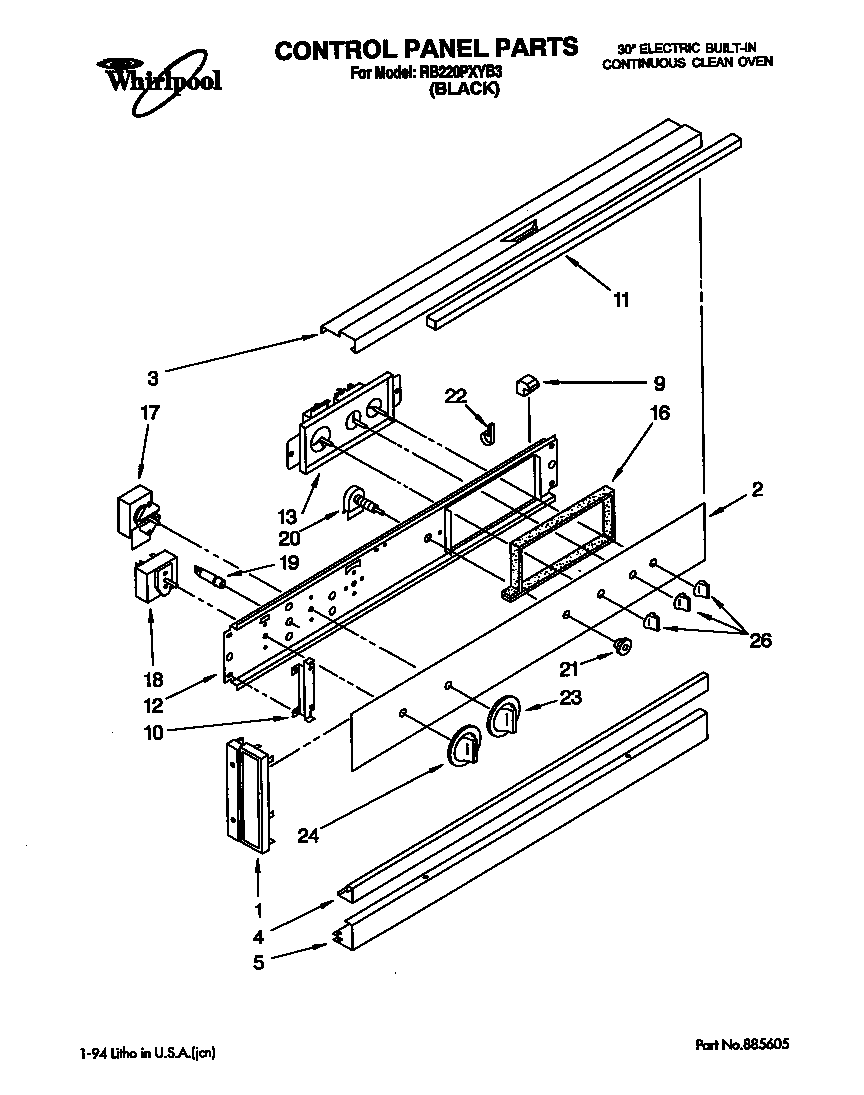

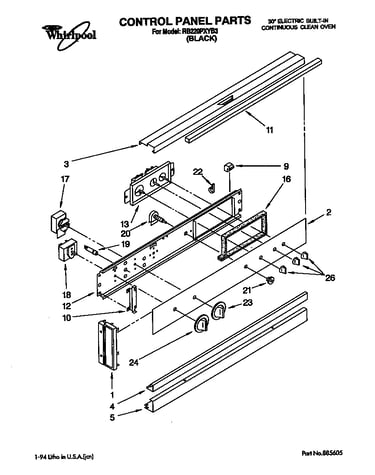

Control panel diagram
Range clock timer knob (black)
Part #3169181
Replaced by #WP3169181
?
Manufacturer substitution
This part replaces 3169181. Substitute parts can look different from the original.
This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
