Model # EH150FXVN00 Official Whirlpool chest freezer

Here are the diagrams and repair parts for Official Whirlpool EH150FXVN00 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Drier Tube 4356332
#4

Unit parts diagram

Drier tube

Part #4356332

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4356332. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Chest Freezer Lid Hinge Screw 308685
#14

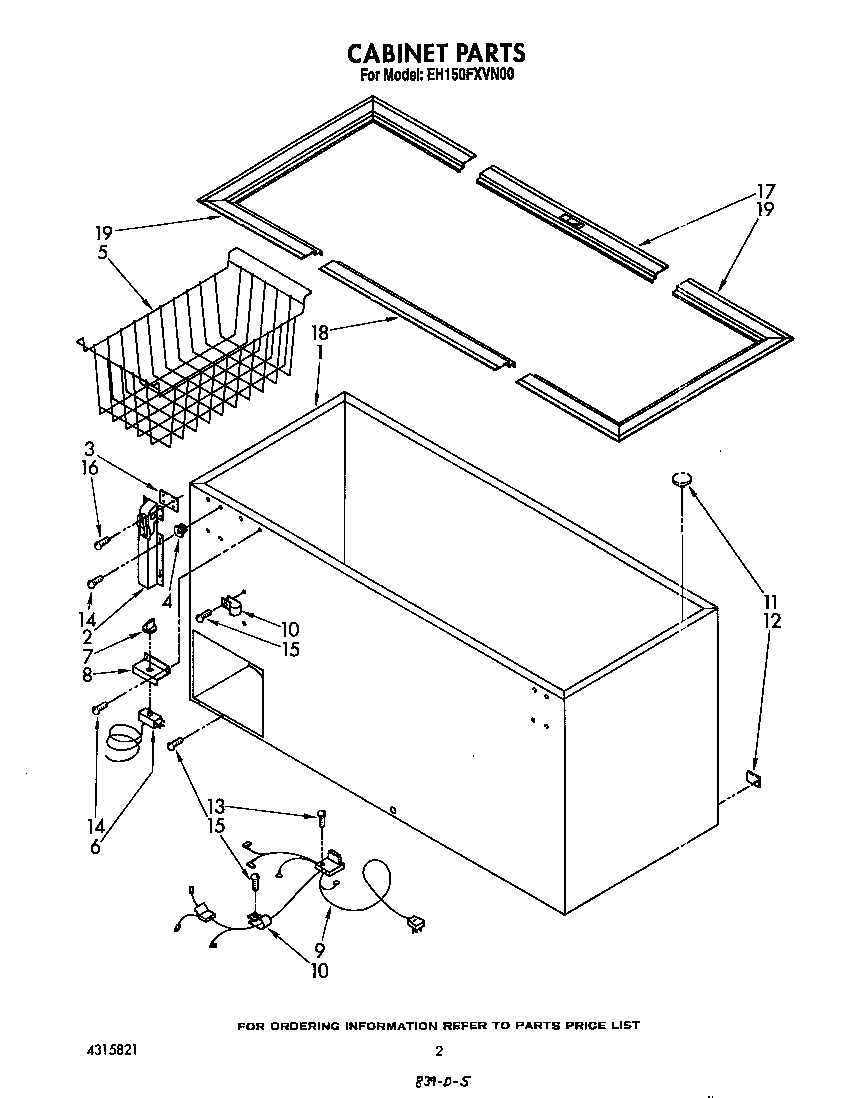

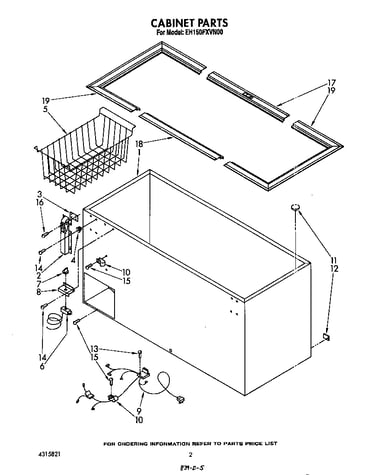

Cabinet parts diagram

Chest freezer lid hinge screw

Part #308685

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 308685. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Paint (almond) 350956

#NI

All parts diagram

Paint (almond)

Part #350956

Replaced by #350956

?
Manufacturer substitution
This part replaces 350956. Substitute parts can look different from the original.
This item is not returnable
$20.89 |
22% OFF Phone Price : $26.89
In Stock
Grommet 4356321
#4

Cabinet parts diagram

Grommet

Part #4356321

$15.29 |
12% OFF Phone Price : $17.29
In Stock
Freezer Door Handle Mounting Bolt 4356306
#6

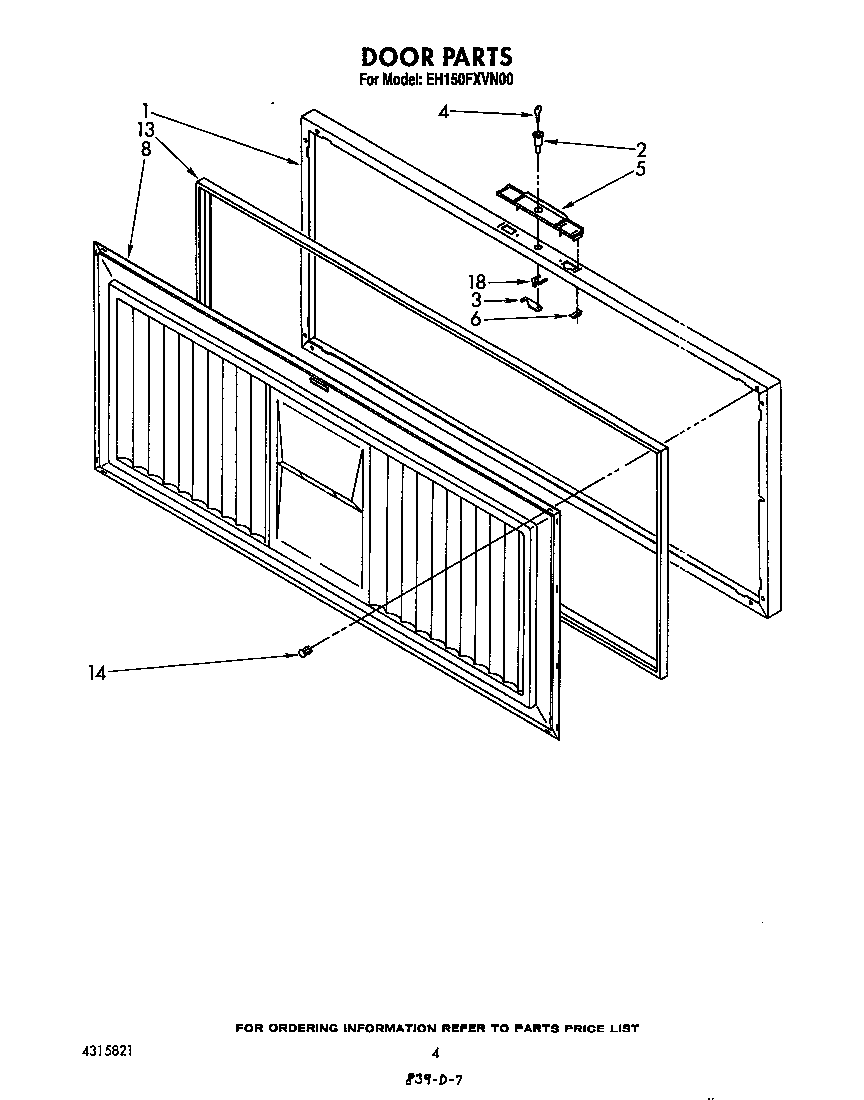

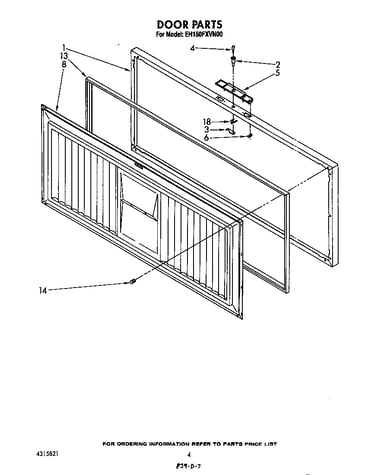

Door parts diagram

Freezer door handle mounting bolt

Part #4356306

Replaced by #3-24059-024

?
Manufacturer substitution
This part replaces 4356306. Substitute parts can look different from the original.
$9.79
In Stock
Touch Up 72107

#NI

All parts diagram

Touch up

Part #72107

Replaced by #WP72107

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
This item is not returnable
$8.07 |
11% OFF Phone Price : $9.07
In Stock
Door Gasket 4356364
#13

Door parts diagram

Door gasket

Part #4356364

Replaced by #WP4-35260-005

?
Manufacturer substitution
This part replaces 4356364. Substitute parts can look different from the original.
$124.66 |
9% OFF Phone Price : $136.66
In Stock
Hook 4356303
#3

Door parts diagram

Hook

Part #4356303

Replaced by #2-35195-002

?
Manufacturer substitution
This part replaces 4356303. Substitute parts can look different from the original.
$35.24
In Stock
Spacer 4356320
#3

Cabinet parts diagram

Spacer

Part #4356320

Replaced by #1-17548-006

?
Manufacturer substitution
This part replaces 4356320. Substitute parts can look different from the original.
$18.96
In Stock
Tube Clamp 4356328
#10

Cabinet parts diagram

Tube clamp

Part #4356328

Replaced by #488946

?
Manufacturer substitution
This part replaces 4356328. Substitute parts can look different from the original.
$14.00
In Stock
