White-Westinghouse
Electric Range

Model # KF520GDD2 Official White-Westinghouse 30" electric freestanding range - l2811078

Here are the diagrams and repair parts for Official White-Westinghouse KF520GDD2 30" electric freestanding range - l2811078, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Base 500411
#57

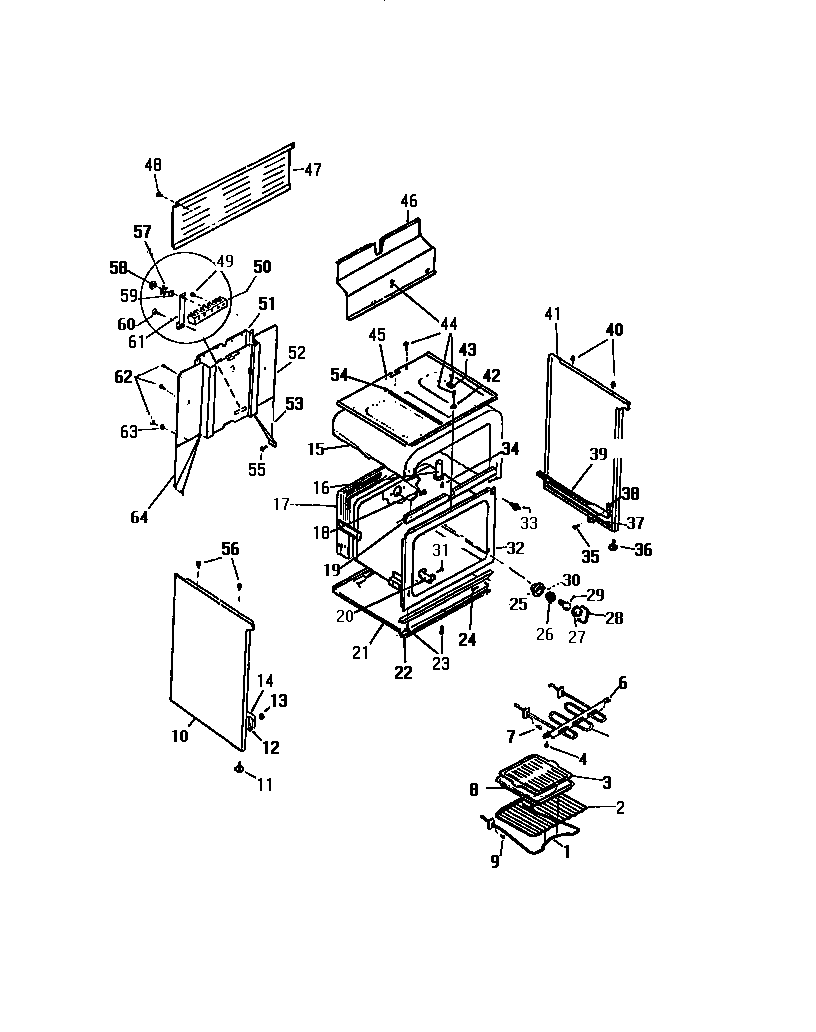

Body, side panels diagram

Base

Part #500411

Replaced by #3281107

?
Manufacturer substitution
This part replaces 500411. Substitute parts can look different from the original.
$14.14
In Stock
Bracket, Therm. Bulb K1311369
#20

Body, side panels diagram

Bracket, therm. bulb

Part #K1311369

The manufacturer no longer makes this part, and there's no substitute part

Support, Lh K5025202
#7

Backguard diagram

Support, lh

Part #K5025202

The manufacturer no longer makes this part, and there's no substitute part

6" Surface Unit (2) K1323559
#10

Top/drawer diagram

6" surface unit (2)

Part #K1323559

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Switch K5294301
#33

Body, side panels diagram

Oven light switch

Part #K5294301

The manufacturer no longer makes this part, and there's no substitute part

End Panel, Rh, Coffee K5024605
#41

Body, side panels diagram

End panel, rh, coffee

Part #K5024605

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover K5276202
#51

Body, side panels diagram

Wire cover

Part #K5276202

The manufacturer no longer makes this part, and there's no substitute part

Selector Switch K5146703
#2

Backguard diagram

Selector switch

Part #K5146703

The manufacturer no longer makes this part, and there's no substitute part

Screw K5022101
#34

Backguard diagram

Screw

Part #K5022101

The manufacturer no longer makes this part, and there's no substitute part

Hinge K5024901
#15

Top/drawer diagram

Hinge

Part #K5024901

The manufacturer no longer makes this part, and there's no substitute part
