Electric Water Heater

Model # 680DORT Official Reliance water heater

Here are the diagrams and repair parts for Official Reliance 680DORT water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Thermostat 183532-000
#19

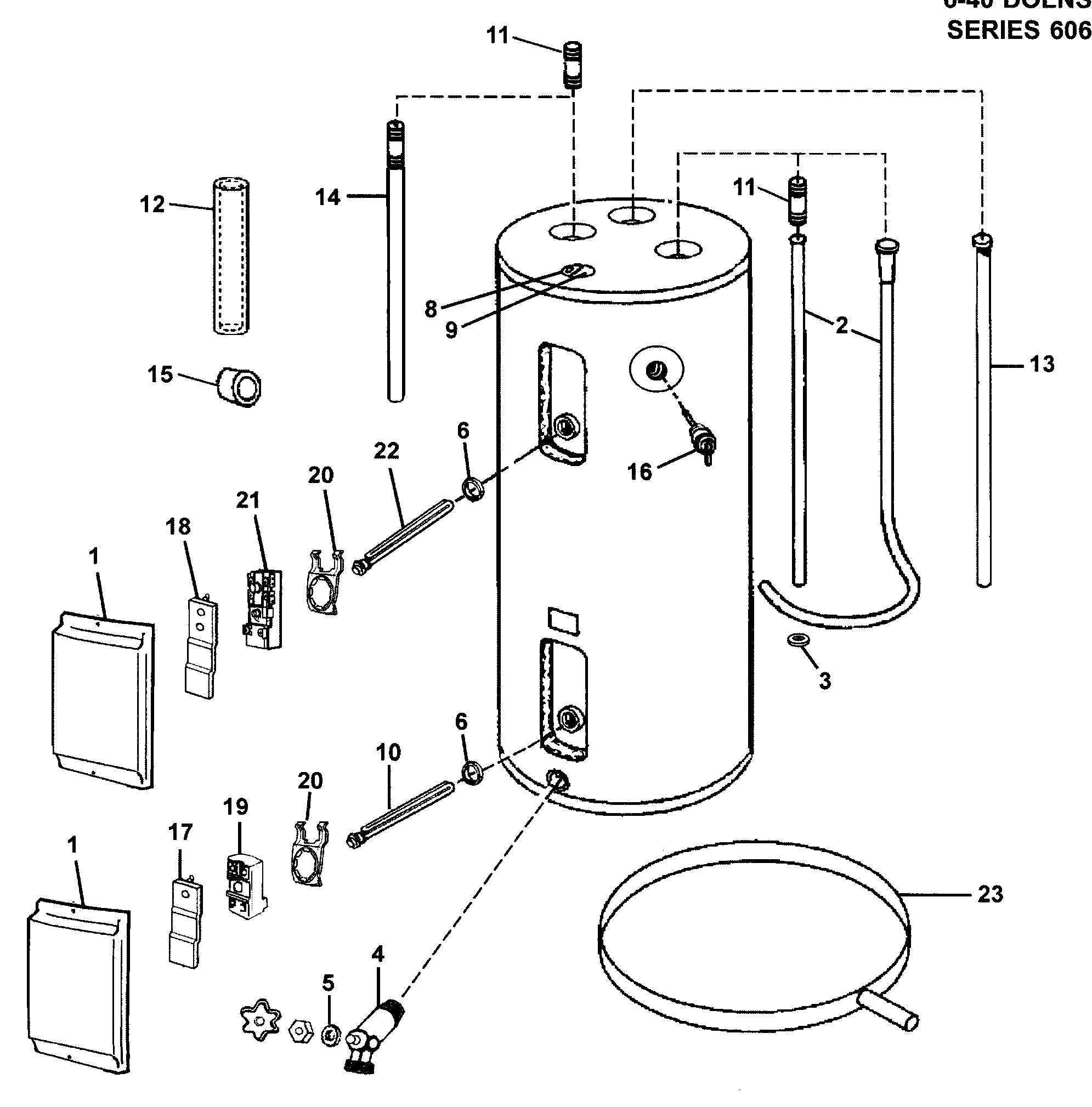

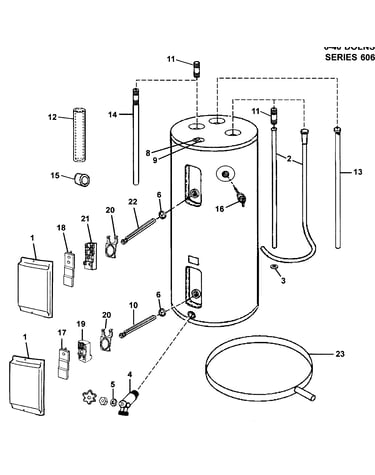

Cabinet assy diagram

Thermostat

Part #183532-000

Replaced by #9000507015

?
Manufacturer substitution
This part replaces 183532-000. Substitute parts can look different from the original.
BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Thermostat 183534-000
#21

Cabinet assy diagram

Thermostat

Part #183534-000

Replaced by #9001954

?
Manufacturer substitution
This part replaces 183534-000. Substitute parts can look different from the original.
$57.74
In Stock
2-way 042286-022
#10

Cabinet assy diagram

2-way

Part #042286-022

Replaced by #100108290

?
Manufacturer substitution
This part replaces 042286-022. Substitute parts can look different from the original.
$33.33
In Stock
Box Cover 184660-000
#9

Cabinet assy diagram

Box cover

Part #184660-000

$17.99
In Stock
Cover 184659-000
#8

Cabinet assy diagram

Cover

Part #184659-000

$17.99
In Stock
Element 042286-021
#22

Cabinet assy diagram

Element

Part #042286-021

Replaced by #100108283

?
Manufacturer substitution
This part replaces 042286-021. Substitute parts can look different from the original.
$27.14
In Stock
Access Panel 181260-000
#1

Cabinet assy diagram

Access panel

Part #181260-000

Replaced by #100109599

?
Manufacturer substitution
This part replaces 181260-000. Substitute parts can look different from the original.
$30.00
In Stock
Anode Rod 183523-033
#13

Cabinet assy diagram

Anode rod

Part #183523-033

The manufacturer no longer makes this part, and there's no substitute part

Bracket 184608-000
#20

Cabinet assy diagram

Bracket

Part #184608-000

The manufacturer no longer makes this part, and there's no substitute part

Relief Valve 043151-000
#16

Cabinet assy diagram

Relief valve

Part #043151-000

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your water heaters

Choose a symptom to see related water heater repairs.

View all

Why isn't my water heater heating my water?

Main causes: lack of power, no gas supply, thermostat limit switch tripped, bad element, bad thermostat, gas valve failu…

Read more

Why isn't my water heater making the water hot enough?

Main causes: thermostats need adjustment, water heater capacity too low, bad heating element, thermostat failure, excess…

Read more

Why is there water in my water heater's drain pan?

Main causes: loose water pipe fittings, leaky drain valve, bad temperature-pressure relief valve, leaky heating element,…

Read more

Why does my hot water smell like rotten eggs?

Main causes: water supply needs chlorine treatment, anode rod too reactive…

Read more

Why isn't my water heater making enough hot water?

Main causes: broken heating element, thermostat failure, excessive tank sediment, tank size too small, burner valve asse…

Read more

Why is my water heater making the water too hot?

Main causes: thermostat temperature set too high, thermostats need adjustment, faulty thermostat, shorted heating elemen…

Read more

Why is my water heater's pressure relief valve dripping water?

Main causes: faulty pressure relief valve, water is overheating…

Read more
