Model # BT18NS-3 Official Magic Chef rv range

Here are the diagrams and repair parts for Official Magic Chef BT18NS-3 rv range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Door Hinge 3418A058-34
#6

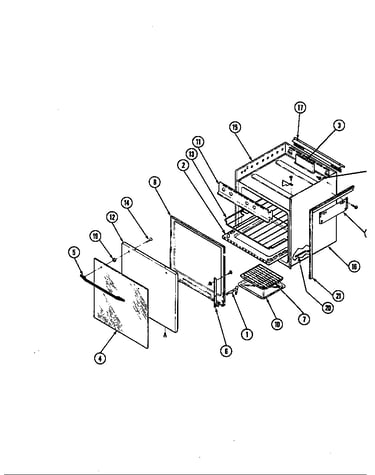

Cavity & door diagram

Door hinge

Part #3418A058-34

Replaced by #12400029

?
Manufacturer substitution
This part replaces 3418A058-34. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Spring Arm 50-20173
#1

Cavity & door diagram

Spring arm

Part #50-20173

The manufacturer no longer makes this part, and there's no substitute part

Broiler Pan 50-22114-2
#10

Cavity & door diagram

Broiler pan

Part #50-22114-2

The manufacturer no longer makes this part, and there's no substitute part

Knob 50-20281
#9

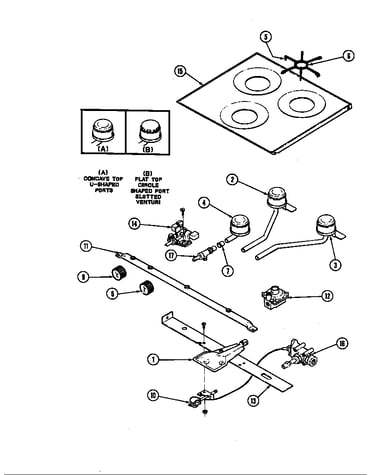

Main top & burner assembly diagram

Knob

Part #50-20281

The manufacturer no longer makes this part, and there's no substitute part

Valve 997-626
#16

Main top & burner assembly diagram

Valve

Part #997-626

The manufacturer no longer makes this part, and there's no substitute part

Valve, Merc 997-631
#16A

Main top & burner assembly diagram

Valve, merc

Part #997-631

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Knob 50-20781
#9A

Main top & burner assembly diagram

Thermostat knob

Part #50-20781

The manufacturer no longer makes this part, and there's no substitute part

"t" Fitting (flange) N/P
"t" fitting (flange)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Pressure Regulator 7510P031-60
#12

Main top & burner assembly diagram

Pressure regulator

Part #7510P031-60

The manufacturer no longer makes this part, and there's no substitute part

Spring, Ov D 50-25111
#20

Cavity & door diagram

Spring, ov d

Part #50-25111

The manufacturer no longer makes this part, and there's no substitute part
