Craftsman
Gas Walk-Behind Mower

Model # 917370880 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917370880 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

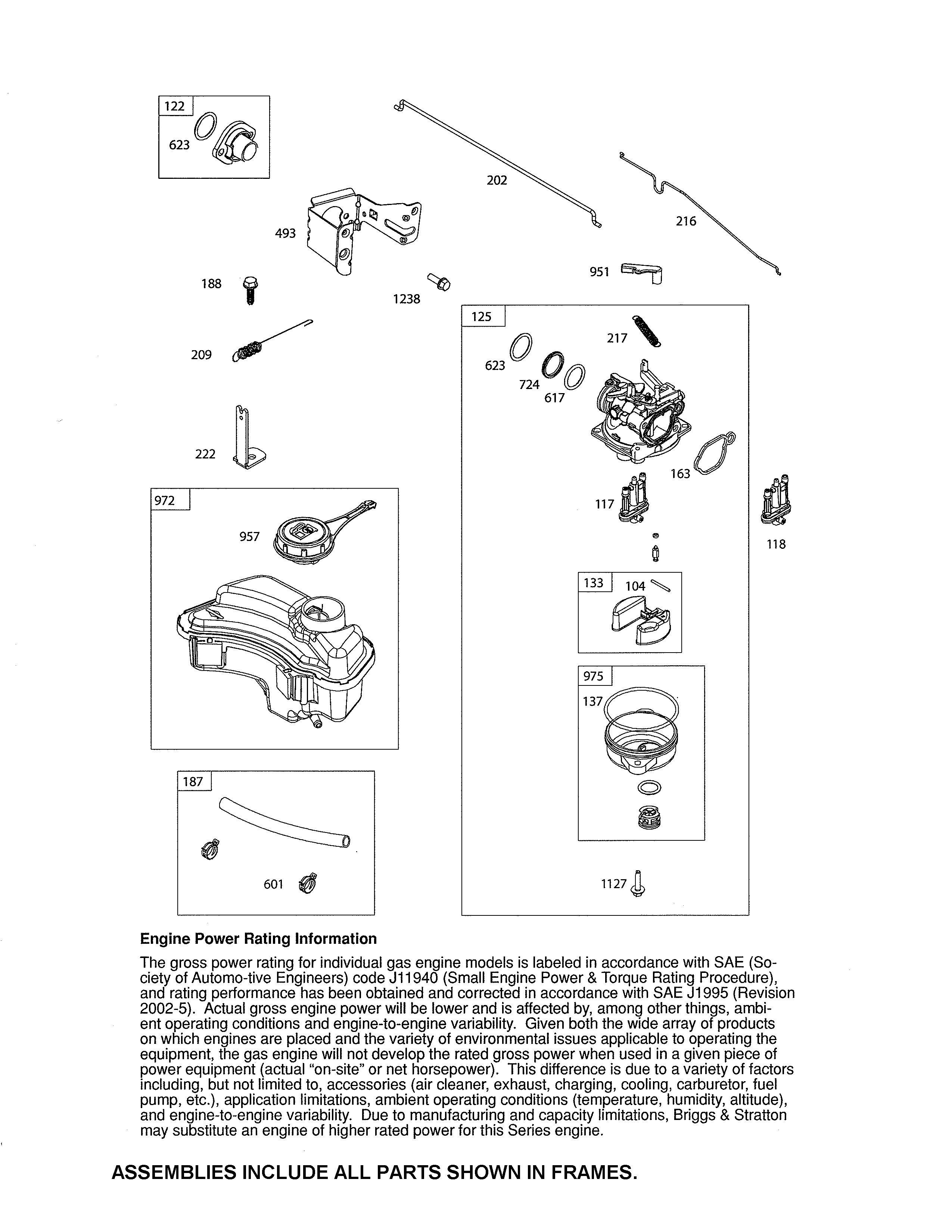

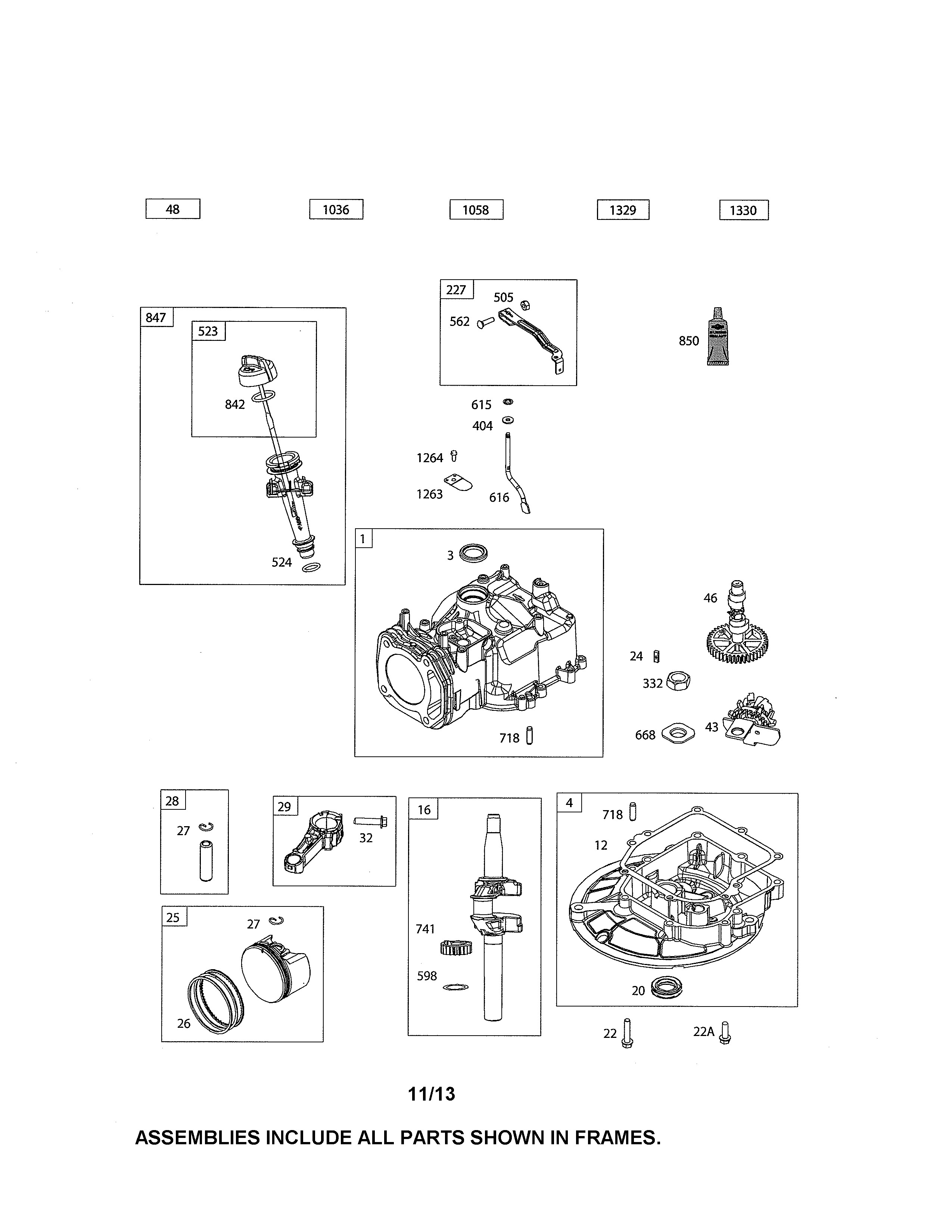

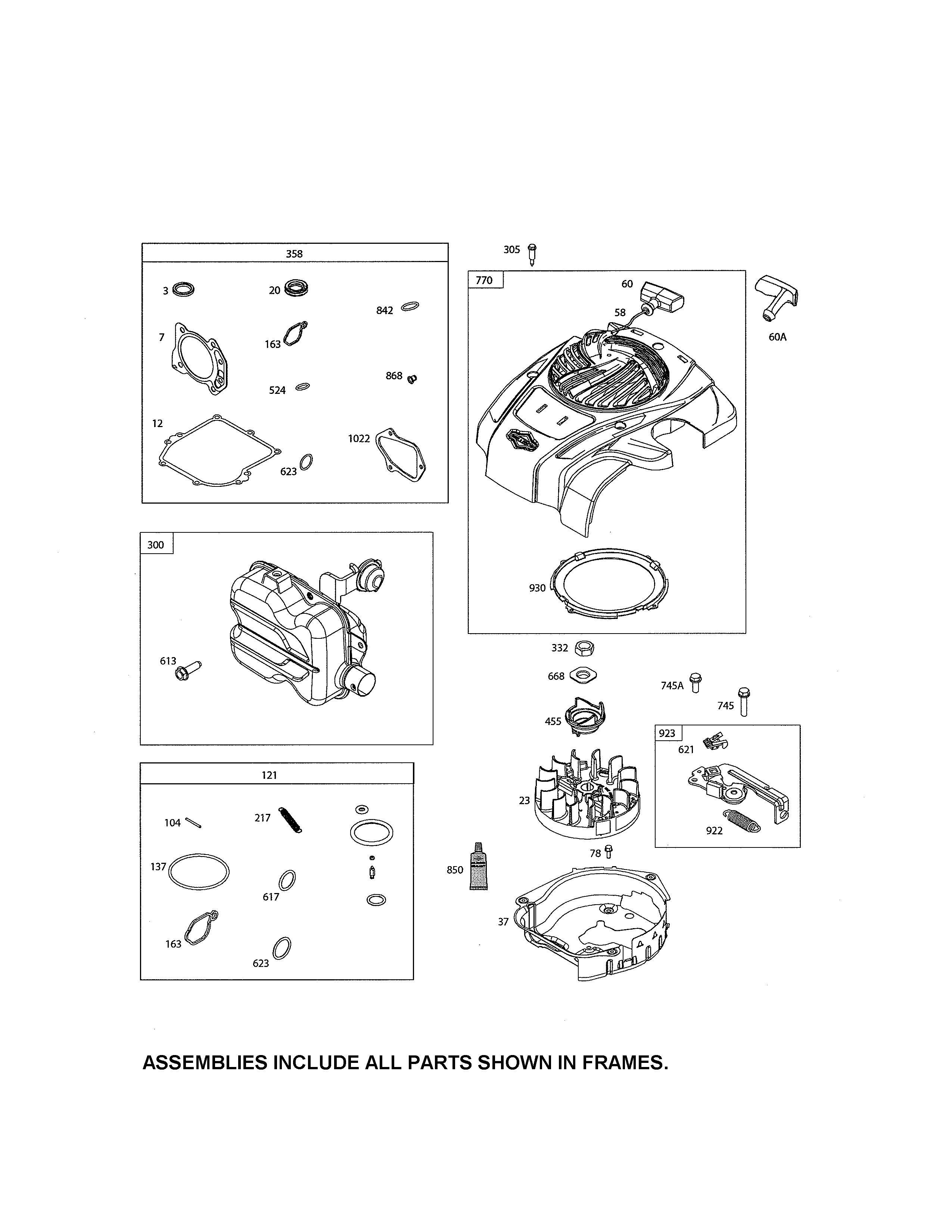

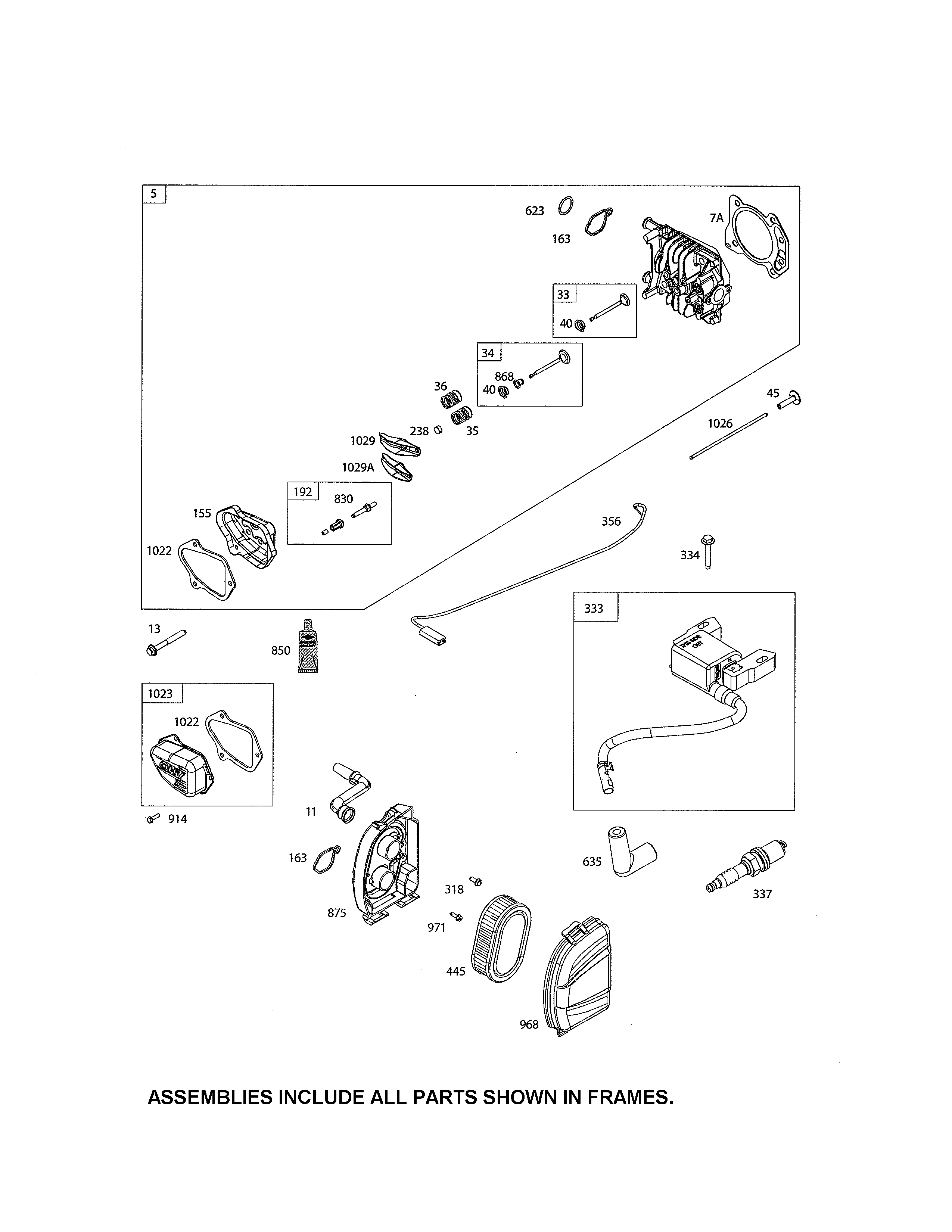

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 212 parts  |
Lawn & Garden Equipment Nut 409148
#33

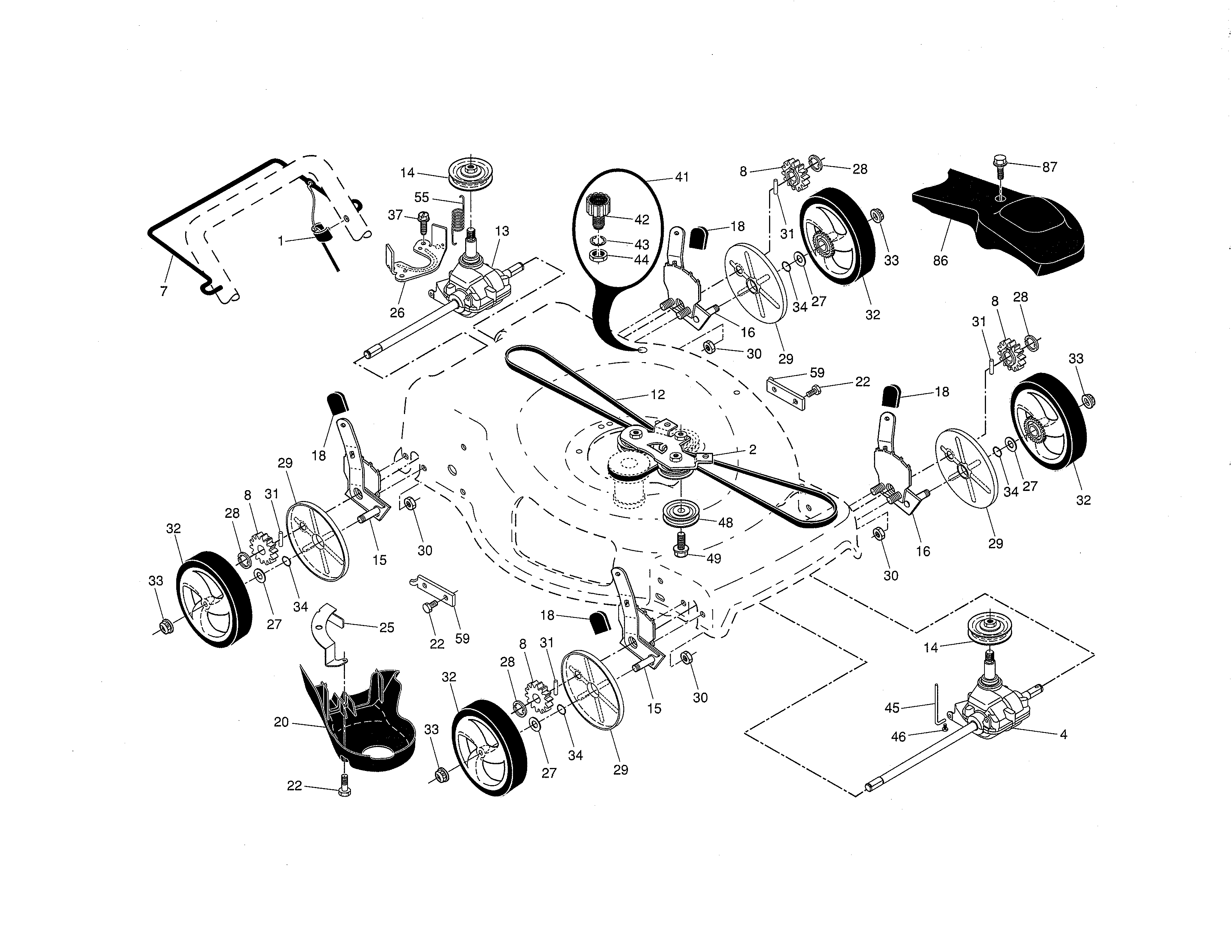

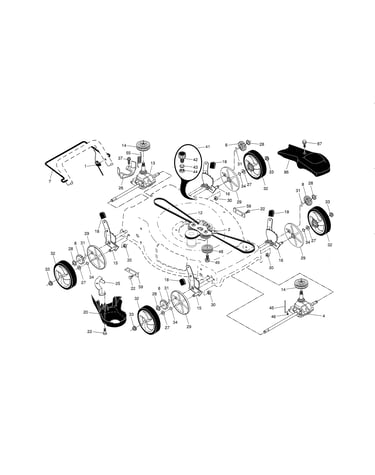

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Handle Bolt 191574
#59

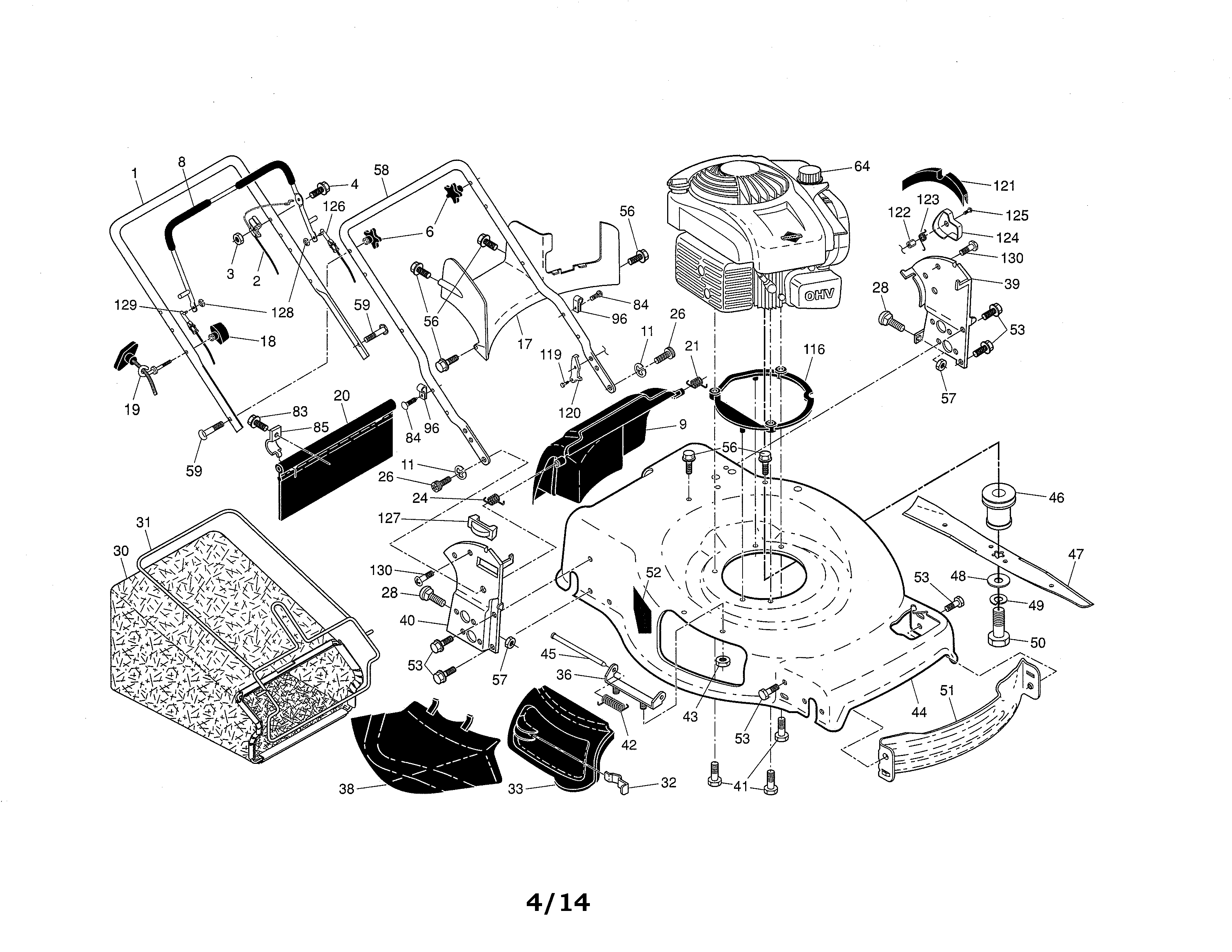

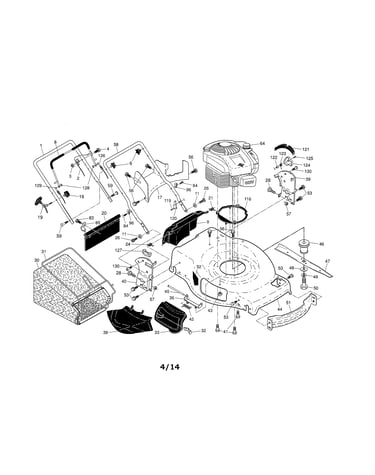

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Height Adjuster Knob 701037
#18

Drive control/gear case/wheels diagram

Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Drive Pawl 404845
#31

Drive control/gear case/wheels diagram

Drive pawl

Part #404845

Replaced by #532404845

?
Manufacturer substitution
This part replaces 404845. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Height Adjuster 581497904
#16

Drive control/gear case/wheels diagram

Lawn mower height adjuster

Part #581497904

Replaced by #581497907

?
Manufacturer substitution
This part replaces 581497904. Substitute parts can look different from the original.
BEST SELLER
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Lawn Mower Wheel (replaces 405745x428) 581685305
#32

Drive control/gear case/wheels diagram

Lawn mower wheel (replaces 405745x428)

Part #581685305

BEST SELLER
$27.98 |
18% OFF Phone Price : $33.98
In Stock
Belt.drive.a 580364602
#12

Drive control/gear case/wheels diagram

Belt.drive.a

Part #580364602

Replaced by #580364610

?
Manufacturer substitution
This part replaces 580364602. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$19.98 |
9% OFF Phone Price : $21.98
In Stock
Lawn Mower Grass Bag Frame Assembly 446432
#31

Engine/housing/handle diagram

Lawn mower grass bag frame assembly

Part #446432

Replaced by #585054703

?
Manufacturer substitution
This part replaces 446432. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$32.98 |
15% OFF Phone Price : $38.98
In Stock
Nut 132004
#3

Engine/housing/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Bolt 17000510
Bolt

Part #17000510

Replaced by #817000510

?
Manufacturer substitution
This part replaces 17000510. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
