Model # 502451233 Official Sears 26" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502451233 26" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Sprocket 300424
#17C

Clutch diagram

Sprocket

Part #300424

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518

#NI

All parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Spk 11-9/32 303157
#11

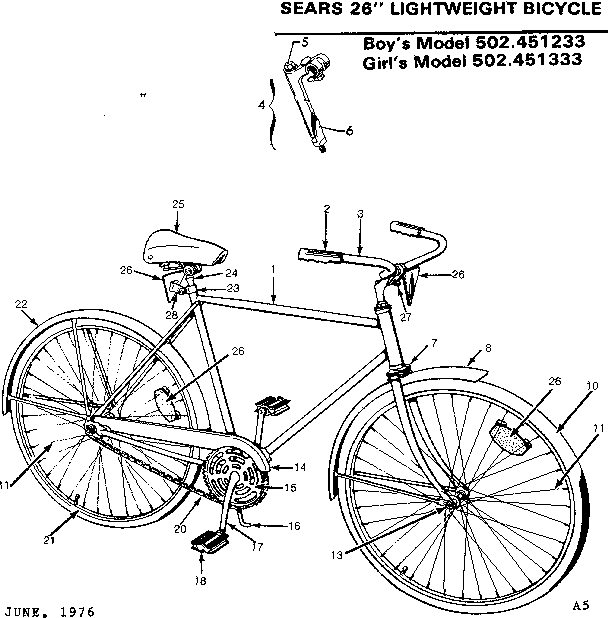

Frame assembly diagram

Spk 11-9/32

Part #303157

The manufacturer no longer makes this part, and there's no substitute part

Saddle 65X992
#25A

Frame assembly diagram

Saddle

Part #65X992

The manufacturer no longer makes this part, and there's no substitute part

Crank 12300C
#17

Frame assembly diagram

Crank

Part #12300C

The manufacturer no longer makes this part, and there's no substitute part

Bar Stem 27160
#4

Frame assembly diagram

Bar stem

Part #27160

The manufacturer no longer makes this part, and there's no substitute part

Hub Cone 300403
#19

Clutch diagram

Hub cone

Part #300403

The manufacturer no longer makes this part, and there's no substitute part

(4-6) Expander Bolt, Washer, And Wedge N/P
(4-6) expander bolt, washer, and wedge

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Saddle 65X270
#25B

Frame assembly diagram

Saddle

Part #65X270

The manufacturer no longer makes this part, and there's no substitute part

Handlebar 13151C
#3

Frame assembly diagram

Handlebar

Part #13151C

The manufacturer no longer makes this part, and there's no substitute part
